Acura RDX (2007 – 2012) Fuse Box Diagrams & Location
The Acura RDX (2007 – 2012) has multiple fuse boxes managing its electrical systems. This guide offers clear fuse box diagrams and exact locations, making it easy to identify and replace fuses to keep your vehicle’s electrical components running smoothly.
Fuse Box Locations

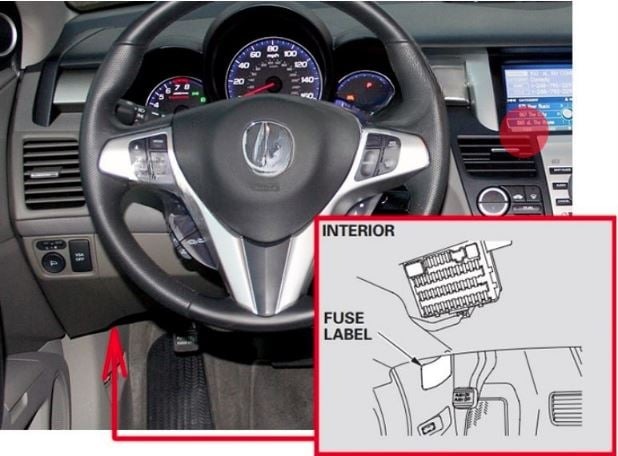

Passenger Compartment Fuse Box
It is located on the driver’s lower left side.
Engine Compartment Fuse Box

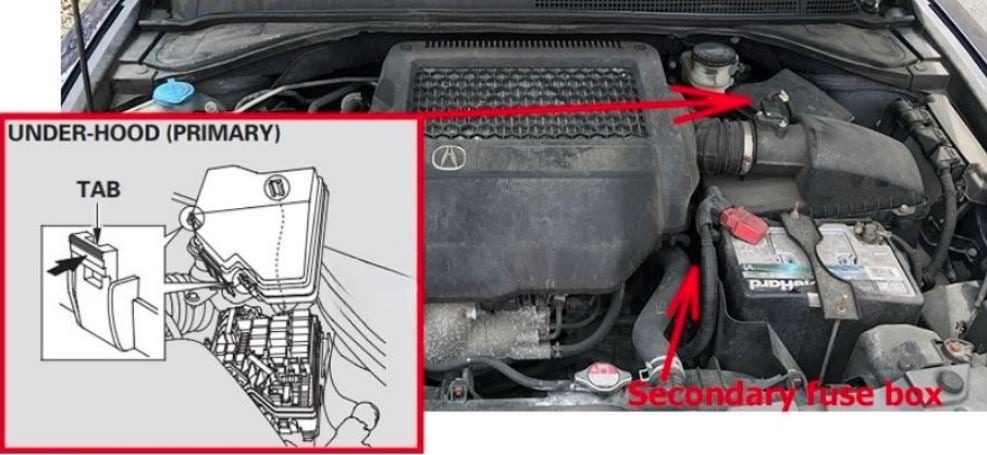

The primary under-hood Fuse Box. It is located in the engine compartment on the driver’s side. To open it, push the tabs as shown.

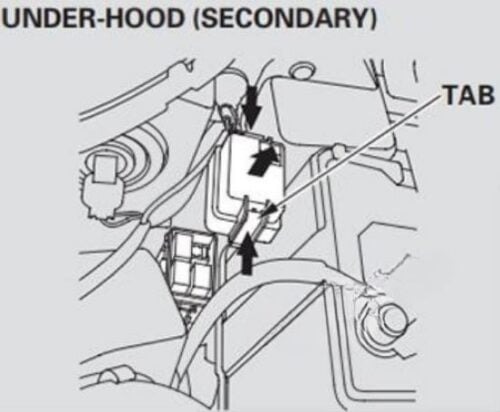

The secondary under-hood Fuse Box.Located next to the battery. To open it, push the tabs as shown.

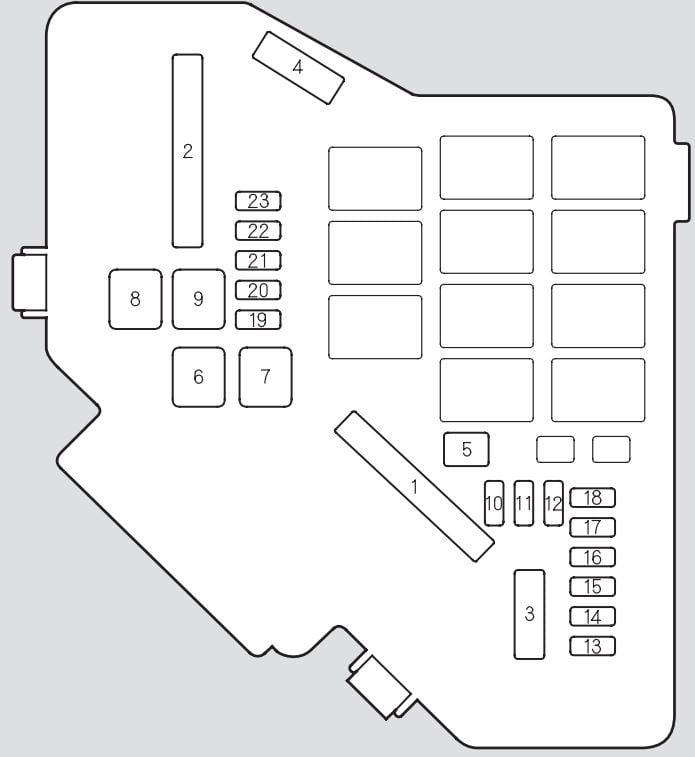

Engine Compartment Fuse Box Diagram
Acura RDX ( 2007 and 2008)
PRIMARY UNDER-HOOD FUSE BOXES
| No. | Amps. | Circuits Protected |
| 1 | 100 A | Main Fuse |
| 30 A | SH-AWD | |
| 2 | 80 A | Option Main |
| 50 A | Ignition Switch Main | |
| 3 | 20 A | ABS/VSA Fail Safe |
| 40 A | ABS/VSA Motor | |
| 4 | 50 A | Headlight Main |
| 40 A | Power Window Main | |
| 5 | — | Not Used |
| 6 | 30 A | Main Fan Motor |
| 7 | 30 A | Sub Fan Motor |
| 8 | 30 A | Rear Defogger |
| 9 | 40 A | Blower |
| 10 | 15 A | Hazard |
| 11 | 15 A | LAF |
| 12 | 15 A | Stop & Horn |
| 13 | 20 A | Power Seat (Recline) |
| 14 | 20 A | Power Seat (Slide) |
| 15 | 7.5 A | IGPS Oil Level |
| 16 | — | Not Used |
| 17 | 15 A | Electric Vacuum Pump |
| 18 | 15 A | IG Coil |
| 19 | 15 A | FI Main |
| 20 | 7.5 A | MG Clutch |
| 21 | 15 A | DBW |
| 22 | 7.5 A | Interior Light |
| 23 | 10 A | Back Up |

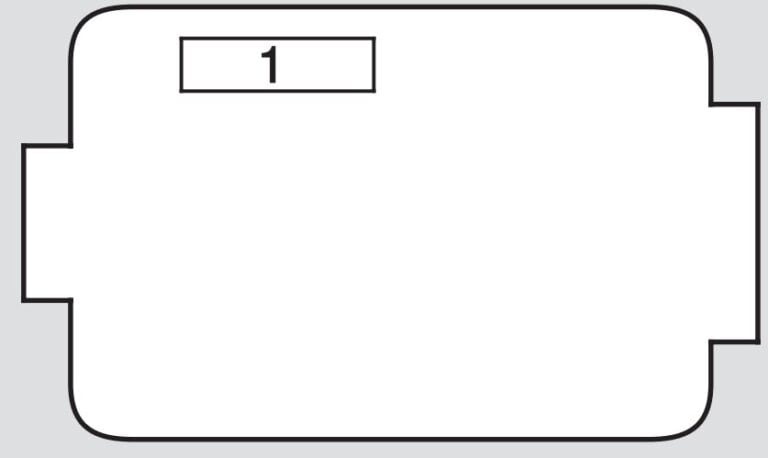

SECONDARY UNDER-HOOD FUSE BOXES
| No. | Amps. | Circuits Protected |
| 1 | 7.5 A | Electric Vacuum Pump |
Acura RDX ( 2009)
PRIMARY UNDER-HOOD FUSE BOXES
| No. | Amps. | Circuits Protected |
| 1 | 100 A | Main Fuse |
| 30 A | SH-AWD | |
| 2 | 80 A | Option Main |
| 50 A | Ignition Switch Main | |
| 3 | 40 A | ABS/VSA Motor |
| 20 A | ABS/VSA Fail Safe | |
| 4 | 50 A | Headlight Main |
| 40 A | Power Window Main | |
| 5 | 30 A | Passenger’s Power Seat Reclining |
| 6 | 30 A | Main Fan Motor |
| 7 | 30 A | Sub Fan Motor |
| 8 | 30 A | Rear Defogger |
| 9 | 40 A | Blower |
| 10 | 15 A | Hazard |
| 11 | 15 A | LAF |
| 12 | 15 A | Stop & Horn |
| 13 | 20 A | Driver’s Power Seat Reclining |
| 14 | 20 A | Driver’s Power Seat Sliding |
| 15 | 7.5 A | IGPS Oil Level |
| 16 | 20 A | Passenger’s Power Seat Sliding |
| 17 | 15 A | Electric Vacuum Pump |
| 18 | 15 A | IG Coil |
| 19 | 15 A | FI Main |
| 20 | 7.5 A | MG Clutch |
| 21 | 15 A | DBW |
| 22 | 7.5 A | Interior Light |
| 23 | 10 A | Back Up |

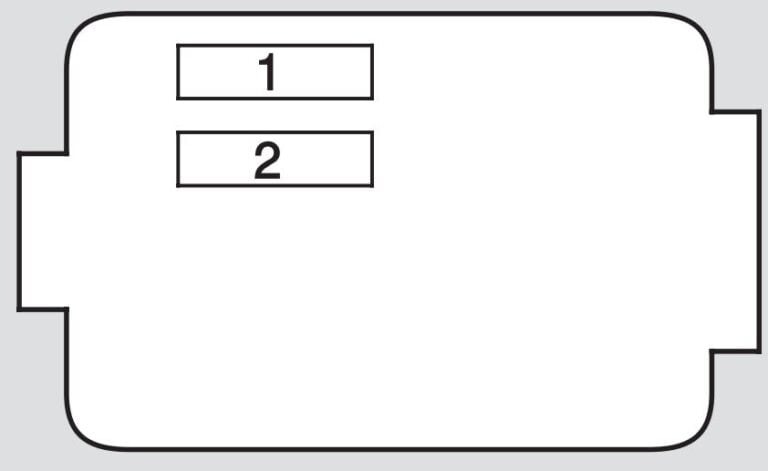

SECONDARY UNDER-HOOD FUSE BOXES
| No. | Amps. | Circuits Protected |
| 1 | 7.5 A | Electric Vacuum Pump |
| 2 | 20 A | Passenger’s Power Seat Reclining |
Acura RDX ( 2010,2011 and 2012)
PRIMARY UNDER-HOOD FUSE BOXES
| No. | Amps. | Circuits Protected |
| 1 | 100 A | Main Fuse |
| 30 A | SH-AWD* | |
| 2 | 80 A | Option Main |
| 50 A | Ignition Switch Main | |
| 3 | 40 A | ABS/VSA Motor |
| 20 A | ABS/VSA Fail Safe | |
| 4 | 50 A | Headlight Main |
| 40 A | Power Window Main | |
| 5 | 30 A | Passenger’s Power Seat Reclining |
| 6 | 30 A | Main Fan Motor |
| 7 | 30 A | Sub Fan Motor |
| 8 | 30 A | Rear Defogger |
| 9 | 40 A | Blower |
| 10 | 15 A | Hazard |
| 11 | 15 A | LAF |
| 12 | 15 A | Stop & Horn |
| 13 | 20 A | Driver’s Power Seat Reclining |
| 14 | 20 A | Driver’s Power Seat Sliding |
| 15 | 7.5 A | IGPS Oil Level |
| 16 | 20 A | Passenger’s Power Seat Sliding |
| 17 | 15 A | Electric Vacuum Pump |
| 18 | 15 A | IG Coil |
| 19 | 15 A | FI Main |
| 20 | 7.5 A | MG Clutch |
| 21 | 15 A | DBW |
| 22 | 7.5 A | Interior Light |
| 23 | 10 A | Back Up |
SECONDARY UNDER-HOOD FUSE BOXES
| No. | Amps. | Circuits Protected |
| 1 | 7.5 A | Electric Vacuum Pump |
| 2 | 20 A | Passenger’s Power Seat Reclining |

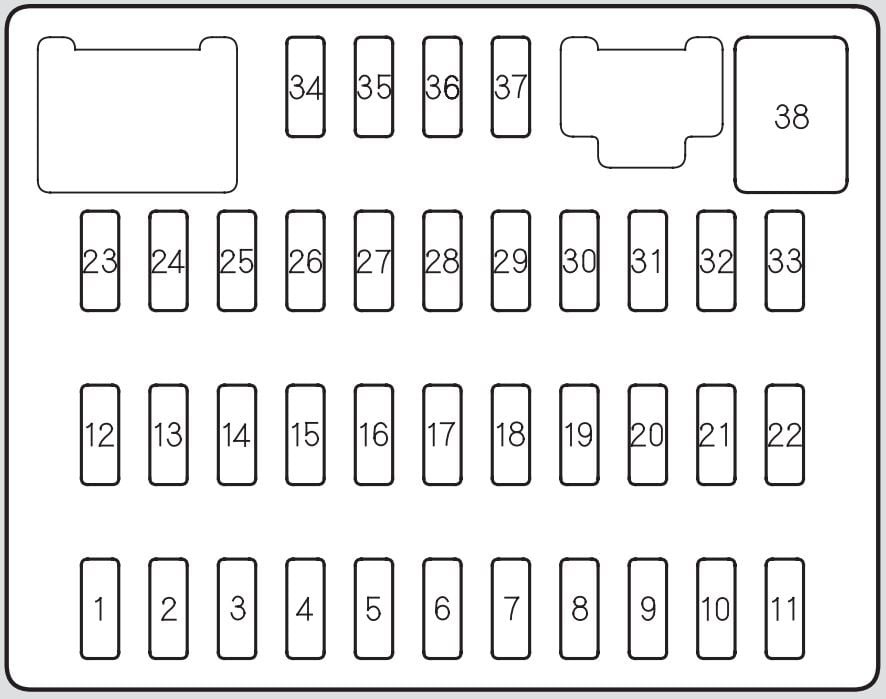

Passenger Compartment Fuse Box Diagram
Acura RDX ( 2007 and 2008)
| No. | Amps. | Circuits Protected |
| 1 | 7.5 A | SH-AWD |
| 2 | 20 A | Fuel Pump |
| 3 | 15 A | ACG |
| 4 | 7.5 A | ABS/VSA |
| 5 | 15 A | Heated Seat |
| 6 | 20 A | FR Fog Lights |
| 7 | 7.5 A | Driver’s Power Seat Lumbar Support |
| 8 | 10 A | RR Wiper |
| 9 | 7.5 A | OPDS |
| 10 | 7.5 A | Meter |
| 11 | 10 A | SRS |
| 12 | 10 A | Right Headlight High |
| 13 | 10 A | Left Headlight High |
| 14 | 7.5 A | Small Lights (Interior) |
| 15 | 15 A | Small Lights (Exterior) |
| 16 | 15 A | Right Headlight Low |
| 17 | 15 A | Left Headlight Low |
| 18 | 20 A | Headlight High Main |
| 19 | 20 A | Small Lights Main |
| 20 | 7.5 A | TPMS |
| 21 | 30 A | Headlight Low Main |
| 22 | — | Not Used |
| 23 | — | Not Used |
| 24 | 20 A | Moonroof |
| 25 | 20 A | Door Lock |
| 26 | 20 A | Driver’s Power Window |
| 27 | — | Not Used |
| 28 | 15 A | Accessory Socket (Console Compartment) |
| 29 | 15 A | +B ACC |
| 30 | 20 A | Passenger’s Power Window |
| 31 | 20 A | Radio Amplifier |
| 32 | 20 A | Right Rear Power Window |
| 33 | 20 A | Left Rear Power Window |
| 34 | — | Not Used |
| 35 | 7.5 A | Radio |
| 36 | 10 A | HAC |
| 37 | 7.5 A | Daytime Running Light |
| 38 | 30 A | FR Wiper |
Acura RDX ( 2009)
| No. | Amps. | Circuits Protected |
| 1 | 7.5 A | SH-AWD |
| 2 | 20 A | Fuel Pump |
| 3 | 15 A | ACG |
| 4 | 7.5 A | ABS/VSA |
| 5 | 15 A | Heated Seat |
| 6 | 20 A | FR Fog Lights |
| 7 | 7.5 A | Driver’s Power Seat Lumbar Support |
| 8 | 10 A | RR Wiper |
| 9 | 7.5 A | OPDS |
| 10 | 7.5 A | Meter |
| 11 | 10 A | SRS |
| 12 | 10 A | Right Headlight High |
| 13 | 10 A | Left Headlight High |
| 14 | 7.5 A | Small Lights (Interior) |
| 15 | 15 A | Small Lights (Exterior) |
| 16 | 15 A | Right Headlight Low |
| 17 | 15 A | Left Headlight Low |
| 18 | 20 A | Headlight High Main |
| 19 | 20 A | Small Lights Main |
| 20 | 7.5 A | TPMS |
| 21 | 30 A | Headlight Low Main |
| 22 | — | Not Used |
| 23 | — | Not Used |
| 24 | 20 A | Moonroof |
| 25 | 20 A | Door Lock |
| 26 | 20 A | Driver’s Power Window |
| 27 | — | Not Used |
| 28 | 15 A | Accessory Socket (Console Compartment) |
| 29 | 15 A | +B ACC / ACC* |
| 30 | 20 A | Passenger’s Power Window |
| 31 | 20 A | Radio Amplifier |
| 32 | 20 A | Right Rear Power Window |
| 33 | 20 A | Left Rear Power Window |
| 34 | — | Not Used |
| 35 | 7.5 A | Radio |
| 36 | 10 A | HAC |
| 37 | 7.5 A | Daytime Running Light |
| 38 | 30 A | FR Wiper |

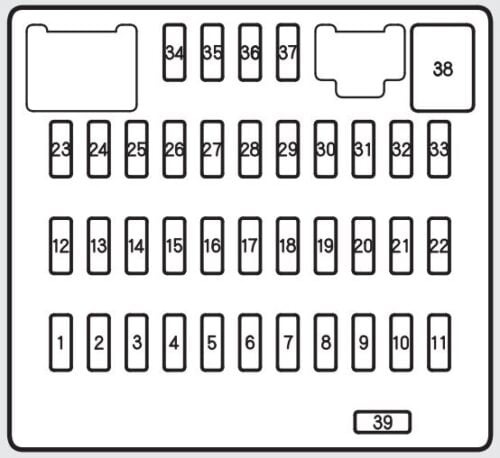

Acura RDX ( 2010,2011 and 2012)
| No. | Amps. | Circuits Protected |
| 1 | 7.5 A | Power Window/SH-AWD* |
| 2 | 20 A | Fuel Pump |
| 3 | 15 A | ACG |
| 4 | 7.5 A | ABS/VSA |
| 5 | 15 A | Heated Seat |
| 6 | 20 A | FR Fog Lights |
| 7 | 7.5 A | Driver’s Power Seat Lumbar Support |
| 8 | 10 A | RR Wiper |
| 9 | 7.5 A | OPDS |
| 10 | 7.5 A | Meter |
| 11 | 10 A | SRS |
| 12 | 10 A | Right Headlight High |
| 13 | 10 A | Left Headlight High |
| 14 | 7.5 A | Small Lights (Interior) |
| 15 | 15 A | Small Lights (Exterior) |
| 16 | 15 A | Right Headlight Low |
| 17 | 15 A | Left Headlight Low |
| 18 | 20 A | Headlight High Main |
| 19 | 20 A | Small Lights Main |
| 20 | 7.5 A | TPMS |
| 21 | 30 A | Headlight Low Main |
| 22 | — | Not Used |
| 23 | 7.5 A | Starter Diagnosis |
| 24 | 20 A | Moonroof |
| 25 | 20 A | Door Lock |
| 26 | 20 A | Driver’s Power Window |
| 27 | — | Not Used |
| 28 | 15 A | Accessory Socket (Console Compartment) |
| 29 | 15 A | Accessory Socket (Front) |
| 301 | 20 A2 | Passenger’s Power Window3 |
| 314 | 20 A5 | Radio Amplifier6 |
| 327 | 20 A8 | Right Rear Power Window9 |
| 3310 | 20 A11 | Left Rear Power Window12 |
| 3413 | —14 | Not Used15 |
| 3516 | 7.5 A17 | Radio18 |
| 3619 | 10 A20 | HAC21 |
| 3722 | 7.5 A23 | Daytime Running Light24 |
| 3825 | 30 A26 | FR W27iper |
| 39 | 7.5 A | STS |
