In this guide, we explore the Acura TSX (2009–2014) fuse box diagrams and their locations. Whether you need to replace a blown fuse or troubleshoot electrical issues, this user-friendly guide helps you quickly identify fuse positions and understand their functions for smooth and safe vehicle operation.

Fuse Box Location

Under-Hood Fuse Box

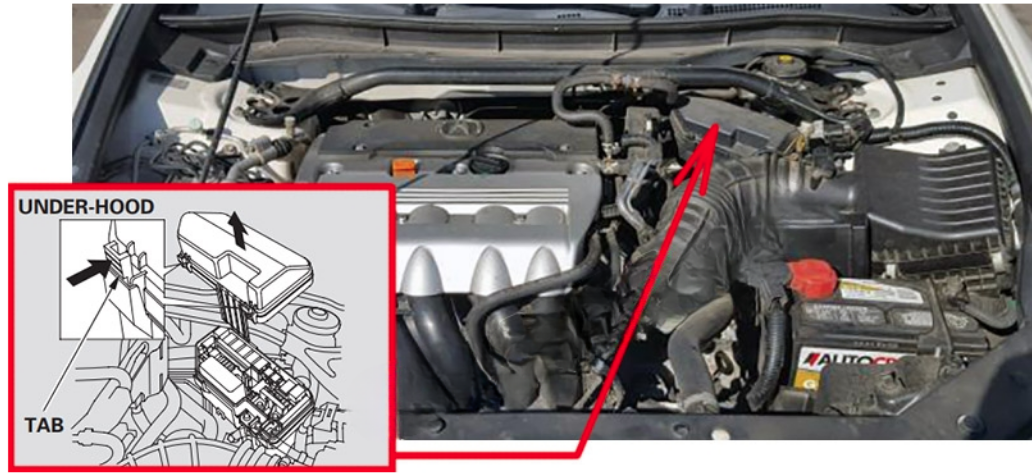

The under-hood fuse box is on the driver’s side.Acura TSX (2009 - 2014) Fuse Box Diagrams & Location Fig 1

INTERIOR FUSE BOX (Driver’s Side)

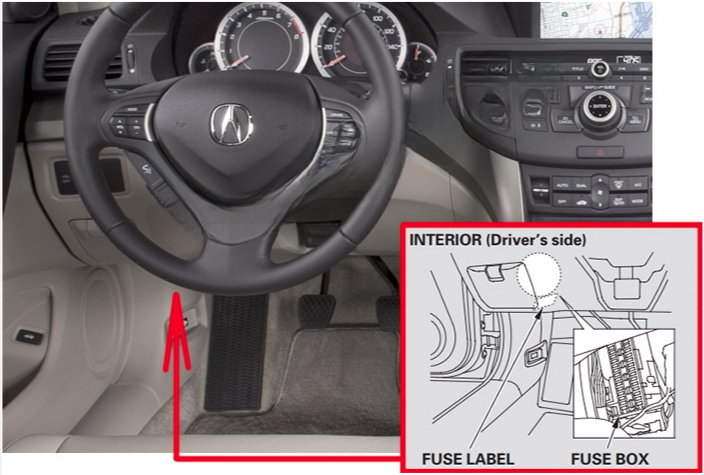

It is located under the dashboard on the driver’s side.Acura TSX (2009 - 2014) Fuse Box Location The driver’s side interior fuse box

INTERIOR FUSE BOX (Passenger’s Side)

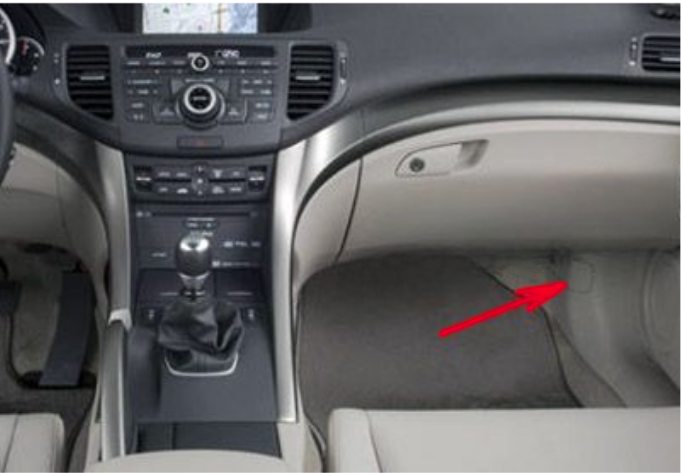

The passenger’s side interior fuse box is on the lower passenger’s side panel.Acura TSX (2009 - 2014) Fuse Box Location passenger’s side interior fuse box

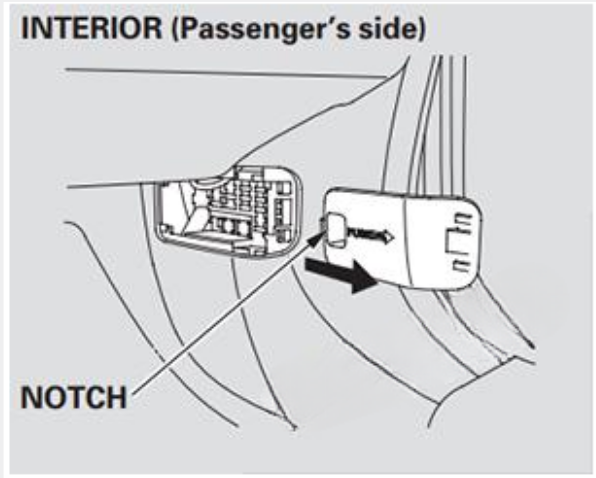

To remove the lid, put your finger in the notch on the lid, and pull it upward slightly, then pull it toward you and take it out of itsAcura TSX (2009 - 2014) Fuse Box Location passenger’s side interior fuse box 2

Fuse Box Diagram

Engine Compartment Fuse Box

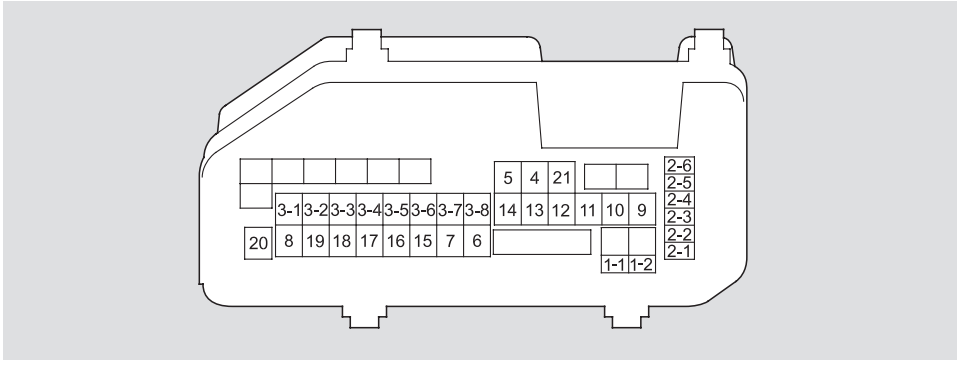

Acura TSX (2009 and 2010)Acura TSX (2009 - 2014) UNDER-HOOD FUSE BOX
No.Amps.Circuits Protected
1 – 1100 A (2009)
100A,120A (2010)		Battery
1 – 240 APassenger’s Side Fuse Box
2 – 170 AEPS
2 – 2(40 A)(Passenger’s Side Fuse Box)
2 – 330 AABS/VSA FSR
2 – 4—Not Used
2 – 530 AABS/VSA Motor
2 – 6—Not Used
3 – 130 AWiper
3 – 2—Not Used
3 – 330 AMain Fan Motor
3 – 430 ADriver’s Side Light Main
3 – 560 A(Driver’s Side Fuse Box)
3 – 630 APassenger’s Side Light Main
3 – 7(40 A)Driver’s Side Fuse Box
3 – 850 AIG Main
440 ARear Defroster
520 A (2009)

– (2010)

Sub Fan Motor (2009)

Not Used (2010)

6—Not Used
7—Not Used
840 AHeater Motor
915 AHazard
1010 AHorn
11—Not Used
1215 AStop
1315 AIG Coil
1415 AFI Sub
1510 ABack Up
167.5 AInterior Lights
1715 AFI Main
1815 ADBW
19— (2009, 2010)

7.5 A (2010)

Not Used (2009,2010)

Back Up FI ECU (2010)

207.5 AMG Clutch
217.5 AEngine Oil Level
Acura TSX (2011 to 2014)
No.Circuit ProtectedAmps
1Battery / Passenger’s Side Fuse Box100 A^{*1} / 120 A^{*2} (2011,2013)

40A

2EPS / Passenger’s Side Fuse Box / ABS/VSA FSR / ABS/VSA Motor70 A / (40 A) / 30 A / 30 A
3IG

Driver’s Side Fuse Box

Passenger’s Side Light Main

Driver’s Side Fuse Box

Driver’s Side Light Main

Main Fan Motor

Wiper Motor^{*2}

Wiper Motor^{*1}

Sub Fan Motor^{*2}

50 A

(40 A)

30 A

(60 A)

30 A

30 A

30 A

30 A

4Rear Defogger40 A
5Sub Fan Motor^{*1}20 A
6——
7——
8Heater Motor40 A
9Hazard15 A
10Horn10 A
11——
12Stop15 A
13IG Coil15 A
14FI Sub15 A
15Backup10 A
16Interior Lights7.5 A
17FI Main15 A
18DBW15 A
19– (2011,2014)

Back Up FI ECU^{*2} (2011,2013)

7.5 A
20MG Clutch7.5 A
21Engine Oil Level^{*1} / Fan RLY^{*2}7.5 A

INTERIOR FUSE BOX (Driver’s Side)

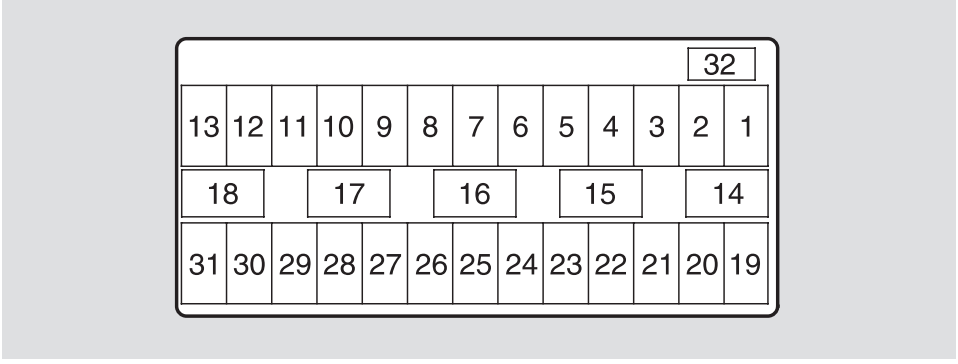

Acura TSX (2009 and 2010)Acura TSX (2009 - 2014) INTERIOR FUSE BOX (Driver’s Side)
No.Amps.Circuits Protected
1—Not Used
2(7.5 A)Seat Memory
315 AWasher
410 AWiper
57.5 AMeter
67.5 AABS/VSA
715 AACG
8(7.5 A)STS*
920 AFuel Pump
10(10 A)VB SOL*
1110 ASRS
127.5 AODS (Occupant Detection System)
13(7.5 A)IG1*
14—Not Used
157.5 ADaytime Running Lights
167.5 AA/C
177.5 AAccessory, Key, Lock
187.5 AAccessory
19(20 A)Driver’s Power Seat Sliding
20(20 A)Moonroof
21(20 A)Driver’s Power Seat Reclining
2220 ARear Driver’s Side Power Window
2320 AFront Accessory Power Socket
2420 ADriver’s Power Window
2515 ADriver’s Side Door Lock
26(10 A)Left Front Fog Light*
2710 ALeft Side Small Lights (Exterior)
2810 ALeft Headlight High Beam
2910 ATPMS
3015 ALeft Headlight Low Beam
31—Not Used
32(7.5 A)(Engine Oil Level)
Acura TSX (2011 to 2014)
No.Circuit ProtectedAmps
1——
2Seat Memory(7.5 A)
3Washer15 A
4Wiper10 A
5Meter7.5 A
6ABS/VSA7.5 A
7ACG15 A
8STS (2011,2014) /STS^{*1} / Starter DIAG^ (2013,2011)(7.5 A)
9Fuel Pump20 A
10VB SOL^{*}(10 A)
11SRS10 A
12ODS7.5 A
13STS (6-cylinder models)(7.5 A)
14——
15Daytime Running Lights7.5 A
16A/C7.5 A
17Accessory, Key, Lock7.5 A
18Accessory7.5 A
19Driver’s Power Seat Sliding(20 A)
20Moonroof(20 A)
21Driver’s Power Seat Reclining(20 A)
22Rear Driver’s Side Power Window20 A
23Front Accessory Power Socket20 A
24Driver’s Power Window20 A
25Driver’s Side Door Lock15 A
26Left Front Fog Light(10 A)
27Left Side Small Lights (Exterior)10 A
28Left Headlight High Beam10 A
29TPMS10 A
30Left Headlight Low Beam15 A
31——
32Engine Oil Level^{*}(7.5 A)

INTERIOR FUSE BOX (Passenger’s Side)

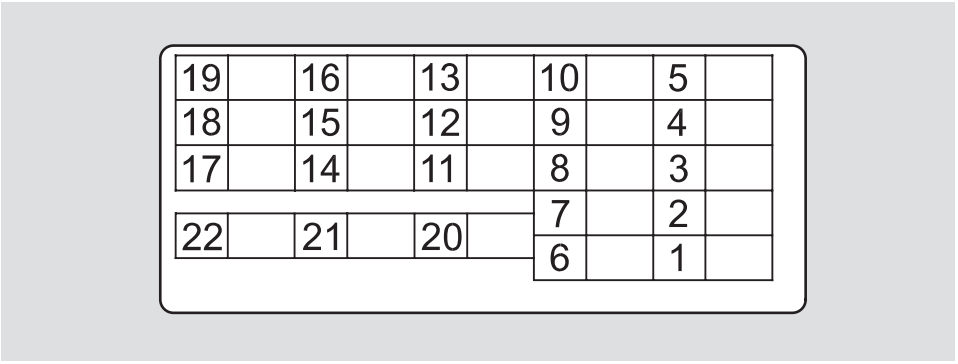

Acura TSX (2009 and 2010)Acura TSX (2009 - 2014) INTERIOR FUSE BOX (Passenger’s Side)
No.Amps.Circuits Protected
110 ARight Headlight High Beam
210 ARight Side Small Lights (Exterior)
3(10 A)Right Front Fog Light*
415 ARight Headlight Low Beam
5—Not Used
67.5 AInterior Lights
7—Not Used
820 APassenger’s Side Power Seat Reclining
9(20 A)Passenger’s Side Power Seat Sliding
1010 ARight Side Door Lock
1120 ARear Passenger’s Side Power Window
1220 ARear Accessory Power Socket
1320 AFront Passenger’s Power Window
14—Not Used
15(20 A)Premium AMP*
16—Not Used
17—Not Used
18—Not Used
19(20 A)Seat Heater
20—Not Used
21—Not Used
22—Not Used
Acura TSX (2011 to 2014)
No.Circuit ProtectedAmps
1Right Headlight High Beam10 A
2Right Side Small Lights (Exterior)10 A
3Right Front Fog Light10 A
4Right Headlight Low Beam15 A
5——
6Interior Lights7.5 A
7——
8Passenger’s Side Power Seat Reclining20 A
9Passenger’s Side Power Seat Sliding20 A
10Right Side Door Lock10 A
11Rear Passenger’s Side Power Window20 A
12Console Accessory Power Socket20 A
13Front Passenger’s Power Window20 A
14——
15Premium AMP20 A
16— (2011,2013)

Rear Accessory Power
Socket (2012,2014)

— (2011,2013)

20 A (2012,2014)

17——
18——
19Seat Heater20 A
20——
21——
22——
