Audi A1 (2019 – 2022) Fuse Box Location & Diagrams
Looking for the Audi A1 fuse box details? This guide covers fuse box locations and clear diagrams for Audi A1 models from 2019 to 2022, making fuse identification simple and quick.
Instrument Panel Fuse Box (-SC-)
Audi A1 (2019 to 2022)

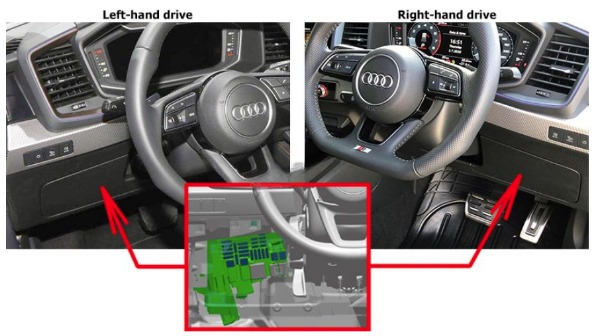

Fuse Box Location
The fuses are behind a cover on the driver’s side.

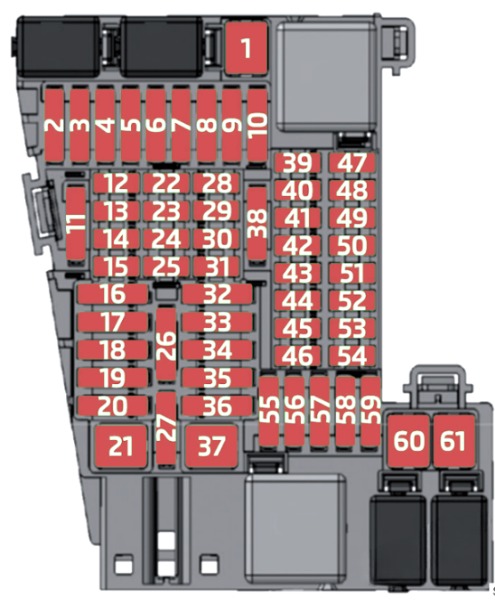

Fuse Box Diagram
| № | Amps | Function/component |
|---|---|---|
| SC1 | – | – |
| SC2 | – | – |
| SC3 | 30A | Digital sound package control unit |
| SC4 | – | – |
| SC5 | – | – |
| SC6 | 40A | Onboard supply control unit |
| SC7 | – | – |
| SC8 | 30A | Fresh air blower control unit |
| SC9 | – | – |
| SC10 | – | – |
| SC11 | – | – |
| SC12 | 7.5A | Front left seat belt |
| SC13 | 7.5A | Light switch Rain and light sensor Anti-theft alarm sensor Control unit for cornering light and headlight range control Storage compartment illumination bulb Light 1 for dashboard ambient lighting Light 2 for dashboard ambient lighting Diagnostic connection Light for driver door ambient lighting Light for passenger door ambient lighting Light 2 for driver door ambient lighting Light 2 for front passenger door ambient lighting Front roof module |
| SC14 | – | – |
| SC15 | 7.5A | Control unit in dash panel insert Emergency call module control unit and communication unit |
| SC16 | 40A | Onboard supply control unit |
| SC17 | 30A | 2018: Front passenger door control unit Rear passenger door control unit2019-2022: Driver door control unit (right-hand drive) Front passenger door control unit (left-hand drive) Control unit with rear driver side window regulator motor (right-hand drive) Control unit with rear passenger side window regulator motor (left-hand drive) |
| SC18 | – | – |
| SC19 | 25A | Control unit 1 for information electronics |
| SC20 | 30A | Heated rear window relay |
| SC21 | – | – |
| SC22 | 7.5A | 2019-2022: Multimedia system operating unit |
| SC23 | 7.5A | Reversing camera system control unit |
| SC24 | 7.5A | Driver side volume regulator (2018-2019) Multimedia system operating unit (2018-2019) Charger 1 for mobile devices Aerial amplifier for mobile telephone USB hub |
| SC25 | 7.5A | 2019-2022: Driver side volume regulator |
| SC26 | 7.5A | Data bus diagnostic interface |
| SC27 | 7.5A | Electronically controlled damping control unit |
| SC28 | 7.5A | Ignition/starter switch Steering column electronics control unit |
| SC29 | 7.5A | Alarm horn |
| SC30 | 7.5A | Front right seat belt |
| SC31 | 15A | Heater and air conditioning controls |
| SC32 | 7.5A | Front left headlight |
| SC33 | 30A | 2018: Driver door control unit Control unit with rear driver side window regulator motor2019-2022: Driver door control unit (left-hand drive) Front passenger door control unit (right-hand drive) Control unit with rear driver side window regulator motor (left-hand drive) Control unit with rear passenger side window regulator motor (right-hand drive) |
| SC34 | 7.5A | Front right headlight |
| SC35 | 40A | Onboard supply control unit |
| SC36 | 20A | Dual tone horn relay |
| SC37 | 30A | Onboard supply control unit |
| SC38 | 30A | Onboard supply control unit |
| SC39 | 10A | Adaptive cruise control unit Parking aid control unit Blind Spot Monitor control unit Blind Spot Monitor control unit 2 Front camera for driver assist systems |
| SC40 | 7.5A | Interior mirror Centre switch module in dash panel Diagnostic connection |
| SC41 | 7.5A | Relay for power sockets |
| SC42 | 7.5A | Clutch position sender Pressure sender for refrigerant circuit Control unit for structure-borne sound Starter relay 1 Starter relay 2 |
| SC43 | 7.5A | Rear window wiper motor |
| SC44 | 7.5A | Airbag control unit Front roof module |
| SC45 | – | – |
| SC46 | 7.5A | Starter inhibitor and reversing lights switch |
| SC47 | 7.5A | Front roof module |
| SC48 | 7.5A | Entry and start authorisation control unit Control unit for electronic steering column lock |
| SC49 | – | – |
| SC50 | – | – |
| SC51 | – | – |
| SC52 | – | – |
| SC53 | 7.5A | Selector lever Ignition key withdrawal lock solenoid |
| SC54 | – | – |
| SC55 | – | – |
| SC56 | – | – |
| SC57 | – | – |
| SC58 | 20A | 12V socket |
| SC59 | – | – |
| SC60 | – | – |
| SC61 | – | – |
Engine Compartment Fuse Box (-SB-)
Audi A1 (2019 to 2022)

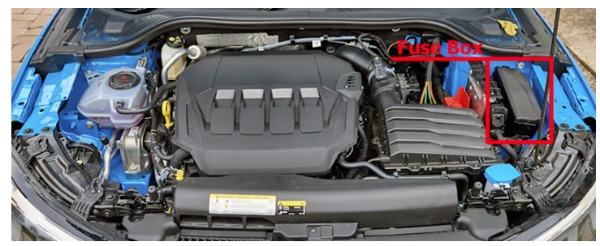

Fuse Box Location

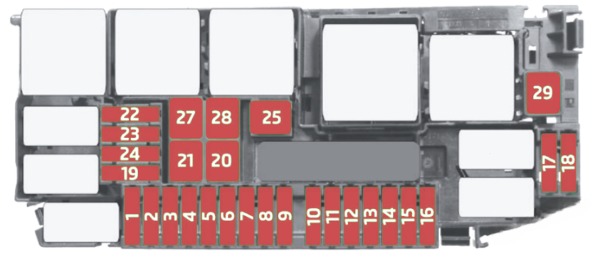

Fuse Box Diagram
| № | Amps | Function/component |
|---|---|---|
| SB1 | 15A | Engine control unit |
| SB2 | 7.5A/10A | Charge air cooling pump (1.5L, 2.0L petrol) Continued coolant circulation pump (1.0L petrol) Vacuum pump relay (1.5L petrol) Exhaust flap control unit (1.5L petrol) Fuel metering valve (1.0L petrol) |
| SB3 | 15A | Lambda probe 1 before the catalytic converter Lambda probe 1 after the catalytic converter |
| SB4 | 15A | Fuel pump control unit Engine component current supply relay (2.0L petrol) |
| SB5 | 10A/15A | Oil level and oil temperature sender Activated charcoal filter solenoid valve 1 (1.0L, 1.5L petrol) Camshaft control valve 1 (1.0L, 1.5L petrol) Turbocharger air recirculation valve (2.0L petrol) Intake manifold flap valve (2.0L petrol) Exhaust camshaft control valve 1 (1.0L, 1.5L petrol) Valve for oil pressure control Piston cooling jet control valve Inlet cam actuator for cylinder 2 (1.5L petrol) Exhaust cam actuator for cylinder 2 (1.5L petrol) Inlet cam actuator for cylinder 3 (1.5L petrol) Exhaust cam actuator for cylinder 3 (1.5L petrol) Radiator fan |
| SB6 | 20A | Ignition coil 1~4 with output stage (1.0L, 1.5L petrol) |
| SB7 | 10A/15A | Vacuum pump for brakes (1.0L petrol) Vacuum pump relay (1.5L petrol) Coolant valve for gearbox (2.0L petrol) |
| SB8 | 10A | Actuator 1~8 for camshaft adjustment (2.0L petrol) Injector 2 for cylinder 1~4 (2.0L petrol) Engine component current supply relay (2.0L petrol) |
| SB9 | 7.5A | Brake light switch |
| SB10 | 7.5A | Battery monitor control unit |
| SB11 | – | – |
| SB12 | 10A | Air conditioner compressor regulating valve |
| SB13 | 10A | Front drive battery module (with battery in luggage compartment) |
| SB14 | 7.5A | ABS control unit Main relay Engine control unit |
| SB15 | 30A | Mechatronic unit for dual clutch gearbox |
| SB16 | – | – |
| SB17 | 7.5A | Engine control unit |
| SB18 | 30A | Starter |
| SB19 | 30A | Wiper motor relay 1 Wiper motor relay 2 |
| SB20 | 60A | ABS control unit |
| SB21 | 25A | ABS control unit |
| SB22 | – | – |
| SB23 | – | – |
| SB24 | – | – |
| SB25 | – | |
| SB26 | 50A | Radiator fan (2.0L petrol) |

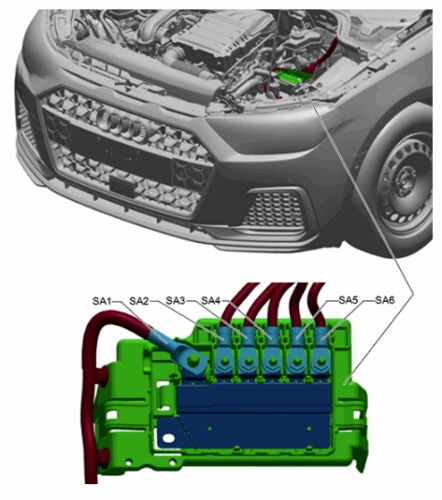

Main Fuses (-SA-)
| № | Amps | Function/component |
|---|---|---|
| SA1 | 350A | With front battery: Starter |
| SA1 | 200A | With rear battery: Alternator |
| SA2 | – | – |
| SA3 | 150A | Fuse holder B (-SB-) Fuses # 10, 16, 19, 24, 26 Main relay |
| 508 | – | Battery |
| SA4 | 80A | Fuse holder C (-SC-) Fuses # 12, 21 |
| SA5 | 125A | Fuse holder C (-SC-) Fuses # 28, 37 Relay for power sockets |
| SA6 | 80A | Power steering control unit |
