Fuse box schematics and locations for 2008–2011 Audi A6 and S6 vehicles are covered in this Guide. This blog helps you locate fuse positions, troubleshoot electrical issues, and repair car fuse assemblies quickly.

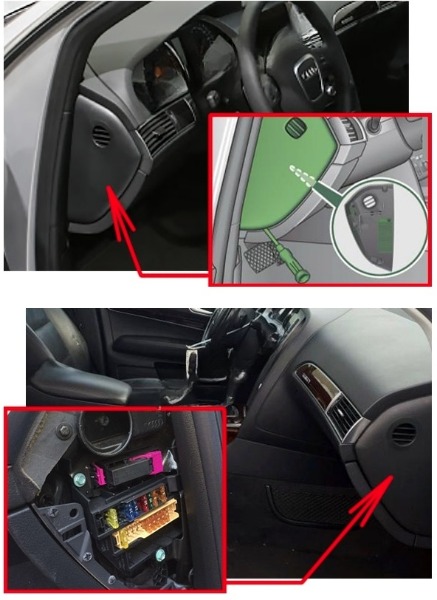

Passenger Compartment Fuse Box

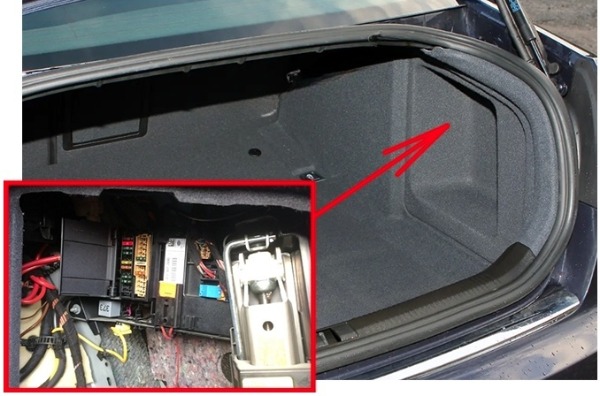

Luggage Compartment The fuse box is located behind the panel on the right side of the trunk.

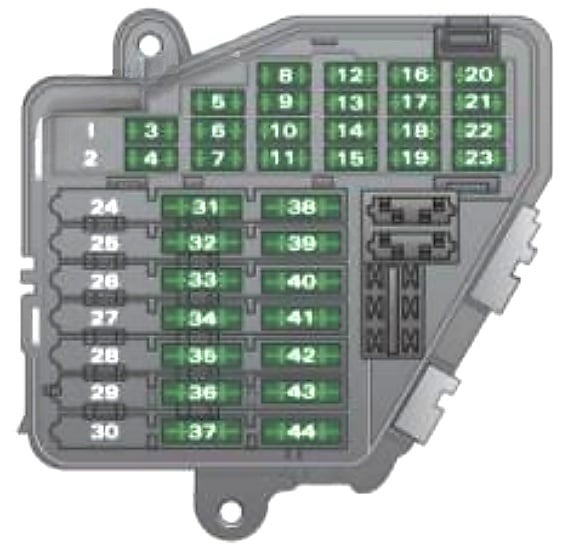

No Description Amps 1 Not used – 2 Not used – 3 Engine management 5 4 Oil level sensor 5 5 Climate control, tire pressure monitoring system 5 6 Electronic Stabilization Program (ESP), clutch sensor 5 7 Diagnostic connector 5 8 HomeLink control unit 5 9 Automatic dimming interior mirror 5 10 Adaptive Cruise Control 5 11 Not used – 12 Diagnostic connector 10 13 Switch module steering column 10 14 2008: Brake light switch 5 15 Instrument cluster, control module Gateway 10 16 Telephone, cell phone 10 17 Electronic Stabilization Program (ESP) 10 18 Headlight electronics, left-side 5 19 Rain sensor 5 20 Heated washer nozzles 5 21 Seat adjustment (driver) 10 22 MMI display 5 23 Electromechanical parking brake 5 24 Not used – 25 Not used – 26 Not used – 27 Not used – 28 Not used – 29 Not used – 30 Not used – 31 Back-up light switch, transmission, engine components 15 32 Intelligent power module driver (footwell light and front headlights, horn, wiper system, electrically adjustable steering wheel) 30 33 Intelligent power module driver (lights left-side) 25 34 Intelligent power module driver (lights right-side) 25 35 Not used 36 Headlight washer system 30 37 Electronic Stabilization Program (ESP) 25 38 Wiper system 30 39 Door control module left-side 15 40 Horn 25 41 Heater fan 40 42 Control module electronic ignition lock/electri-cally adjustable steering wheel 30 43 Rear windshield wiper (Avant) 15 44 Power window opener (left-side) 35

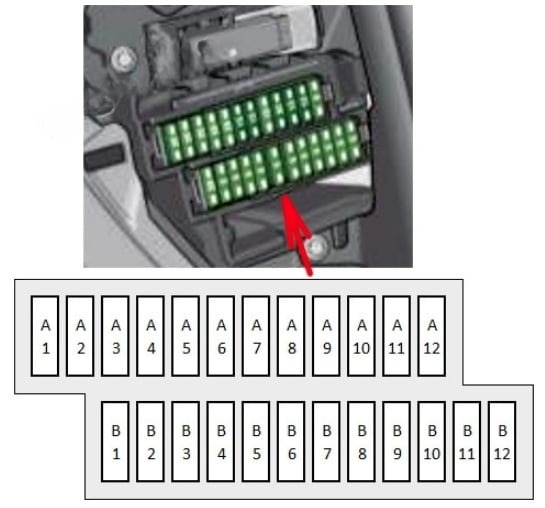

No Description Amps Fuse holder A (black) A1 Control module Advanced Key 15 A2 Cigarette lighter front 20 A3 Tire pressure monitoring system 5 A4 Electrical outlet front (center console) 20 A5 Intelligent power module passenger (glove box lock) 15 A6 Door control module right-side 15 A7 Sunroof 20 A8 A/C controls 10 A9 Heated seats, front 30 A10 2008: MMI, Antenna amplifier (10A); 10 / 7.5 A11 Seat adjustment (passenger) 10 A12 Communication 5 Fuse holder B (brown) B1 Electric fuel pump 20/30 B2 Adaptive Air Suspension 15 B3 Lane assist 10 B4 2008: Not used; 5 B5 Adaptive Air Suspension 5 B6 Shift gate automatic transmission/clutch switch 5 B7 Acoustic Parking System 5 B8 Control module Gateway 5 B9 Automatic headlight range control (auxiliary driving lights), headlight electronics, right-side 5 B10 Airbag 5 B11 Heated rear seats 5 B12 Telephone 5

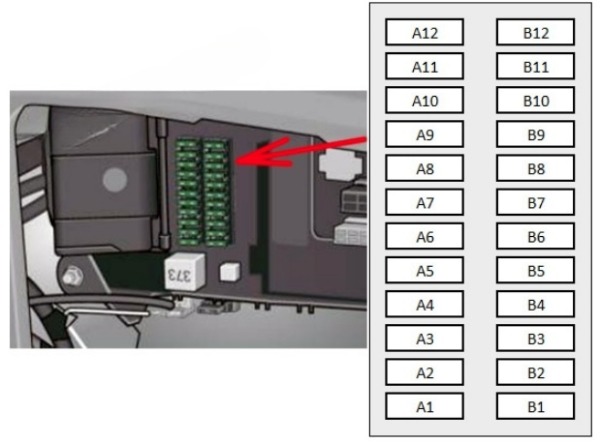

No Description Amps Fuse holder A (black) A1 Digital Signal Processing (DSP)/ BOSE amplifier 30 A2 Communication, Antenna amplifier 5 A3 Electromechanical parking brake, left 30 A4 Electromechanical parking brake, right 30 A5 Luggage compartment power outlet 20 A6 Battery energy management 5 A7 Intelligent power module rear (lights right-side) 20 A8 Intelligent power module (comfort) 5 A9 Intelligent power module rear (lights left-side) 30 A10 Power window opener (right-side) 35 A11 Acoustic Parking System 5 A12 Cigarette lighter rear 20 Fuse holder B (brown) B1 Rear view 5 B2 Electric rear lid (Avant) 30 B3 Electric rear lid (Avant) 30 B4 Electric rear lid (Avant) 20 B5 Communication, Antenna amplifier 5 B6 Not used 5 B7 MMI 5 B8 Not used – B9 Digital Tuner 5 B10 Not used – B11 Not used – B12 Not used
