BMW 5-Series G60, G61 (2024 – 2026) Fuse Box Location & Diagrams
Finding the correct fuse box for your 2024–2026 BMW 5-Series (G60/G61) is essential for maintaining your vehicle’s electrical health. This guide provides clear location diagrams and comprehensive lists to help you quickly identify and access the right fuses. Easily troubleshoot your BMW’s electrical systems and get back on the road with confidence using our detailed, model-specific breakdown.
Fuse Box Location
Passenger Compartment Fuse Box
Driver Side & Passenger side
Body Control Platform BCP
Luggage Compartment Fuse Box
Fuse Box Diagrams
Passenger Compartment Fuse Box

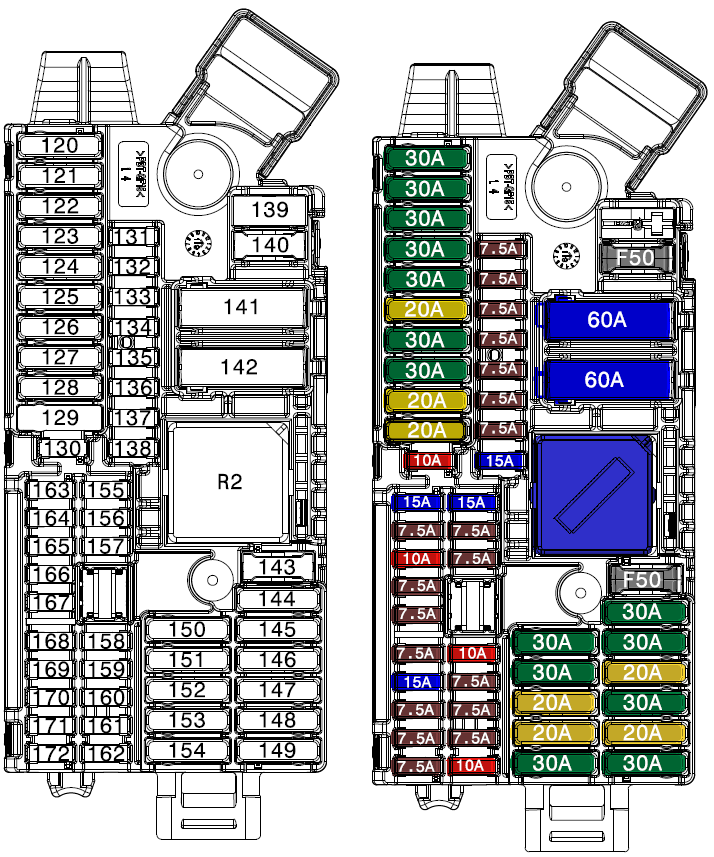

Driver Side Fuse Box
| Fuse (F) | Amperage [A] |
| F120 | 30 |
| F121 | 30 |
| F122 | 30 |
| F123 | 30 |
| F124 | 30 |
| F125 | 20 |
| F126 | 30 |
| F127 | 30 |
| F128 | 20 |
| F129 | 20 |
| F130 | 10 |
| F131 | 7.5 |
| F132 | 7.5 |
| F133 | 7.5 |
| F134 | 7.5 |
| F135 | 7.5 |
| F136 | 7.5 |
| F137 | 7.5 |
| F138 | 15 |
| F139 | – |
| F140 | F50 |
| F141 | 60 |
| F142 | 60 |
| F143 | F50 |
| F144 | 30 |
| F145 | 30 |
| F146 | 20 |
| F147 | 30 |
| F148 | 20 |
| F149 | 30 |
| F150 | 30 |
| F151 | 30 |
| F152 | 20 |
| F153 | 20 |
| F154 | 30 |
| F155 | 15 |
| F156 | 7.5 |
| F157 | 7.5 |
| F158 | 10 |
| F159 | 7.5 |
| F160 | 7.5 |
| F161 | 7.5 |
| F162 | 10 |
| F163 | 15 |
| F164 | 7.5 |
| F165 | 10 |
| F166 | 7.5 |
| F167 | 7.5 |
| F168 | 7.5 |
| F169 | 15 |
| F170 | 7.5 |
| F171 | 7.5 |
| F172 | 7.5 |

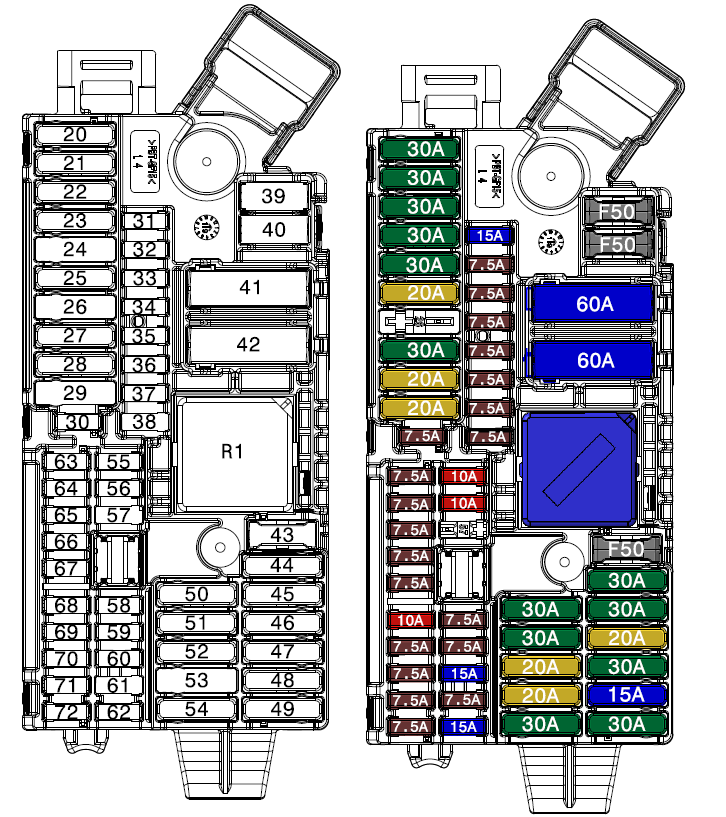

Passenger side Fuse Box
| Fuse (F) | Amperage [A] |
| F20 | 30 |
| F21 | 30 |
| F22 | 30 |
| F23 | 30 |
| F24 | 30 |
| F25 | 20 |
| F26 | – |
| F27 | 30 |
| F28 | 20 |
| F29 | 20 |
| F30 | 7.5 |
| F31 | 15 |
| F32 | 7.5 |
| F33 | 7.5 |
| F34 | 7.5 |
| F35 | 7.5 |
| F36 | 7.5 |
| F37 | 7.5 |
| F38 | 7.5 |
| F39 | F50 |
| F40 | F50 |
| F41 | 60 |
| F42 | 60 |
| F43 | F50 |
| F44 | 30 |
| F45 | 30 |
| F46 | 20 |
| F47 | 30 |
| F48 | 15 |
| F49 | 30 |
| F50 | 30 |
| F51 | 30 |
| F52 | 20 |
| F53 | 20 |
| F54 | 30 |
| F55 | 10 |
| F56 | 10 |
| F57 | – |
| F58 | 7.5 |
| F59 | 7.5 |
| F60 | 15 |
| F61 | 7.5 |
| F62 | 15 |
| F63 | 7.5 |
| F64 | 7.5 |
| F65 | 7.5 |
| F66 | 7.5 |
| F67 | 7.5 |
| F68 | 10 |
| F69 | 7.5 |
| F70 | 7.5 |
| F71 | 7.5 |
| F72 | 7.5 |

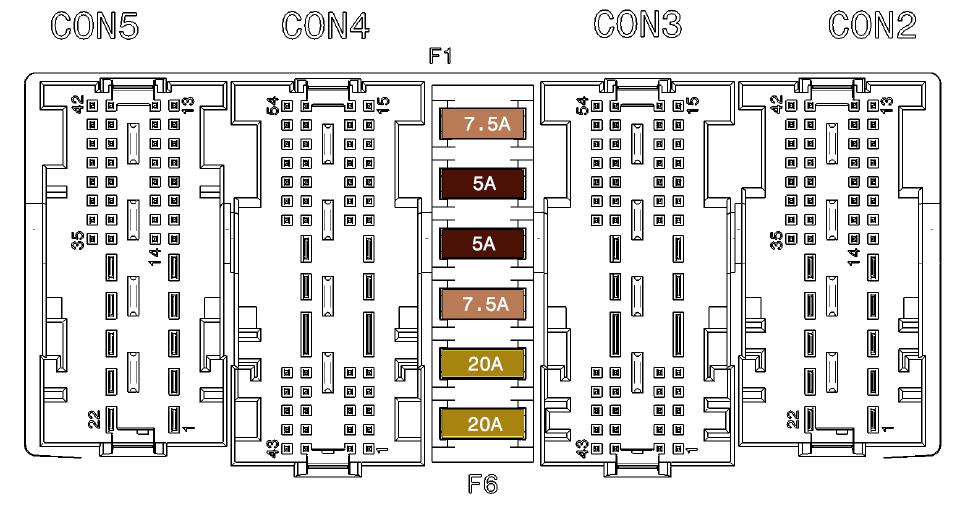

Body Control Platform BCP

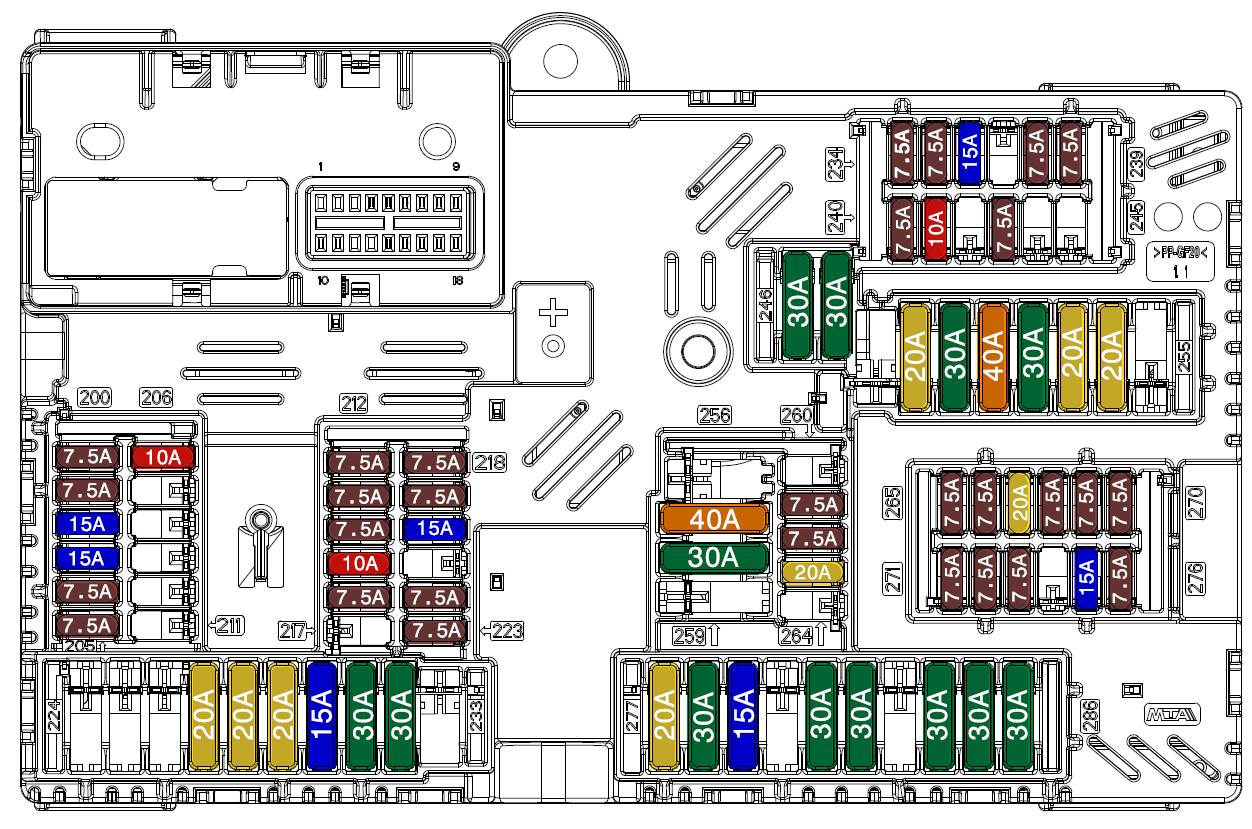

Luggage Compartment Fuse Box
| Fuse (F) | Amperage [A] | Fuse (F) | Amperage [A] |
|---|---|---|---|
| F200 | 7.5 | F244 | 7.5 |
| F201 | 7.5 | F245 | – |
| F202 | 15 | F246 | – |
| F203 | 15 | F247 | 30 |
| F204 | 7.5 | F248 | 30 |
| F205 | 7.5 | F249 | – |
| F206 | 10 | F250 | 20 |
| F207 | – | F251 | 30 |
| F208 | – | F252 | 40 |
| F209 | – | F253 | 30 |
| F210 | – | F254 | 20 |
| F211 | – | F255 | 20 |
| F212 | 7.5 | F256 | – |
| F213 | 7.5 | F257 | – |
| F214 | 7.5 | F258 | 40 |
| F215 | 10 | F259 | 30 |
| F216 | 7.5 | F260 | – |
| F217 | – | F261 | – |
| F218 | 7.5 | F262 | 7.5 |
| F219 | 7.5 | F263 | 20 |
| F220 | 15 | F264 | – |
| F221 | – | F265 | 7.5 |
| F222 | 7.5 | F266 | 7.5 |
| F223 | 7.5 | F267 | 20 |
| F224 | – | F268 | 7.5 |
| F225 | – | F269 | 7.5 |
| F226 | – | F270 | 7.5 |
| F227 | 20 | F271 | 7.5 |
| F228 | 20 | F272 | 7.5 |
| F229 | 20 | F273 | 7.5 |
| F230 | 15 | F274 | – |
| F231 | 30 | F275 | 15 |
| F232 | 30 | F276 | 7.5 |
| F233 | – | F277 | 20 |
| F234 | 7.5 | F278 | 30 |
| F235 | 7.5 | F279 | 15 |
| F236 | 15 | F280 | – |
| F237 | – | F281 | 30 |
| F238 | 7.5 | F282 | 30 |
| F239 | 7.5 | F283 | – |
| F240 | 7.5 | F284 | 30 |
| F241 | 10 | F285 | 30 |
| F242 | – | F286 | 30 |
| F243 | 7.5 |

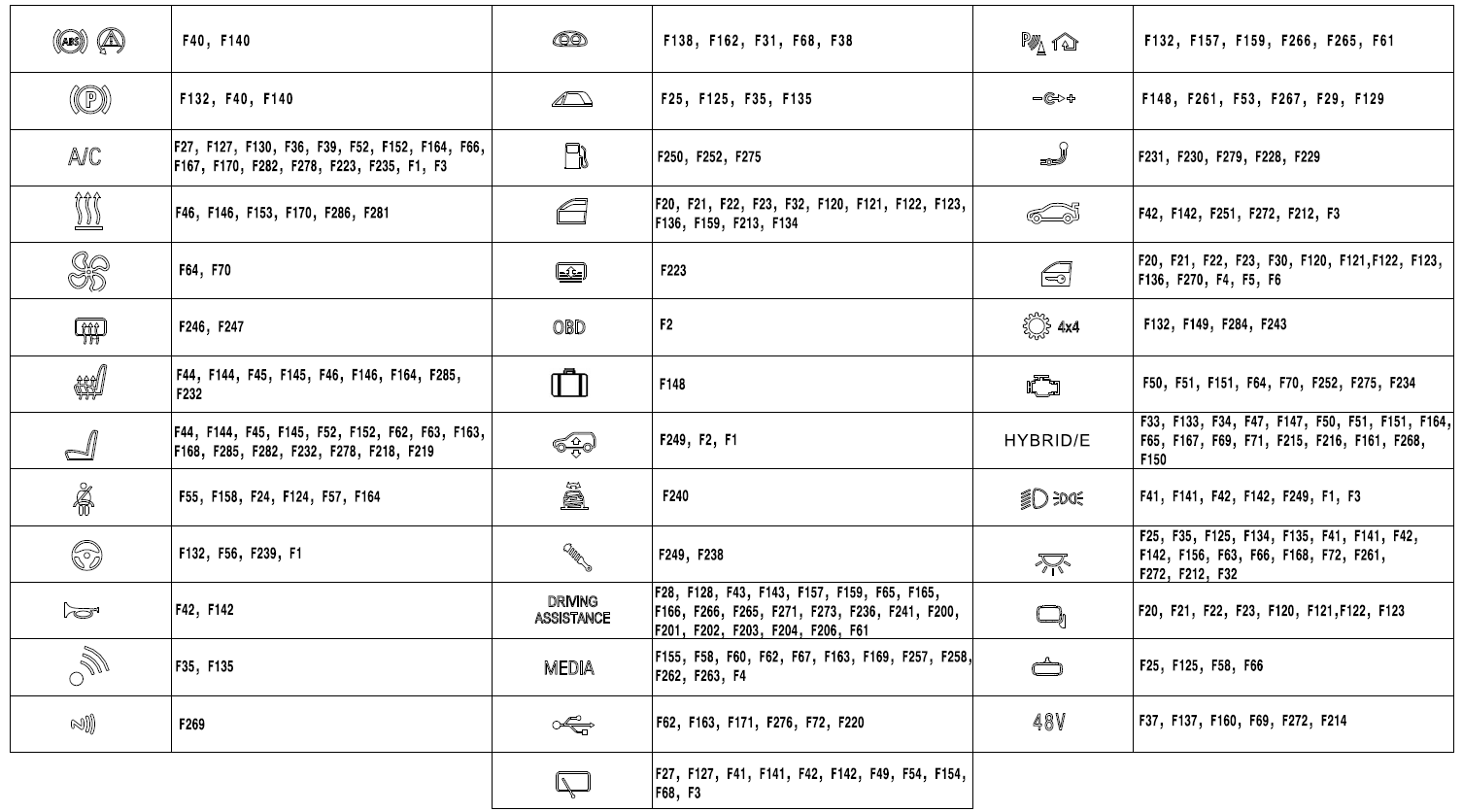

Fuses Usage
