BMW 7-Series F01 – F04 (2009 – 2015) Fuse Box Location & Diagrams
The BMW 7-Series (F01–F04), produced between 2009 and 2015, is a marvel of engineering, but electrical gremlins can still arise. Whether you are troubleshooting a blown fuse or adding new accessories, locating the correct circuit is essential. This guide provides comprehensive fuse box locations and easy-to-read diagrams to help you maintain your luxury sedan with confidence and ease.
Fuse Box Location

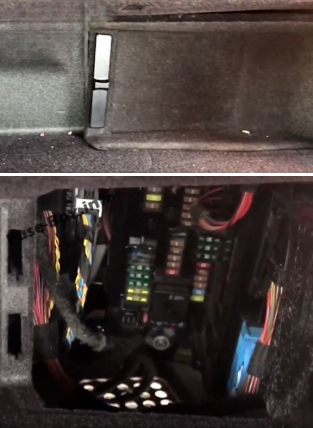

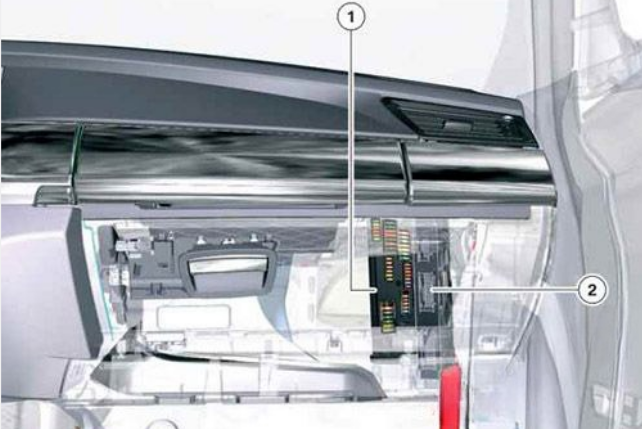

Passenger Compartment Fuse Box
- Fuse panel
- The electronic unit JBE
Open the glove compartment, remove the cover.

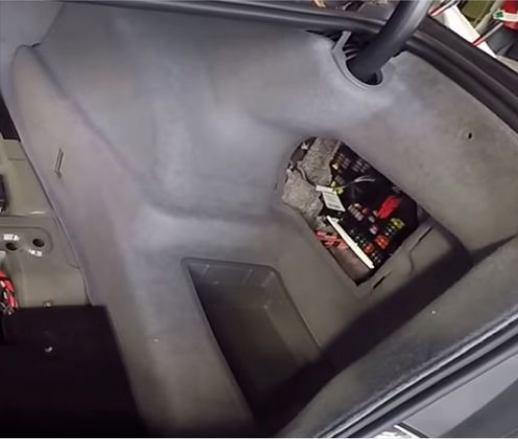

Luggage Compartment Fuse Box
It is located on the right side, behind the cover.
Fuse Box Diagrams

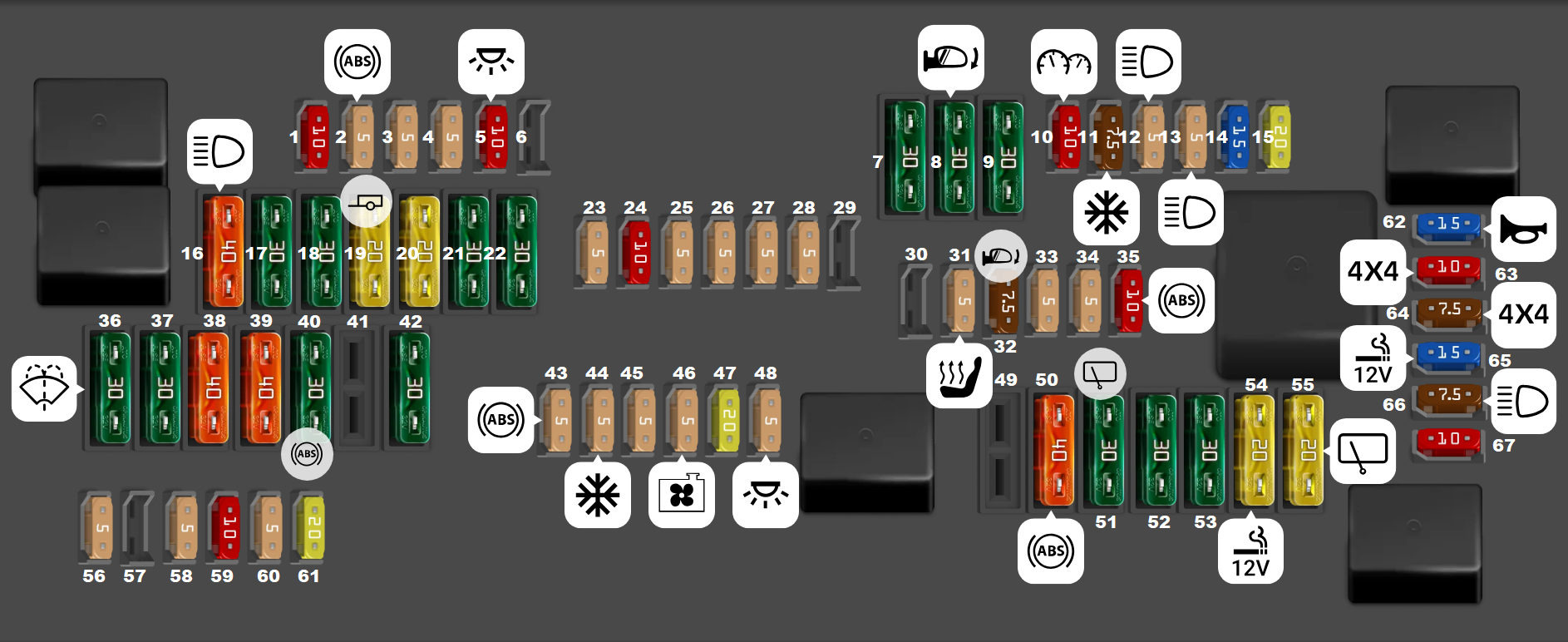

Passenger Compartment Fuse Box
| № | Amps | Description |
|---|---|---|
| 1 | 10A | Steering column function control module |
| 2 | 5A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Door module / Automatic soft-close |
| 3 | 5A | On Board Diagnostics (OBD) |
| 4 | 5A | Head-Up Display (HUD), HiFi Amp, TV tuner, Video module |
| 5 | 10A | Interior lights, Instrument cluster |
| 7 | 30A | Power windows with anti-trapping function |
| 8 | 30A | Steering column function control module, Head-Up Display (HUD), Electric mirrors, Main headlights / Rain sensor / Light sensor / Electronic ride height control, Parking sensors / Home link (garage door opener), Horn, Door module / Automatic soft-close, Power windows with anti-trapping function, Rear wiper relay, Washer fluid heater, Instrument cluster, Air conditioner system, Windscreen washers, Headlight washing system |
| 9 | 30A | Power windows with anti-trapping function |
| 10 | 10A | Head-Up Display (HUD), Instrument cluster |
| 11 | 7.5A | Air conditioner system, Convertible top module / Convertible relay |
| 12 | 5A | Light module |
| 13 | 5A | Steering column function control module, Head-Up Display (HUD), Main headlights / Rain sensor / Light sensor / Electronic ride height control, Light module, Interior lights, Instrument cluster, HiFi Amp, TV tuner, Video module |
| 14 | 15A | Door module / Automatic soft-close |
| 15 | 20A | Door module / Automatic soft-close |
| 16 | 40A | Main headlights / Rain sensor / Light sensor / Electronic ride height control, Light module, Interior lights |
| 17 | 30A | Power windows with anti-trapping function |
| 19 | 20A | Trailer module |
| 20 | 20A | DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 21 | 30A | DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 22 | 30A | DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 23 | 5A | DME – Digital Motor Electronics / Integrated Voltage Module – IVM, Telephone |
| 24 | 10A | Steering column function control module, Head-Up Display (HUD) |
| 25 | 5A | Head-Up Display (HUD) |
| 27 | 5A | Seat adjustment, Telephone |
| 31 | 5A | Head-Up Display (HUD), Heated seats, Air conditioner system |
| 32 | 7.5A | Electric mirrors, Door module / Automatic soft-close, Power windows with anti-trapping function, Seat adjustment |
| 33 | 5A | START-STOP system, Seatbelts, Digital Diesel Electronics (DDE) |
| 34 | 5A | Air suspension system, Dynamic drive system |
| 35 | 10A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Digital Diesel Electronics (DDE), DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 36 | 30A | Windscreen washers, Headlight washing system |
| 37 | 30A | Air suspension system, Dynamic drive system |
| 38 | 40A | START-STOP system, Door module / Automatic soft-close |
| 39 | 40A | Steering column function control module |
| 40 | 30A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control) |
| 42 | 30A | DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 43 | 5A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Steering column function control module, Electric fan |
| 44 | 5A | Head-Up Display (HUD), Air conditioner system, Heating / Independent aux. heater |
| 45 | 5A | Steering column function control module, Air suspension system, Dynamic drive system |
| 46 | 5A | Electric fan, Cruise control |
| 47 | 20A | DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 48 | 5A | Interior lights, Heating / Independent aux. heater, DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 50 | 40A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control) |
| 51 | 30A | Rear wiper relay |
| 52 | 30A | Seat adjustment |
| 53 | 30A | Seat adjustment |
| 54 | 20A | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 55 | 20A | Rear wiper relay |
| 56 | 5A | START-STOP system, Door module / Automatic soft-close |
| 58 | 5A | Alarm, Door module / Automatic soft-close, Sunroof, Panorama glass, Convertible top module, Convertible top module / Convertible relay |
| 59 | 10A | DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 60 | 5A | Alarm, Parking brake |
| 61 | 20A | Sunroof, Panorama glass, Convertible top module, Convertible top module / Convertible relay, Electric rear sunshade |
| 62 | 15A | Horn |
| 63 | 10A | Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD |
| 64 | 7.5A | Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD |
| 65 | 15A | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 66 | 7.5A | Main headlights / Rain sensor / Light sensor / Electronic ride height control, Light module, Interior lights |
| 67 | 10A | Seat adjustment |

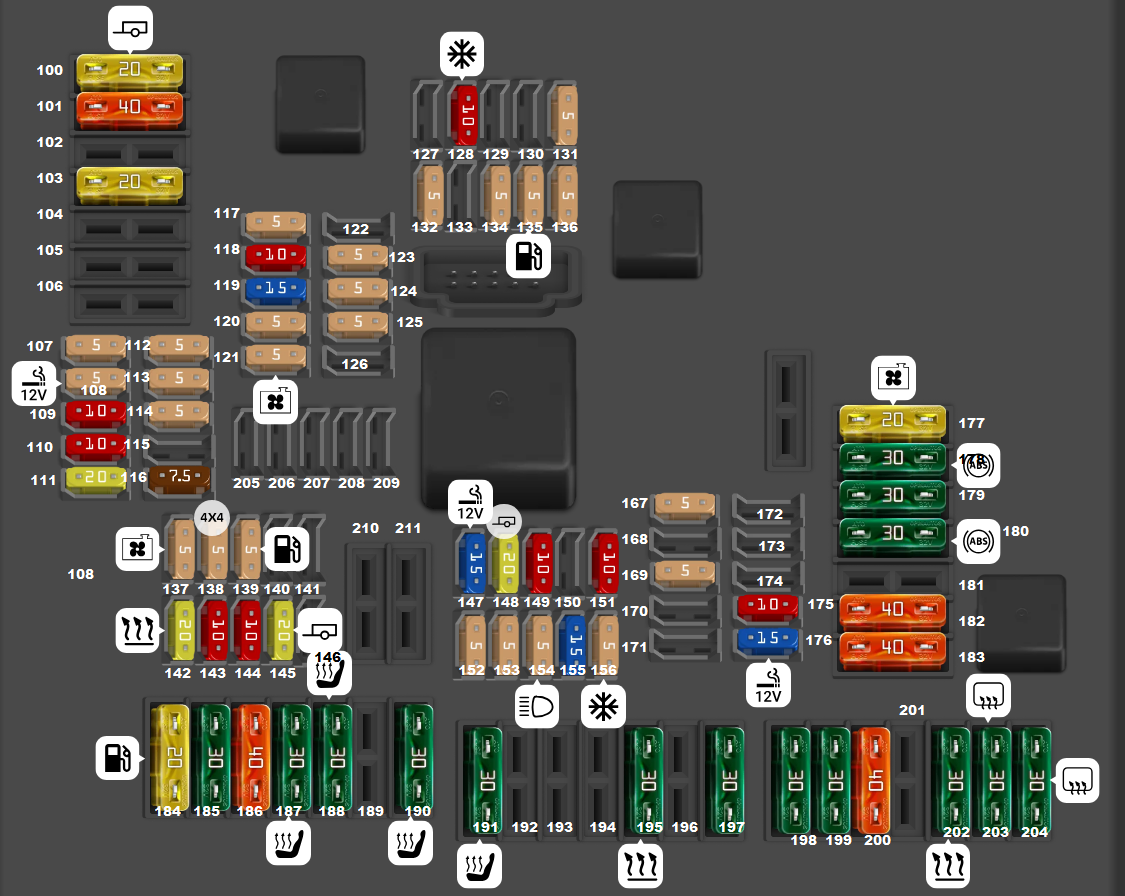

Luggage Compartment Fuse Box
| № | Amps | Description |
|---|---|---|
| 100 | 20A | Trailer module, Electric rear sunshade |
| 101 | 40A | Main headlights / Rain sensor / Light sensor / Electronic ride height control |
| 103 | 20A | START-STOP system |
| 105 | – | HiFi Amp, TV tuner, Video module |
| 107 | 5A | Air suspension system, DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 108 | 5A | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 109 | 10A | Electric rear sunshade |
| 110 | 10A | Door module / Automatic soft-close |
| 112 | 5A | Seat adjustment |
| 113 | 5A | Head-Up Display (HUD) |
| 114 | 5A | Seat adjustment, Electric rear sunshade |
| 116 | 7.5A | Head-Up Display (HUD) |
| 117 | 5A | Telephone |
| 118 | 10A | Head-Up Display (HUD), Air suspension system, HiFi Amp, TV tuner, Video module |
| 119 | 15A | Head-Up Display (HUD), HiFi Amp, TV tuner, Video module |
| 120 | 5A | Head-Up Display (HUD), HiFi Amp, TV tuner, Video module |
| 121 | 5A | Head-Up Display (HUD), Electric fan |
| 123 | 5A | Head-Up Display (HUD) |
| 124 | 5A | Head-Up Display (HUD) |
| 125 | 5A | Head-Up Display (HUD) |
| 128 | 10A | Air conditioner system, DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 131 | 5A | Head-Up Display (HUD), Dynamic drive system |
| 132 | 5A | Digital Diesel Electronics (DDE) |
| 134 | 5A | Steering column function control module, Parking sensors / Home link (garage door opener), Dynamic drive system |
| 135 | 5A | Alarm, Fuel pump relay / Fuel pump control, DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 136 | 5A | START-STOP system |
| 137 | 5A | Electric fan, DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 138 | 5A | Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD, DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 139 | 5A | Fuel pump relay / Fuel pump control, Tire pressure control RDV |
| 142 | 20A | Heating / Independent aux. heater |
| 143 | 10A | Door module / Automatic soft-close |
| 144 | 10A | Door module / Automatic soft-close |
| 145 | 20A | Trailer module |
| 147 | 15A | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 148 | 20A | Trailer module |
| 149 | 10A | Door module / Automatic soft-close |
| 151 | 10A | Electric rear sunshade |
| 152 | 5A | Door module / Automatic soft-close, Level control system (air suspension compressor relay) |
| 153 | 5A | Boot lid (tailgate) lock / Soft-close automatic for tailgate |
| 154 | 5A | Main headlights / Rain sensor / Light sensor / Electronic ride height control, Light module |
| 155 | 15A | Boot lid (tailgate) lock / Soft-close automatic for tailgate |
| 156 | 5A | Air conditioner system |
| 167 | 5A | Parking brake |
| 169 | 5A | Alarm |
| 175 | 10A | DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 176 | 15A | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 177 | 20A | Electric fan |
| 178 | 30A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD |
| 179 | 30A | Parking brake |
| 180 | 30A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Parking brake |
| 182 | 40A | Level control system (air suspension compressor relay), Convertible top module / Convertible relay |
| 183 | 40A | Boot lid (tailgate) lock / Soft-close automatic for tailgate |
| 184 | 20A | Fuel pump relay / Fuel pump control |
| 186 | 40A | START-STOP system |
| 187 | 30A | Heated seats |
| 188 | 30A | Heated seats |
| 190 | 30A | Heated seats |
| 191 | 30A | Heated seats |
| 195 | 30A | Heating / Independent aux. heater |
| 198 | 30A | Seatbelts |
| 199 | 30A | Seatbelts |
| 200 | 40A | Head-Up Display (HUD), HiFi Amp, TV tuner, Video module |
| 202 | 30A | Heating / Independent aux. heater |
| 203 | 30A | Rear window defroster (defogger) |
| 204 | 30A | Rear window defroster (defogger) |

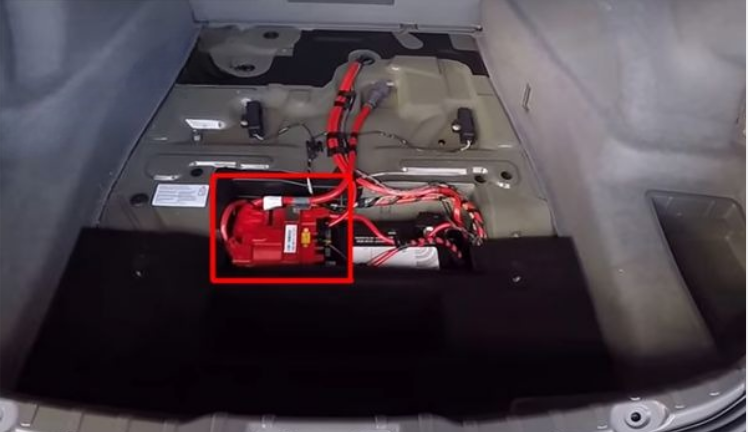

Fuses on the battery
Located in the luggage compartment, under the lining.
The distribution box on the battery is secured on the vehicle battery by means of a metal tab. The metal tabs must be pressed downward and outward in order to release the distribution box.
The distribution box on the battery is equipped with fuses for the following electric loads:
- Front fuse carrier (250 A)
- Rear fuse carrier (100 A)
- Engine compartment distribution box (100 A) – large electric fan (850 W or 1000 W)
- Electric coolant pump (100 A)
- Intelligent battery sensor IBS
