Buick Enclave (2018 – 2024) Fuse Box Location & Diagrams
This Buick Enclave Fuse Box Location & Diagrams User Guide (2018-2024) provides essential information on where to find your vehicle’s fuse box, including clear diagrams for fuse identification and replacement. Whether you’re troubleshooting electrical issues or performing maintenance, this guide is designed to help you keep your Enclave running smoothly.
Fuse box location

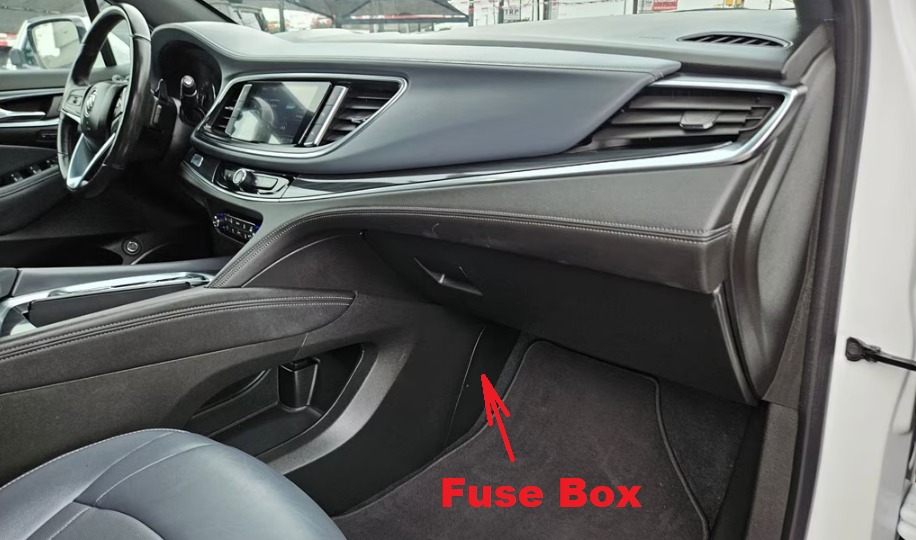

Passenger Compartment Fuse Box
The instrument panel fuse block is inside the center console on the passenger side of the vehicle.
Remove the fuse access door by pulling on the left side of the access door. To remove a fuse, use the fuse puller located in the Engine Compartment Fuse block.

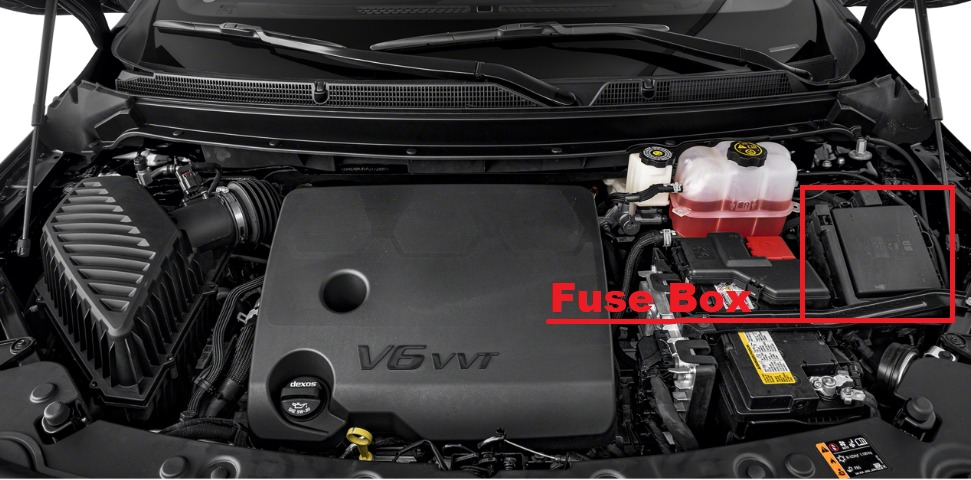

Engine Compartment Fuse Box
The underhood fuse block is in the engine compartment, on the driver side of the vehicle.

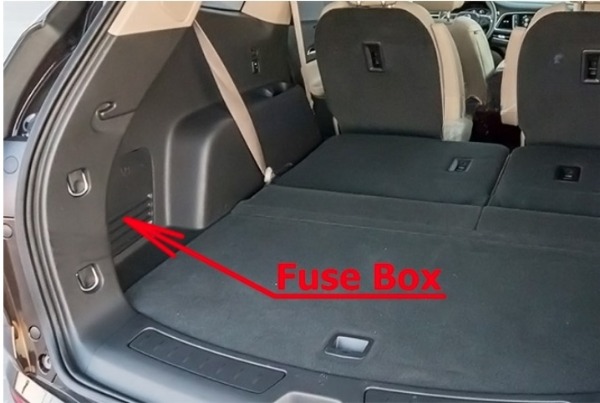

Luggage Compartment Fuse Box
The rear compartment fuse block is behind a trim panel on the driver side of the rear storage compartment.
The trim panel is removed by prying along the top edge of the trim panel at two notched locations. Remove the trim panel to access the fuse block.
Fuse Box Diagram

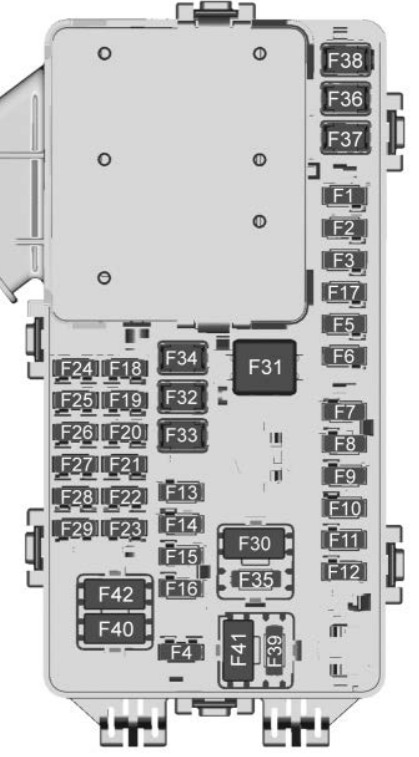

Passenger Compartment Fuse Box
| № | Description |
|---|---|
| F1 | Body control module 6 |
| F2 | Diagnostic link |
| F3 | Electric steering column lock |
| F4 | Rear USB port |
| F5 | 2021-2024: Rear sunshade / Park/Reverse/Neutral/Drive/Low |
| F6 | Heating, ventilation, and air conditioning |
| F7 | Body control module 3 |
| F8 | 2021-2024: Adaptive front lighting system |
| F9 | Right front heated seat |
| F10 | Airbag |
| F11 | 2018-2020: Electronic precision shift |
| F12 | Amplifier |
| F13 | Body control module 7 |
| F14 | Left front heated seat |
| F15 | Not Used |
| F16 | Sunroof |
| F17 | Communication gateway module |
| F18 | 2018-2020: Instrument cluster 2021-2024: Instrument cluster / Head-up display |
| F19 | Body control module 1 |
| F20 | Wireless charger module |
| F21 | Body control module 4 |
| F22 | Infotainment |
| F23 | Body control module 2 |
| F24 | 2021-2024: Park/Reverse/Neutral/Drive/Low |
| F25 | 2018-2020: Park assist 2021-2024: Park assist/Shifter interface board |
| F26 | Communications integration module |
| F27 | Video |
| F28 | Radio/Heating, ventilation, and air conditioning display |
| F29 | Radio |
| F30 | Steering wheel controls |
| F31 | Front blower |
| F32 | DC AC inverter |
| F33 | Driver power seat |
| F34 | Passenger power seat |
| F35 | Feed/Body control module 4 |
| F36 | Electric power steering |
| F37 | Power outlet/ Wireless charger/ Accessory |
| F38 | Body control module 8 |
| F39 | 2018-2021: Steering wheel controls backlighting |
| F40 | Not Used (Circuit Breaker) |
| F41 | Not Used (Circuit Breaker) |
| F42 | Auxiliary power outlet / Lighter |

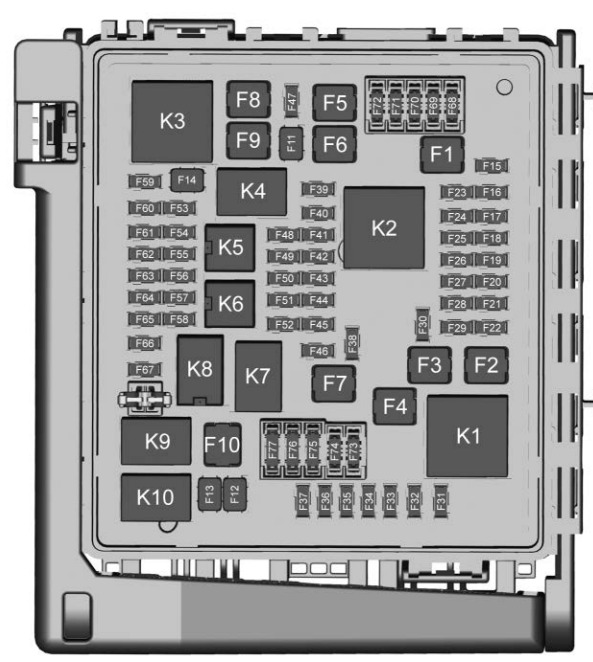

Engine Compartment Fuse Box
| № | Description |
| F1 | Antilock brake system pump |
| F2 | Starter 1 |
| F3 | DC DC transformer 1 |
| F4 | Not Used |
| F5 | DC DC transformer 2 |
| F6 | Not Used |
| F7 | Not Used |
| F8 | Not Used |
| F9 | Vacuum pump |
| F10 | Front wiper |
| F11 | Not Used |
| F12 | Not Used |
| F13 | Starter 2 |
| F14 | Not Used |
| F15 | Rear wiper |
| F20 | Not Used |
| F21 | Not Used |
| F22 | Electronic brake control module |
| F23 | Parking/Trailer lamps |
| F24 | Right trailer stoplamp/Turn signal lamp |
| F25 | Steering column lock |
| F26 | Not Used |
| F27 | Left trailer stoplamp/Turn signal lamp |
| F28 | Not Used |
| F29 | Not Used |
| F30 | Washer pump |
| F31 | Not Used |
| F32 | Left low-beam headlamp |
| F33 | Front fog lamps |
| F34 | Horn |
| F35 | Not Used |
| F36 | Not Used |
| F37 | Right low-beam headlamp |
| F38 | Automatic headlamp leveling motor |
| F39 | Transmission control module |
| F40 | Left rear bus electrical center/ Ignition |
| F41 | Instrument cluster |
| F42 | Heating, ventilation, and air conditioning |
| F43 | 2018-2020: Head-up display 2021-2024: Head-up display/ Reflective light auxiliary display |
| F44 | Communication gateway module/ Run/Crank |
| F45 | Not Used |
| F46 | Not Used |
| F47 | Not Used |
| F48 | Not Used |
| F49 | Interior rearview mirror |
| F50 | 2018-2020: Fuel system control module 2021-2024: Fuel system control module / Shifter interface board / Run/Crank |
| F51 | Heated steering wheel |
| F52 | Folding seats switch |
| F53 | 2021-2024: Coolant pump |
| F54 | 2018-2020: Coolant pump |
| F55 | Air conditioning clutch |
| F56 | 2018-2020: Integrated chassis control module |
| F57 | Engine control module/lgnition |
| F58 | Transmission control module/ Ignition |
| F59 | Engine control module battery |
| F60 | Engine control module-even |
| F61 | O2 sensor 1/MAF |
| F62 | Not Used |
| F63 | O2 sensor 2/ Canister/Engine oil/ Turbo |
| F64 | Aeroshutter |
| F65 | Engine control module powertrain 1 |
| F66 | Engine control module powertrain 2 |
| F67 | Engine control module-odd |
| F68 | Not Used |
| F69 | Not Used |
| F70 | Not Used |
| F71 | Not Used |
| F72 | Not Used |
| F73 | Not Used |
| F74 | Not Used |
| F75 | Not Used |
| F76 | Not Used |
| F77 | Not Used |
| Relays | |
| K1 | Starter 1 |
| K2 | Run/Crank |
| K3 | Vacuum pump |
| K4 | Not Used |
| K5 | Air conditioning |
| K6 | 2018-2020: Coolant pump |
| K7 | Engine control module |
| K8 | Folding seats |
| K9 | Not Used |
| K10 | Starter 2 |

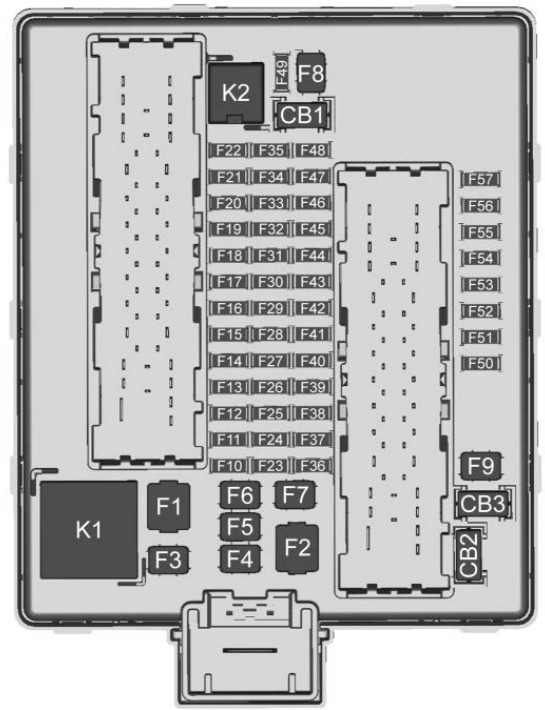

Luggage Compartment Fuse Box
| № | Description |
| F1 | Not Used |
| F2 | Trailer |
| F3 | Folding seats |
| F4 | Rear blower |
| F5 | Rear drive control |
| F6 | Not Used |
| F7 | Right window |
| F8 | Rear defogger |
| F9 | Left window |
| F10 | Not Used |
| F11 | Trailer reverse |
| F12 | USB port/Third row seats |
| F13 | Not Used |
| F14 | Not Used |
| F15 | Not Used |
| F16 | Not Used |
| F17 | Camera |
| F18 | Not Used |
| F19 | 2018-2019: Ventilated seats 2020-2024: Ventilated seats / Massage |
| F24 | Lumbar |
| F25 | Not Used |
| F26 | Trailer brake lamps |
| F27 | 2018-2019: Not Used 2020-2024: Massage |
| F28 | Passive entry/ Passive start |
| F29 | Not Used |
| F30 | Canister vent |
| F31 | Not Used |
| F32 | Heated mirrors |
| F33 | USB port/Second row seats |
| F34 | Liftgate module |
| F35 | 2018-2020: Fuel system control module 2021-2024: Fuel system control module / Fuel tank zone module. |
| F36 | Not Used |
| F37 | Not Used |
| F38 | Window module |
| F39 | Rear closure |
| F40 | Memory seat module |
| F41 | Automatic occupancy sensor |
| F42 | Not Used |
| F43 | Not Used |
| F44 | Not Used |
| F45 | Liftgate motor |
| F46 | Rear heated seats |
| F47 | Not Used |
| F48 | Not Used |
| F49 | Not Used |
| F50 | Not Used |
| F51 | Not Used |
| F52 | Semi-active dampening system module |
| F53 | Not Used |
| F54 | External object calculating remote system / Side blind zone alert |
| F56 | Universal remote system/Overhead console |
| F57 | Hands free closure release |
| CB1 | Not Used (Circuit Breaker) |
| CB2 | Not Used (Circuit Breaker) |
| CB3 | Rear auxiliary power outlet (Circuit Breaker) |
| Relays | |
| K1 | Not Used |
| K2 | Not Used |
