Chevrolet Aveo (2003 – 2006) Fuse Box Location & Diagrams
For Chevrolet Aveo owners (2003–2006), understanding fuse box locations and diagrams is essential for quick troubleshooting. This guide provides clear layouts, step-by-step instructions, and tips to help you locate, identify, and replace fuses, ensuring your vehicle’s electrical system stays in top condition.
Fuse Box Locations

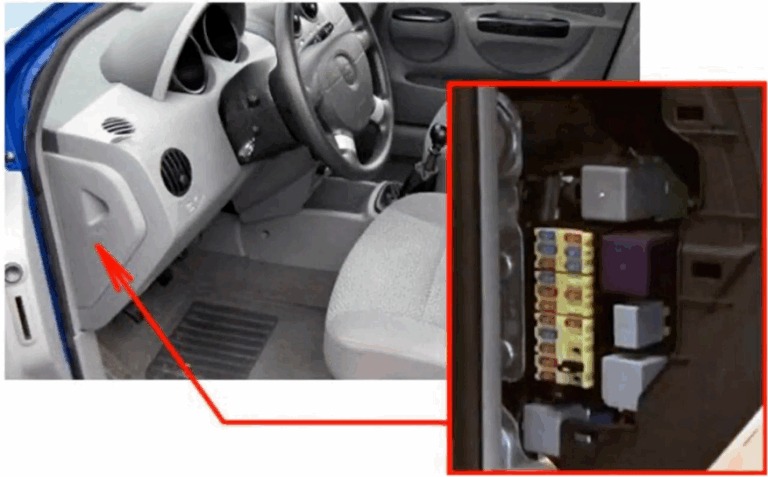

Passenger Compartment Fuse Box
The instrument panel fuse block is located on the end of the instrument panel on the driver’s side of the vehicle.

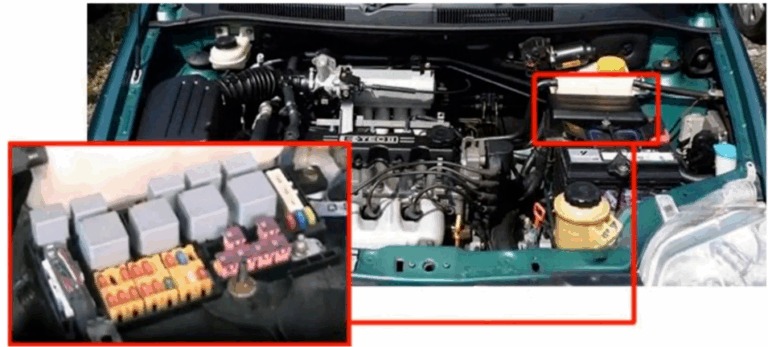

Engine Compartment Fuse Box
The engine compartment fuse block is located on the driver’s side of the vehicle, near the battery.
Passenger Compartment Fuse Box Diagram

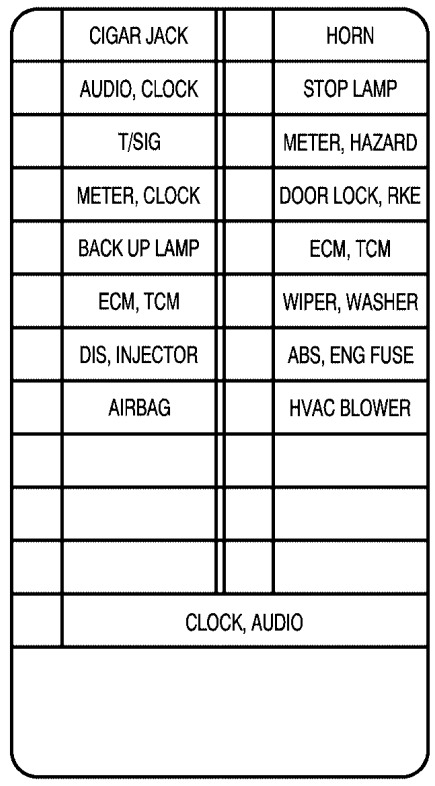

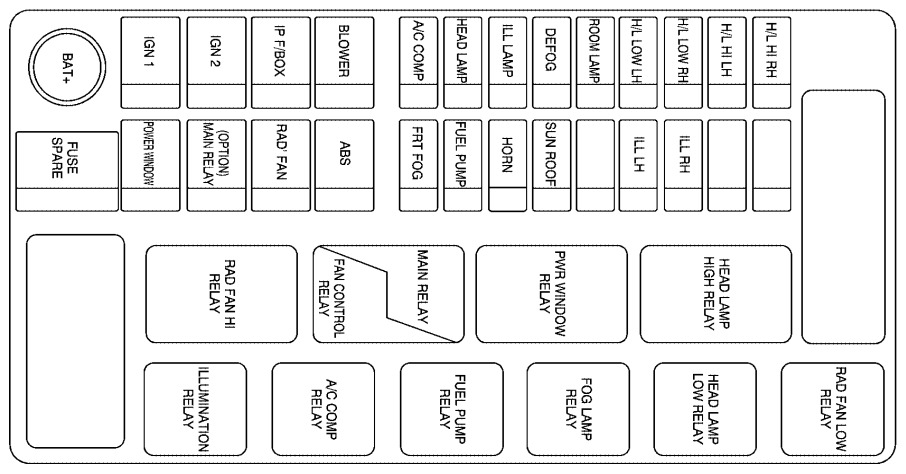

Chevrolet Aveo (2003 and 2004)
| Fuses | Usage |
| CIGAR JACK | Cigar Jack |
| HORN | Horn |
| AUDIO, CLOCK | Audio, Clock |
| STOP LAMP | Stop Lamp |
| T/SIG | Turn Signal |
| METER, HAZARD | Instrument Panel Cluster, Hazard Flasher |
| METER, CLOCK | Instrument Panel Cluster, Clock |
| DOOR LOCK, RKE | Door Lock, Remote Keyless Entry |
| BACK UP LAMP | Back Up Lamp |
| ECM, TCM | Engine Control Module, Transmission Control Module |
| ECM, TCM | Engine Control Module, Transmission Control Module |
| WIPER, WASHER | Wiper, Washer |
| DIS, INJECTOR | Direct Ignition System, Injector |
| ABS, ENG FUSE | Antilock Brake System, Engine Fuse |
| AIRBAG | Air Bag |
| HVAC BLOWER | HVAC Blower |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| CLOCK, AUDIO | Clock, Audio |

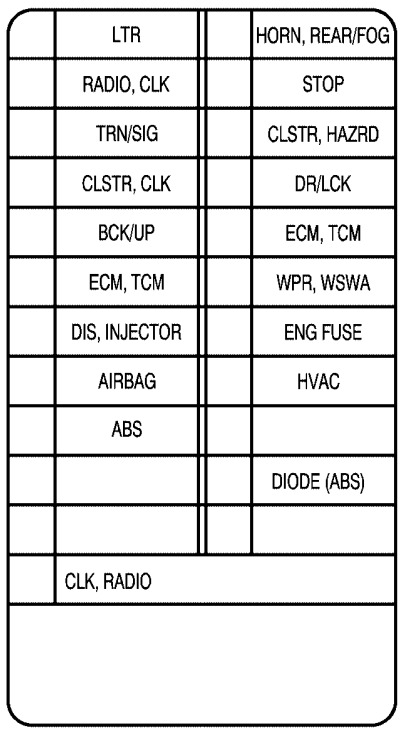

Chevrolet Aveo (2005 and 2006)
| Fuses | Usage |
| LTR | Cigar Lighter |
| HORN, REAR/FOG | Horn, Rear Fog Lamps |
| RADIO, CLK | Audio, Clock |
| STOP | Stop Lamp |
| TRN/SIG | Turn Signal |
| CLSTR, HAZRD | Instrument Panel Cluster, Hazard Flasher |
| CLSTR, CLK | Instrument Panel Cluster, Clock |
| DR/LCK | Door Lock, Remote Keyless Entry |
| BCK/UP | Back-Up Lamp |
| ECM, TCM | Engine Control Module, Transmission Control Module |
| ECM, TCM | Engine Control Module, Transmission Control Module |
| WPR, WSWA | Wiper, Washer |
| DIS, INJECTOR | Direct Ignition System, Injector |
| ENG FUSE | Engine Fuse |
| AIRBAG | Airbag |
| HVAC | HVAC Blower |
| ABS | Anti-lock Brake System |
| BLANK | Not Used |
| BLANK | Not Used |
| DIODE (ABS) | Anti-lock Brake System Diode |
| BLANK | Not Used |
| BLANK | Not Used |
| CLK, RADIO | Clock, Audio |
Engine Compartment Fuse Box Diagram
Chevrolet Aveo (2003 and 2004)
| Fuses | Usage |
| H/L HI RH | Head Lamp High Right Side |
| BLANK | Not Used |
| H/L HI LH | Head Lamp High Left Side |
| BLANK | Not Used |
| H/L LOW RH | Head Lamp Low Right Side |
| ILL RH | Parking Lamp Right Side, Illumination Circuit |
| H/L LOW LH | Head Lamp Low Left Side |
| ILL LH | Parking Lamp Left Side, License Plate Lamp |
| ROOM LAMP | Room Lamp |
| BLANK | Not Used |
| DEFOG | Defogger |
| SUN ROOF | Sunroof |
| ILL LAMP | Illumination Relay |
| HORN | Horn |
| HEAD LAMP | Headlamp |
| FUEL PUMP | Fuel Pump |
| A/C COMP | Air Conditioning Compressor |
| FRT FOG | Front Fog Lamp |
| BLOWER | Blower |
| ABS | Antilock Brake System |
| IP F/BOX | Instrument Panel Fuse Box |
| RAD’ FAN | Radiator Fan |
| IGN 2 | Ignition 2 |
| IGN 1 | Ignition 1 |
| POWER WINDOW | Power Windows |
| FUSE SPARE | Spare Fuse |
| Relays | Usage |
| BLANK | Not Used |
| RAD FAN LOW RELAY | Radiator Fan Low Relay |
| HEAD LAMP HIGH RELAY | Head Lamp High Relay |
| HEAD LAMP LOW RELAY | Head Lamp Low Relay |
| PWR WINDOW RELAY | Power Window Relay |
| FOG LAMP RELAY | Fog Lamp Relay |
| MAIN RELAY/FAN CONTROL RELAY | Main Relay/Fan Control Relay |
| FUEL PUMP RELAY | Fuel Pump Relay |
| A/C COMP RELAY | Air Conditioning Relay |
| (OPTION) MAIN RELAY | Main Relay (Option) |
| RAD FAN HI RELAY | Radiator Fan High Relay |
| ILLUMINATION RELAY | Illumination Relay |
| BLANK | Not Used |

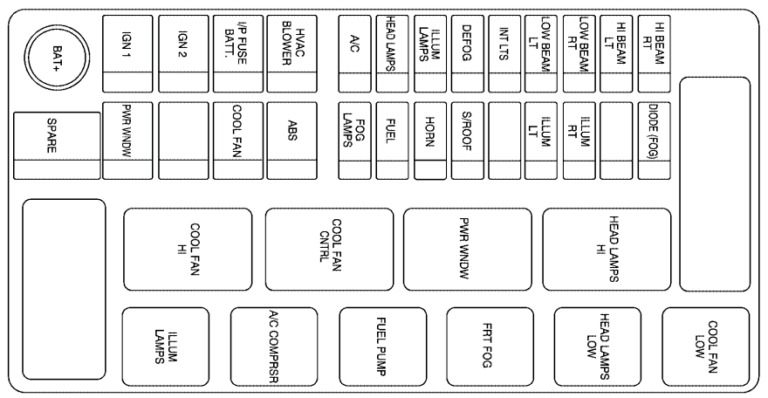

Chevrolet Aveo (2005 and 2006)
| Fuses | Usage |
| HI BEAM RT | Passenger’s Side Headlamp High |
| DIODE (FOG) | Fog Lamp Diode |
| HI BEAM LT | Driver’s Side Headlamp High |
| BLANK | Not Used |
| LOW BEAM RT | Passenger’s Side Headlamp Low |
| ILLUM RT | Parking Lamp Right Side, Illumination Circuit |
| LOW BEAM LT | Driver’s Side Headlamp Low |
| ILLUM LT | Parking Lamp Left Side, License Plate Lamp |
| INT LTS | Room Lamp |
| BLANK | Not Used |
| DEFOG | Defogger |
| S/ROOF | Sunroof |
| ILLUM LAMPS | Illumination Relay |
| HORN | Horn |
| HEAD LAMPS | Headlamps |
| FUEL | Fuel Pump |
| A/C | Air Conditioning Compressor |
| FOG LAMPS | Front Fog Lamp |
| HVAC BLOWER | Heating, Ventilation, Air Conditioning Blower |
| ABS | Anti-lock Brake System |
| I/P FUSE BATT. | Instrument Panel Fuse Box |
| COOL FAN | Radiator Fan |
| IGN 2 | Ignition 2 |
| BLANK | Blank |
| IGN 1 | Ignition 1 |
| PWR WNDW | Power Windows |
| SPARE | Spare |
| Relays | Usage |
| BLANK | Not Used |
| COOL FAN LOW | Cooling Fan Low |
| HEAD LAMPS HI | Headlamp High |
| HEAD LAMPS LOW | Headlamp Low |
| PWR WNDW | Power Window |
| FRT FOG | Fog Lamp |
| COOL FN CNTRL | Cooling Fan Control |
| FUEL PUMP | Fuel Pump |
| A/C COMPRSR | Air Conditioning Compressor |
| COOL FAN HI | Cooling Fan High |
| ILLUM LAMPS | Illumination Lamps |
| BLANK | Not Used |
