Chevrolet Corvette (2005 – 2013) Fuse Box Diagrams & Location
For owners of Chevrolet Corvette models from 2005 to 2013, understanding the fuse box system is essential for proper maintenance. This guide provides clear diagrams and step-by-step instructions for locating and identifying fuses, making it easier to troubleshoot and replace them. Whether you’re dealing with electrical issues or conducting routine checks, this user guide simplifies fuse-related tasks for your Corvette.
Fuse Box Locations
Passenger Compartment Fuse Box

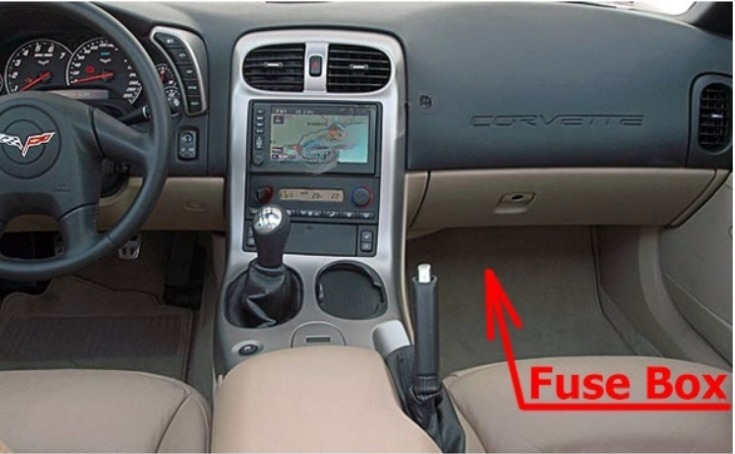

The instrument panel fuse block is located on the passenger’s side of the vehicle, under the instrument panel and under the toe-board.
Remove the carpet and toe-board covering to access the fuse block by pulling at the top of each corner of the panel. Open the fuse block cover to access the fuses.
Engine Compartment Fuse Box

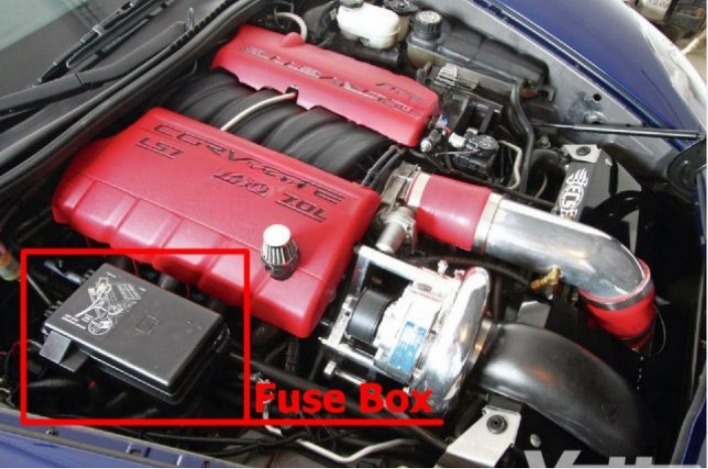

There is one fuse block in the engine compartment located on the passenger’s side of the vehicle.
Passenger Compartment Fuse Box Diagram

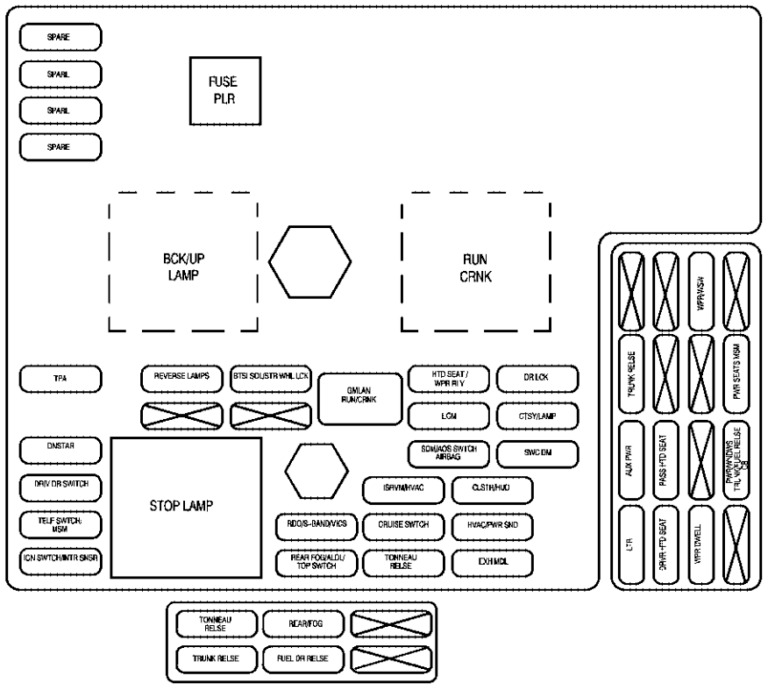

Chevrolet Corvette (2005 to 2008)
| No | Usage |
|---|---|
| SPARE FUSE HOLDER | Spare Fuse Holder |
| SPARE FUSE HOLDER | Spare Fuse Holder |
| SPARE FUSE HOLDER | Spare Fuse Holder |
| SPARE FUSE HOLDER | Spare Fuse Holder |
| SPARE TPA | 2005: Spare 2006-2008: Tonneau Pulldown Actuator |
| ONSTAR | OnStar |
| DRIV DR SW | Driver Door Switch |
| TELE SW/MEM SEAT MOD | Telescope Switch, Memory Seat Module |
| IGN SW/INTR SENS | Ignition Switch, Intrusion Sensor |
| REVERSE LAMP | Reverse Lamp |
| REVERSE LAMPS | Reverse Lamps |
| Blank | Not Used |
| STOP LAMP | Stop Lamp |
| BTSI SOL/COL LOCK | Brake Transmission Shift Interlock, Column Lock |
| BLANK | Not Used |
| RADIO/SBAND/VICS | Radio, S-Band, VICS |
| REAR FOG/ALDL/TOP SW | Rear Fog Lamp, Assembly Line Diagnostic Link Connector, Convertible Top Switch |
| GMLAN DEVICES | GM LAN Devices |
| ISRVM/ HVAC | Electric Inside Rearview Mirror, Heating Ventilation, Air Conditioning |
| CRUISE SW | Cruise Control Switch |
| TONNEAU RELSE | Tonneau Release |
| RUN/CRANK | Run/Crank Relay |
| HTD SEAT/WPR RELAYS | Heated Seat, Wiper Relays |
| ECM | Engine Control Module |
| SDM PSIR SW AIRBAG | Sensing and Diagnostic Module, Automatic Occupant Sensing Module |
| CLSTR/HUD | Cluster, Heads-Up Display |
| HVAC/PWR SND | Heating, Ventilation/Air Conditioning, Power Sounder |
| SPARE | Spare |
| DR LCK | Door Locks |
| CTSY/LAMP | Courtesy Lamp |
| BLANK | Not Used |
| TONNEAU RELSE | Tonneau Release |
| TRUNK RELSE | Trunk Release |
| REAR/ FOG | Rear Fog Lamps |
| FUEL DR RELSE | Fuel Door Release |
| BLANK | Not Used |
| BLANK | Not Used |
| CIG LTR | Cigarette Lighter |
| DRVR HTD SEAT | Driver’s Heated Seat |
| WPR DWELL | Wiper Dwell |
| BLANK | Not Used |
| AUX PWR | Auxiliary Power |
| PASS HTD SEAT | Passenger’s Heated Seat |
| BLANK | Not Used |
| PWR WNDWS/FUEL RELSE | Power Windows, Fuel Door Release |
| TRUNK RELSE | Trunk Release |
| PWR LUMBAR | Power Lumbar |
| BLANK | Not Used |
| PWR SEATS MEMORY SEATS | Power Seats, Memory Seats |
| BLANK | Not Used |
| BLANK | Not Used |
| WPR/WASHER | Windshield Wiper/Washer |
| BLANK | Not Used |

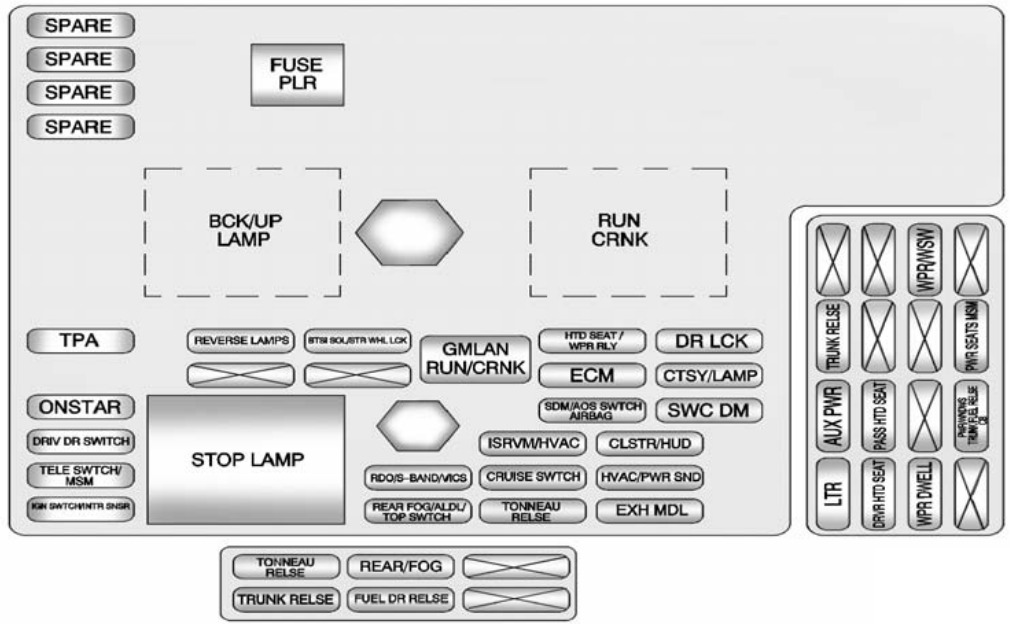

Chevrolet Corvette (2009 and 2010)
| Name | Usage |
|---|---|
| BCK/UP LAMP | Reverse Lamps |
| BLANK | Not Used |
| BLANK | Not Used |
| BTSI SOL/STR WHL LCK | Brake Transmission Shift Interlock, Steering Wheel Column Lock |
| CLSTR/HUD | Cluster, Heads-Up Display |
| CRUISE SWITCH | Cruise Control Switch |
| CTSY/LAMP | Courtesy Lamp |
| DR LCK | Door Locks |
| DRIV DR SWITCH | Driver Door Switch |
| ECM | Engine Control Module (ECM) |
| EXH MDL | Exhaust Module (Z06 & ZR1), Spare (Coupe and Convertible) |
| GM LAN RUN/CRNK | GM LAN Devices |
| HTD SEAT/WPR RLY | Heated Seat, Wiper Relays |
| HVAC/PWR SND | Heating. Ventilation/Air Conditioning, Power Sounder |
| IGN SWTCH/INTR SNSR | Ignition Switch, Intrusion Sensor |
| ISRVM/HVAC | Electric Inside Rearview Mirror, Heating, Ventilation, Air Conditioning |
| ONSTAR | OnStar |
| RDO/S-BAND/VICS | Radio, S-Band, VICS |
| REAR FOG/ALDL/TOP SWTCH | Rear Fog Lamp, Assembly Line Diagnostic Link Connector, Convertible Top Switch |
| REVERSE LAMPS | Reverse Lamps |
| RUN CRNK | Run/Crank Relay |
| SDM/AOS SWTCH AIRBAG | Sensing and Diagnostic Module, Automatic Occupant Sensing Module, Airbag |
| SPARE | Spare |
| SPARE | Spare |
| SPARE | Spare |
| SPARE | Spare |
| STOP LAMP | Stop Lamp |
| SWC DM | Steering Wheel Dimming |
| TELE SWTCH/MSM | Telescope Switch, Memory Seat Module |
| TONNEAU RELSE | Tonneau Release |
| TPA | Tonneau Pulldown Actuator |
| BLANK | Blank |
| BLANK | Blank |
| FUEL DR RELSE | Fuel Door Release |
| REAR/FOG | Rear Fog Lamps |
| TONNEAU RELSE | Tonneau Release |
| TRUNK RELSE | Trunk Release |
| AUX PWR | Auxiliary Power |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| DRVR HTD SEAT | Driver Heated Seat |
| LTR | Cigarette Lighter |
| PASS HTD SEAT | Passenger Heated Seat |
| PWR SEATS MSM | Power Seats, Memory Seat Module |
| PWR/ WNDWS/TRUNK/FUEL RELSE | Power Windows, Trunk, Fuel Door Release |
| TRUNK RELSE | Trunk Release |
| WPR DWELL | Wiper Dwell |
| WPR/WSW | Windshield Wiper/Washer |

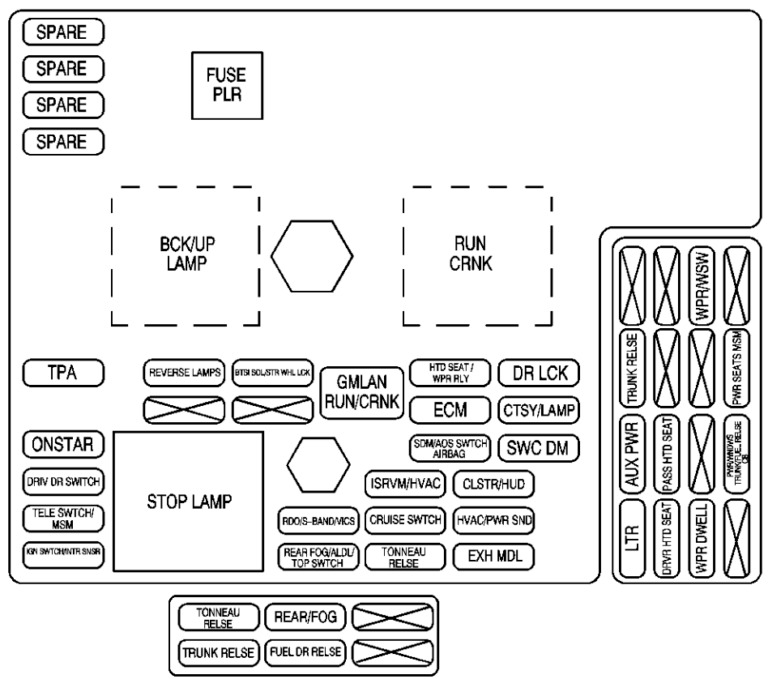

Chevrolet Corvette (2011, 2012 and 2013)
| Name | Usage |
|---|---|
| BCK/UP LAMP | Back‐up Lamps |
| BLANK | Not Used |
| BLANK | Not Used |
| BTSI SOL/STR WHL LCK | Brake Transmission Shift Interlock, Steering Wheel Column Lock |
| CLSTR/HUD | Cluster, Heads-Up Display |
| CRUISE SWITCH | Cruise Control Switch |
| CTSY/LAMP | Courtesy Lamp |
| DR LCK | Door Locks |
| DRIV DR SWITCH | Driver Door Switch |
| ECM | Engine Control Module (ECM) |
| EXH MDL | Exhaust Module (Z06 & ZR1), Spare (Coupe and Convertible) |
| FUSE PLR | Fuse Puller |
| GM LAN RUN/CRNK | GM LAN Devices |
| HTD SEAT/WPR RLY | Heated Seat, Wiper Relays |
| HVAC/PWR SND | Heating. Ventilation/Air Conditioning, Power Sounder |
| IGN SWTCH/INTR SNSR | Ignition Switch, Intrusion Sensor |
| ISRVM/HVAC | Electric Inside Rearview Mirror, Heating, Ventilation, Air Conditioning |
| ONSTAR | OnStar® (if equipped) |
| RDO/S-BAND/VICS | Radio, S-Band |
| REAR FOG/ALDL/TOP SWTCH | Rear Fog Lamp, Assembly Line Diagnostic Link Connector, Convertible Top Switch |
| REVERSE LAMPS | Reverse Lamps |
| RUN CRNK | Run/Crank Relay |
| SDM/AOS SWTCH AIRBAG | Sensing and Diagnostic Module, Automatic Occupant Sensing Module, Airbag |
| SPARE | Spare |
| SPARE | Spare |
| SPARE | Spare |
| SPARE | Spare |
| STOP LAMP | Stop Lamp |
| SWC DM | Steering Wheel Dimming |
| TELE SWTCH/MSM | Telescope Switch, Memory Seat Module |
| TONNEAU RELSE | Tonneau Release |
| TPA | Tonneau Pulldown Actuator |
| BLANK | Blank |
| BLANK | Blank |
| FUEL DR RELSE | Fuel Door Release |
| REAR/FOG | Rear Fog Lamps |
| TONNEAU RELSE | Tonneau Release |
| TRUNK RELSE | Trunk Release |
| AUX PWR | Auxiliary Power |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| DRVR HTD SEAT | Driver Heated Seat |
| LTR | Cigarette Lighter |
| PASS HTD SEAT | Passenger Heated Seat |
| PWR SEATS MSM | Power Seats, Memory Seat Module |
| PWR/ WNDWS/TRUNK/FUEL RELSE CB | Power Windows, Trunk, Fuel Door Release Circuit Breaker |
| TRUNK RELSE | Trunk Release |
| WPR DWELL | Wiper Dwell |
| WPR/WSW | Windshield Wiper/Washer |
Engine Compartment Fuse Box Diagram

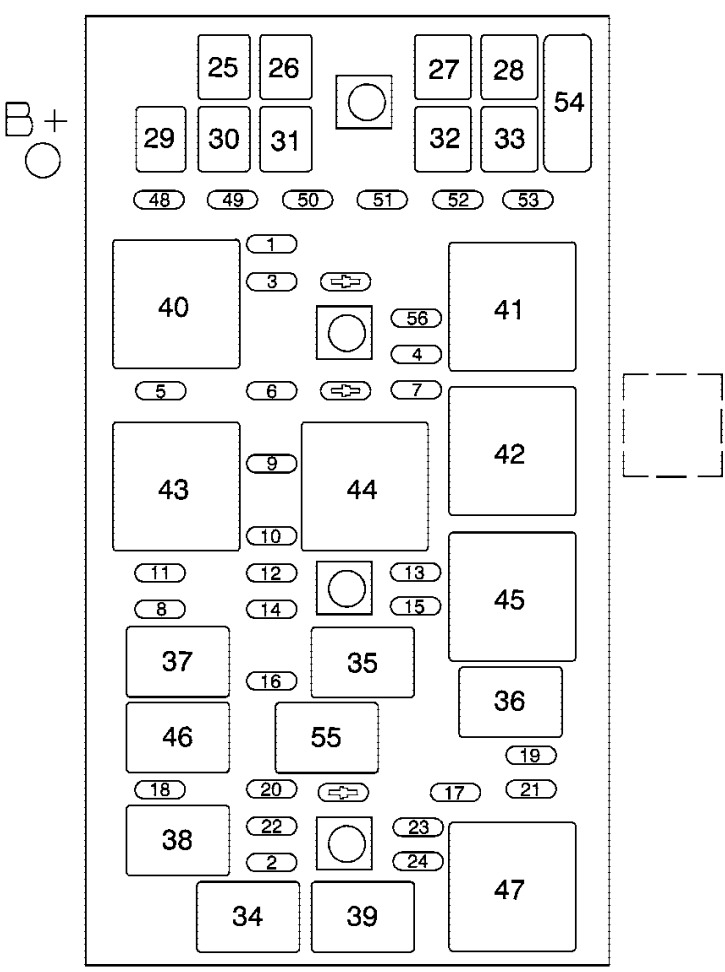

Chevrolet Corvette (2005 to 2008)
| № | Usage |
|---|---|
| Fuses | |
| 1 | Transmission Control Module/Transmission |
| 2 | Horn, Alternator Sense |
| 3 | Anti-lock Brakes/Real Time Damping |
| 4 | Wiper |
| 5 | Stoplamps/Back-Up Lamps |
| 6 | O2 Sensor |
| 7 | Battery Main 5 |
| 8 | Park Lamps |
| 9 | Powertrain Relay Input/Electronic Throttle Contro |
| 10 | Manual Transmission Solenoids |
| 11 | Engine Control Module/Transmission Control Module/Easy Key Module |
| 12 | Odd Numbered Fuel Injectors |
| 13 | Real Time Damping |
| 14 | Canister Purge Solenoid, Mass Air Flow Sensor |
| 15 | Air Conditioner Compressor |
| 16 | Even Numbered Fuel Injectors |
| 17 | Windshield Washer |
| 18 | Headlamp Washer |
| 19 | Passenger’s Side Low-Beam |
| 20 | Fuel Pump |
| 21 | Driver’s Side Low-Beam |
| 22 | Front Fog Lamp |
| 23 | Passenger’s Side High-Beam |
| 24 | Driver’s Side High-Beam |
| J-Style Fuses | |
| 25 | Cooling Fan |
| 26 | Battery Main 3 |
| 27 | Anti-Lock Brake System |
| 28 | Heating/Ventilation/Air Conditioning Blower |
| 29 | Battery Main 2 |
| 30 | Starter |
| 31 | Audio Amplifier |
| 32 | Blank |
| 33 | Battery Main 1 |
| Micro-Relays | |
| 34 | Horn |
| 35 | Air Conditioning Compressor |
| 36 | Windshield Washer |
| 37 | Park, Position Lamps |
| 38 | Front Fog Lamp |
| 39 | High Beam |
| 46 | Headlamp Washer |
| 55 | Fuel Pump |
| Mini-Relays | |
| 40 | Rear Defog |
| 41 | Windshield Wiper High/Low |
| 42 | Windshield Wiper Run/Accessory |
| 43 | Crank |
| 44 | Powertrain Ignition 1 |
| 45 | Windshield Wiper On/Off |
| 47 | Low Beam |
| Spare Fuses | |
| 48 | Spare |
| 49 | Spare |
| 50 | Spare |
| 51 | Spare |
| 52 | Spare |
| 53 | Spare |
| 54 | Fuse Puller |

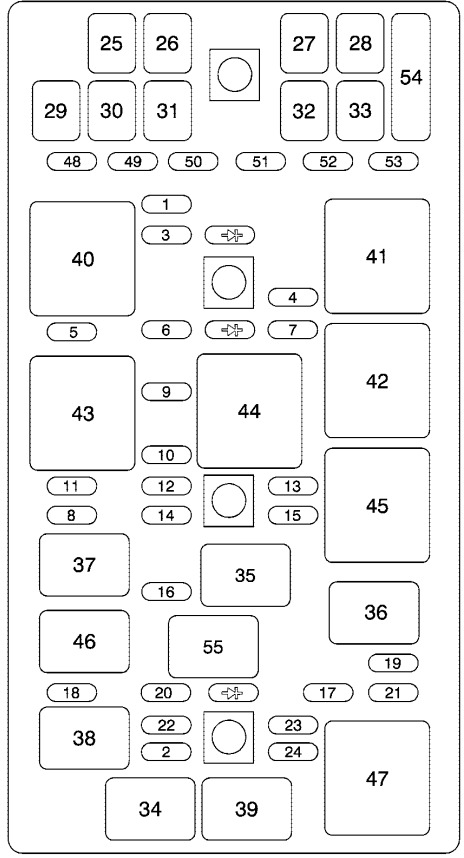

Chevrolet Corvette (2009 and 2010)
| No | Usage |
|---|---|
| Fuses | |
| 1 | Transmission Control Module/Transmission |
| 2 | Horn, Alternator Sense |
| 3 | Antilock Braking System (ABS)/Real Time Damping |
| 4 | Wiper |
| 5 | Stoplamps/Back-Up Lamps |
| 6 | Oxygen Sensor |
| 7 | Battery Main 5 |
| 8 | Parking Lamps |
| 9 | Powertrain Relay Input/Electronic Throttle Control |
| 10 | Manual Transmission Solenoids |
| 11 | Antilock Braking System |
| 12 | Odd Numbered Fuel Injectors |
| 13 | Electronic Suspension Control (Option) |
| 14 | Canister Purge Solenoid, Mass Air Flow Sensor |
| 15 | Air Conditioner Compressor |
| 16 | Even Numbered Fuel Injectors |
| 17 | Windshield Washer |
| 18 | Headlamp Washer |
| 19 | Passenger Side Low-Beam Headlamp |
| 20 | Fuel Pump (except ZR1) |
| 21 | Driver Side Low-Beam Headlamp |
| 22 | Front Fog Lamp |
| 23 | Passenger Side High-Beam Headlamp |
| 24 | Driver Side High-Beam Headlamp |
| 56 | Engine Control Module (ECM)/Transmission Control Module (TCM)/Easy Key Module |
| J-Style Fuses | |
| 25 | Cooling Fan |
| 26 | Battery Main 3 |
| 27 | Anti-Lock Brake System |
| 28 | Heating/Ventilation/Air Conditioning Blower |
| 29 | Battery Main 2 |
| 30 | Starter |
| 31 | Audio Amplifier |
| 32 | Intercooler Pump |
| 33 | Battery Main 1 |
| Micro-Relays | |
| 34 | Horn |
| 35 | Air Conditioning Compressor |
| 36 | Windshield Washer |
| 37 | Parking Lamps, Foglamps |
| 38 | Front Fog Lamp |
| 39 | High-Beam Headlamp |
| 46 | Headlamp Washer |
| 55 | Fuel Pump (except ZR1) |
| Mini-Relays | |
| 40 | Rear Defog |
| 41 | Windshield Wiper High/Low |
| 42 | Windshield Wiper Run/Accessory |
| 43 | Crank |
| 44 | Powertrain Ignition 1 |
| 45 | Windshield Wiper On/Off |
| 47 | Low-Beam Headlamp |
| Spare Fuses | |
| 48 | Spare |
| 49 | Spare |
| 50 | Spare |
| 51 | Spare |
| 52 | Spare |
| 53 | Spare |
| 54 | Fuse Puller |

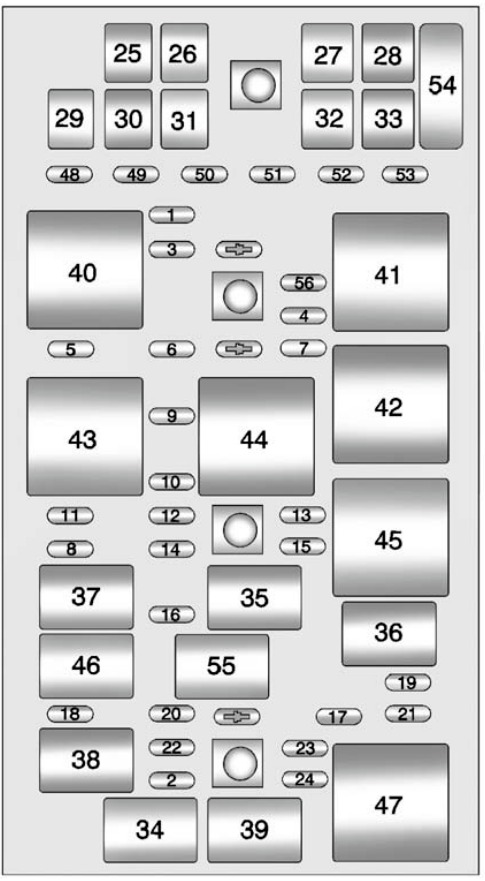

Chevrolet Corvette (2011, 2012 and 2013)
| No | Usage |
|---|---|
| Fuses | |
| 1 | Transmission Control Module/Transmission |
| 2 | Horn, Alternator Sense |
| 3 | Antilock Braking System (ABS)/Real Time Damping |
| 4 | Wiper |
| 5 | Stoplamps/Back-Up Lamps |
| 6 | Oxygen Sensor |
| 7 | Battery Main 5 |
| 8 | Parking Lamps |
| 9 | Powertrain Relay Input/Electronic Throttle Control |
| 10 | Manual Transmission Solenoids |
| 11 | Antilock Braking System |
| 12 | Odd Numbered Fuel Injectors |
| 13 | Electronic Suspension Control (Option) |
| 14 | Canister Purge Solenoid, Mass Air Flow Sensor |
| 15 | Air Conditioner Compressor |
| 16 | Even Numbered Fuel Injectors |
| 17 | Windshield Washer |
| 18 | Headlamp Washer |
| 19 | Passenger Side Low-Beam Headlamp |
| 20 | Fuel Pump (except ZR1) |
| 21 | Driver Side Low-Beam Headlamp |
| 22 | Front Fog Lamp |
| 23 | Passenger Side High-Beam Headlamp |
| 24 | Driver Side High-Beam Headlamp |
| 56 | Engine Control Module (ECM)/Transmission Control Module (TCM)/Easy Key Module |
| J-Style Fuses | |
| 25 | Cooling Fan |
| 26 | Battery Main 3 |
| 27 | Anti-Lock Brake System |
| 28 | Heating/Ventilation/Air Conditioning Blower |
| 29 | Battery Main 2 |
| 30 | Starter |
| 31 | Audio Amplifier |
| 32 | Intercooler Pump |
| 33 | Battery Main 1 |
| Micro-Relays | |
| 34 | Horn |
| 35 | Air Conditioning Compressor |
| 36 | Windshield Washer |
| 37 | Parking Lamps, Foglamps |
| 38 | Front Fog Lamp |
| 39 | High-Beam Headlamp |
| 46 | Headlamp Washer |
| 55 | Fuel Pump (except ZR1) |
| Mini-Relays | |
| 40 | Rear Defog |
| 41 | Windshield Wiper High/Low |
| 42 | Windshield Wiper Run/Accessory |
| 43 | Crank |
| 44 | Powertrain Ignition 1 |
| 45 | Windshield Wiper On/Off |
| 47 | Low-Beam Headlamp |
| Spare Fuses | |
| 48 | Spare |
| 49 | Spare |
| 50 | Spare |
| 51 | Spare |
| 52 | Spare |
| 53 | Spare |
| 54 | Fuse Puller |
