Chevrolet Equinox (2025 – 2026) Fuse Box Location & Diagrams
The Chevrolet Equinox (2025–2026) features multiple fuse boxes that protect essential electrical systems and components. This article provides the fuse box locations, detailed fuse diagrams, and fuse assignments to help you identify the correct fuse for troubleshooting, maintenance, or replacing a blown fuse quickly and safely.
Fuse Box Location

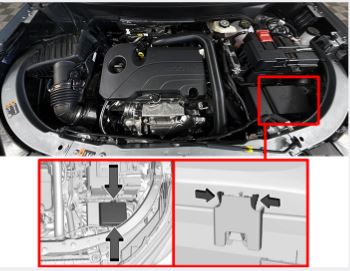

Engine Compartment Fuse Box
To remove the fuse block cover, squeeze the clips on the cover and lift it straight up.

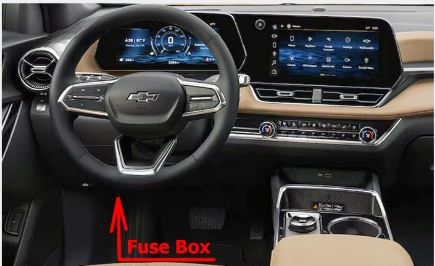

Passenger Compartment Fuse Box
The instrument panel fuse block is under the instrument panel above the driver’s side footrest.
Fuse Box Diagram

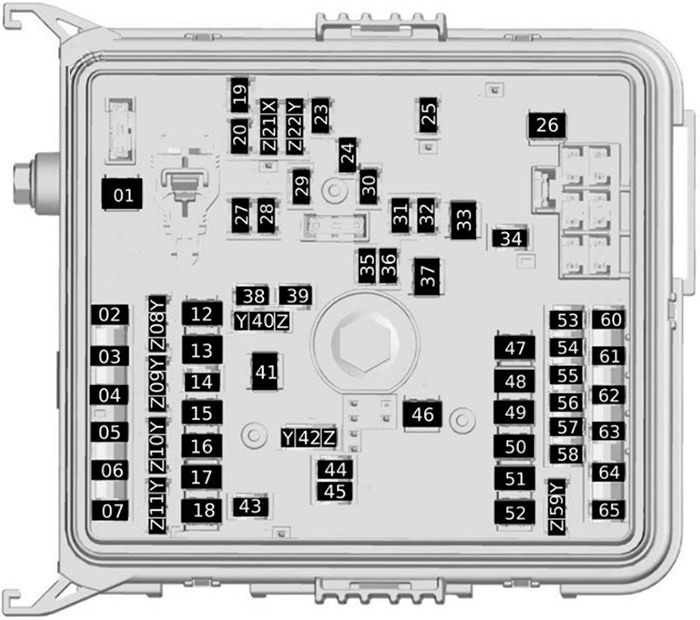

Engine Compartment Fuse Box
| № | Usage |
|---|---|
| F01 | STRTR MTR – Starter Motor |
| F02 | Spare |
| F03 | ELM 5 – Exterior Lighting Module Battery 5 |
| F04 | Spare |
| F05 | Spare |
| F06 | FTZM – Fuel Tank Zone Module |
| F07 | Spare |
| F08 | Spare |
| F09Z | HSM_FT_BAT1 – Front Heated Seat Module Battery 1 |
| F09Y | HSM_FT_BAT2 – Front Heated Seat Module Battery 2 |
| F10Z | HSM_RR_1 – Rear Heated Seat Module Battery 1 |
| F10Y | HSM_RR_2 – Rear Heated Seat Module Battery 2 |
| F11Z | MSG_LT – Driver Seat Lumbar Switch |
| F11Y | MSG_RT – Passenger Seat Lumbar Switch |
| F12 | DEFOG_RR – Rear defog |
| F13 | Spare |
| F14 | 2025: HFRC – Hands Free Rear Closure |
| F15 | PWR_SEAT_DR – Driver Memory Seat Module Power |
| F16 | DSP_LT – Left Front Window Motor |
| F17 | PWR_SEAT_CO – Passenger Memory Seat Module Power |
| F18 | DC DC1 – DC-DC Converter Battery 1 |
| F19 | ECM PT IGN – Engine Control Module Powertrain Ignition |
| F20 | ECM PT IGN 2 – Engine Control Module Powertrain Ignition 2 |
| F21Z | OFF ENG1 – Engine Sensor Power |
| F21Y | Spare |
| F22Z | COIL_IGN PWR – Coil Ignition Power |
| F22Y | DPWR2 – StepCam Intake Solenoid Power |
| F23 | Spare |
| F24 | 2025: ECM BAT – Electronic Control Module Battery2026: ECM – Engine Control Module PCM 2 – Powertrain Control Module 2 |
| F25 | A/C CLUTCH – A/C Compressor control clutch |
| F26 | STRTR PINION – Starter Motor Pinion |
| F27 | 2025: MGU – Motor Generator Unit2026: AWP – Auxiliary Water Pump Battery |
| F28 | Spare |
| F29 | 2025: PCM BAT – Propulsion Control Module Battery |
| F30 | 2025: TCM – Telematics Control Module |
| F31 | TAOPM – Trans Aux Oil Pump Module Battery |
| F32 | TCM_PCM – Transmission Control Module Battery |
| F33 | Spare |
| F34 | ST/TRN LT – Light Duty Trailer Connector (Trailer Stop/Turn Left) |
| F35 | Spare |
| F36 | ACM – Aero Shutter Module |
| F37 | EBCM BAT1 – Electronic Brake Control Module Battery 1 |
| F38 | Spare |
| F39 | WASH PUMP – Wash Pump Motor |
| F40Z | 2025: CWP |
| F40Y | 2025: APMB |
| F41 | Spare |
| F42 | Spare |
| F43 | M17_REAR – Rear wiper |
| F44 | 2025: BSM |
| F45 | RFA – Remote Function Receiver Battery |
| F46 | Spare |
| F47 | TRLR – Heavy Duty Trailer Connector |
| F48 | DSP_RT – Right Front Window Motor |
| F49 | PTM – Power Tailgate Module |
| F50 | SRC – Sunroof |
| F51 | WIPER FRT – Front Wiper Motor |
| F52 | DASM – Driveline Smart Actuator Module Battery |
| F53 | Horn |
| F54 | BKUP – Trailer Connector Reverse Light |
| F55 | PRK – Trailer Park Light |
| F56 | CVS – Canister Vent Solenoid |
| F57 | Spare |
| F58 | ELM 4 – Exterior Lighting Module Battery 4 |
| F59Z | DSP_DR – Driver Door Switch Panel Battery |
| F59Y | DSP_CO – Passenger Door Switch Panel Battery |
| F60 | WIP_DE_ICE – Wiper deice |
| F61 | ST/TRN RT – Trailer Stop/ Turn Light (Right) |
| F62 | Spare |
| F63 | Spare |
| F64 | Spare |
| F65 | Spare |

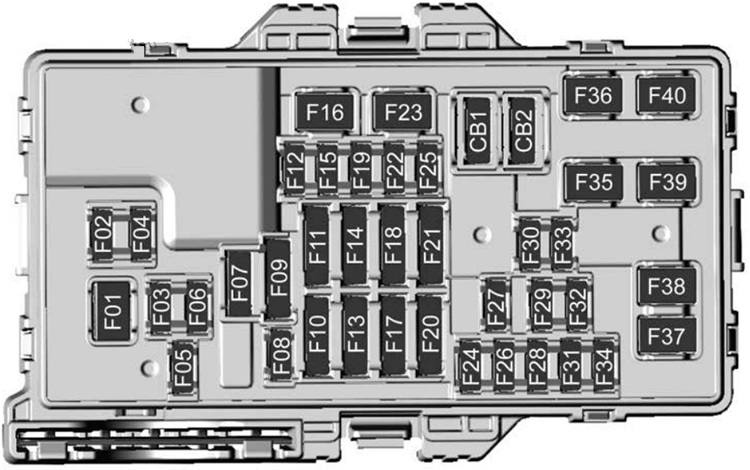

Passenger Compartment Fuse Box
| № | Usage |
|---|---|
| F01 | BLOWER – Front Blower Motor |
| F02 | ELM 6 – Exterior Lighting Module 6 |
| F03 | HDLP_RT – Headlamp Right |
| F04 | ELM 2 – Exterior Lighting Module 2 |
| F05 | BCM2 – Body Control Module 2 |
| F06 | BCM1 – Body Control Module 1 |
| F07 | SWC – Steering Wheel Controls |
| F08 | ONSTAR |
| F09 | ETRS/SWBK – Electronic Transmission Range Select/Switch Bank Battery |
| F10Z | IPD – Instrument Panel Display |
| F10Y | VCD – Virtual Cockpit Display |
| F11Z | 2026: LAMP_RT – Tail Lamp Right |
| F11Y | HVAC_D_OHC_UGDO – Overhead Console Module Battery |
| F12 | Spare |
| F13 | 2025: WCM/HSWM – Wireless Charging Module / Heated Steering Wheel Module |
| F13Z | 2026: SAFETY 2 – Side Blind Zone Alert Battery 2 |
| F13Y | 2026: LAMP_LT – Tail Lamp Left |
| F14Z | RC_MISC_3 – Run/Crank Miscellaneous 3 |
| F14Y | RC_MISC_4 – Run/Crank Miscellaneous 4 |
| F15 | 2025: 48V_IGN |
| F16 | APO_CARGO – Auxiliary Power Outlet Cargo |
| F17 | 2025: SDM/CO_AOS/SAFETY1_2 |
| F17Z | 2026: SAFETY 1_2 – Sensing & Diagnostic Module Battery 1_2 |
| F17Y | 2026: SAFETY 1_1 – Sensing & Diagnostic Module Battery 1 _1 |
| F18Z | RC_MISC_1 – Run/Crank Miscellaneous 1 |
| F18Y | RC_MISC_2 – Run/Crank Miscellaneous 2 |
| F19 | SDM_RC – Sensing Diagnostic Module |
| F20Z | DLC – Data Link Connector |
| F20Y | CGM – Central Gateway Module |
| F21Z | VCU JACK 1 |
| F21Y | VCU JACK 2 – Virtual Cockpit Unit Jack Battery |
| F22 | ECM_TCM_IGN |
| F23 | APO_USB – Auxiliary Power Outlet_USB |
| F24 | VKM_VKS – Virtual Key Module / Virtual Key Sensor |
| F25 | SPARE |
| F26 | ELM 1 – Electric Lighting Module 1 |
| F27 | ILSS_ETC – Indicator Light and Solar Sensor / Electronic Throttle Control |
| F28 | ELM 7 – Electric Lighting Module 7 |
| F29 | HDLP LT – Headlamp Left |
| F30 | SPARE |
| F31 | BCM3 – Body Control Module 3 |
| F32 | SAFETY 2 |
| F33 | – |
| F34 | ELM 3 – Electric Lighting Module 3 |
| F35 | AMP – Amplifier |
| F36 | DC/DC 2 – DirectCurrent/ Direct Current 2 |
| F37 | IEC_BATT – Internal Electrical Centre Battery |
| F38 | SPARE |
| F39 | BCM4 – Body Control Module 4 |
| F40 | VCU 2 – Virtual Cockpit Unit 2 |
