Chevrolet Equinox (2018 – 2024) Fuse Box Location & Diagrams
For Chevrolet Equinox owners of 2018-2024 models, knowing the fuse box layout is essential for smooth vehicle operation. This guide provides detailed diagrams and clear instructions on where to locate your fuses and how to identify and replace them. Whether you’re tackling electrical issues or simply performing maintenance, this user guide ensures you have all the information you need for hassle-free fuse management.
Passenger Compartment Fuse Box
Chevrolet Equinox (2018 to 2024)
Fuse Box Location

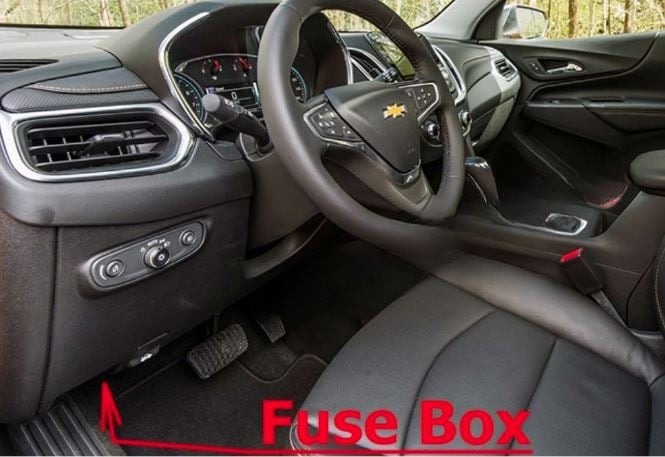

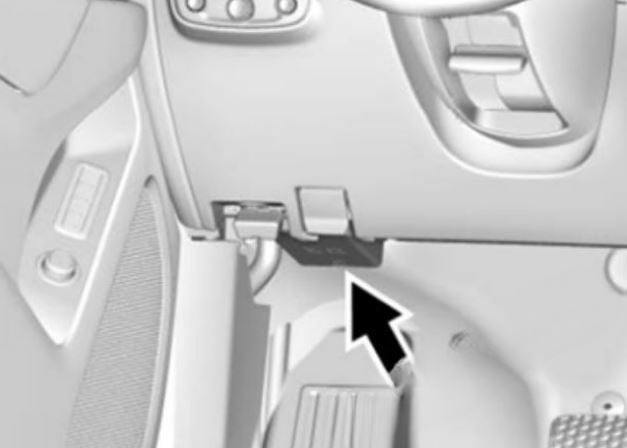

The instrument panel fuse block is under the instrument panel on the driver’s side. To access the fuses, press and release the latch near the top centre square.

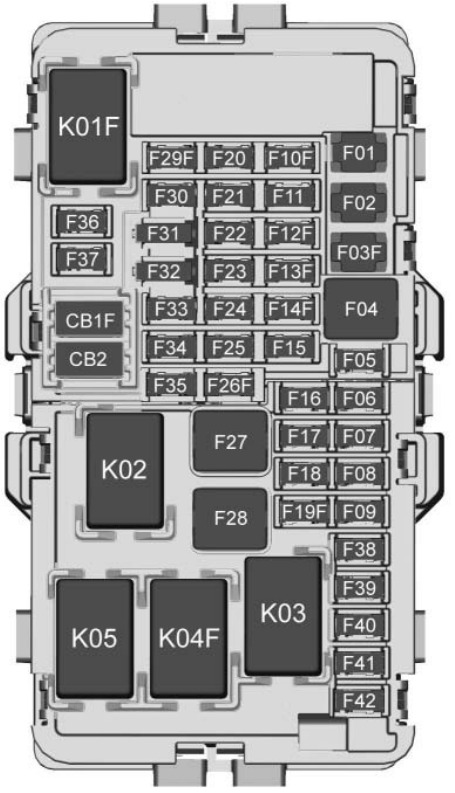

Fuse Box Diagram
| № | Usage |
|---|---|
| F01 | DC AC inverter |
| F02 | Front windows |
| F03 | Trailer brake |
| F04 | Heating, ventilation, and air conditioning blower |
| F05 | 2018-2022: Body control module 2 |
| F06 | Central gateway module (CGM) |
| F07 | Not used |
| F08 | Body control module 3 |
| F09 | Amplifier |
| F10 | Not used |
| F11 | Not used |
| F12 | Not used |
| F13 | Not used |
| F14 | 2018-2019: Electronic shifter. |
| F15 | Transmission control module |
| F16 | Front heated seats |
| F17 | Left data link connector |
| F18 | Body control module 7 |
| F19 | Exterior mirror |
| F20 | 2018-2022: Body control module 1 |
| F21 | Body control module 4 |
| F22 | 2018-2022: Body control module 6 |
| F23 | 2018-2022: Electric steering column lock |
| F24 | Sensing and diagnostic module |
| F25 | Occupancy sensor |
| F26 | Not used |
| F27 | Power seats |
| F28 | Rear windows |
| F29 | Not used |
| F30 | 2018-2019: Front heated seats switch. |
| F31 | Steering wheel controls |
| F32 | Body control module 8 |
| F33 | Heating, ventilation, and air conditioning |
| F34 | Passive entry, passive start |
| F35 | Liftgate latch |
| F36 | 2018: Shift charger 2019-2024: Wireless charger module/ USB accessory |
| F37 | Cigarette lighter |
| F38 | OnStar |
| F39 | Instrument panel USB |
| F40 | Camera module/ Liftgate module |
| F41 | 2018-2020: Parking assist module 2021-2024: Park assist module/ Center stack display/ Heating, ventilation and air conditioner display/ Universal garage door opener/ Overhead control switchbank |
| F42 | Radio |
| Relays | |
| K01 | 2018-2019: Deadbolt. 2020-2022: Not Used |
| K02 | Retained accessory power |
| K03 | Liftgate |
| K04 | Not used |
| K05 | 2018-2022: Logistics |
| Circuit Breakers | |
| CB1 | 2018: Front auxiliary power outlet |
| CB2 | 2018-2022: Auxiliary power outlet console |
Engine Compartment Fuse Box
Chevrolet Equinox (2018 to 2024)

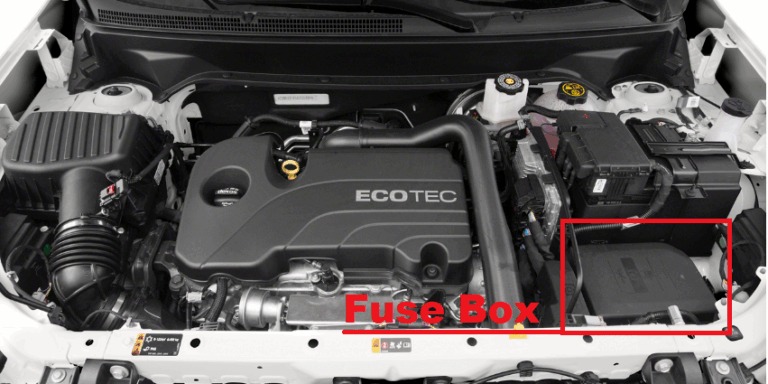

Fuse Box Location

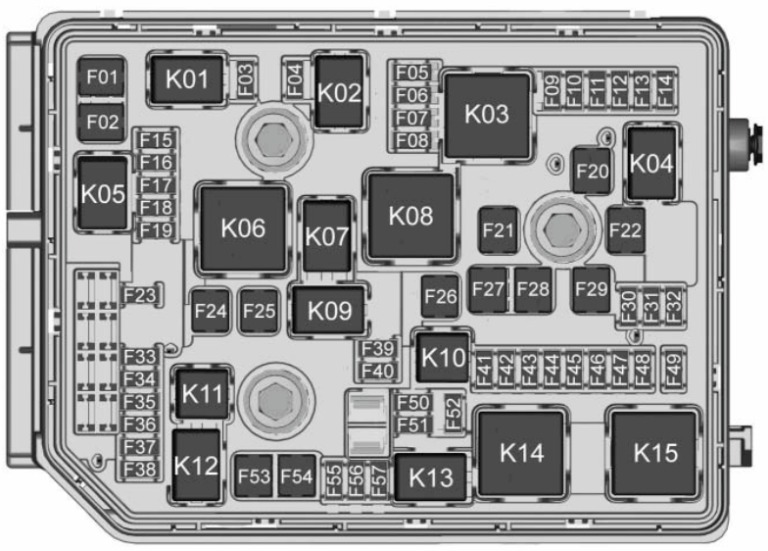

Fuse Box Diagram
| № | Usage |
|---|---|
| F01 | Starter 1 |
| F02 | Starter 2 |
| F03 | 2018-2022: Lambda sensor 1 2023-2024: Lambda Sensor 1 / Purge Motor |
| F04 | Engine control module |
| F05 | 2018-2020: FlexFuel sensor 2021: FlexFuel sensor/ Aero shutter 2022-2024: Aero Shutter/ Water Pump |
| F06 | Transmission control module |
| F07 | Not used |
| F08 | 2018-2021: Engine control module |
| F09 | Air conditioning clutch |
| F10 | Canister vent |
| F11 | Fuel system |
| F12 | Front heated seats |
| F13 | 2018-2019: Afterboil pump. 2020-2024: Engine coolant pump |
| F14 | Not used |
| F15 | Lambda sensor 2 |
| F16 | 2018: Fuel injectors – odd 2019-2024: Ignition coils |
| F17 | 2018: Fuel injectors – even 2019-2024: Engine control module |
| F18 | 2018-2021: Not used/ Selective catalytic reduction module (diesel only) 2022-2024: Engine Control Module |
| F19 | Not used/ NOx soot sensor (diesel only) |
| F20 | DC DC converter 2 |
| F21 | Shift control |
| F22 | Antilock brake pump |
| F23 | 2018: Front washer 2019-2024: Front/Rear washer pump |
| F24 | Not used |
| F25 | Not used/ Diesel fuel heater (diesel only) |
| F26 | Not used |
| F27 | Antilock brake valves |
| F28 | LD trailer |
| F29 | Rear window defogger |
| F30 | Mirror defroster |
| F31 | Not used |
| F32 | Variable functions |
| F33 | Not used |
| F34 | Horn |
| F35 | 2018: Vacuum pump |
| F36 | 2018-2021: Right high-beam headlamp 2022-2024: Headlamps/ Daytime Running Lamps Right |
| F37 | 2018-2021: Left high-beam headlamp |
| F38 | Automatic headlamp leveling |
| F39 | 2018-2021: Fog lamps |
| F40 | Not used |
| F41 | Transmission range control module |
| F42 | Motorized headlamp |
| F43 | 2018: Fuel pump |
| F44 | Interior rearview mirror |
| F45 | 2018: Canister vent solenoid 2019-2024: Passenger side ventilated seat |
| F46 | Driver side Ventilated Seat |
| F47 | Steering column lock assembly |
| F48 | Rear wiper |
| F49 | Not used |
| F50 | Heated steering wheel |
| F51 | 2018: Right headlamp 2019-2021: Right daytime running lamp |
| F52 | Engine control module/ Transmission control |
| F53 | Not used |
| F54 | 2018: Front wiper |
| F55 | Front wiper speed/ Control |
| F56 | Not used |
| F57 | 2018: Left headlamp 2019-2021: Left daytime running lamp 2022-2024: Headlamps/ Daytime Running Lamps Left |
| Relays | |
| K01 | Starter solenoid |
| K02 | Air conditioning control |
| K03 | 2018: Not used 2019-2024: Engine control module |
| K04 | 2018: Wiper control 2019-2024: Front wiper control |
| K05 | Starter Solenoid/Pinion |
| K06 | Not used/ Fuel heater (diesel only) |
| K07 | Not used |
| K08 | Not used |
| K09 | 2018: Wiper speed 2019-2024: Front wiper speed |
| K10 | Not used |
| K11 | Not used |
| K12 | 2018-2021: High-beam headlamps 2022-2024: Headlamps/ Daytime Running Lamps Right |
| K13 | 2018-2021: Headlamps/ Daytime running lamps 2022-2024: Headlamps/ Daytime Running Lamps Left |
| K14 | Run/Crank |
| K15 | Rear window defogger |
| *K16 | Horn |
| *K17 | Selective catalytic reduction |
| *K18 | Fog lamps |
| *K19 | Coolant pump |
| *K20 | Not used |
| *K21 | Rear washer |
| *K22 | Front washer |
| *K23 | 2018: Wiper control 2019-2024: Rear wiper control |
| * PCB relays are not serviceable. |
Luggage Compartment Fuse Box
Chevrolet Equinox (2018 to 2024)
Fuse Box Location

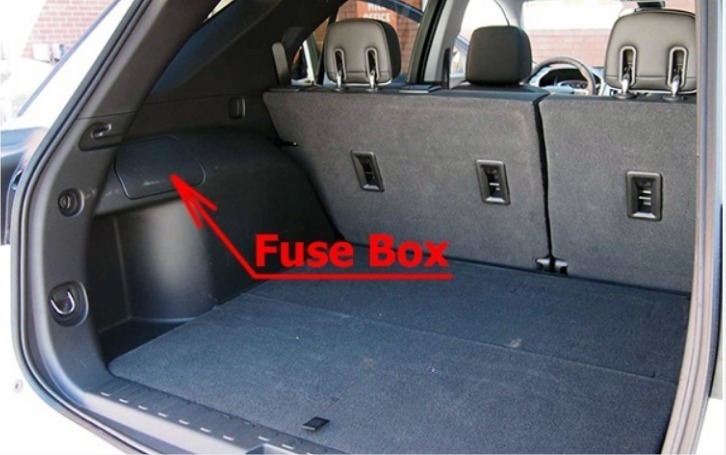

The rear compartment fuse block is behind a trim panel on the side of the rear compartment.

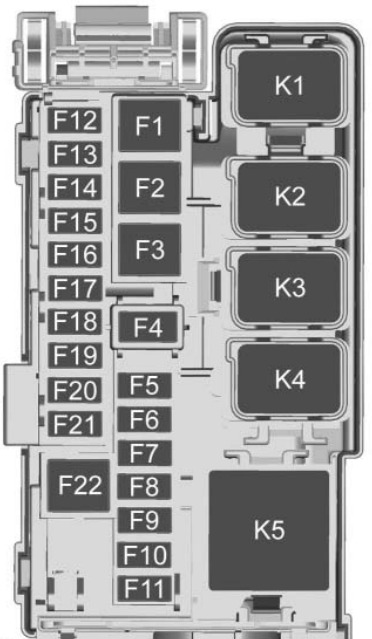

Fuse Box Diagram
| № | Usage |
|---|---|
| F1 | 2018-2019: Exhaust fuel heater. 2020: Exhaust fuel heater/Selective catalytic reduction power module (diesel only) 2022-2024: Power Seat |
| F2 | Liftgate |
| F3 | Trailer auxiliary power |
| F4 | 2018: Power seats 2019-2021: Passenger Power Seat |
| F5 | Memory seat module |
| F6 | Sunroof |
| F7 | Side blind zone alert |
| F8 | Trailer reverse lamps |
| F9 | Rear heated seat 1 |
| F10 | 2018: Parking assist 2019-2024: Park Lamps |
| F11 | Rear heated seat 2 |
| F12 | Not used |
| F13 | Trailer parking lamp |
| F14 | 2018: Right trailer turn signal lamp 2019-2024: Right trailer stoplamp/ Turn signal lamp |
| F15 | 2018-2021: Left parking lamp |
| F16 | 2018-2021: Right parking lamp |
| F17 | 2020-2024: Video processing module |
| F18 | 2018: Left trailer turn signal lamp 2019-2024: Left trailer stoplamp/ Turn signal lamp |
| F19 | All-wheel drive |
| F20 | Lumbar |
| F21 | Rear auxiliary power outlet |
| F22 | Rear drive unit |
| Relays | |
| K1 | Right trailer stoplamp/Turn signal lamp |
| K2 | Trailer reverse lamps |
| K3 | Left trailer stoplamp/Turn signal lamp |
| K4 | Park lamps |
| K5 | 2018-2019: Selective catalytic reduction (SCR) – (diesel only). 2020: Exhaust fuel heater/Selective catalytic reduction power module (diesel only) |
