Chevrolet Impala (2006 – 2013) Fuse Box Location & Diagrams
Fuse box locations and schematics are vital for electrical troubleshooting in 2006–2013 Chevrolet Impalas. First, verify all fuses protecting the afflicted component, replace any blown ones with the same amperage, and test the component.
Passenger Compartment Fuse Box
Chevrolet Impala (2006 to 2013)
Fuse Box Location

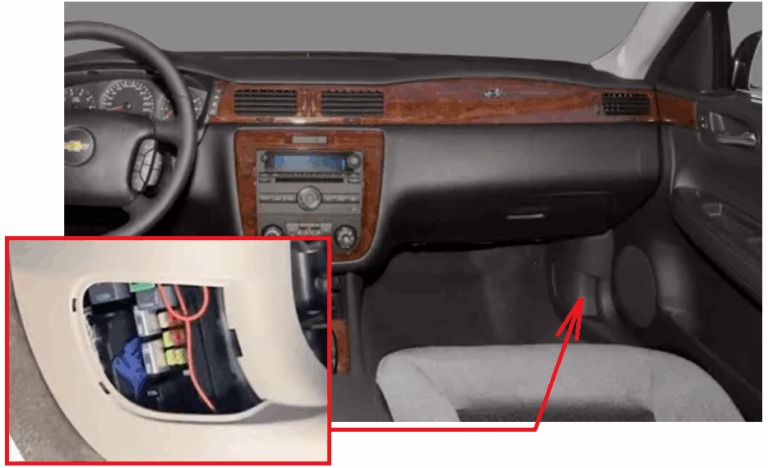

The fuse block is located on the passenger side of the vehicle in the carpet molding. Remove the fuse block door to access the fuses.

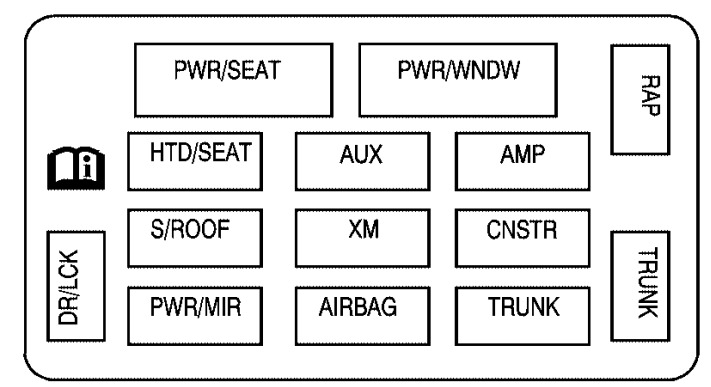

Fuse Box Diagram
| Fuses | Usage |
| AIRBAG | Airbags |
| AMP | Amplifier |
| AUX | Auxiliary Outlets |
| CNSTR | Canister |
| DR/LCK | Door Locks |
| HTD/SEAT | Heated Seats |
| Fuses | Usage |
| PWR/MIR | Power Mirrors |
| PWR/SEAT | Power Seats |
| PWR/WNDW | Power Window |
| RAP | Retained Accessory Power |
| S/ROOF | Sunroof |
| TRUNK | Trunk |
| TRUNK | Trunk Relay |
| XM | XM™ Radio |
Engine Compartment Fuse Box
Chevrolet Impala (2006 to 2013)
Fuse Box Location

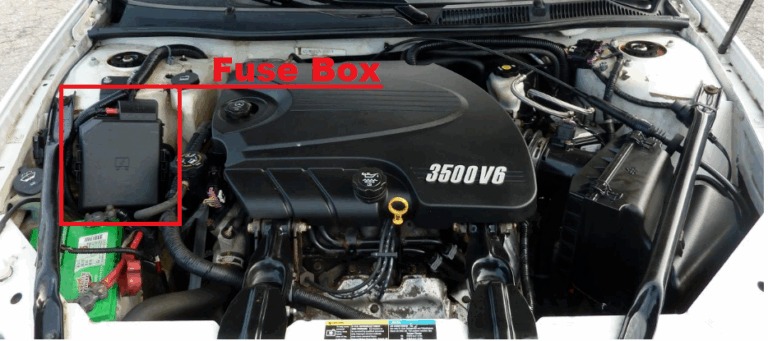

The underhood fuse block is located in the right side of engine compartment.

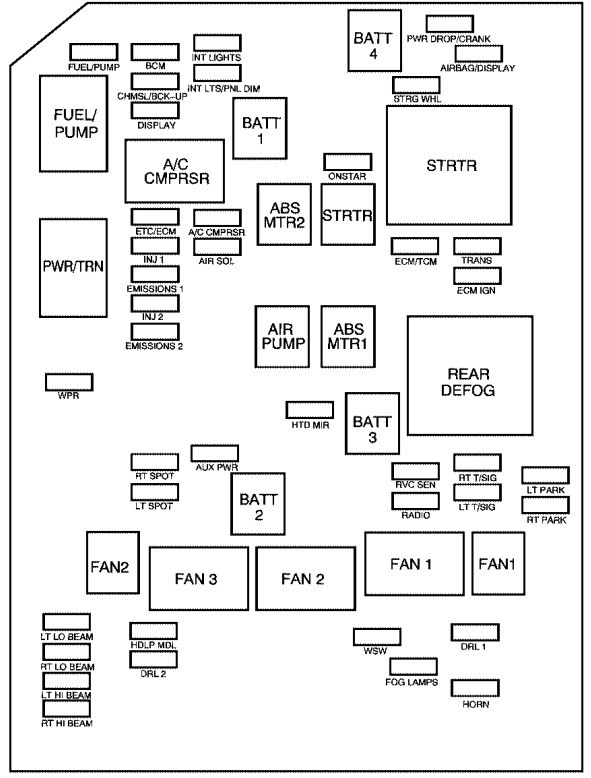

Fuse Box Diagram
| Fuses | Usage |
| A/C CMPRSR | Air Conditioning Compressor |
| ABS MTR 1 | Antilock Brake System (ABS) Motor 1 |
| ABS MTR 2 | ABS Motor 2 |
| AIR PUMP | Air Pump |
| AIR SOL | Air Injection Reactor Solenoid |
| AIRBAG/ DISPLAY | Airbag, Display |
| AUX PWR | Auxiliary Power |
| BATT 1 | Battery 1 |
| BATT 2 | Battery 2 |
| BATT 3 | Battery 3 |
| BATT 4 | Battery 4 |
| BCM | Body Control Module (BCM) |
| CHMSL/ BCK-UP | Center High-Mounted Stoplamp, Back-up Lamp |
| DISPLAY | Display |
| DRL 1 | Daytime Running Lamps 1 |
| DRL 2 | Daytime Running Lamps 2 |
| ECM IGN | Engine Control Module (ECM), Ignition |
| ECM/TCM | ECM, Transmission Control Module (TCM) |
| EMISSIONS 1 | Emissions 1 |
| EMISSIONS 2 | Emissions 2 |
| ETC/ECM | Electronic Throttle Control, ECM |
| FAN 1 | Cooling Fan 1 |
| FAN 2 | Cooling Fan 2 |
| FOG LAMPS | Fog Lamps (If Equipped) |
| FUEL/PUMP | Fuel Pump |
| HDLP MDL | Headlamp Module |
| HORN | Horn |
| HTD MIR | Heated Mirror |
| INJ 1 | Injector 1 |
| INJ 2 | Injector 2 |
| INT LIGHTS | Interior Lamps |
| INT LTS/PNL DIM | Interior Lamps, Instrument Panel Dimmer |
| LT HI BEAM | Driver Side High-Beam Headlamp |
| LT LO BEAM | Driver Side Low-Beam Headlamp |
| LT PARK | Driver Side Parking Lamp |
| LT SPOT | Left Spot |
| LT T/SIG | Driver Side Turn Signal Lamp |
| ONSTAR | OnStar® |
| PWR DROP/CRANK | Power Drop, Crank |
| RADIO | Audio System |
| RT HI BEAM | Passenger Side High-Beam Headlamp |
| RT LO BEAM | Passenger Side Low-Beam Headlamp |
| RT PARK | Passenger Side Parking Lamp |
| RT SPOT | Right Spot |
| RT T/SIG | Passenger Side Turn Signal Lamp |
| RVC SEN | Regulated Voltage Control Sensor |
| STRG WHL | Steering Wheel |
| STRTR | Starter |
| TRANS | Transmission |
| WPR | Wiper |
| WSW | Windshield Wiper |
| A/C CMPRSR | Air Conditioning Compressor |
| FAN 1 | Cooling Fan 1 |
| FAN 2 | Cooling Fan 2 |
| FAN 3 | Cooling Fan 3 |
| FUEL/PUMP | Fuel Pump |
| PWR/TRN | Powertrain |
| REAR DEFOG | Rear Defogger |
| STRTR | Starter |
