Chevrolet Tahoe (1995 – 1999) Fuse Box Diagrams & Location
If you own a Chevrolet Tahoe from 1995 to 1999, understanding fuse box locations and diagrams is essential for diagnosing electrical problems. This guide offers clear fuse box layouts, simple explanations, and practical tips to help you identify and replace fuses quickly, keeping your Tahoe’s electrical system running smoothly.
Fuse Box Locations

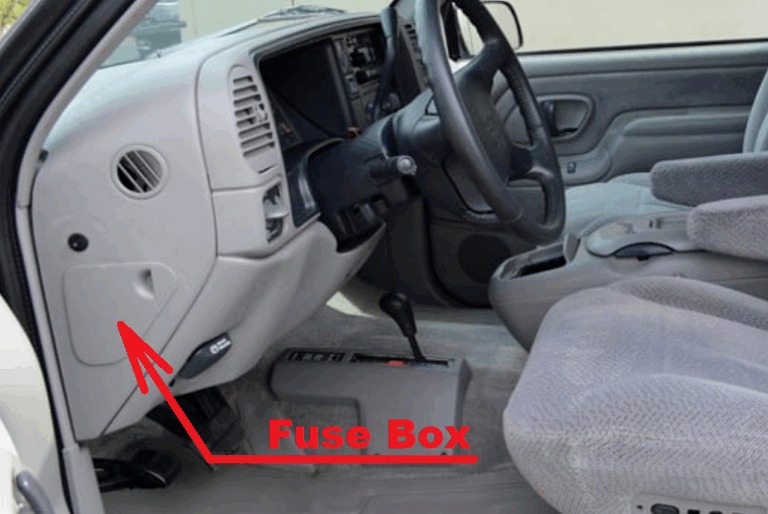

Passenger Compartment Fuse Box
The fuse block access door is on the driver’s side edge of the instrument panel.
Pull off the cover to access the fuse block. You can remove fuses with a fuse extractor. The fuse extractor is mounted to the fuse block access door. To remove fuses, if you don’t have a fuse extractor, hold the end of the fuse between your thumb and index finger and pull straight out. You may have spare fuses attached to the inside of the fuse block access door. These can be used to replace a bad fuse. However, make sure that it is the correct amperage.

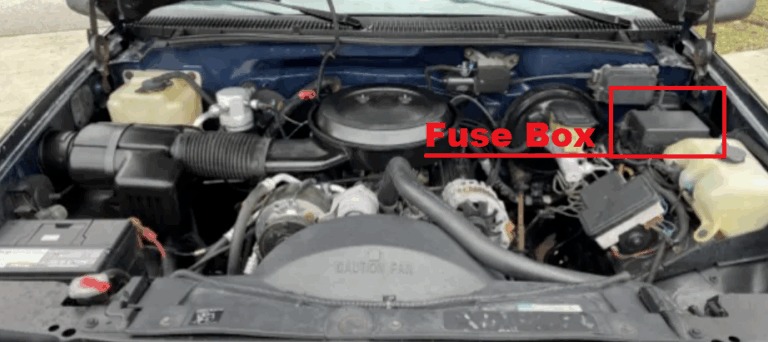

Engine Compartment Fuse Box
The underhood fuse/relay center is located in the rear of the engine compartment near the brake fluid reservoir.
Move the retainer clips for the cover to access the fuse block. You can remove fuses with a fuse extractor. The fuse extractor is mounted to the interior fuse block. To remove fuses if you don’t have a fuse extractor, hold the end of the fuse between your thumb and index finger and pull straight out.

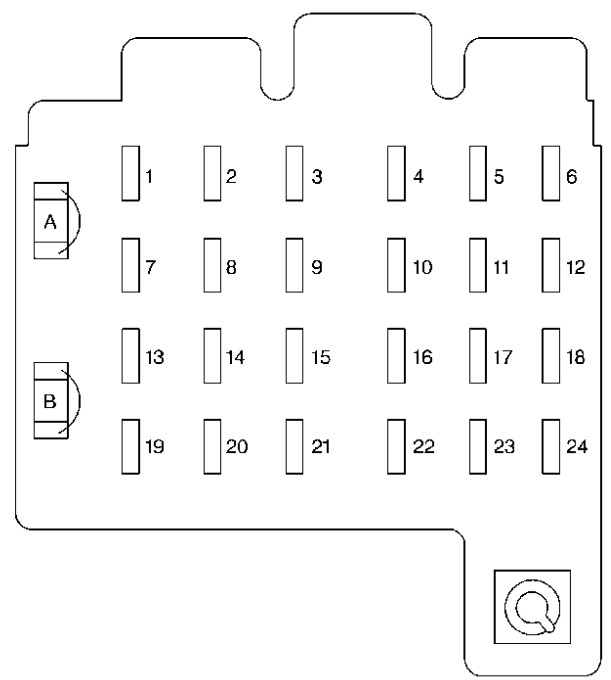

Passenger Compartment Fuse Box Diagram
Chevrolet Tahoe (1995 to 1999)
| Fuse / Circuit Breaker | Usage |
|---|---|
| 1 | Stop/TCC Switch, Buzzer, CHMSL, Hazard Lamps, Stoplamps |
| 2 | Transfer Case |
| 3 | Courtesy Lamps, Cargo Lamp, Glove Box Lamp, Dome/Reading Lamps, Vanity Mirrors, Power Mirrors |
| 4 | 1995: IP Cluster, DRL Relay, HDLP Switch, Keyless Entry, Low Coolant Module1996-1999: Instrument Cluster, DRL Relay, Lamp Switch, Keyless Entry, Low Coolant Module, Illuminated Entry Module, DRAC (Diesel Engine) |
| 5 | Rear Comfort Controls |
| 6 | Cruise Control |
| 7 | Auxiliary Power Outlet |
| 8 | 1995: Diesel Fuel Pump, DERM, ECM 1996-1997: AirBag System 1998-1999: Crank |
| 9 | 1995: Lic Lamp, Park Lamp, Tail Lamp, Roof Marker Lamp, Tdil Gate Lamps, Front Side Markers, Door Switch Illum, Fender Lamp1996-1999: License Lamp, Parking Lamps, Taillamps, Roof Marker Lamps, Tailgate Lamps, Front Sidemarkers, Fog Lamp Relay, Door Switch Illumination, Fender Lamps, Headlamp Switch Illumination |
| 10 | 1995: DERM 1996-1999: Air Bag System |
| 11 | Wiper Motor, Washer Pump |
| 12 | A/C, A/C Blower, High Blower Relay |
| 13 | Power Amp, Rear Liftglass, Cigarette Lighter, Door Lock Relay, Power Lumbar Seat |
| 14 | 1995:4WD, Indicator, LP Cluster, HVAC Controls, RR HVAC Controls, IP Switches, Radio Illumination1996-1999: 4WD Indicator, Cluster, Front and Rear Comfort Controls, Instrument Switches, Radio Illumination, Chime Module |
| 15 | DRL Relay, Fog Lamp Relay |
| 16 | Front and Rear Turn Signals, Back-Up Lamps, BTSI Solenoid |
| 17 | Radio (Ignition) |
| 18 | 1995: DRAC, 4WAL PCM. ABS, Cruise 1996-1999: 4WAL/VCM, ABS, Cruise |
| 19 | Radio (Battery) |
| 20 | 1995: PRNDL, Auto Transmission, Speedo, Check Gages Tell Tale 1996-1999: PRNDL, Automatic Transmission, Speedometer, Check Gages, Warning Lights |
| 21 | 1995-1996: Not Used 1997-1999: Variable Effort Steering / Security/Steering |
| 22 | Not Used |
| 23 | Rear Wiper, Rear Washer Pump |
| 24 | 1995: Frt Axle, 4WD Indicator Lamp 1996-1999: Front Axle, 4WD Indicator Lamp, TP2 Relay (Gasoline Engine) |
| A | Power Door Lock, Six-Way Power Seat, Keyless Entry Module |
| B | Power Windows |

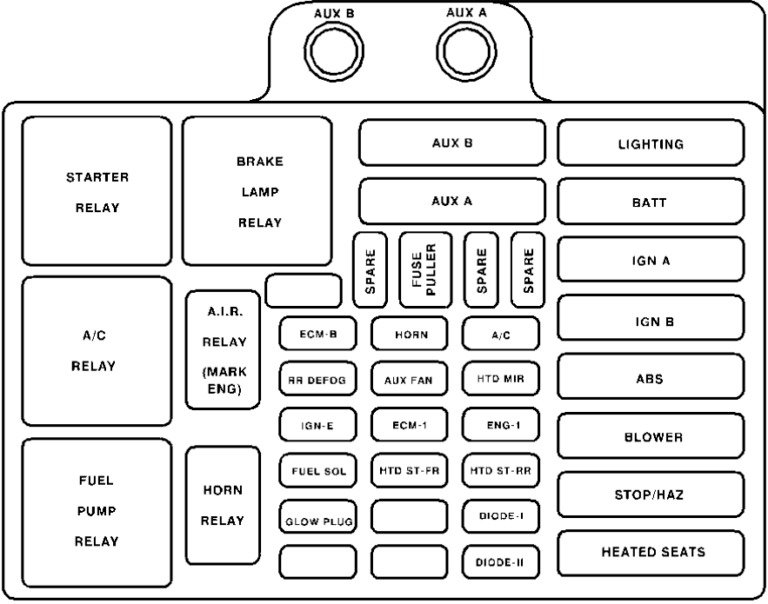

Engine Compartment Fuse Box Diagram
Chevrolet Tahoe (1995 to 1999)
| Name | Circuits Protected |
|---|---|
| ECM-B | Fuel Pump, PCM/VCM |
| RR DEFOG | Rear Window Defogger (If Equipped) |
| IGN-E | Auxiliary Fan Relay Coil, A/C Compressor Relay, Hot Fuel Module |
| FUEL SOL | Fuel Solenoid (Diesel Engine) |
| GLOW PLUG | Glow Plugs (Diesel Engine) |
| HORN | Horn, Underhood Lamps |
| AUX FAN | Auxiliary Fan |
| ECM-1 | Injectors, PCM/VCM |
| HTD ST-FR | Heated Front Seats |
| A/C | Air Conditioning |
| HTD MIR | Heated Outside Mirrors (If Equipped) |
| ENG-1 | Ignition Switch, EGR, Canister Purge, EVRV Idle Coast Solenoid, Heated O2, Fuel Heater (Diesel Engine), Water Sensor (Diesel Engine) |
| HTD ST-RR | Not Used |
| LIGHTING | Headlamp and Panel Dimmer Switch, Fog and Courtesy Fuses |
| BATT | Battery, Fuse Block Busbar |
| IGN-A | Ignition Switch |
| IGN-B | Ignition Switch |
| ABS | Anti-Lock Brake Module |
| BLOWER | Hi Blower and Rear Blower Relays |
| STOP/HAZ | Stoplamps |
| HEATED SEATS | Heated Seats (If Equipped) |
