Citroën C3 (2002 – 2008) Fuse Box Diagrams & Location
The Citroën C3 Fuse Box Diagrams & Location User Guide (2002-2008) provides clear instructions on locating your vehicle’s fuse box and identifying the right fuses. This guide is designed to help you quickly troubleshoot electrical issues and replace fuses, ensuring your Citroën C3 remains in optimal condition.
Passenger Compartment Fuse Box
Citroën C3 (2002 to 2008)
Fuse Box Location

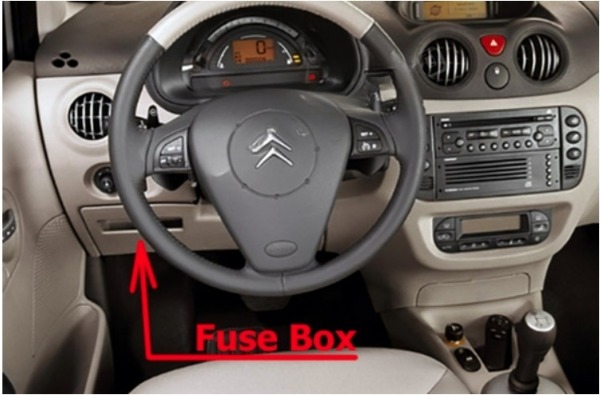

- Left-hand drive vehicles:
It is located below the dashboard behind the cover.

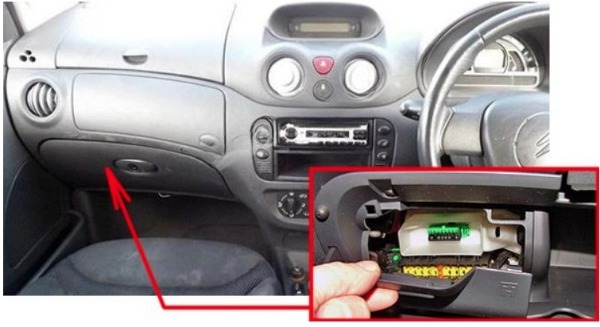

- Right-hand drive vehicles:
It is located in the lower glovebox compartment.
- To access, open the glove box, pull the handle on the fuse box cover.

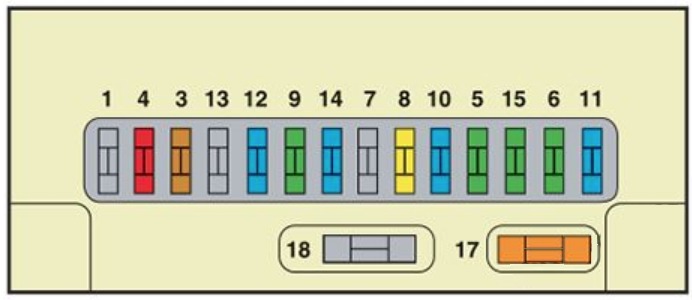

Fuse Box Diagram
| No | Rating | Function |
|---|---|---|
| 3 | 5A | Airbags |
| 4 | 10 A | Diagnostic socket – Particle filter additive – Clutch switch – Steering angle sensor |
| 5 | 30 A | Rear window – Sun roof |
| 6 | 30 A | Screen wash |
| 8 | 20 A | Digital clock – Controls at the steering wheel – Radio – Display |
| 9 | 30 A | Cigar-lighter – Digital dock – Interior lamps – Vanity mirror |
| 10 | 15 A | Alarm |
| 11 | 15 A | Ignition switch – Diagnostic socket |
| 12 | 15 A | Airbag ECU – Rain and brightness sensor |
| 14 | 15 A | Parking assistance – Instrument panel – Air conditioning – Bluetooth® telephone |
| 15 | 30 A | Central locking – Deadlocking |
| 17 | 40 A | Heated rear screen |
| 18 | SHUNT | CUSTOMER PARK SHUNT |
Engine Compartment Fuse Box
Citroën C3 (2002 to 2008)

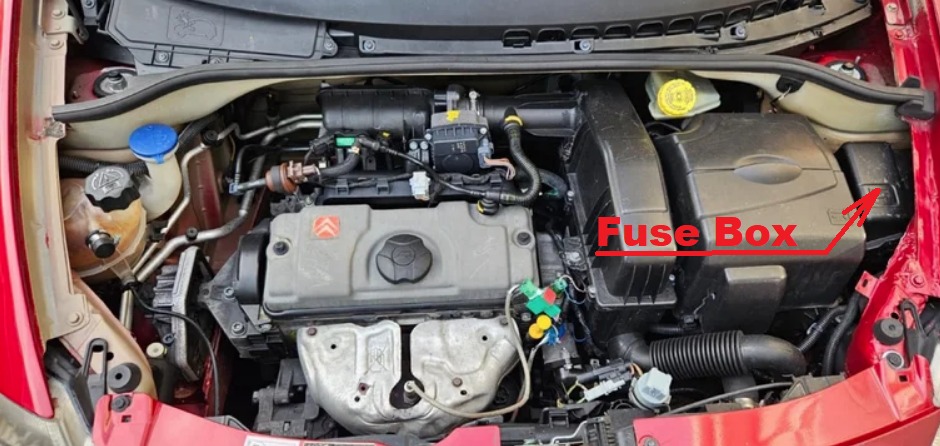

Fuse Box Location
To access the fusebox located in the engine compartment, remove the battery cover and detach the lid.

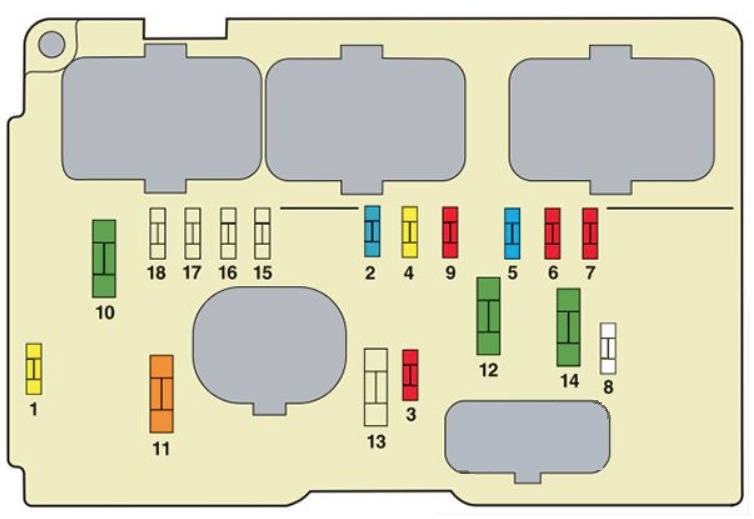

Fuse Box Diagram
| No | Rating | Function |
|---|---|---|
| 1 | 20 A | Water-in-diesel-fuel sensor |
| 2 | 15 A | Horn |
| 3 | 10 A | Screen wash |
| 4 | 20 A | Headlamp wash |
| 5 | 15 A | Fuel pump |
| 6 | 10 A | Power steering |
| 7 | 10 A | Coolant level sensor |
| 8 | 25 A | Starter |
| 9 | 10 A | ECUs (ABS. ESP) |
| 10 | 30 A | Engine control actuators (Ignition coil. Electrovalve. Oxygen sensor. Injection) – Canister purge |
| 11 | 40 A | Air blower |
| 12 | 30 A | Windscreen wiper |
| 14 | 30 A | Air pump (petrol version) – Diesel fuel heater |
