Dodge Caravan (2001 – 2007) Fuse Box Location and Diagrams
The 2001–2007 Dodge Caravan fuse box schematics and locations are covered in this guide. The fuse configuration for these model years helps diagnose electrical issues and maintain the vehicle’s critical electrical components.
Engine Compartment Fuse Box
Dodge Caravan (2001 to 2007)

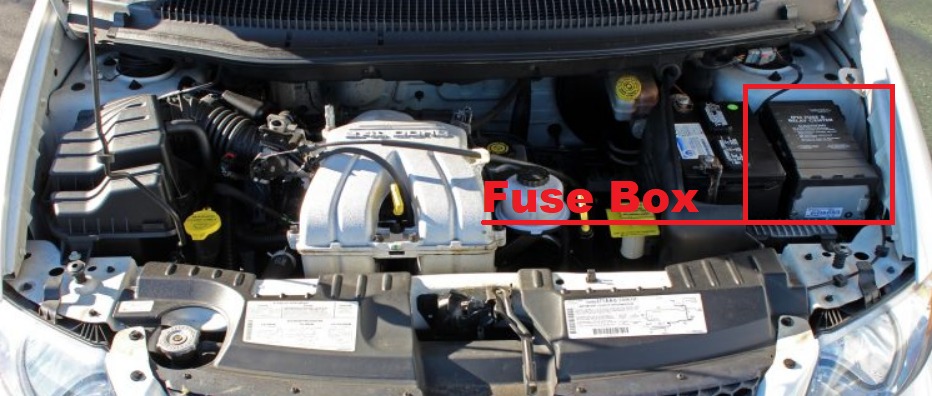

Fuse Box Location
The Integrated Power Module is located in the engine compartment near the battery. This center contains maxi fuses, mini fuses and relays. A label that identifies each component is printed on the inside of the cover.

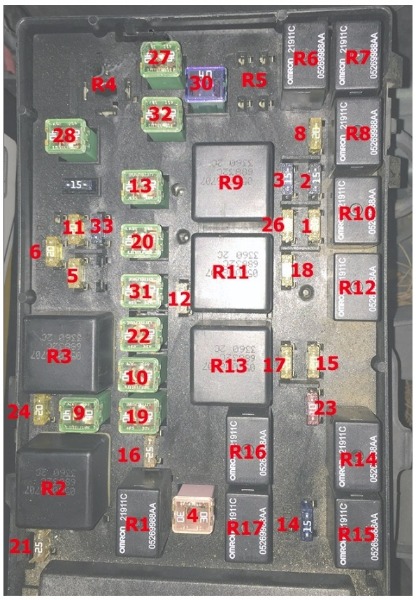

Fuse Box Diagram
Assignment of the fuses and relay in the IPM
| Cavity | Amp | Description |
|---|---|---|
| Maxi Fuse: | ||
| F4 | 30 Amp Pink | Front Wipers |
| F9 | 40 Amp Green | Anti-Lock Brake System (ABS) Pump |
| F10 | 40 Amp Green | Front Blower |
| F13 | 40 Amp Green | Electronic Back Light (EBL) |
| F19 | 40 Amp Green | Body Control Module (BCM) Feed 1 |
| F20 | 30 Amp Pink | Central Amplifier |
| F22 | 30 Amp Pink | Seats |
| F27 | 40 Amp Green | Radiator Fan |
| F28 | 40 Amp Green | Power Windows |
| F30 | 40 Amp Green | Headlight Washers (Export Only) |
| F31 | 40 Amp Green | Power Sliding Door |
| F32 | 40 Amp Green | Power Liftgate |
| Mini Fuse: | ||
| F1 | 20 Amp Yellow | Fog Lights |
| F2 | 15 Amp Blue | Left Park/Tail Light |
| F3 | 15 Amp Blue | Right Park/Tail Light |
| F5 | 20 Amp Yellow | RDO/IP Ignition |
| F6 | 20 Amp Yellow | 12 Volt Out Ignition or Battery |
| F8 | 20 Amp Yellow | Horn |
| F11 | 20 Amp Yellow | EWD/ Rear Wiper |
| F12 | 25 Amp Natural | Rear Blower |
| F14 | 20 Amp Yellow | Ignition Off Draw (IOD) |
| F15 | 20 Amp Yellow | Electronic Automatic Transaxle (EATX) Battery |
| F16 | 25 Amp Natural | ASD |
| F17 | 20 Amp Yellow | Fuel Pump |
| F18 | 15 Amp Blue | A/C Clutch |
| F21 | 25 Amp Natural | Anti-Lock Brake System (ABS) Module |
| F23 | 10 Amp Red | Ignition Switch |
| F24 | 20 Amp Yellow | Hazard |
| F26 | 20 Amp Yellow | Stop Lamp |
| F33 | 15 Amp Blue | Front/Rear Washer |
| 20 Amp Yellow | Spare (IOD) | |
| Relay | ||
| R1 | Auto Shut Down | |
| R2 | Starter Motor | |
| R3 | Accessory | |
| R4 | Spare | |
| R5 | Headlamp Washer (export) | |
| R6 | Park Lamp | |
| R7 | Horn | |
| R8 | Front Fog Lamp | |
| R9 | Defogger | |
| R10 | A/C Compressor Clutch | |
| R11 | Rear Blower Motor | |
| R12 | Fuel Pump | |
| R13 | Front Blower Motor | |
| R14 | Transmission Control | |
| R15 | Spare | |
| R16 | Front Wiper Hight/Low | |
| R17 | Front Wiper On/Off |
