Dodge Charger (2024 – 2026) Fuse Box Location & Diagrams
The Dodge Charger (2024–2026) combines modern performance, advanced technology, and updated electrical systems. Knowing the fuse box locations and fuse assignments helps diagnose electrical issues quickly. This information is useful for troubleshooting components, replacing blown fuses, and maintaining reliable vehicle operation.
Fuse Box Location

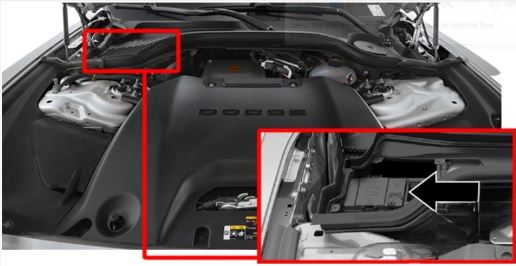

Engine Compartment Fuse Box
The Front Power Distribution Center is located in the underhood compartment. This module contains fuses and relays. Fuse cavity location and descriptions are printed on the inside of the power distribution center cover.

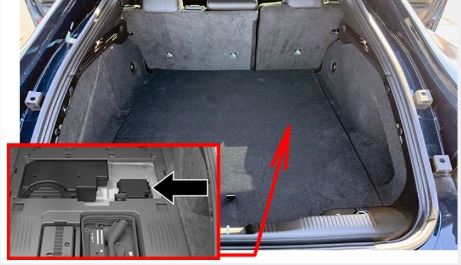

Luggage Compartment Fuse Box
The Rear Power Distribution Center is located in the trunk under the spare tire access panel. This center contains fuses and relays. Fuse cavity location and descriptions are printed on the inside of the power distribution center cover.
Fuse Box Diagrams
Engine Compartment Fuse Box

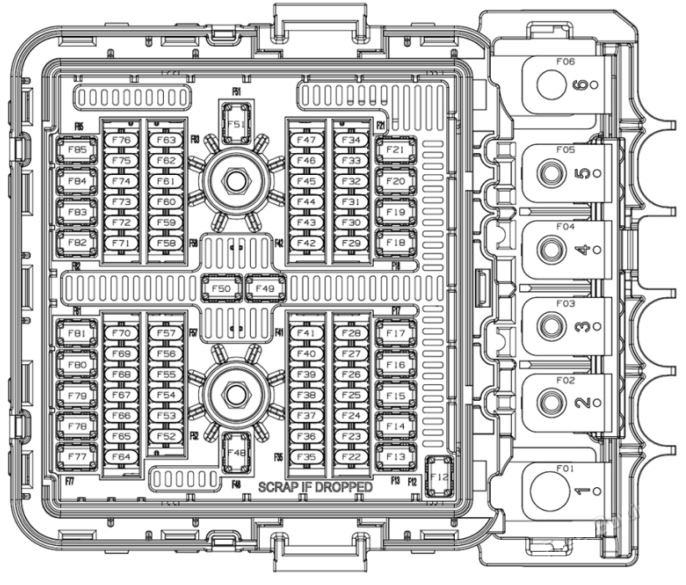

Dodge Charger (2024 – 2025)
| № | Cartridge Fuse | Blade Fuse | Description |
|---|---|---|---|
| F01 | – | – | MAIN BATT INPUT (SHUNT) |
| F02 | – | – | – |
| F03 | – | – | – |
| F04 | 250 Amp | – | IDCM |
| F05 | – | – | – |
| F06 | – | – | SPARE (SHUNT) |
| F07 | 100 Amp | – | RAD FAN |
| F08 | 80 Amp | EPS #1 | |
| F09 | 80 Amp | – | EPS #2 |
| F13 | 30 Amp Pink | – | – |
| F14 | 50 Amp Red | – | – |
| F15 | – | – | – |
| F16 | – | – | – |
| F17 | 20 Amp Blue | – | ELECTRIC OIL PUMP – EDM FRONT (400V) |
| F18 | – | – | – |
| F19 | 50 Amp Red | – | BSM VALVE |
| F20 | – | – | – |
| F21 | – | – | – |
| F22 | – | – | – |
| F23 | – | – | – |
| F24 | – | 10 Amp Red | (BEV) AUX HEATER PUMP |
| F25 | – | 10 Amp Red 5 Amp Tan | AC COMPRESSOR (NON-BEV) (BEV) ELECTRIC AC COMPRESSOR / ELECTRIC EXPANSION VALVE (EEXV) |
| F26 | – | 20 Amp Yellow | SLM FEED_LT |
| F27 | – | – | – |
| F28 | – | 15 Amp Blue | (BEV) COOLANT PROPORTIONING VALVE / HTL & LTR BYPASS VALVE |
| F29 | – | – | – |
| F30 | – | 10 Amp Red | KEYLESS IGNITION NODE MODULE (KINM) / RADIO FREQUENCY HUB (RFHM) / ELETRIC PARK BRAKE (EPB) SWITCH |
| F31 | – | – | – |
| F32 | – | – | – |
| F33 | – | 5 Amp Tan | (BEV) ELECTRIC COOLANT HEATER (ECH) |
| F34 | – | 20 Amp Yellow | HORN |
| F35 | – | 20 Amp Yellow | (BEV) PECP (POWER ELECTRONICS COOLANT PUMP) |
| F36 | – | – | – |
| F37 | – | 20 Amp Yellow | (BEV) BATTERY COOLANT PUMP (BCP) |
| F38 | – | – | – |
| F39 | – | 10 Amp Red | ELECTRIC POWER STEERING (EPS) #1 |
| F40 | – | 20 Amp Yellow | ELECTRIC POWER STEERING (EPS) #2/ BRAKE SYSTEM MODULE (BSM) #2/ ESCL/ MOD IAIR SUSPENSION / SWITCHABLE ENGINE MOUNT #1 & #2* |
| F41 | – | 10 Amp Red | ENGINE CONTROL MODULE (ECM) / TRANSMISSION CONTROL MODULE (TCM) / ECC (HVAC) BLOWER RELAY COIL / BSM #1/ ELSD / MOD_SLM* |
| F42 | – | 10 Amp Red | LONG RANGE RADAR FRONT |
| F43 | – | – | – |
| F44 | – | – | – |
| F45 | – | 20 Amp Yellow | (BEV) ADCM |
| F46 | – | 10 Amp Red | DAMPING CONTROL MODULE |
| F47 | – | – | – |
| F48 | – | – | – |
| F49 | 30 Amp Pink | – | FRONT WINDSHIELD DEFROST |
| F50 | 40 Amp Green | – | (BEV) ECC (HVAC) BLOWER |
| F51 | – | – | – |
| F52 | – | 10 Amp Red | ENGINE CONTROL MODULE (ECM)* |
| F53 | – | 20 Amp Yellow | RADIO (CMCM) |
| F54 | – | 20 Amp Yellow | SLM FEED.RT |
| F55 | – | – | – |
| F56 | – | – | – |
| F57 | – | – | – |
| F58 | – | 10 Amp Red | PORT DIAGNOSTICS |
| F59 | – | 15 Amp Blue | POLICE SPOT LAMP_LT* |
| F60 | – | 15 Amp Blue 20 Amp Yellow | (BEV) PECP-2 (B+) |
| F61 | – | 5 Amp Tan | MID RANGE RADAR REAR L&R / MID RANGE RADAR FRONT L&R |
| F62 | – | 30 Amp Green | MOD IAIR SUSPENSION VALVES |
| F63 | – | 10 Amp Red | STEERING COLUMN CONTROL MODULE (SCCM) |
| F64 | – | 10 Amp Red | OUTSIDE HEAT EXCHANG EXPANSION VALVE MODULE (OEXV) / CHILLER EXPANSION VALVE MODULE (CEXV) |
| F65 | – | 7.5 Amp Brown | HEATED WASHER NOZZLE |
| F66 | – | 15 Amp Blue | ACTIVE SWAY BAR SYSTEM (ASBS) / ELECTRONIC STEERING COLUMN LOCK (ESCL) / GRILL/ BADGE LAMP |
| F67 | – | 15 Amp Blue | INSTRUMENT PANEL CLUSTER (IPC) |
| F68 | – | 20 Amp Yellow | – |
| F69 | – | 10 Amp Red | MOD_DCSD/ HANDSFREE LIFTGATE MODULE / UCI + USB PORT / HUMIDITY AND RAIN LIGHT SENSOR (HRLS) / ACT_COOLANT_VALVE-LCVM / MAP TRACKING MODULE (MIM) / ACTIVE GRILL SHUTTER (AGS) |
| F70 | – | – | – |
| F71 | – | – | – |
| F72 | – | 10 Amp Red | ADCAM |
| F73 | – | 10 Amp Red | – |
| F74 | – | 15 Amp Blue | SURGE SOLENOID, OIL_LEVEL_SENSOR, SOL_MAKE_UP_AIR_VALVE, SOL_OBD_BYPASS, 02 HEATER #1-#4* |
| F75 | – | 25 Amp Clear | ENGINE CONTROL MODULE (ECM) / ACT_SHORT_RUNNER_VALVE* |
| F76 | – | 20 Amp Yellow | (GAS) FUEL INJECTORS / IGNITION COILS / IGNITION COIL CAPACITORS / MODJSCM / C0IL_0N_PLUG*6* |
| F77 | – | – | – |
| F78 | – | – | – |
| F79 | 30 Amp Pink | – | REAR DEFROSTER (EBL) |
| F80 | 40 Amp Green | – | BCM FEED 4 |
| F81 | 20 Amp Blue | – | MOD_ECM* |
| F82 | 30 Amp Pink | – | FRT WIPER FUSE |
| F83 | 50 Amp Red | – | BCM FEED 1 |
| F84 | 30 Amp Pink | – | DRIVE TRAIN CONTROL MODULE (DTCM) |
| F85 | 50 Amp Red | – | BSM PUMP |
| * If Equipped |

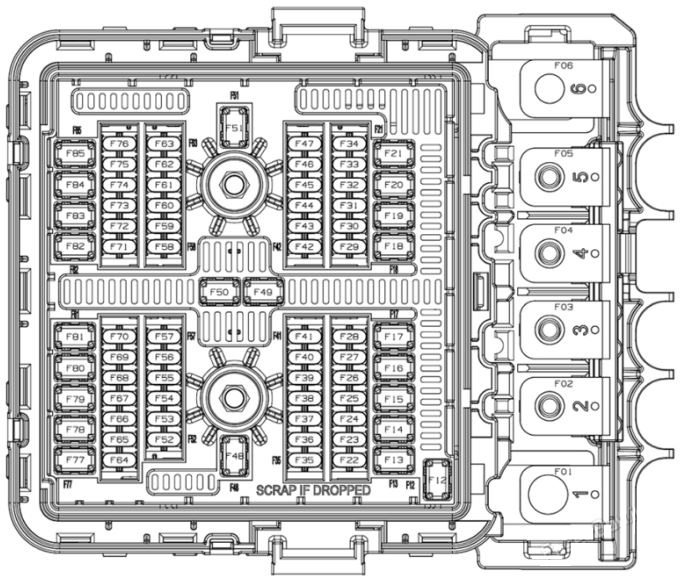

Dodge Charger (2026)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F13 | 30 Amp Pink | – | SPARE |
| F14 | 50 Amp Red | – | SPARE |
| F15 | – | – | SPARE |
| F16 | 25 Amp White | – | FUEL PUMP MTR 1 (IF EQUIPPED) |
| F17 | 30 Amp Pink 20 Amp Blue | – | SPARE ELECTRIC OIL PUMP – EDM FRONT 400V (IF EQUIPPED) |
| F18 | 25 Amp White | – | NOT POPULATED |
| F19 | 50 Amp Red | – | BSM VALVE |
| F20 | – | – | SPARE |
| F21 | – | – | SPARE |
| F22 | – | 10 Amp Red | POWER CONTROL RELAY COIL (IF EQUIPPED) |
| F23 | – | 10 Amp Red | (ESS) MOD_ECM (VOLTAGE SENSE) |
| F24 | – | 10 Amp Red | (BEV) AUX HEATER PUMP (IF EQUIPPED) |
| F25 | – | 10 Amp Red 5 Amp Tan | ELECTRIC AC COMPRESSOR (NON-BEV) ELECTRIC AC COMPRESSOR (BEV) / ELECTRIC EXPANSION VALVE (EEXV) |
| F26 | – | 20 Amp Yellow | SLM FEED_LT |
| F27 | – | 15 Amp Blue | SPARE |
| F28 | – | 10 Amp Red | COOLANT PROPORTIONING VALVE / HTL & LTR BYPASS VALVE (IF EQUIPPED) |
| F29 | – | 10 Amp Red | SPARE |
| F30 | – | 10 Amp Red | KEYLESS IGNITION NODE MODULE (KINM) / RADIO FREQUENCY HUB (RFHM) / ELETRIC PARK BRAKE (EPB) SWITCH |
| F31 | – | – | SPARE |
| F32 | – | – | SPARE |
| F33 | – | 5 Amp Tan | (BEV) ELECTRIC COOLANT HEATER (ECH) – IF EQUIPPED |
| F34 | – | 20 Amp Yellow | HORN |
| F35 | – | 20 Amp Yellow 15 Amp Blue | (BEV) PECP (POWER ELECTRONICS COOLANT PUMP) |
| F36 | – | – | SPARE |
| F37 | – | 20 Amp Yellow 10 Amp Red | (BEV) BATTERY COOLANT PUMP (BCP) – IF EQUIPPED |
| F38 | – | – | SPARE |
| F39 | – | 10 Amp Red | ELECTRIC POWER STEERING (EPS) #1 |
| F40 | – | 20 Amp Yellow | ELECTRIC POWER STEERING (EPS) #2 / BRAKE SYSTEM MODULE (BSM) #2 / ESCL / MOD IAIR SUSPENSION / SWITCHABLE ENGINE MOUNT #1 & #2 |
| F41 | – | 10 Amp Red | ENGINE CONTROL MODULE (ECM) / TRANSMISSION CONTROL MODULE (TCM) / ECC (HVAC) BLOWER RELAY COIL / BSM #1/ ELSD / MOD_SLM |
| F42 | – | 10 Amp Red | LONG RANGE RADAR FRONT |
| F43 | – | – | SPARE |
| F44 | – | – | SPARE |
| F45 | – | 20 Amp Yellow | (BEV) ADCM |
| F46 | – | 10 Amp Red | DAMPING CONTROL MODULE |
| F47 | – | – | SPARE |
| F48 | – | – | SPARE |
| F49 | 30 Amp Pink | – | FRONT WINDSHIELD DEFROST |
| F50 | 40 Amp Green | – | ECC (HVAC) BLOWER (IF EQUIPPED) |
| F51 | 50 Amp Red | – | TRANSMISSION CONTROL MODULE (TCM) – IF EQUIPPED |
| F52 | – | 10 Amp Red | ENGINE CONTROL MODULE (ECM) – IF EQUIPPED |
| F53 | – | 20 Amp Yellow | RADIO (CMCM) |
| F54 | – | 20 Amp Yellow | SLM FEED.RT |
| F55 | – | – | SPARE |
| F56 | – | – | SPARE |
| F57 | – | – | SPARE |
| F58 | – | 10 Amp Red | PORT DIAGNOSTICS |
| F59 | – | 15 Amp Blue | SPARE |
| F60 | – | 15 Amp Blue 20 Amp Yellow | (GAS) LTR COOLANT PUMP (B+) (BEV) PECP-2 (B+) |
| F61 | – | 5 Amp Tan | MID RANGE RADAR REAR L&R / MID RANGE RADAR FRONT L&R |
| F62 | – | 30 Amp Green | MOD IAIR SUSPENSION VALVES (IF EQUIPPED) |
| F63 | – | 10 Amp Red | STEERING COLUMN CONTROL MODULE (SCCM) |
| F64 | – | 10 Amp Red | OUTSIDE HEAT EXCHANG EXPANSION VALVE MODULE (OEXV) / CHILLER EXPANSION VALVE MODULE (CEXV) – IF EQUIPPED |
| F65 | – | 7.5 Amp Brown | HEATED WASHER NOZZLE |
| F66 | – | 15 Amp Blue | ACTIVE SWAY BAR SYSTEM (ASBS) / ELECTRONIC STEERING COLUMN LOCK (ESCL)/ GRILL/ BADGE LAMP |
| F67 | – | 15 Amp Blue | INSTRUMENT PANEL CLUSTER (IPC) |
| F68 | – | 20 Amp Yellow | TRANSMISSION CONTROL MODULE (TCM) – IF EQUIPPED |
| F69 | – | 10 Amp Red | MOD_DCSD/ HANDSFREE LIFTGATE MODULE / UCI + USB PORT / HUMIDITY AND RAIN LIGHT SENSOR (HRLS) / ACT_COOLANT_VALVE-LCVM / MAP TRACKING MODULE (MIM) / ACTIVE GRILL SHUTTER (AGS) |
| F70 | – | – | SPARE |
| F71 | – | – | SPARE |
| F72 | – | 10 Amp Red | ADCAM |
| F73 | – | 15 Amp Blue | SPARE |
| F74 | – | 15 Amp Blue | SURGE SOLENOID, OIL_LEVEL_SENSOR, SOL_MAKE_UP_AIR_VALVE, SOL_OBD_BYPASS, 02 HEATER #1 – #4 (IF EQUIPPED) |
| F75 | – | 25 Amp Clear | ENGINE CONTROL MODULE (ECM) / ACT_SHORT_RUNNER_VALVE (IF EQUIPPED) |
| F76 | – | 20 Amp Yellow | (GAS) FUEL INJECTORS / IGNITION COILS / IGNITION COIL CAPACITORS / MODJSCM / C0IL_0N_PLUG*6 |
| F77 | – | – | SPARE |
| F78 | 50 Amp Red 40 Amp Green | – | MOD AIR SUSPENSION (BEV) HVAC BLOWER (GAS) |
| F79 | 30 Amp Pink | – | REAR DEFROSTER (EBL) |
| F80 | 40 Amp Green | – | BCM FEED 4 |
| F81 | 20 Amp Blue | – | (GAS) M0D_ECM |
| F82 | 30 Amp Pink | – | FRT WIPER FUSE |
| F83 | 50 Amp Red | – | BCM FEED 1 |
| F84 | 30 Amp Pink | – | DRIVE TRAIN CONTROL MODULE (DTCM) |
| F85 | 50 Amp Red | – | BSM PUMP |
| * If Equipped |

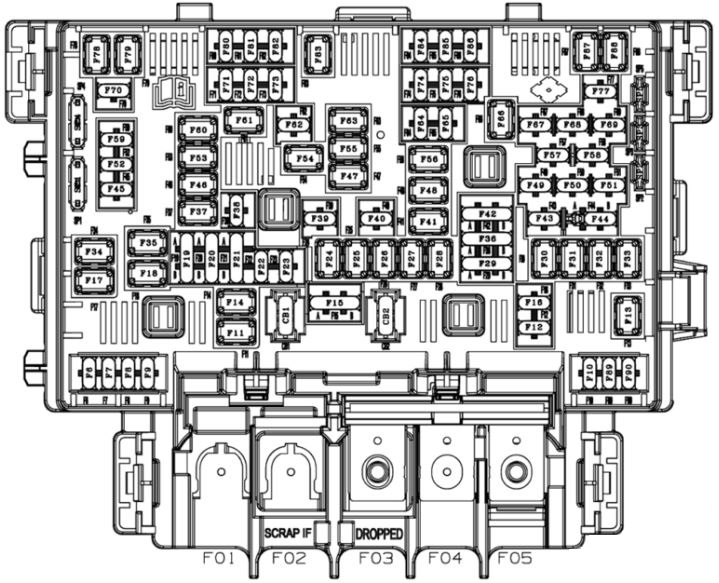

Luggage Compartment Fuse Box

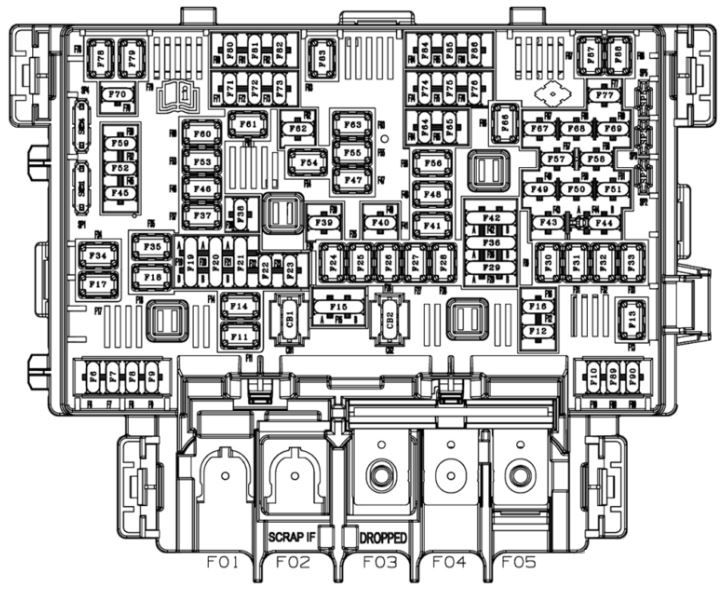

Dodge Charger (2024 – 2025)
| № | Cartridge Fuse | Blade Fuse | Description |
|---|---|---|---|
| F03 | – | – | MAIN BATTERY FEED REAR PDC (SHUNT) |
| F06 | – | – | – |
| F07 | – | – | – |
| F08 | – | – | – |
| F09 | – | – | – |
| F10 | – | – | – |
| F11 | 50 Amp Red | – | MOD_BCM FEED #2 |
| F12 | – | 5 Amp Tan | – |
| F13 | – | – | – |
| F14 | 20 Amp Blue | – | MOD DOOR MUX_PASSENGER REAR OR SMART MOTOR |
| F15A F15B | – | 10 Amp Red | INTELLIGENT EVENT BASE LIGHTING MODULE / ANIMATION LIGHTING – TAILLAMP OCCUPANT RESTRAINT CONTROLLER (ORC) |
| F16 | – | 10 Amp Red | IDCM 400V |
| F17 | – | – | – |
| F18 | 20 Amp Blue | – | 400V: (BEV) ELECTRIC OIL PUMP – EDM REAR |
| CB2 | – | 10 Amp Red | MOD_SPAAK |
| F19A F19B | – | 10 Amp Red | EVCU – 2_FEED #2 (BEV) MOD_ICS_SWITCH BANK / DIGITAL TV (DTV) JAPAN / ASSY_OVERHEAD_C0NS0LE – OHC W SUNSHADE / HUD |
| F20A F20B | – | 10 Amp Red | ELECTRIC DRIVE MOTOR FEED #1 FRONT (BEV) ELECTRIC DRIVE MOTOR FEED #2 FRONT (BEV) |
| F21A F21B | – | 10 Amp Red | ELECTRIC DRIVE MOTOR FEED #1 – REAR HVIL- MAIN POWER FEED / HVIL – REDUNDANT POWER FEED |
| F22 | – | – | – |
| F23 | – | 10 Amp Red | MOD_CVPAM / CVADAS |
| F24 | – | – | – |
| F25 | – | – | – |
| F26 | 20 Amp Blue | – | ELECTRIC DRIVE MOTOR FEED #2 – REAR (BEV ONLY) |
| F27 | – | – | – |
| F28 | – | – | – |
| F29A F29B | – | 15 Amp Blue | INSTRUMENT PANEL CLUSTER (IPC) / DRIVETRAIN CONTROL MODULE (DTCM) / DRIVER ASSISTANCE SYSTEM MODULE (DASM)/ EVCU-2 / HVAC_CTRL_FT FRONT AXLE DISCONNECT (FAD) / WHEEL END DISCONNECT (400 BEV ONLY) |
| F30 | 30 Amp Pink | – | M0D_MEM0RY / POWER SEAT – PASS FRT |
| F31 | – | – | – |
| F32 | – | – | – |
| F33 | – | – | – |
| F34 | 30 Amp Pink | – | ELECTRONIC LIMITED SLIP DIFFERENTIAL (ELSD) – REAR #1 |
| F35 | – | – | – |
| F36A | – | 10 Amp Red | L2: DRIVER ALERT LIGHTING MODULE (DALM) / ADAS_E_STOP / BEV: EVCU-2 / E_STOP |
| F36B | – | – | – |
| F37 | 30 Amp Pink | – | – |
| F38 | – | 5 Amp Tan | AUTOMATIC GEARBOX SHIFTER MODULE (AGSM)* |
| F39 | – | 20 Amp Yellow | MODULE SEAT HEATER FRT (PASS) |
| F40 | – | 30 Amp Green | MOD AUDIO AMPLIFIER #1A |
| F41 | 30 Amp Pink | – | MOD DOOR MUX_DRIVER |
| F42A F42B | – | – | – |
| F43 | – | 30 Amp Green | AMPLIFIER – SOUND GENERATOR #1A |
| F44A | – | 20 Amp Yellow | 12V POWER OUTLET – CONSOLE BIN |
| F44B | – | – | – |
| F45 | – | 15 Amp Blue | WIRELESS CHARGING PAD – FT_CONSOLE / MOD_ICS_SWITH BANK_REAR (FT CONSOLE) |
| F46 | 30 Amp Pink | – | MODJMEMORY/ POWER SEAT – DRIVER FRT |
| F47 | 20 Amp Blue | – | EVCU – 2_FEED #3 |
| F48 | 30 Amp Pink | – | MOD DOOR MUX_PASSENGER |
| F49 | – | 30 Amp Green | AMPLIFIER – SOUND GENERATOR #1B |
| F50 | – | 10 Amp Red | OCCUPANT RESTRAINT CONTROLLER (ORC) |
| F51 | – | 10 Amp Red | CHARGE PORT INDICATOR (CPIM) / ELECTRIC AC COMPRESSOR (I0D) / BATTERY CHARGE INDICATOR |
| F52 | – | 10 Amp Red | ANIMATION LIGHTING – RR LT |
| F53 | 20 Amp Blue | – | EVCU – 2_FEED #4 |
| F54 | 20 Amp Blue | – | MOD DOOR MUX_DRIVER REAR OR SMART MOTOR |
| F55 | 25 Amp White | – | – |
| F56 | 30 Amp Pink | – | – |
| F57 | – | 20 Amp Yellow | HAPTIC LANE FEEBACK MODULE (HALF) / OCCUPANT CLASSIFICATION MODULE (OCM)/ TRAILER TOW MODULE (TTM) / HEADLIGHT LEVELING – MOTOR FEED & REF SIGNAL TO SWITCH / MOD_SECURITY GATEWAY (SGW) / PARKTRONICS SYSTEM MODULE (PTS) |
| F58 | – | 15 Amp Blue | BATTERY PACK CONTROL MODULE (BPCM) |
| F59 | – | 15 Amp Blue | TELEMATICS BOX MODULE (TBM) / VEHICLE THEFT MODULE (VTM) / GATEWAY SECURITY MOD / ALARM SIREN UNIT (ASU) / ULTRA-SONIC ALARM MODULE (UAM) |
| F60 | – | – | – |
| F61 | 30 Amp Pink | – | – |
| F62 | – | 20 Amp Yellow | MODULE SEAT HEATER FRT (DRIVER) |
| F63 | 25 Amp White | – | – |
| F64 | – | 5 Amp Tan | NFC DOOR HANDLE #2 |
| F65 | – | 10 Amp Red | ANIMATION LIGHTING – RR RT |
| F66 | 30 Amp Pink | – | POWER LIFTGATE MODULE (PLG) |
| F67 | – | 20 Amp Yellow | MOD_CRSM (HEAT SEAT RR LT) |
| F68 | – | 15 Amp Blue | ASSY_MIRROR_INSIDE_RR_VIEW/ SUNROOF-DUAL_PANE / DTV (CHINA/JAPAN) / P0RT_UCI_2_C0NS0LE |
| F69 | – | 15 Amp Blue | LUMBAR SUPPORT DRIVER & PASSENGER SW |
| F70 | – | 10 Amp Red | EVCU – 2_FEED #1 |
| F71 | – | 15 Amp Blue | BATTERY PACK CONTROL MODULE (BPCM) |
| F72 | – | 10 Amp Red | HEATED SEAT SWITCH – RR RT & RR LT |
| F73 | – | 15 Amp Blue | DRIVER MONITORING SYSTEM (DMSM) |
| F74 | – | 30 Amp Green | MOD AUDIO AMPLIFIER #1B |
| F75 | – | 5 Amp Tan | NFC DOOR HANDLE #3 |
| F76 | – | 5 Amp Tan | NFC DOOR HANDLE #4 |
| F77 | – | 20 Amp Yellow | MOD_CRSM (HEAT SEAT RR RT) |
| F78 | 40 Amp Green | – | MOD_BCM FEED #3 |
| F79 | – | – | – |
| F80 | – | 10 Amp Red | – |
| F81 | – | 15 Amp Blue | FRONT PASSENGER DISPLAY MODULE (FPDM) / PORT_UCI_DUAL – USB-FRONT – IP / REAR WINDOW SWITCHES / MOD_HVAC_CTRL_FT / SW_BANK_UPPER (ASBM#2) |
| F82 | – | 15 Amp Blue | MOD_COMFORT STEERING WHEEL SURFACE |
| F83 | – | – | – |
| F84 | – | 15 Amp Blue | – |
| F85 | – | 15 Amp Blue | UWB.SNSR (1-7) |
| F86 | – | 5 Amp Tan | NFC DOOR HANDLE #1 |
| F87 | – | – | – |
| F88 | 30 Amp Pink | – | MOD INVERTER 115V/ 230V |
| * If Equipped |
Dodge Charger (2026)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F03 | SHUNT | – | Main Battery Feed to rear PDC |
| F05 | 150 Amp | – | Feed to underhood PDC (Gas models) |
| F06 | – | – | SPARE |
| F07 | – | – | SPARE |
| F08 | – | – | SPARE |
| F09 | – | – | SPARE |
| F10 | – | – | SPARE |
| F11 | 50 Amp Red | – | M0D_BCM FEED #2 |
| F12 | – | – | SPARE |
| F13 | – | – | SPARE |
| F14 | 20 Amp Blue | – | MOD DOOR MUX_PASSENGER REAR OR SMART MOTOR |
| F15A F15B | – | 10 Amp Red | INTELLIGENT EVENT BASE LIGHTING MODULE / ANIMATION LIGHTING-TAILLAMP OCCUPANT RESTRAINT CONTROLLER (ORC) |
| F16 | – | 10 Amp Red | IDCM 400V |
| F17 | 50 Amp Red | – | SPARE |
| F18 | 20 Amp Blue | – | 400V: (BEV) ELECTRIC OIL PUMP – EDM REAR |
| F19A F19B | – | 10 Amp Red | EVCU – 2_FEED #2 (BEV) DIGITAL TV (DTV) JAPAN / ASSY_OVERHEAD_CONSOLE – OHC W SUNSHADE |
| F20A F20B | – | 10 Amp Red | ELECTRIC DRIVE MOTOR FEED #1 FRONT (BEV) ELECTRIC DRIVE MOTOR FEED #2 FRONT (BEV) |
| F21A F21B | – | 10 Amp Red | ELECTRIC DRIVE MOTOR FEED #1 – REAR HVIL – MAIN POWER FEED / HVIL – REDUNDANT POWER FEED |
| F22 | – | – | SPARE |
| F23 | – | 10 Amp Red | MOD_CVPAM / CVADAS |
| F24 | – | – | SPARE |
| F25 | – | – | SPARE |
| F26 | 20 Amp Blue | – | ELECTRIC DRIVE MOTOR FEED #2 – REAR (BEV ONLY) |
| F27 | – | – | SPARE |
| F28 | – | – | SPARE |
| F29A F29B | – | 15 Amp Blue | INSTRUMENT PANEL CLUSTER (IPC) / DRIVETRAIN CONTROL MODULE (DTCM) / DRIVER ASSISTANCE SYSTEM MODULE (DASM) / EVCU-2 / HVAC_CTRL_FT FRONT AXLE DISCONNECT (FAD) / WHEL END DISCONNECT (400 BEV ONLY) |
| F30 | 30 Amp Pink | – | MOD_MEMORY / POWER SEAT – PASS FRT |
| F31 | – | – | SPARE |
| F32 | – | – | SPARE |
| F33 | – | – | SPARE |
| F34 | 30 Amp Pink | – | ELECTRONIC LIMITED SLIP DIFFERENTIAL (ELSD) – REAR #1 |
| F35 | – | – | SPARE |
| F36A F36B | – | 10 Amp Red | L2: DRIVER ALERT LIGHTING MODULE (DALM)/ ADAS_E_STOP / BEV: EVCU-2 / E_STOP SPARE |
| F37 | – | – | SPARE |
| F38 | – | 5 Amp Tan | AUTOMATIC GEARBOX SHIFTER MODULE (AGSM) |
| F39 | – | 20 Amp Yellow | MODULE SEAT HEATER FRT (PASS) |
| F40 | – | 30 Amp Green | MOD AUDIO AMPLIFIER #1A |
| F41 | 30 Amp Pink | – | MOD DOOR MUX_DRIVER |
| F42A F42B | – | – | SPARE |
| F43 | – | 30 Amp Green | AMPLIFIER – SOUND GENERATOR #1A |
| F44A F44B | – | 20 Amp Yellow | 12V POWER OUTLET – CONSOLE BIN – IGN 12V POWER OUTLET – CONSOLE BIN |
| F45 | – | 15 Amp Blue | WIRELESS CHARGING PAD – FT. CONSOLE / MOD_ICS_SWITCH BANK.REAR (FT CONSOLE) |
| F46 | 30 Amp Pink | – | MOD_MEMORY / POWER SEAT – DRIVER FRT |
| F47 | 20 Amp Blue | – | EVCU – 2_FEED #3 |
| F48 | 30 Amp Pink | – | MOD DOOR MUX_PASSENGER |
| F49 | – | 30 Amp Green | AMPLIFIER – SOUND GENERATOR #1B |
| F50 | – | 10 Amp Red | OCCUPANT RESTRAINT CONTROLLER (ORC) |
| F51 | – | 10 Amp Red | CHARGE PORT INDICATOR (CPIM) / ELECTRIC AC COMPRESSOR (IOD) / BATTERY CHARGE INDICATOR |
| F52 | – | 10 Amp Red | ANIMATION LIGHTING – RR LT |
| F53 | 20 Amp Blue | – | EVCU – 2_FEED #4 |
| F54 | 20 Amp Blue | – | MOD DOOR MUX_DRIVER REAR OR SMART MOTOR |
| F55 | – | – | SPARE |
| F56 | – | – | SPARE |
| F57 | – | 20 Amp Yellow | HAPTIC LANE FEEBACK MODULE (HALF) / OCCUPANT CLASSIFICATION MODULE (OCM) / TRAILER TOW MODULE (TTM) / HEADLIGHT LEVELING – MOTOR FEED & REF SIGNAL TO SWITCH / MOD_SECURITY GATEWAY (SGW) / PARKTRONICS SYSTEM MODULE (PTS) |
| F58 | – | 15 Amp Blue | BATTERY PACK CONTROL MODULE (BPCM) |
| F59 | – | 15 Amp Blue | TELEMATICS BOX MODULE (TBM) / VEHICLE THEFT MODULE (VTM) / GATEWAY SECURITY MOD / ALARM SIREN UNIT (ASU) / ULTRA-SONIC ALARM MODULE (UAM) |
| F60 | – | – | SPARE |
| F61 | – | – | SPARE |
| F62 | – | 20 Amp Yellow | MODULE SEAT HEATER FRT (DRIVER) |
| F63 | – | – | SPARE |
| F64 | – | 5 Amp Tan | NFC DOOR HANDLE #2 |
| F65 | – | 10 Amp Red | ANIMATION LIGHTING – RR RT |
| F66 | 30 Amp Pink | – | POWER LIFTGATE MODULE |
| F67 | – | 20 Amp Yellow | MOD_CRSM (HEATED SEAT RR LT) |
| F68 | – | 15 Amp Blue | ASSY_M 1RRORJ NS 1DE_RR_VIEW / SUNROOF-DUAL_PANE / DTV (CHINA/JAPAN) / P0RT_UCI_2_C0NS0LE |
| F69 | – | 15 Amp Blue | LUMBAR SUPPORT DRIVER & PASSENGER SW |
| F70 | – | 10 Amp Red | EVCU – 2_FEED #1 |
| F71 | – | 15 Amp Blue | BATTERY PACK CONTROL MODULE (BPCM) – REDUNDANT / EXHAUST FLAPPER VALVE LT/RT (ICE ONLY) |
| F72 | – | 10 Amp Red | HEATED SEAT SWITCH – RR RT & RR LT |
| F73 | – | – | SPARE |
| F74 | – | 30 Amp Green | MOD AUDIO AMPLIFIER #1B |
| F75 | – | 5 Amp Tan | NFC DOOR HANDLE #3 |
| F76 | – | 5 Amp Tan | NFC DOOR HANDLE #4 |
| F77 | – | 20 Amp Yellow | MOD.CRSM (HEAT SEAT RR RT) |
| F78 | 40 Amp Green | – | M0D_BCM FEED #3 |
| F79 | 50 Amp Red | – | SPARE |
| F80 | – | 5 Amp Tan | SPARE |
| F81 | – | 15 Amp Blue | FRONT PASSENGER DISPLAY MODULE (FPDM) / PORT_UCI_DU-AL – USB-FRONT – IP / REAR WINDOW SWITCHES / MOD_HVAC_CTRRL_FT / SW_BANK_UPPER (ASBM#2) |
| F82 | – | 15 Amp Blue | MOD_COMFORT STEERING WHEEL SURFACE |
| F83 | – | – | SPARE |
| F84 | – | 15 Amp Blue | PF: MID RANGE SENSOR REAR LEFT (MRSRL) / MID RANGE SENSOR REAR RIGHT (MRSRR) |
| F85 | – | 15 Amp Blue | UWB_SNSR (1-7) |
| F86 | – | 5 Amp Tan | NFC DOOR HANDLE #1 |
| F87 | – | – | SPARE |
| F88 | – | – | SPARE |
| CB1 | 10 Amp Red | MOD_SPAAK | |
| * If Equipped |
Related Posts:
