Dodge Dakota (2001 – 2004) Fuse Box Location and Diagrams
This complete blog covers Dodge Dakota (2001–2004) fuse box schematics and locations. Keep your Dakota running smoothly and safely by learning how to find and access fuse panels, understand fuse operations, and troubleshoot electrical issues.
Passenger Compartment Fuse Box
Dodge Dakota (2001 to 2004)
Fuse box location

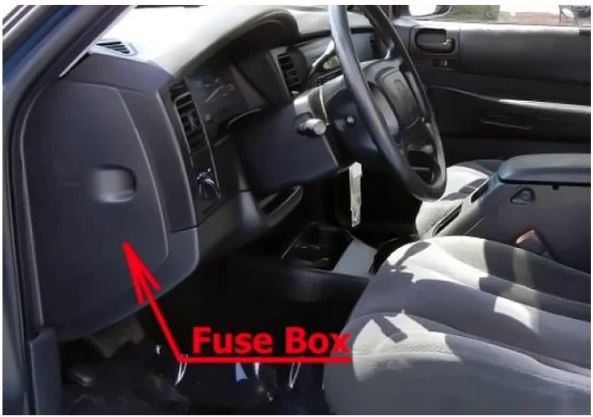

The fuse panel is located behind the cover on the driver’s side of the instrument panel.

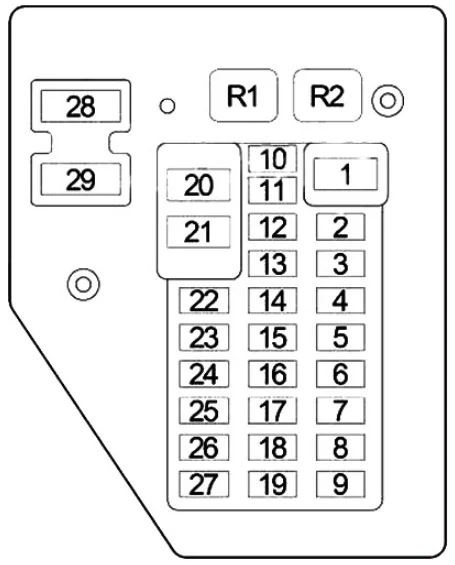

Fuse Box Diagram
| No | Amp Rating | Description |
|---|---|---|
| 1 | 15 | Sentry Key Immobilizer Module, Instrument Cluster, Dome Lamp, Glove Box Lamp and Switch, Driver Door Module, Data Link Connector, Overhead Console, Cargo Lamp, Radio (2000-2001), Center Console Lamp (2000-2001) |
| 2 | 20 | Horn Relay |
| 3 | 20 | 2002-2004: Radio |
| 4 | 20 | Park Lamp Relay (Front Park/Turn Signal Lamp, Front Side Marker Lamp, License Lamp, Rear Tail/Stop/Turn Signal Lamp, Central Timer Module, Engine Compartment Fuse: “T”) |
| 5 | 20 | Front Wiper Relay, Central Timer Module, Multi-Function Switch, Wiper Motor |
| 6 | – | Not Used |
| 7 | – | Not Used |
| 8 | 10 | Instrument Cluster, Powertrain Control Module, Transmission Control Module |
| 9 | 5 | Instrument Cluster, A/C Heater Control, Radio, Transfer Case Selector Switch, Overhead Console, Shift Bezel Lamp, Cigar Lighter |
| 10 | 10 | Powertrain Control Module, Fuel Pump Relay, Radiator Fan Relay, Sentry Key Immobilizer Module |
| 11 | 10 | Air Conditioner Compressor Clutch Relay, Automatic Day/Night Mirror, Overhead Console, Central Timer Module, Transfer Case Selector Switch, Duty Cycle EVAP/Purge Solenoid (2000-2001) |
| 12 | 10 | Starter Relay, Powertrain Control Module |
| 13 | 15 or 20 | Amplifier (2000-2001 – 15A; 2002-2004 – 20A) |
| 14 | 10 | Instrument Cluster |
| 15 | 10 | Power Mirror |
| 16 | – | Not Used |
| 17 | 15 | Cigar Lighter/Power Outlet |
| 18 | 10 | Radio |
| 19 | 10 | Combination Flasher |
| 20 | 10 | Airbag Control Module, Passenger Airbag On/Off Switch |
| 21 | 10 | Airbag Control Module |
| 22 | – | Not Used |
| 23 | – | Not Used |
| 24 | 15 | Rear Window Defogger Relay |
| 25 | 10 | Heating and Air Conditioning Control |
| 26 | 15 | Back-Up Lamp, Transmission Solenoid/TRS Assembly (4.7L + Automatic Transmission), Back-Up Lamp Switch (Manual Transmission), Passenger Door Power Lock Switch, Automatic Day/Night Mirror, Trailer Tow Connector |
| 27 | 10 | ABS |
| 28 | 25 | Driver Door Module (Power Window) |
| 29 | – | Not Used |
| Relay | ||
| R1 | Horn | |
| R2 | Park Lamp |
Engine Compartment Fuse Box
Dodge Dakota (2001 to 2004)

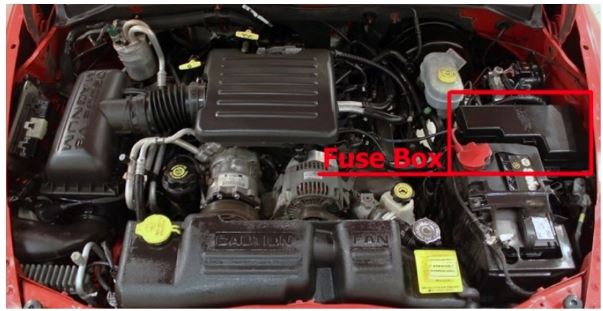

Fuse box location

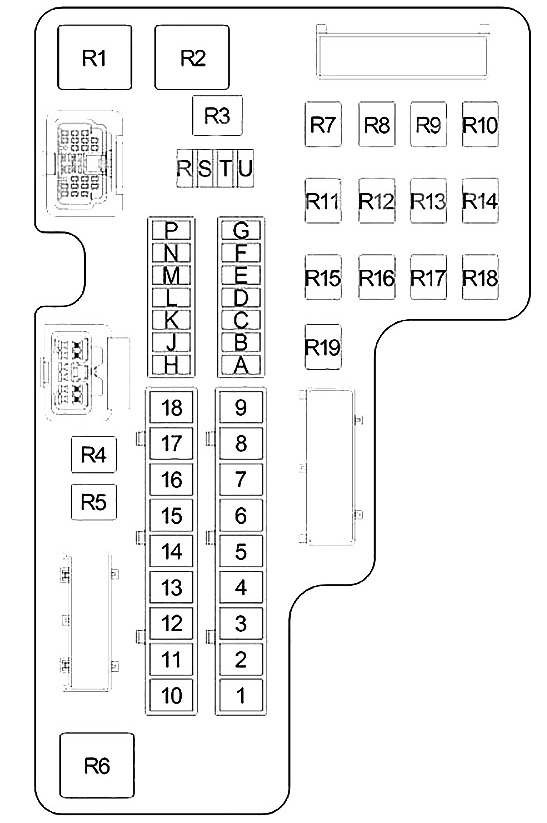

Fuse Box Diagram
| No | Amp Rating | Description |
|---|---|---|
| 1 | 20 or 30 | Combination Flasher (2000-2001 – 30A; 2002-2004 – 20A) |
| 2 | 20 | Fuel Pump Relay, Powertrain Control Module |
| 3 | 20 | Central Timer Module |
| 4 | 40 | Rear Window Defogger Relay, Passenger Compartment Fuses: “15” |
| 5 | 20 | Stop Lamp Switch |
| 6 | 30 | Electric Brake (Triler Tow) |
| 7 | 40 | Passenger Compartment Fuses: “1”, “2”, “3”, “4”, “13”) |
| 8 | 40 | ABS |
| 9 | 50 | Ignition Switch (Passenger Compartment Fuses: “21”, “24”, “25”, “26”, “27”) |
| 10 | 40 | Ignition Switch (Passenger Compartment Fuses: “17”, “18”, “19”) |
| 11 | 30 | Automatic Shut Down Relay (Powertrain Control Module, Capacitor, Ignition Coil, Fuel Injector) |
| 12 | 20 | Central Timer Module |
| 13 | 40 | Ignition Switch (Blower Motor) |
| 14 | 50 | Power Seat Switch |
| 15 | 40 or 50 | Radiator Fan Relay |
| 16 | 50 | Starter Relay |
| 17 | 50 | Ignition Switch (Passenger Compartment Fuses: “5”, “28”) |
| 18 | – | Not Used |
| A | 20 | Transfer Case Control Module |
| B | 10 | Air Conditioner Compressor Clutch Relay |
| C | 20 | Trailer Tow Connector |
| D | 20 | Center Power Outlet |
| E | 20 | Ignition Switch (Passenger Compartment Fuses: “8”, “10”, “11”, “12”, “14”,”20″) |
| F | 20 | Transmission Control Relay (Transmision Range Sensor (3.7L), Transmission Solenoid/Pressure Switch Assembly (3.7L), Transmission Solenoid/TRS Assembly (4.7L), Powertrain Control Module) |
| G | – | Not Used |
| H | 20 | Fog Lamp Relay (Fog Lam, Headlamp Switch, Central Timer Module) |
| J | – | Not Used |
| K | – | Not Used |
| L | – | Not Used |
| M | – | Not Used |
| N | – | Not Used |
| P | – | Not Used |
| R | – | Not Used |
| S | – | Not Used |
| T | 10 | Trailer Tow Connector |
| U | 20 | Oxygen Sensor |
| Relay | ||
| R1 | Radiator Fan | |
| R2 | Automatic Shut Down | |
| R3 | Not Used | |
| R4 | Not Used | |
| R5 | Not Used | |
| R6 | EBL | |
| R7 | Fuel Pump | |
| R8 | Not Used | |
| R9 | Air Conditioner Compressor Clutch | |
| R10 | Fog Lamp | |
| R11 | Not Used | |
| R12 | Oxygen Sensor | |
| R13 | Not Used | |
| R14 | Transmission Control | |
| R15 | Not Used | |
| R16 | Not Used | |
| R17 | Starter | |
| R18 | Wiper | |
| R19 | Not Used |
