Dodge Grand Caravan (2011 – 2019) Fuse Box Location and Diagrams
This tutorial offers clear fuse box schematics and locations for the 2011-2019 Dodge Grand Caravan. You can easily detect and identify critical vehicle function fuses when fixing electrical issues or doing maintenance repairs.
Fuse Box Location

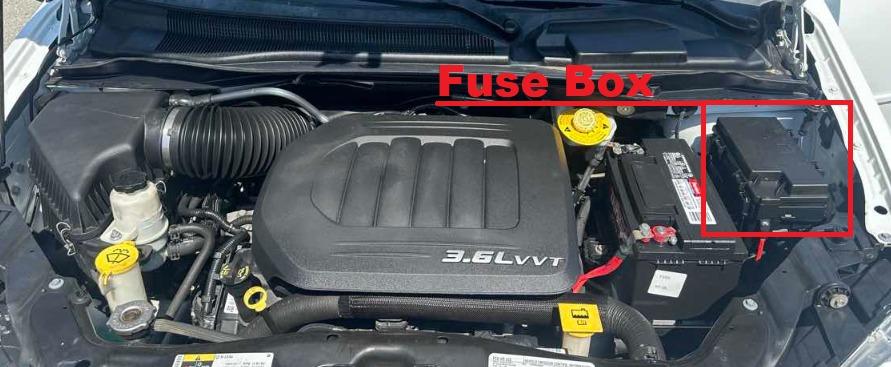

Engine Compartment Fuse Box
The integrated power module (IPM) is located in the engine compartment near the battery. A label that identifies each component may be printed or embossed on the inside of the cover.

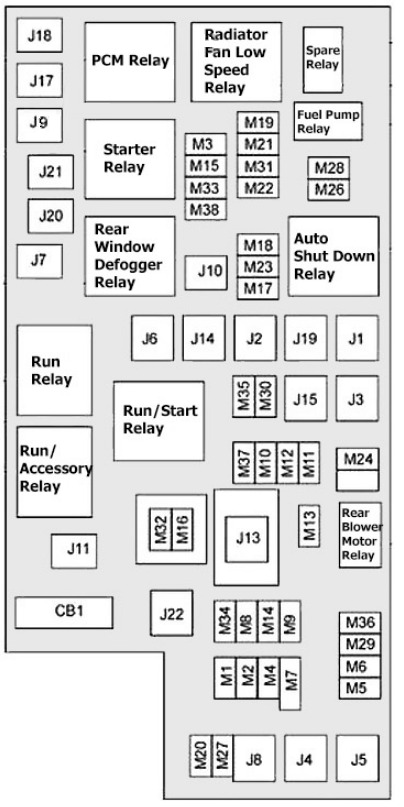

Engine Compartment Fuse Box Diagram
Dodge Grand Caravan (2011 and 2012)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40 Amp Green | — | Power Folding Seat |
| J2 | 30 Amp Pink | — | Power Liftgate Module |
| J3 | 30 Amp Pink | — | Rear Door Module (RR Door Node) |
| J4 | 25 Amp Natural | — | Driver Door Node |
| J5 | 25 Amp Natural | — | Passenger Door Node |
| J6 | 40 Amp Green | — | Antilock Brakes Pump/Stability Control System |
| J7 | 30 Amp Pink | — | Antilock Brakes Valve/Stability Control System |
| J8 | 40 Amp Green | — | Power Memory Seat – If Equipped |
| J9 | 40 Amp Green | — | Partial Zero Emissions Vehicle Motor/ Flex Fuel |
| J10 | 30 Amp Pink | — | Headlamp Wash Relay/Manifold Tuning Valve |
| J11 | 30 Amp Pink | — | Power Sliding Door Module/Anti-Theft Module Relay Lock Feed |
| J13 | 60 Amp Yellow | — | Ignition Off Draw (IOD) – Main |
| J14 | 40 Amp Green | — | Rear Window De-fogger |
| J15 | 30 Amp Pink | — | Front Blower |
| J17 | 40 Amp Green | — | Starter Solenoid |
| J18 | 20 Amp Blue | — | Powertrain Control Module Trans Range |
| J19 | 60 Amp Yellow | — | Radiator Fan |
| J20 | 30 Amp Pink | — | Front Wiper LO/HI |
| J21 | 20 Amp Blue | — | Front/Rear Washer |
| J22 | 25 Amp Natural | — | Sunroof Module |
| M1 | — | 15 Amp Blue | Rear Center Brake Lamp/Brake Switch |
| M2 | — | — | 2012: Trailer Lighting, Front Fog Lamps, Intelligent Battery Sensor (IBS) |
| M3 | — | 20 Amp Yellow | 2011: Spare Fuse 2012: Front/Rear Axle Locker, Vacuum Pump Motor |
| M4 | — | 10 Amp Red | Trailer Tow |
| M5 | — | 25 Amp Natural | Inverter |
| M6 | — | 20 Amp Yellow | Power Outlet #1 (ACC), Rain Sensor |
| M7 | — | 20 Amp Yellow | Power Outlet #2 (BATT/ACC SELECT) |
| M8 | — | 20 Amp Yellow | Front Heated Seat -If Equipped |
| M9 | — | 20 Amp Yellow | Rear Heated Seat -If Equipped |
| M10 | — | 15 Amp Blue | Ignition Off Draw — Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module |
| M11 | — | 10 Amp Red | 2011: Ignition Off Draw -Climate Control System 2012: Climate Control System |
| M12 | — | 30 Amp Green | Amplifier (AMP)/ Radio |
| M13 | — | 20 Amp Yellow | Ignition Off Draw— Instrument Cluster, SIREN, Clock Module, Multi-Function Control Switch/ITM |
| M14 | — | 20 Amp Yellow | 2011: Spare Fuse 2012: Trailer Tow – If Equipped |
| M15 | — | 20 Amp Yellow | 2011: Rear View Mirror, Instrument Cluster, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module -Export Diesel Only, Assy-Shifter (Hall Effect), Acoustic Noise Cancellation 2012: Rear View Mirror, Instrument Cluster, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – If Equipped |
| M16 | — | 10 Amp Red | Airbag Module/ Occupant Classification Module |
| M17 | — | 15 Amp Blue | Left Tail/License/ Park Lamp, Running Lamps |
| M18 | — | 15 Amp Blue | Right Tail/Park/Run Lamp |
| M19 | — | 25 Amp Natural | 2011: Automatic Shutdown #1 and #2 2012: Powertrain |
| M20 | — | 15 Amp Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | — | 20 Amp Yellow | 2011: Automatic Shutdown #3 2012: Powertrain |
| M22 | — | 10 Amp Red | 2011: Right Horn (HI/ LOW) 2012: Horn |
| M23 | — | 10 Amp Red | 2011: Left Horn (HI/ LOW) 2012: Horn |
| M24 | — | 25 Amp Natural | Rear Wiper |
| M25 | — | 20 Amp Yellow | Fuel Pump, Diesel Lift Pump – Export Only |
| M26 | — | 10 Amp Red | Power Mirror Switch, Driver Window Switch |
| M27 | — | 10 Amp Red | Ignition Switch, Wireless Control Module, Keyless Entry Module, Steering Column Lock |
| M28 | — | 10 Amp Red | Powertrain Control Module, Transmission Feed, Transmission Control Module |
| M29 | — | 10 Amp Red | Occupant Classification Module |
| M30 | — | 15 Amp Blue | Rear Wiper Module, Power Folding Mirror, J1962 Diagnostic Feed |
| M31 | — | 20 Amp Yellow | Back-Up Lamps |
| M32 | — | 10 Amp Red | Airbag Module, TT EUROPE |
| M33 | — | 10 Amp Red | Powertrain Control Module, Transmission Control Module |
| M34 | — | 10 Amp Red | Park Assist, Heater Climate Control System Module, Headlamp Wash, Compass, IR Sensor, Rear Camera, Lamp Door FT Drv/Pass, Lamp Flashlight, AHLM, Relay Diesel Cabin Heater, Rad Fan Diesel |
| M35 | — | 10 Amp Red | Heated Mirrors |
| M36 | — | 20 Amp Yellow | 2011: Power Outlet #3 2012: Power Outlet #3 (Instrument Panel or with Console Center) |
| M37 | — | 10 Amp Red | Antilock Brakes, Stability Control System, Stop Lamp Switch, Fuel Pump Rly Hi Control |
| M38 | — | 25 Amp Natural | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
Dodge Grand Caravan (2013 to 2016)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40 Amp Green | — | Power Folding Seat |
| J2 | 30 Amp Pink | — | Power Liftgate Module |
| J3 | 30 Amp Pink | — | Rear Door Module |
| J4 | 25 Amp Natural | — | Driver Door Node |
| J5 | 25 Amp Natural | — | Passenger Door Node |
| J6 | 40 Amp Green | — | Antilock Brakes Pump/Stability Control System |
| J7 | 30 Amp Pink | — | Antilock Brakes Valve/Stability Control System |
| J8 | 40 Amp Green | — | Power Memory Seat – If Equipped |
| J9 | 40 Amp Green | — | Partial Zero Emissions Vehicle Motor/Flex Fuel – If Equipped |
| J10 | 30 Amp Pink | — | Headlamp Wash/Manifold Tuning Valve – If Equipped |
| J11 | 30 Amp Pink | — | Power Sliding Door Module/Anti-Theft Module – If Equipped |
| J12 | 30 Amp Pink | — | HVAC Rear Blower, Radiator Fan Motor |
| J13 | 60 Amp Yellow | — | Ignition Off Draw (IOD) – Main |
| J14 | 40 Amp Green | — | Rear Window Defogger |
| J15 | 40 Amp Green | — | Front Blower |
| J17 | 40 Amp Green | — | Starter Solenoid |
| J18 | 20 Amp Blue | — | Powertrain Control Module Trans Range |
| J19 | 60 Amp Yellow | — | Radiator Fan |
| J20 | 30 Amp Pink | — | Front Wiper LO/HI |
| J21 | 20 Amp Blue | — | Front/Rear Washer |
| J22 | 25 Amp Natural | — | Sunroof Module |
| M1 | — | 15 Amp Blue | Rear Center Brake Lamp/Brake Switch |
| M2 | — | 20 Amp Yellow | Front Fog Lamps |
| M3 | — | 20 Amp Yellow | Front/Rear Axle Locker, Vacuum Pump Motor |
| M4 | — | 10 Amp Red | Trailer Tow |
| M5 | — | 25 Amp Natural | Inverter |
| M6 | 20 Amp Yellow | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) | |
| M7 | — | 20 Amp Yellow | Power Outlet #2 (BATT/ACC SELECT) -Center Seat or with Console Rear |
| M8 | — | 20 Amp Yellow | Front Heated Seat – If Equipped |
| M9 | — | 20 Amp Yellow | Rear Heated Seat – If Equipped |
| M10 | — | 15 Amp Blue | Ignition Off Draw — Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped |
| M11 | — | 10 Amp Red | Climate Control System |
| M12 | — | 30 Amp Green | Amplifier/Radio |
| M13 | — | 20 Amp Yellow | Instrument Cluster, SIREN, Clock Module, Multi-Function Control Switch – If Equipped |
| M14 | — | 20 Amp Yellow | Trailer Tow – If Equipped |
| M15 | — | 20 Amp Yellow | Rear View Mirror, Instrument Cluster, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – If Equipped |
| M16 | — | 10 Amp Red | Airbag Module/Occupant Classification Module |
| M17 | — | 15 Amp Blue | Left Tail/License/Park Lamp, Running Lamps |
| M18 | — | 15 Amp Blue | Right Tail/Park/Run Lamp |
| M19 | — | 25 Amp Natural | Powertrain |
| M20 | — | 15 Amp Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | — | 20 Amp Yellow | Powertrain |
| M22 | — | 10 Amp Red | Horn |
| M23 | — | 10 Amp Red | Horn |
| M24 | — | 25 Amp Natural | Rear Wiper |
| M25 | — | 20 Amp Yellow | Fuel Pump, Diesel Lift Pump – If Equipped |
| M26 | — | 10 Amp Red | Power Mirror Switch, Driver Window Switch |
| M27 | — | 10 Amp Red | Wireless Control Module, Keyless Entry Module |
| M28 | — | 10 Amp Red | Powertrain, Transmission Control Module |
| M29 | — | 10 Amp Red | Occupant Classification Module |
| M30 | — | 15 Amp Blue | Rear Wiper Module, Power Folding Mirror |
| M31 | — | 20 Amp Yellow | Back-Up Lamps |
| M32 | — | 10 Amp Red | Airbag Module, THATCHUM – If Equipped |
| M33 | — | 10 Amp Red | Powertrain |
| M34 | — | 10 Amp Red | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater, Rad Fan Diesel – If Equipped |
| M35 | — | 10 Amp Red | Heated Mirrors |
| M36 | — | 20 Amp Yellow | Power Outlet #3 (Instrument Panel or with Console Center) |
| M37 | — | 10 Amp Red | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump |
| M38 | — | 25 Amp Natural | Door Lock/Unlock Motors, Liftgate Lock/ Unlock Motors |
| CB1 | 25 Amp circuit breaker | — | Power Windows |
Dodge Grand Caravan (2017, 2018 and 2019)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40 Amp Green | — | Power Folding Seat |
| J2 | 30 Amp Pink | — | Power Liftgate Module |
| J3 | 30 Amp Pink | — | Rear Door Module |
| J4 | 25 Amp Clear | — | Driver Door Node |
| J5 | 25 Amp Clear | — | Passenger Door Node |
| J6 | 40 Amp Green | — | Antilock Brakes Pump/Stability Control System |
| J7 | 30 Amp Pink | — | Antilock Brakes Valve/Stability Control System |
| J8 | 40 Amp Green | — | Power Memory Seat – If Equipped |
| J9 | – | — | Not Used |
| J10 | 30 Amp Pink | — | Headlamp Wash/Manifold Tuning Valve – If Equipped |
| J11 | 30 Amp Pink | — | Power Sliding Door Module/Anti-Theft Module – If Equipped |
| J12 | 30 Amp Pink | — | HVAC Rear Blower, Radiator Fan Motor |
| J13 | 60 Amp Yellow | — | Ignition Off Draw (IOD) – Main |
| J14 | 40 Amp Green | — | Rear Window Defogger |
| J15 | 40 Amp Green | — | Front Blower |
| J17 | 40 Amp Green | — | Starter Solenoid |
| J18 | 20 Amp Blue | — | Powertrain Control Module Trans Range |
| J19 | 60 Amp Yellow | — | Radiator Fan |
| J20 | 30 Amp Pink | — | Front Wiper LO/HI |
| J21 | 20 Amp Blue | — | Front/Rear Washer |
| J22 | 25 Amp Clear | — | Sunroof Module |
| M1 | — | 15 Amp Blue | Rear Center Brake Lamp/Brake Switch |
| M2 | — | 20 Amp Yellow | Front Fog Lamps |
| M3 | — | 20 Amp Yellow | Vacuum Pump Motor |
| M5 | — | 25 Amp Clear | Inverter |
| M6 | — | 20 Amp Yellow | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) |
| M7 | — | 20 Amp Yellow | Power Outlet #2 (BATT/ACC SELECT) – Center Seat or with Console Rear |
| M8 | — | 20 Amp Yellow | Front Heated Seat – If Equipped |
| M9 | — | 20 Amp Yellow | Rear Heated Seat – If Equipped |
| M10 | — | 15 Amp Blue | Ignition Off Draw — Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped |
| M11 | — | 10 Amp Red | Climate Control System |
| M12 | — | 30 Amp Green | Amplifier/Radio |
| M13 | — | 20 Amp Yellow | Instrument Cluster, SIREN, Clock Module, Multifunction Control Switch – If Equipped |
| M14 | — | 20 Amp Yellow | Trailer Tow – If Equipped |
| M15 | — | 20 Amp Yellow | Rear View Mirror, Instrument Cluster, Multifunction Control Switch, Tire Pressure Monitor |
| M16 | — | 10 Amp Red | Airbag Module/Occupant Classification Module |
| M17 | — | 15 Amp Blue | Left Tail/License/Park Lamp, Running Lamps |
| M18 | — | 15 Amp Blue | Right Tail/Park/Run Lamp |
| M19 | — | 25 Amp Clear | Powertrain |
| M20 | — | 15 Amp Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | — | 20 Amp Yellow | Powertrain |
| M22 | — | 10 Amp Red | Horn |
| M23 | — | 10 Amp Red | Horn |
| M24 | — | 25 Amp Clear | Rear Wiper |
| M25 | — | 20 Amp Yellow | Fuel Pump |
| M26 | — | 10 Amp Red | Power Mirror Switch, Driver Window Switch |
| M27 | — | 10 Amp Red | Wireless Control Module, Keyless Entry Module |
| M28 | — | 10 Amp Red | Powertrain, Transmission Control Module |
| M29 | — | 10 Amp Red | Occupant Classification Module |
| M30 | — | 15 Amp Blue | Diagnostic Feed |
| M31 | — | 20 Amp Yellow | Back-Up Lamps |
| M32 | — | 10 Amp Red | Airbag Module, THATCHUM – If Equipped |
| M33 | — | 10 Amp Red | Powertrain |
| M34 | — | 10 Amp Red | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater |
| M35 | — | 10 Amp Red | Heated Mirrors |
| M36 | — | 20 Amp Yellow | Power Outlet #3 (Instrument Panel or with Console Center) |
| M37 | — | 10 Amp Red | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump |
| M38 | — | 25 Amp Clear | Door Lock/Unlock Motors, Liftgate Lock/ Unlock Motors |
| CB1 | 25 Amp circuit breaker | — | Power Windows |
