Ford C-MAX (2015 – 2019) Fuse Box Location & Diagrams
This Ford C-MAX Fuse Box Location & Diagrams User Guide (2015–2019) helps you quickly find interior and engine bay fuse boxes. With clear diagrams and explanations, it makes diagnosing electrical problems simple and stress-free for owners and DIY users.
Passenger Compartment Fuse Box
Ford C-MAX (2015 to 2019)
Fuse Box Location

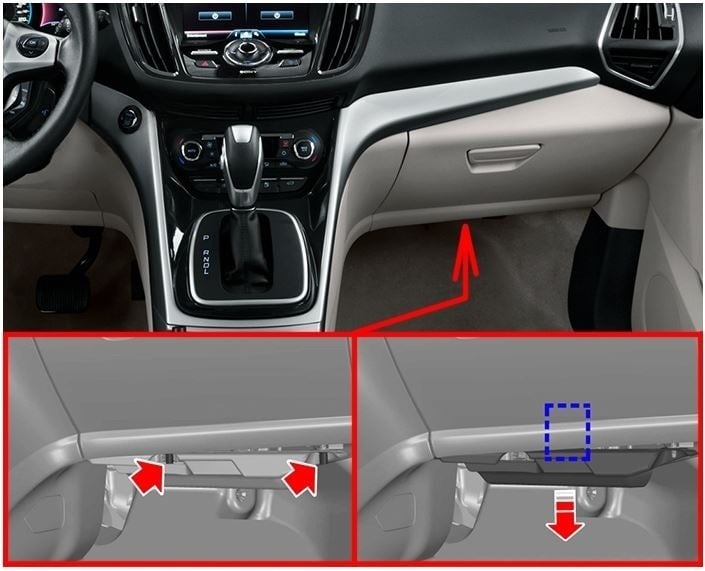

The fuse panel is located below the glove compartment (pinch the retaining clips to release the cover, lower the cover and pull it towards you).

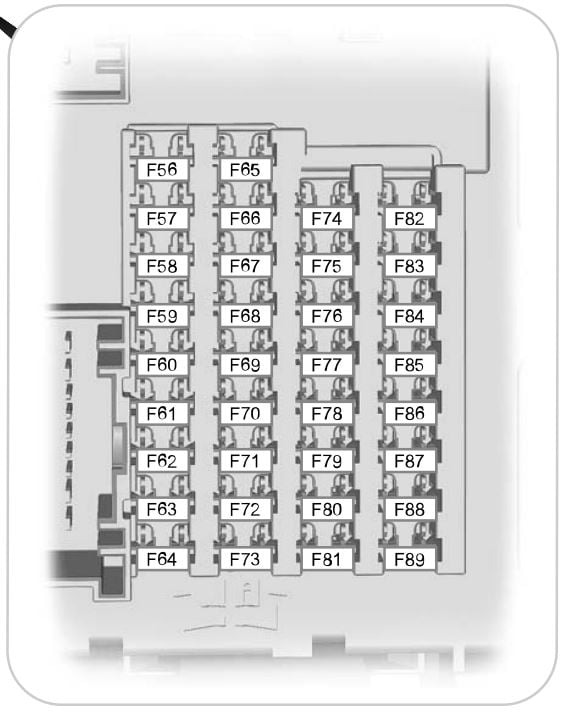

Fuse Box Diagram
| No | Amp | Description |
|---|---|---|
| F56 | 20A | Fuel pump. |
| F57 | – | Not used. |
| F58 | – | Not used. |
| F59 | 5A | Passive anti-theft transceiver. |
| F60 | 10A | Interior lighting. Driver door switch pack. Glove box lamp. Ambient lighting. |
| F61 | 20A | Front cigar lighter. Rear auxiliary power points. |
| F62 | 5A | Autowipers. Humidity sensor. Auto-dimming interior mirror. |
| F63 | 10A | Adaptive cruise control. |
| F64 | – | Not used. |
| F65 | 10A | Liftgate release. |
| F66 | 20A | Driver door lock. Fuel door lock. Central double locking system. |
| F67 | 7.5A | SYNC module. Global positioning system module. Information and entertainment display. |
| F68 | 15A | Electric steering column lock. |
| F69 | 5A | Instrument cluster. |
| F70 | 20A | Central locking system. |
| F71 | 7.5A | Air conditioning. |
| F72 | 7.5A | Steering wheel module. |
| F73 | 7.5A | Data link connector. Battery backup sounder. |
| F74 | 15A | High beam. |
| F75 | 15A | Front fog lamps. |
| F76 | 10A | Reversing lamps. |
| F77 | 20A | Front and rear windshield washer pump. |
| F78 | 5A | Ignition switch. Push button ignition switch. Keyless vehicle module. |
| F79 | 15A | Audio unit. Hazard flasher switch. Electronic finish panel. |
| F80 | 20A | Moonroof. |
| F81 | 5A | Interior motion sensor. Radio frequency receiver. Sunshade. |
| F82 | 20A | Front and rear windshield washer pump. |
| F83 | 20A | Central locking system. |
| F84 | 20A | Driver door unlock. Fuel door unlock. Central double locking system. |
| F85 | 7.5A | Air conditioning. Rear wiper relay. Auxiliary heater. Radio. Adaptive cruise control. |
| F86 | 10A | Restraints control module. Occupant classification system. |
| F87 | 15A | Heated steering wheel. |
| F88 | 20A | Until 2016: Voltage quality module. |
| F89 | – | Not used. |
Engine Compartment Fuse Box
Ford C-MAX (2015 to 2019)

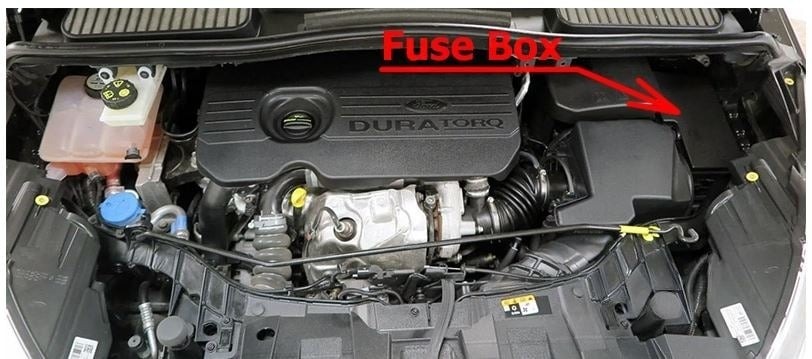

Fuse Box Location

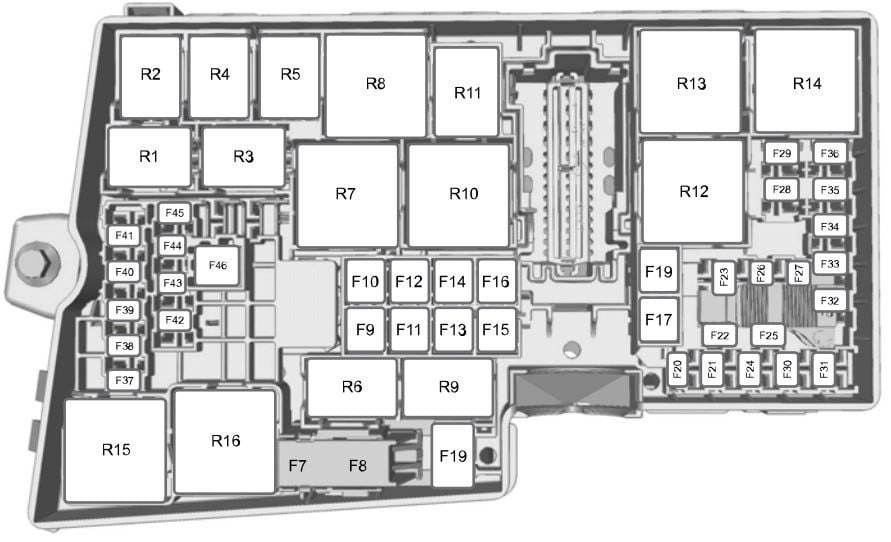

Fuse Box Diagram
| No | Amp | Description |
|---|---|---|
| F7 | 40A | Anti-lock brake system. Electronic stability program. |
| F8 | 30A | Electronic stability program. |
| F9 | 20A | Headlamp washer. |
| F10 | 40A | Blower motor. |
| F11 | 30A | Auto-Start-Stop module. |
| F12 | 30A | Powertrain control module. |
| F13 | 30A | Starter relay. |
| F14 | 40A | Right-hand heated windshield element. |
| F15 | 25A | Intercooler fan (1.0L). |
| F15 | 40A | Cooling fan relay 1. |
| F16 | 40A | Left-hand heated windshield element. |
| F17 | 20A | Auxiliary heater. |
| F18 | 20A | Windshield wipers. |
| F19 | 5A | Anti-lock brake system. Electronic stability program. |
| F20 | 15A | Horn. |
| F21 | 5A | Brake lamps. |
| F22 | 15A | Battery monitor system. |
| F23 | 5A | Relay coils. Lighting control. |
| F24 | 20A | Luggage compartment power point. |
| F25 | – | Not used. |
| F26 | 25A | Transmission control module (TMC 6F35). |
| F26 | 15A | Transmission control module (TMC MPS6). |
| F27 | 15A | Air conditioning clutch. |
| F28 | 7.5A | Rear view camera. Collision warning system. |
| F29 | – | Not used. |
| F30 | 5A | Powertrain control module. |
| F31 | – | Not used. |
| F32 | 10A | Powertrain control module. Cooling fan module relay. |
| F33 | 15A or 20A | Powertrain control module. Ignition coils. (1.0L – 20A; 1.5L, 1.6L and 2.0L – 15A) |
| F34 | 10A | Powertrain control module. |
| F35 | 10A or 15A | Water-in-fuel sensor. Powertrain control module. Ignition coils. |
| F36 | 5A | From 2016: Active grille shutter. |
| F37 | – | Not used. |
| F38 | 15A | Powertrain control module. |
| F39 | 5A | Headlamp leveling. |
| F40 | 5A | Electronic power assist steering. |
| F41 | 20A | Body control module. |
| F42 | – | Not used. |
| F43 | 15A | Headlamp leveling. Adaptive front lighting unit. |
| F44 | 5A | Adaptive cruise control. |
| F45 | 10A | Heated washer nozzle. |
| F46 | 25A | Cooling fan. |
| F47 | – | Not used. |
| F48 | 15A | Diesel particulate filter vaporizer. |
| Relay | ||
| R1 | Intercooler fan. | |
| R2 | Horn. | |
| R3 | Diesel particulate filter vaporizer. | |
| R4 | UP TO 22-06-2015: Front wiper on/off relay; FROM 23-06-2015: Cooling fan relay. | |
| R5 | UP TO 22-06-2015: Headlamp washer; FROM 23-06-2015: Front wiper on/off relay. | |
| R6 | Front wiper hi/low relay. | |
| R7 | Heated windshield. | |
| R8 | Cooling fan relay. | |
| R9 | UP TO 22-06-2015: Not used; FROM 23-06-2015: Headlamp washer. | |
| R10 | UP TO 22-06-2015: Cooling fan relay; FROM 23-06-2015: Starter relay. | |
| R11 | Air conditioning clutch. | |
| R12 | Cooling fan relay. | |
| R13 | Blower motor. | |
| R14 | Engine control module. | |
| R15 | UP TO 22-06-2015: Starter relay; FROM 23-06-2015: Glow plug relay. | |
| R16 | Ignition. |
Luggage Compartment Fuse Box
Ford C-MAX (2015 to 2019)
Fuse Box Location

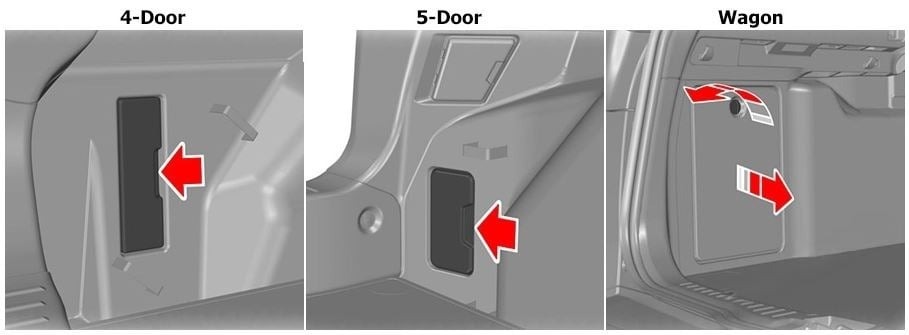

It is located behind the cover on the left side of the rear compartment.

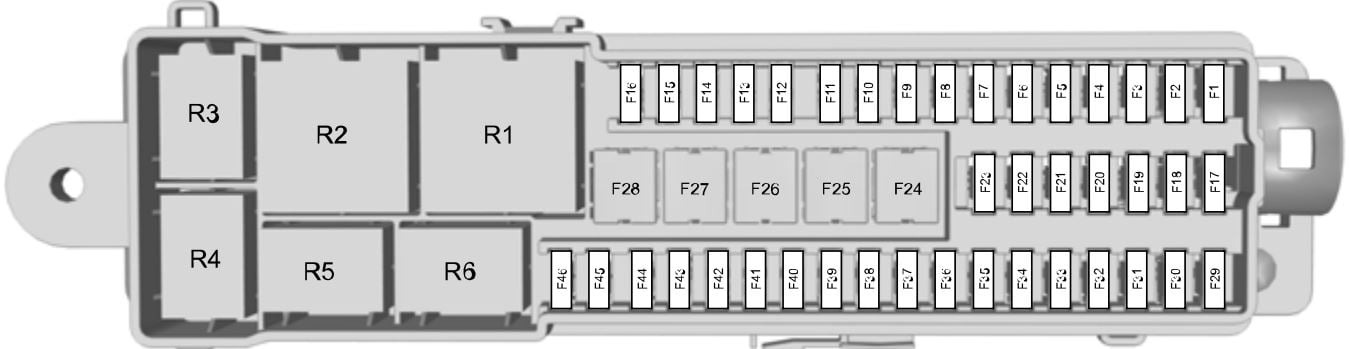

Fuse Box Diagram
| No | Amp | Description |
|---|---|---|
| F1 | 5A | Handsfree liftgate. |
| F2 | – | Not used. |
| F3 | 5A | Keyless vehicle door handles. |
| F4 | 25A | Front left door control unit. |
| F5 | 25A | Front right door control unit. |
| F6 | 25A | Rear left door control unit. |
| F7 | 25A | Rear right door control unit. |
| F8 | 10A | Anti-theft alarm. |
| F9 | 25A | Driver seat. |
| F10 | 25A | Power windows. |
| F11 | 5A | Relay coil feed. |
| F12 | – | Not used. |
| F13 | – | Not used. |
| F14 | – | Not used. |
| F15 | – | Not used. |
| F16 | – | Not used. |
| F17 | – | Not used. |
| F18 | – | Not used. |
| F19 | – | Not used. |
| F20 | – | Not used. |
| F21 | – | Not used. |
| F22 | – | Not used. |
| F23 | – | Not used. |
| F24 | 30A | DC/AC power converter. |
| F25 | 25A | Power operated tailgate. |
| F26 | 40A | Trailer tow module. |
| F27 | 30A | Rear window defroster. |
| F28 | – | Not used. |
| F29 | 5A | Blind spot monitor. Lane keeping system. Active City Stop. Rear view camera. |
| F30 | 5A | Parking aid module. |
| F31 | – | Not used. |
| F32 | 5A | DC/AC power converter. |
| F33 | 15A | Rear window wiper relay. |
| F34 | 15A | Driver heated seat. |
| F35 | 15A | Passenger heated seat. |
| F36 | – | Not used. |
| F37 | 15A | Sunshade. |
| F38 | – | Not used. |
| F39 | – | Not used. |
| F40 | – | Not used. |
| F41 | 5A | From 2016: Trailer tow module. |
| F42 | – | Not used. |
| F43 | – | Not used. |
| F44 | 10A | Power exterior mirrors. |
| F45 | 7.5A | Heated exterior mirrors. |
| F46 | – | Not used. |
| Relay | ||
| R1 | Ignition switch. | |
| R2 | Heated rear window. | |
| R3 | Rear window wiper. | |
| R4 | Not used. | |
| R5 | Anti-theft alarm horn. | |
| R6 | Delayed accessory power. |
