Ford E-350 (2009 – 2015) Fuse Box Location and Diagrams
Below are fuse box locations and diagrams for Ford E-350 trucks manufactured between 2009 and 2015. With the help of this book, you can quickly identify fuses, diagnose electrical problems, and maintain the electrical system in your van.
Fuse Box Locations

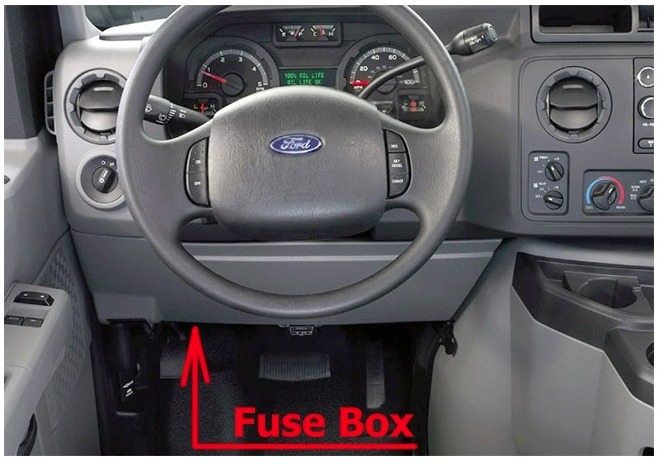

Passenger Compartment Fuse Box
The fuse panel is located to the left of the brake pedal and mounted
onto the lower left cowl panel.

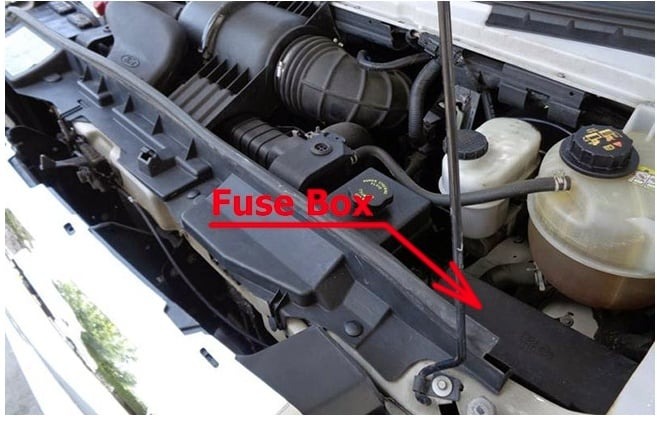

Engine Compartment Fuse Box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.

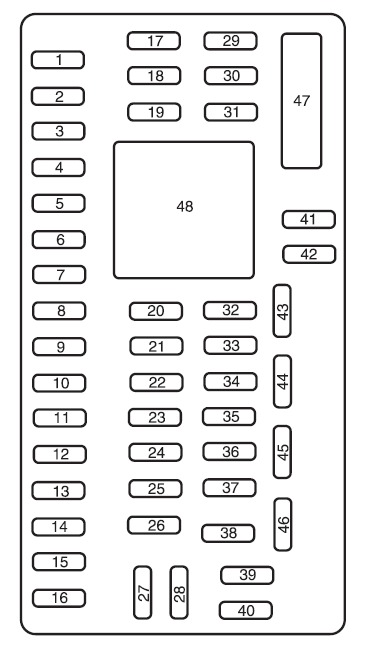

Passenger Compartment Fuse Box Diagram
Ford E-350 (2009 to 2012)
The fuses are coded as follows.
| Fuse/Relay Location | Fuse Amp Rating | Protected Circuits |
| 1 | 30A | Not used (spare) |
| 2 | 15A | Not used (spare) |
| 3 | 15A | Not used (spare) |
| 4 | 30A | Not used (spare) |
| 5 | 10A | SPDJB/Brake shift interlock |
| 6 | 20A | Turn signal, Hazard, Stop lamps |
| 7 | 10A | Left low beam |
| 8 | 10A | Right low beam |
| 9 | 15A | Courtesy lamps |
| 10 | 15A | Switch illumination |
| 11 | 10A | Not used (spare) |
| 12 | 7.5A | Not used (spare) |
| 13 | 5A | Mirrors |
| 14 | 10A | (2009) Not used (spare) (2010 to 2012) SYNC, GPS module |
| 15 | 10A | (2009 and 2012) Not used (spare) (2010 and 2011) Satellite radio |
| 16 | 15A | Not used (spare) |
| 17 | 20A | Door locks |
| 18 | 20A | Not used (spare) |
| 19 | 25A | Not used (spare) |
| 20 | 15A | Diagnostic connector (except stripped chassis) |
| 21 | 15A | Not used (spare) |
| 22 | 15A | Park lamps, License plate lamps |
| 23 | 15A | High beams |
| 24 | 20A | Horn (except stripped chassis) |
| 25 | 10A | Demand lighting |
| 26 | 10A | Cluster (except stripped chassis) |
| 27 | 20A | Ignition switch feed |
| 28 | 5A | Audio mute (start) |
| 29 | 5A | Cluster (except stripped chassis) |
| 30 | 5A | Not used (spare) |
| 31 | 10A | Not used (spare) |
| 32 | 10A | Restraints module |
| 33 | 10A | Trailer Brake Controller |
| 34 | 5A | Not used (spare) |
| 35 | 10A | Reverse park aid, Rear video camera, Cutaway run/start |
| 36 | 5A | (2009) PATS RF module (2010 to 2012) Passive anti-theft system (PATS) RF module |
| 37 | 10A | Climate control, Stripped chassis IP #1 run/start |
| 38 | 20A | Not used (spare) |
| 39 | 20A | Radio, Navigation |
| 40 | 20A | Amplifier |
| 41 | 15A | Radio, Switch illumination, Reverse camera mirror |
| 42 | 10A | Upfitter switch |
| 43 | 10A | Overhead console, Stripped chassis IP1 |
| 44 | 10A | Auxiliary battery relay/Trailer tow battery charger relay |
| 45 | 5A | Wipers, Stripped chassis Engine connector 3 |
| 46 | 7.5A | PADI |
| 47 | 30A circuit breaker | Windows accessory delay |
| 48 | Relay | Delayed accessory |
Ford E-350 (2013, 2014 and 2015)
The fuses are coded as follows.
| Fuse or relay location | Fuse amp rating | Protected components |
| 1 | 30A | Inverter B+ |
| 2 | 15A | Not used (spare) |
| 3 | 15A | Not used (spare) |
| 4 | 30A | Not used (spare) |
| 5 | 10A | Passenger compartment fuse panel, Brake-shift interlock |
| 6 | 20A | Turn signal, Hazard, Stop lamps |
| 7 | 10A | Left low beam |
| 8 | 10A | Right low beam |
| 9 | 15A | Courtesy lamps |
| 10 | 15A | Switch illumination |
| 11 | 10A | Not used (spare) |
| 12 | 7.5A | Not used (spare) |
| 13 | 5A | Mirrors |
| 14 | 10A | SYNC, Global positioning system module |
| 15 | 10A | Not used (spare) |
| 16 | 15A | Not used (spare) |
| 17 | 20A | Door locks |
| 18 | 20A | Not used (spare) |
| 19 | 25A | Not used (spare) |
| 20 | 15A | Diagnostic connector (except stripped chassis) |
| 21 | 15A | Not used (spare) |
| 22 | 15A | Park lamps, License plate lamps |
| 23 | 15A | High beams |
| 24 | 20A | Horn (except stripped chassis) |
| 25 | 10A | Demand lighting |
| 26 | 10A | Cluster (except stripped chassis) |
| 27 | 20A | Ignition switch feed |
| 28 | 5A | Audio mute (start) |
| 29 | 5A | Cluster (except stripped chassis) |
| 30 | 5A | Not used (spare) |
| 31 | 10A | Not used (spare) |
| 32 | 10A | Restraints module |
| 33 | 10A | Trailer brake controller |
| 34 | 5A | Not used (spare) |
| 35 | 10A 40A** | (2013 and 2014) Reverse park aid, Rear video camera, Cutaway run/start (2015) Powertrain control module relay |
| 36 | 5A | Passive anti-theft system radio frequency module |
| 37 | 10A | Climate control, Stripped chassis instrument panel #1 run/start |
| 38 | 20A | Not used (spare) |
| 39 | 20A | Radio, Navigation |
| 40 | 20A ISO relay | (2013 and 2014) Amplifier (2015) Blower motor |
| 41 | 15A | Radio, Switch illumination, Reverse camera mirror, Automatic dimming rear view mirror, Inverter |
| 42 | 10A | Auxiliary switch |
| 43 | 10A | Stripped chassis instrument panel connector #1 |
| 44 | 10A | Trailer tow battery charge relay |
| 45 | 5A | Wipers, Stripped chassis Engine connector 3 |
| 46 | 7.5A | Passenger airbag deactivation indicator |
| 47 | 30A circuit breaker | Windows accessory delay |
| 48 | Relay | Delayed accessory |

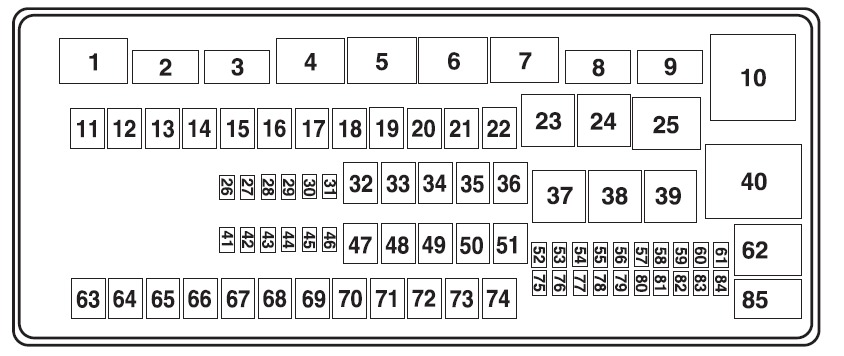

Engine Compartment Fuse Box Diagram
Ford E-350 (2009 and 2010)
The high-current fuses are coded as follows.
| Fuse/Relay Location | Fuse Amp Rating | Protected Circuits |
| 1 | HC Micro Relay | Powertrain Control Module (PCM) |
| 2 | HC Micro Relay | Starter solenoid |
| 3 | HC Micro Relay | Wiper |
| 4 | HC Micro Relay | Trailer tow battery charge |
| 5 | HC Micro Relay | Fuel pump |
| 6 | HC Micro Relay | Trailer tow park lamp |
| 7 | HC Micro Relay | Upfitter #4 |
| 8 | HC Micro Relay | Upfitter #3 |
| 9 | HC Micro Relay | Modified vehicle and stripped chassis run/start |
| 10 | HC ISO | (2009) IDM relay (Diesel engine only) (2010) Fuel injector control module (FICM) relay (Diesel engine only) |
| 11 | — | Not used |
| 12 | 40A** | Modified vehicle and stripped chassis run/start |
| 13 | 30A** | Starter solenoid relay |
| 14 | 40A** | Run start relay |
| 15 | 40A** | Modified vehicle and stripped chassis battery |
| 16 | 50A** | Auxiliary A/C blower |
| 17 | 50A** | Auxiliary battery feed, Trailer tow battery charge, trailer tow park feed |
| 18 | 30A** | Electric trailer brake, Trailer brake controller |
| 19 | 30A** | Upfitter #1 |
| 20 | 30A** | Upfitter #2 |
| 21 | 50A** | (2009) IDM relay (diesel engine only) (2010) FICM relay (diesel engine only) |
| 22 | — | Not used |
| 23 | G8VA relay | A/C clutch |
| 24 | G8VA relay | Horn relay (Stripped chassis) |
| 25 | HC Micro relay | Run/start |
| 26 | — | Not used |
| 27 | — | Not used |
| 28 | 20A* | Back up lamp |
| 29 | 10A* | A/C clutch |
| 30 | 10A* | BOO switch |
| 31 | 10A* | Cluster battery (stripped chassis only), IDM coil (diesel engine only) |
| 32 | 50A** | Blower motor |
| 33 | 40A** | ABS pump |
| 34 | 20A** | Stripped chassis horn |
| 35 | 40A** | PCM relay |
| 36 | 20A** | Ignition switch (Stripped chassis only) |
| 37 | G8VA relay | Trailer tow stop/LH turn signal |
| 38 | G8VA relay | Trailer tow stop/RH turn signal |
| 39 | G8VA relay | Back up lamp |
| 40 | ISO relay | Blower motor |
| 41 | 10A* | Charging (diesel engine only) |
| 42 | 15A* | Diagnostic connector (stripped chassis) |
| 43 | 20A* | Fuel pump |
| 44 | 10A* | Upfitter #3 |
| 45 | 15A* | Upfitter #4 |
| 46 | 10A* | PCM keep alive power, Canister vent, PCM relay coil |
| 47 | 40A** | ABS coil |
| 48 | 20A** | Trailer tow stop lamp/turn signal |
| 49 | 30A** | Wiper motor |
| 50 | — | Not used |
| 51 | 20A** | Cutaway |
| 52 | 10A* | Stripped chassis and modified vehicle run/start relay coil |
| 53 | 10A* | ABS run/start feed |
| 54 | 10A* | Fuel pump relay coil (gas engine only) |
| 55 | 10A* | ECM (diesel engine only) |
| 56 | 20A* | DFCM (diesel engine only) |
| 57 | 20A* | Trailer tow park lamp |
| 58 | 15A* | Trailer tow backup lamp |
| 59 | — | Not used |
| 60 | — | One Touch Integrated Start (OTIS) (diode) |
| 61 | — | Auxiliary battery (diode) |
| 62 | HC Micro relay | Upfitter #2 |
| 63 | 30A** | Trailer tow battery charge |
| 64 | — | Not used |
| 65 | 20A** | Power point 2 (glove box) |
| 66 | 20A** | Power point 3 (left-hand B-pillar) |
| 67 | 20A** | Power point 1 (instrument panel) |
| 68 | 50A** | Modified vehicle |
| 69 | — | Not used |
| 70 | 30A** | Stripped chassis |
| 71 | — | Not used |
| 72 | 20A** | Cigar lighter |
| 73 | — | Not used |
| 74 | 30A** | Power seat |
| 75 | 20A* | VPWR 1, PCM power |
| 76 | 20A* | VPWR 2, PCM mil |
| 77 | 10A* | VPWR 3, PCM non mil |
| 78 | 15A* | VPWR 4 (gas engine only), Ignition coil (diesel engine only), Fuel pump relay coil |
| 79 | 10A* | VPWR 5, Transmission |
| 80 | 10A* | Cluster run/start (stripped chassis only) |
| 81 | 15A* | (2009) IDM logic (diesel engine only) (2010) FICM logic (diesel engine only) |
| 82 | — | Not used |
| 83 | — | Fuel pump (diode) |
| 84 | — | Not used |
| 85 | HC Micro relay | Upfitter #1 |
| * Mini fuses ** A1S fuses | ||
Ford E-350 (2011 and 2012)
The high-current fuses are coded as follows.
| Fuse/Relay Location | Fuse Amp Rating | Protected Circuits |
| 1 | HC Micro Relay | Powertrain control module (PCM) |
| 2 | HC Micro Relay | Starter solenoid |
| 3 | HC Micro Relay | Wiper |
| 4 | HC Micro Relay | Trailer tow battery charge |
| 5 | HC Micro Relay | Fuel pump |
| 6 | HC Micro Relay | Trailer tow park lamp |
| 7 | HC Micro Relay | Upfitter #4 |
| 8 | HC Micro Relay | Upfitter #3 |
| 9 | HC Micro Relay | Modified vehicle and stripped chassis run/start |
| 10 | — | Not used |
| 11 | — | Not used |
| 12 | 40A** | Modified vehicle and stripped chassis run/start |
| 13 | 30A** | Starter solenoid relay |
| 14 | 40A** | Run start relay |
| 15 | 40A** | Modified vehicle and stripped chassis battery |
| 16 | 50A** | Auxiliary A/C blower |
| 17 | 50A** | Trailer tow battery charge, Trailer tow park feed |
| 18 | 30A** | Electric trailer brake, Trailer brake controller |
| 19 | 30A** | Upfitter #1 |
| 20 | 30A** | Upfitter #2 |
| 21 | — | Not used |
| 22 | — | Not used |
| 23 | G8VA relay | A/C clutch |
| 24 | G8VA relay | Horn relay (stripped chassis) |
| 25 | HC Micro relay | Run/start |
| 26 | — | Not used |
| 27 | — | Not used |
| 28 | 20A* | Back up lamp |
| 29 | 10A* | A/C clutch |
| 30 | 10A* | Brake on/off (BOO) switch |
| 31 | 10A* | Cluster battery (stripped chassis) |
| 32 | 50A** | Blower motor |
| 33 | 40A** | Anti-lock brake system (ABS) pump |
| 34 | 20A** | Stripped chassis horn |
| 35 | 40A** | PCM relay |
| 36 | 20A** | Ignition switch (stripped chassis) |
| 37 | G8VA relay | Trailer tow stop — left turn signal |
| 38 | G8VA relay | Trailer tow stop — right turn signal |
| 39 | G8VA relay | Back up lamp |
| 40 | ISO relay | Blower motor |
| 41 | — | Not used |
| 42 | 15A* | Diagnostic connector (stripped chassis) |
| 43 | 20A* | Fuel pump |
| 44 | 10A* | Upfitter #3 |
| 45 | 15A* | Upfitter #4 |
| 46 | 10A* | PCM keep alive power, Canister vent, PCM relay coil |
| 47 | 40A** | ABS coil |
| 48 | 20A** | Trailer tow stop lamp/turn signal |
| 49 | 30A** | Wiper motor |
| 50 | — | Not used |
| 51 | 20A** | Cutaway |
| 52 | 10A* | Stripped chassis and modified vehicle run/start relay coil |
| 53 | 10A* | ABS run/start feed |
| 54 | 10A* | Fuel pump relay coil |
| 55 | — | Not used |
| 56 | — | Not used |
| 57 | 20A* | Trailer tow park lamp |
| 58 | 15A* | Trailer tow backup lamp |
| 59 | — | Not used |
| 60 | — | One touch integrated start (OTIS) (diode) |
| 61 | — | Auxiliary battery (diode) |
| 62 | HC Micro relay | Upfitter #2 |
| 63 | 30A** | Trailer tow battery charge |
| 64 | — | Not used |
| 65 | 20A** | Power point 2 (glove box) |
| 66 | 20A** | Power point 3 (left-hand B-pillar) |
| 67 | 20A** | Power point 1 (instrument panel) |
| 68 | 50A** | Modified vehicle |
| 69 | — | Not used |
| 70 | 30A** | Stripped chassis |
| 71 | — | Not used |
| 72 | 20A** | Cigar lighter |
| 73 | — | Not used |
| 74 | 30A** | Power seat |
| 75 | 20A* | Vehicle power (VPWR) 1, PCM power |
| 76 | 20A* | VPWR 2, PCM – emission related powertrain components |
| 77 | 10A* | VPWR 3, PCM – general powertrain components |
| 78 | 15A* | VPWR 4, Fuel pump relay coil |
| 79 | 10A* | VPWR 5, Transmission |
| 80 | 10A* | Cluster run/start (stripped chassis) |
| 81 | — | Not used |
| 82 | — | Not used |
| 83 | — | Fuel pump (diode) |
| 84 | — | Not used |
| 85 | HC Micro relay | Upfitter #1 |
| * Mini fuses ** A1S fuses | ||
Ford E-350 (2013, 2014 and 2015)
The high-current fuses are coded as follows:
| Fuse or relay location | Fuse amp rating | Protected components |
| 1 | HC micro relay | Powertrain control module |
| 2 | HC micro relay | Starter solenoid |
| 3 | HC micro relay | Wiper |
| 4 | HC micro relay | Trailer tow battery charge |
| 5 | HC micro relay | Fuel pump |
| 6 | HC micro relay | Trailer tow park lamp |
| 7 | HC micro relay | Auxiliary switch #4 |
| 8 | HC micro relay | Auxiliary switch #3 |
| 9 | HC micro relay | Modified vehicle and stripped chassis run/start |
| 10 | — | Not used |
| 11 | — | Not used |
| 12 | 40A** | Modified vehicle and stripped chassis run/start |
| 13 | 30A** | Starter solenoid relay |
| 14 | 40A** | Run start relay |
| 15 | 40A** | Modified vehicle and stripped chassis battery |
| 16 | 50A** | Auxiliary air conditioning blower |
| 17 | 50A** | Trailer tow battery charge, Trailer tow park feed |
| 18 | 30A** | Electric trailer brake, Trailer brake controller |
| 19 | 30A** | Auxiliary switch #1 |
| 20 | 30A** | Auxiliary switch #2 |
| 21 | — | Not used |
| 22 | — | Not used |
| 23 | G8VA relay | Air conditioning clutch |
| 24 | G8VA relay | Horn relay (stripped chassis) |
| 25 | HC micro relay | Run/start |
| 26 | — | Not used |
| 27 | — | Not used |
| 28 | 20A* | Back-up lamp |
| 29 | 10A* | Air conditioning clutch |
| 30 | 10A* | Brake on/off switch |
| 31 | 10A* | Cluster battery (stripped chassis) |
| 32 | 50A** | Blower motor |
| 33 | 40A** | Anti-lock brake system pump |
| 34 | 20A** | Stripped chassis horn |
| 35 | 40A** | Powertrain control module relay |
| 36 | 20A** | Ignition switch (stripped chassis) |
| 37 | G8VA relay | Trailer tow stop — left turn signal |
| 38 | G8VA relay | Trailer tow stop — right turn signal |
| 39 | G8VA relay | Back up lamp |
| 40 | ISO relay | Blower motor |
| 41 | — | Not used |
| 42 | 15A* | Diagnostic connector (stripped chassis) |
| 43 | 20A* | Fuel pump |
| 44 | 10A* | Auxiliary switch #3 |
| 45 | 15A* | Auxiliary switch #4 |
| 46 | 10A* | Powertrain control module keep alive power, Canister vent, Powertrain control module relay coil |
| 47 | 40A** | Anti-lock brake system coil |
| 48 | 20A** | Trailer tow stop lamp/turn signal |
| 49 | 30A** | Wiper motor |
| 50 | — | Not used |
| 51 | 20A** | Cutaway |
| 52 | 10A* | Stripped chassis and modified vehicle run/start relay coil |
| 53 | 10A* | Anti-lock brake system run/start feed |
| 54 | 10A* | Fuel pump relay coil |
| 55 | — | Not used |
| 56 | — | Not used |
| 57 | 20A* | Trailer tow park lamp |
| 58 | 15A* | Trailer tow backup lamp |
| 59 | — | Not used |
| 60 | — | One-touch integrated start (diode) |
| 61 | — | Not used |
| 62 | HC micro relay | Auxiliary switch #2 |
| 63 | 30A** | Trailer tow battery charge |
| 64 | — | Not used |
| 65 | 20A** | Power point 2 (glove box) |
| 66 | 20A** | Power point 3 (left B-pillar) |
| 67 | 20A** | Power point 1 (instrument panel) |
| 68 | 50A** | Modified vehicle |
| 69 | — | Not used |
| 70 | 30A** | Stripped chassis |
| 71 | — | Not used |
| 72 | 20A** | Cigar lighter / Power point |
| 73 | — | Not used |
| 74 | 30A** | Power seat |
| 75 | 20A* | Vehicle power 1, Powertrain control module power |
| 76 | 20A* | Vehicle power 2, Powertrain control module – emission related powertrain components |
| 77 | 10A* | Vehicle power 3, Powertrain control module – general powertrain components |
| 78 | 15A* | Vehicle power 4, Fuel pump relay coil |
| 79 | 10A* | Vehicle power 5, Transmission |
| 80 | 10A* | Cluster run/start (stripped chassis) |
| 81 | — | Not used |
| 82 | — | Not used |
| 83 | — | Fuel pump (diode) |
| 84 | — | Not used |
| 85 | HC micro relay | Auxiliary switch #1 |
| * Mini fuses ** A1S fuses | ||
