Ford F-250 (2017 – 2019) Fuse Box Location & Diagrams
In this guide, we cover the Ford F-250 (2017–2019) fuse box diagrams and locations, helping owners quickly identify fuses, troubleshoot electrical issues, and maintain their vehicle’s electrical systems efficiently.
Fuse Box Locations

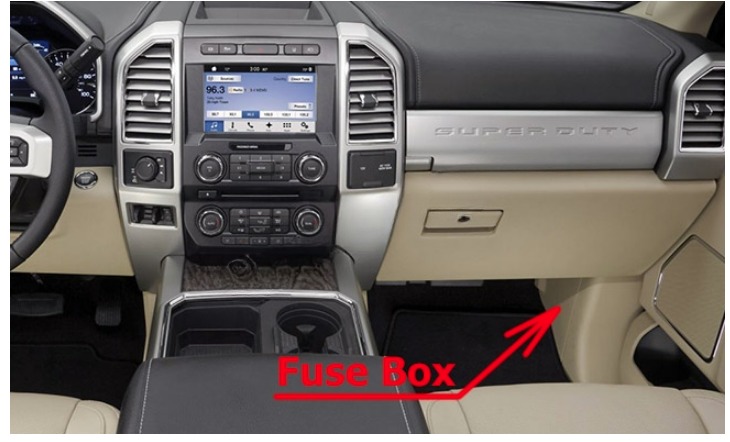

Passenger Compartment
The fuse panel is in the right-hand side of the passenger footwell behind a trim panel.
To remove the trim panel, pull it toward you and swing it away from the side. To reinstall it, line up the tabs with the grooves on the panel, and then push it shut.

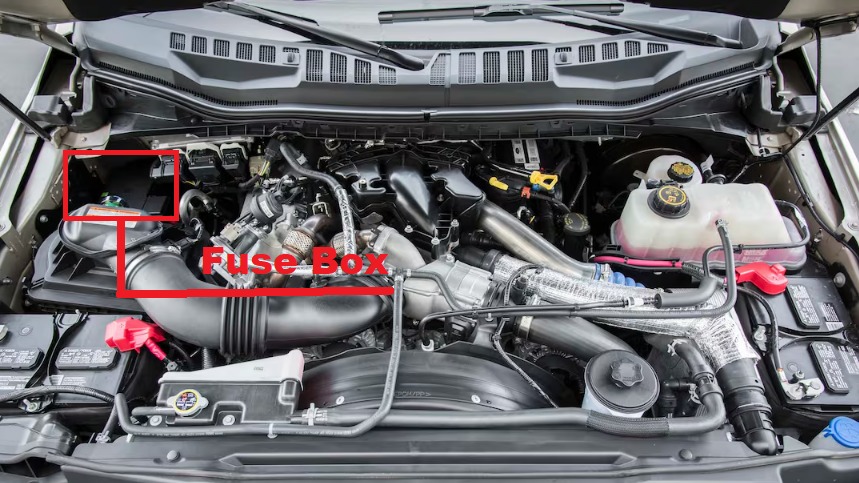

Engine Compartment
The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.
WARNINGS
Always disconnect the battery before servicing high current fuses.
To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

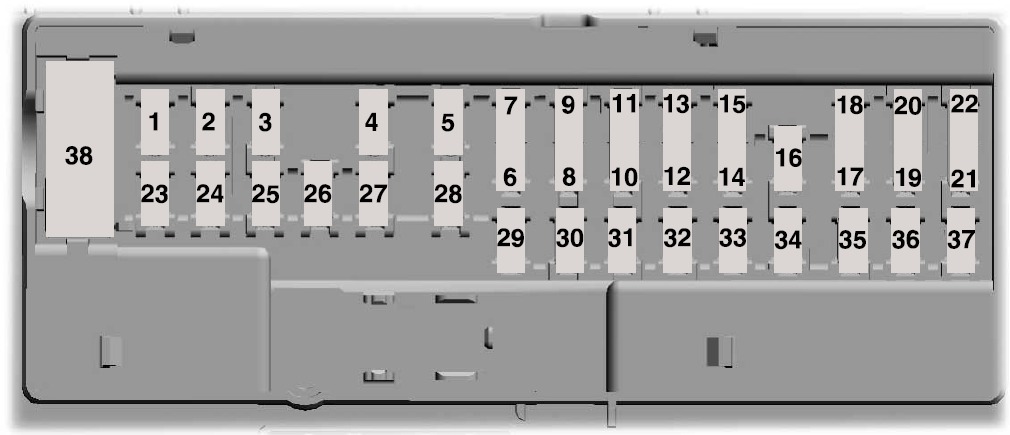

Passenger Compartment Fuse Box Diagram
Ford F-250 (2017 to 2019)
| Fuse or Relay Number | Fuse Rating | Protected Components |
| 1 | — | Not used. |
| 2 | 7.5A1 | Memory seat switch (lumbar power). |
| 3 | 20A1 | Driver door unlock relay. |
| 4 | 5A1 | Aftermarket electronic brake controller. Trailer brake controller Brake On/Off. Customer access circuits. |
| 5 | — | Not used. |
| 6 | — | Not used. |
| 7 | — | Not used. |
| 8 | — | Not used. |
| Fuse or Relay Number | Fuse Rating | Protected Components |
| 9 | 10A2 | Brake On/Off / Pressure Switch. |
| 10 | — 5A1 | Not used. (2017 and 2018) Embedded Modem. (2019) |
| 11 | 5A2 | Combined sense security module. |
| 12 | 7.5A2 | Front climate control module. |
| 13 | 7.5A2 | Instrument cluster. Smart data link. Steering column control module. |
| 14 | 10A2 | Extended power restraints module. |
| 15 | 10A2 | Smart datalink connector power. |
| 16 | 15A1 | Tailgate release solenoid. |
| 17 | 5A2 | Head-up display. |
| 18 | 5A2 | Push button ignition switch. Ignition switch. Key inhibit. |
| 19 | 7.5A2 | Transmission control switch (tow/haul). Select Shift switch. |
| 20 | 7.5A2 | Active front steering module. |
| 21 | 5A2 | Head-up display. Humidity sensor. |
| 22 | 5A2 | Upfitter switch. Run/Start. PTO relays. |
| 23 | 10A1 | Accessory delay. Power windows. Moonroof. Power folding mirrors relay. Inverter. Window/moonroof switch illumination. |
| 24 | 20A1 | Central locking system relay. |
| Fuse or Relay Number | Fuse Rating | Protected Components |
| 25 | 30A1 | Left-hand front smart window motor. Door zone module. |
| 26 | 30A1 | Right-hand front smart window motor. Door zone module. |
| 27 | 30A1 | Moonroof. |
| 28 | 20A1 | Sony amplifier – 10 channel. |
| 29 | — 30A1 | Not used. (2017 and 2018) Bang & Olufsen Amplifier (2019) |
| 30 | — | Not used. |
| 31 | 15A1 | Adjustable pedals switch. |
| 32 | 10A1 | SYNC. GPS module. Display. Radio frequency receiver. |
| 33 | 20A1 | Radio. |
| 34 | 30A1 | Run-start relay. |
| 35 | 5A1 | Extended power restraints module. |
| 36 | 15A1 | Lane keeping system. Automatic high beam control. Auto-dimming mirrors. Rear heated seats. Camera module. |
| 37 | 20A1 | Heated steering wheel. |
| 38 | 30A3 | Rear power window switch. |
1 Micro 2 fuse.
2 Micro 3 fuse.
3 Circuit breaker.

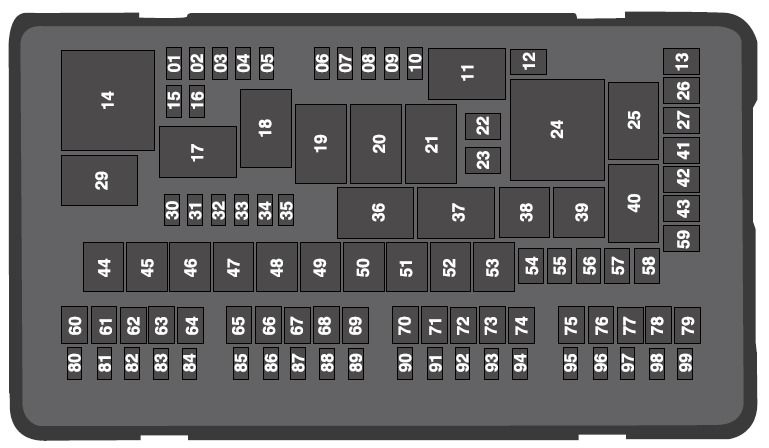

Engine Compartment Fuse Box Diagram
Ford F-250 (2017)
| Fuse or Relay Number | Fuse Rating | Protected Components |
| 1 | 20A1 | Powertrain control module. |
| 2 | 20A1 | Emissions (MIL). |
| 3 | 20A1 | Cooling fan. A/C compressor. Engine brake. |
| 4 | 20A1 | Noise suppression cap. Mass air flow sensor. Emissions. Glow plugs. Urea. |
| 5 | 15A1 | Compressed natural gas fuel control module. |
| 6 | — | Not used. |
| 7 | — | Not used. |
| 8 | — | Not used. |
| 9 | — | Not used. |
| 10 | 15A1 | Heated exterior mirrors. |
| 11 | — | CNG relay. |
| 12 | 40A2 | Heated rear window. |
| 13 | — | Not used. |
| 14 | — | Powertrain control module relay. |
| 15 | 20A1 | Horn. |
| 16 | 10A1 | A/C clutch relay power. |
| 17 | — | Rear heated window and heated mirrors relay. |
| 18 | — | Not used. |
| 19 | — | Not used. |
| Fuse or Relay Number | Fuse Rating | Protected Components |
| 20 | — | Supplemental air heater bank #1 relay. |
| 21 | — | Not used. |
| 22 | 20A2 | Auxiliary power point #5 (rear console). Run-start. |
| 23 | — | Not used. |
| 24 | — | Cooling fan relay. Supplemental air heater bank #3 relay. |
| 25 | — | Glow plug module power relay. |
| 26 | — | Not used. |
| 27 | 30A2 | Trailer tow battery charge relay. |
| 29 | — | Run-start relay. |
| 30 | 10A1 | 4×4 module. |
| 31 | 5A1 | Adaptive cruise control. Run-start. |
| 32 | 5A1 | Anti-lock brake system module. Run-start. |
| 33 | 10A1 | Powertrain control module (ISPR). Run-start. Engine control module. Transmission control module. |
| 34 | 10A1 | Blind spot information system. Run-start. Front camera. Rear camera. |
| 35 | — | Not used. |
| 36 | — | Blower motor relay. |
| 37 | — | Trailer tow battery charge relay. |
| 38 | — | A/C compressor clutch relay. |
| 39 | — | Horn relay. |
| 40 | — | Supplemental air heater bank #2 relay. |
| Fuse or Relay Number | Fuse Rating | Protected Components |
| 41 | 25A2 | Glow plugs. |
| 42 | 40A2 | Trailer tow lighting module. |
| 43 | 40A2 | Front blower motor. |
| 44 | 50A3 | Voltage quality module. Body control module. |
| 45 | 60A3 | Active front steering. |
| 46 | 50A3 | Supplemental air heater bank #2. |
| 47 | 50A3 | Cooling fan. Supplemental air heater bank #3. |
| 48 | 50A3 | Body control module RP1 bus. |
| 49 | 60A3 | Inverter. |
| 50 | 50A3 | Body control module RP2 bus. |
| 51 | 60A3 | Body control module B+ feed. |
| 52 | 60A3 | Anti-lock brake system pump. |
| 53 | 50A3 | Supplemental air heater bank #1. |
| 54 | 30A3 | Trailer brake control module. |
| 55 | 30A3 | Climate controlled seat module. |
| 56 | 40A3 | Auxiliary lighting module. |
| 57 | 30A2 | Power running boards. |
| 58 | 30A2 | Compressed natural gas fuel control module relay. |
| 59 | 30A2 | Anti-lock brake system valve. |
| 60 | — | Not used. |
| Fuse or Relay Number | Fuse Rating | Protected Components |
| 61 | 30A2 | Driver power seat. |
| 62 | 20A2 | Auxiliary power point #1 (instrument panel). |
| 63 | 30A2 | Starter motor. |
| 64 | 20A2 | Auxiliary power point #2. |
| 65 | 30A2 | Trailer tow lighting module. |
| 66 | 20A2 | Auxiliary power point #3 (center console). |
| 67 | 30A2 | Passenger power seat. |
| 68 | 20A2 | Auxiliary power point #4 (rear media bin). |
| 69 | 25A2 | 4×4 module. |
| 70 | — | Not used. |
| 71 | — | Not used. |
| 72 | 30A2 | Trailer tow left hand/right hand stop/turn. |
| 73 | — | Not used. |
| 74 | — | Not used. |
| 75 | 30A2 | Fuel pump. |
| 76 | — | Not used. |
| 77 | 30A2 | Wiper motor. |
| 78 | — | Not used. |
| 79 | 30A2 | Power sliding rear window. |
| 80 | 25A1 | 4×4 module. |
| 81 | 10A1 | 4×4 solenoid. |
| 82 | 10A1 | Power telescoping mirrors. |
| Fuse or Relay Number | Fuse Rating | Protected Components |
| 83 | 20A1 | Rear heated seats. |
| 84 | 10A1 | Trailer tow backup lamps. |
| 85 | — | Not used. |
| 86 | — | Not used. |
| 87 | — | Not used. |
| 88 | 10A1 | Multi contour seats. |
| 89 | — | Not used. |
| 90 | 10A1 | Spot light module. |
| 91 | 10A1 | Upfitter interface module. |
| 92 | — | Not used. |
| 93 | — | Not used. |
| 94 | 15A1 | Transmission control module. |
| 95 | 10A1 | Powertrain control module keep alive power. |
| 96 | 5A1 | Rain sensor. |
| 97 | — | Not used. |
| 98 | 10A 1 | Alternator sense. |
| 99 | 30A 1 | Trailer tow parking lamps. |

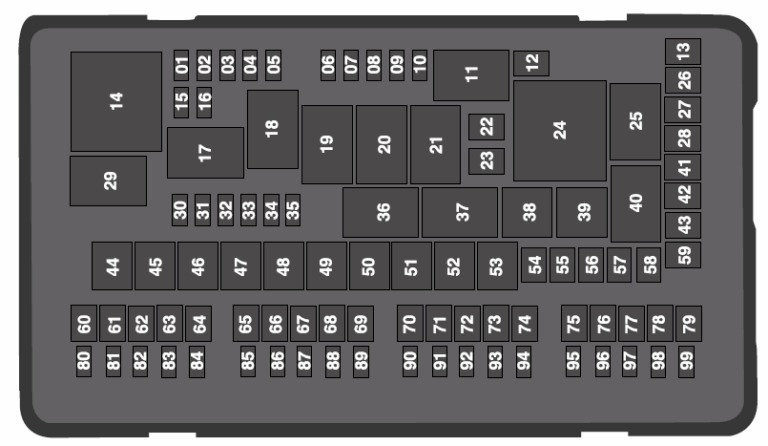

Ford F-250 (2018 and 2019)
| Fuse or Relay Number | Fuse Rating | Protected Components |
| 1 | 20A1 | Powertrain control module. |
| 2 | 20A1 | Emissions – malfunction indicator lamp. |
| 3 | 20A1 | Cooling fan. A/C compressor. Engine brake. |
| 4 | 20A1 | Noise suppression cap. Mass air flow sensor. Emissions. Glow plugs. Urea. |
| 5 | 15A1 | Compressed natural gas fuel control module. Fuel sensor. |
| 6 | — | Not used. |
| 7 | — | Not used. |
| 8 | — | Not used. |
| 9 | — | Not used. |
| 10 | 15A1 | Heated exterior mirrors. |
| 11 | — | Compressed natural gas relay. |
| 12 | 40A2 | Heated rear window. |
| 13 | — | Not used. |
| 14 | — | Powertrain control module relay. |
| 15 | 20A1 | Horn. |
| 16 | 10A1 | A/C clutch relay power. |
| 17 | — | Rear heated window and heated mirrors relay. |
| 18 | — | Trailer park lamp relay. |
| 19 | — | Not used. |
| Fuse or Relay Number | Fuse Rating | Protected Components |
| 20 | — | Supplemental air heater bank #1 relay. |
| 21 | — | Not used. |
| 22 | — | Not used. |
| 23 | — | Not used. |
| 24 | — | Cooling fan relay. Supplemental air heater bank #3 relay. |
| 25 | — | Glow plug module power relay. |
| 26 | — | Not used. |
| 27 | 30A2 | Trailer tow battery charge relay (if equipped). |
| 28 | — | Not used. |
| 29 | — | Run-start relay. |
| 30 | 10A1 | 4×4 module. |
| 31 | 5A1 | Adaptive cruise control. Run-start. |
| 32 | 5A1 | Anti-lock brake system module. Run-start. |
| 33 | 10A1 | Powertrain control module – ignition status power run. Run-start. Engine control module. Transmission control module. |
| 34 | 10A1 | Blind spot information system. Run-start. Front camera. Rear camera. |
| 35 | — | Not used. |
| 36 | — | Blower motor relay. |
| 37 | — | Trailer tow battery charge relay (only on non-trailer brake controller vehicles). |
| 38 | — | A/C compressor clutch relay. |
| Fuse or Relay Number | Fuse Rating | Protected Components |
| 39 | — | Horn relay. |
| 40 | — | Supplemental air heater bank #2 relay. |
| 41 | 25A2 | Glow plugs. |
| 42 | 40A2 | Trailer tow lighting module (if equipped). |
| 43 | 40A2 | Front blower motor. |
| 44 | 50A3 | Voltage quality. Body control module power. |
| 45 | 60A3 | Active front steering. |
| 46 | 50A3 | Supplemental air heater bank #2. |
| 47 | 50A3 | Cooling fan. Supplemental air heater bank #3. |
| 48 | 50A3 | Body control module run power 1 bus. |
| 49 | 60A3 | Inverter. |
| 50 | 50A3 | Body control module run power 2 bus. |
| 51 | 60A3 | Body control module B+ feed. |
| 52 | 60A3 | Anti-lock brake system pump. |
| 53 | 50A3 | Supplemental air heater bank #1. |
| 54 | 30A3 | Trailer brake control module. |
| 55 | 30A3 | Climate controlled seat module. |
| 56 | 40A3 | Auxiliary lighting module. |
| 57 | 30A2 | Power running boards. |
| 58 | 30A2 | Compressed natural gas fuel control module relay. |
| Fuse or Relay Number | Fuse Rating | Protected Components |
| 59 | 30A2 | Anti-lock brake system valve. |
| 60 | — | Not used. |
| 61 | 30A2 | Driver power seat. |
| 62 | 20A2 | Auxiliary power point #1 (instrument panel). |
| 63 | 30A2 | Starter motor. |
| 64 | 20A2 | Auxiliary power point #2. |
| 65 | 30A2 | Trailer tow lighting module (if equipped). |
| 66 | 20A2 | Auxiliary power point #3 (center console). |
| 67 | 30A2 | Passenger power seat. |
| 68 | 20A2 | Auxiliary power point #4 (USB charger, rear center console). |
| 69 | 25A2 | 4×4 module. |
| 70 | 20A2 | Auxiliary power point #5 (rear center console). |
| 71 | — | Not used. |
| 72 | 30A2 | Trailer tow left hand/right hand stop/turn (if equipped, not present with trailer brake controller). |
| 73 | — | Not used. |
| 74 | — | Not used. |
| 75 | 30A2 | Fuel pump. |
| 76 | — | Not used. |
| 77 | 30A2 | Wiper motor. |
| 78 | — | Not used. |
| Fuse or Relay Number | Fuse Rating | Protected Components |
| 79 | 30A2 | Power sliding rear window. |
| 80 | 25A1 | 4×4 module. |
| 81 | 10A1 | 4×4 solenoid. |
| 82 | 10A1 | Power telescoping mirrors. |
| 83 | 20A1 | Rear heated seats. |
| 84 | 10A1 | Trailer tow backup lamps (if equipped). |
| 85 | — | Not used. |
| 86 | — | Not used. |
| 87 | — | Not used. |
| 88 | 10A1 | Multi contour seats. |
| 89 | — | Not used. |
| 90 | 10A1 | Spot light module. |
| 91 | 10A1 | Upfitter interface module. |
| 92 | — | Not used. |
| 93 | — | Not used. |
| 94 | 15A1 | Transmission control module. |
| 95 | 10A1 | Powertrain control module keep alive power. |
| 96 | 5A1 | Rain sensor. |
| 97 | 10A1 | Run/Start control for Auxiliary power point #5 |
| Fuse or Relay Number | Fuse Rating | Protected Components |
| 98 | 10A 1 | Alternator sense. |
| 99 | 30A 1 | Trailer tow parking lamps. |
