Ford Fusion (2013 – 2016) Fuse Box Location & Diagram
This Ford Fusion Fuse Box Location & Diagram User Guide (2013–2016) helps you quickly find interior and engine bay fuse boxes. With clear diagrams and explanations, it makes troubleshooting electrical issues simple, saving time and avoiding unnecessary repairs.
Fuse Box Locations

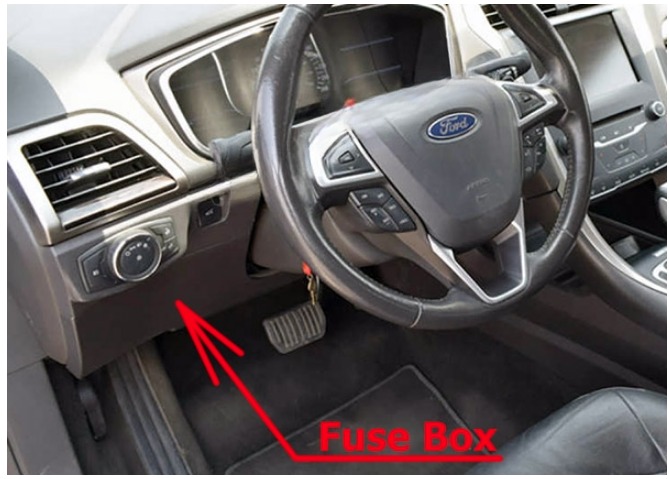

Passenger Compartment
The fuse panel is located under the instrument panel to the left of the steering column.
Note: It may be easier to access the fuse panel if you remove the finish trim piece.

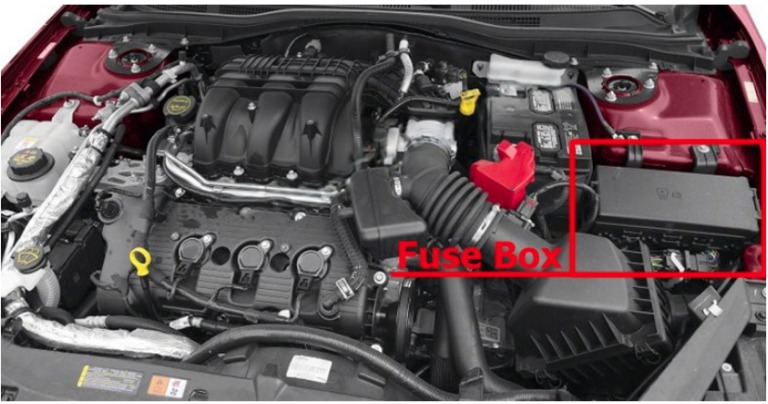

Engine Compartment
The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.
WARNINGS
- Always disconnect the battery before servicing high-current fuses.
- To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.
Engine Compartment – Bottom

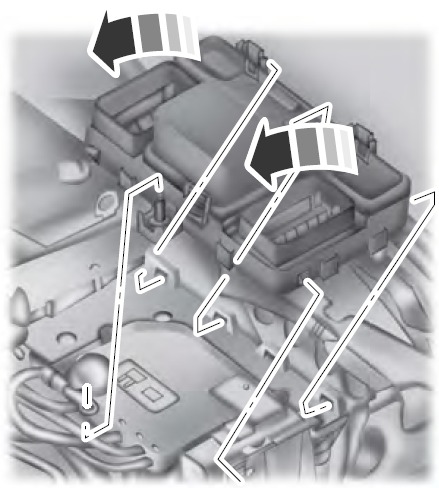

There are fuses located on the bottom of the fuse box. To access the bottom of the fuse box, do the following:
- Release the two latches, located on both sides of the fuse box.
- Raise the inboard side of the fuse box from the cradle.
- Move the fuse box toward the center of the engine compartment.
- Pivot the outboard side of the fuse box to access the bottom side.

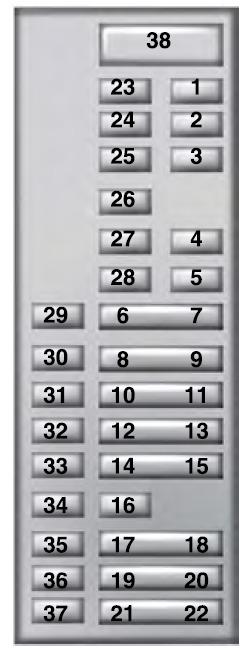

Passenger Compartment Fuse Box Diagram
Ford Fusion (2013 and 2014)
The fuses are coded as follows:
| Fuse or relay number | Fuse amp rating | Protected components |
| 1 | 10A1 | Lighting (ambient, glovebox, vanity, dome, trunk) |
| 2 | 7.5A1 | Memory seats, Lumbar, Power mirror |
| 3 | 20A1 | Driver door unlock |
| 4 | 5A1 | Not used (spare) |
| 5 | 20A1 | Subwoofer amplifier |
| 6 | 10A2 | Not used (spare) |
| Fuse or relay number | Fuse amp rating | Protected components |
| 7 | 10A2 | Not used (spare) |
| 8 | 10A2 | Not used (spare) |
| 9 | 10A2 | Not used (spare) |
| 10 | 5A2 | Keypad |
| 11 | 5A2 | Not used |
| 12 | 7.5A2 | Climate control, Gear shift |
| 13 | 7.5A2 | Steering wheel column, Cluster, Datalink logic |
| 14 | 10A2 | Not used |
| 15 | 10A2 | Datalink/Gateway module |
| 16 | 15A1 | Not used (spare) |
| 17 | 5A2 | Not used (spare) |
| 18 | 5A2 | Ignition, Push button stop/start |
| 19 | 5A2 | Passenger airbag disabled indicator, Transmission range |
| 20 | 5A2 | Not used (spare) |
| 21 | 5A2 | Humid and incar temp |
| 22 | 5A2 | Occupant classification sensor |
| 23 | 10A1 | Delayed accessory (Power inverter logic, Moonroof logic) |
| 24 | 30A1 | Central lock/unlock |
| 25 | 30A1 | Driver door (window, mirror) |
| 26 | 30A1 | Front passenger door (window, mirror) |
| 27 | 30A1 | Moonroof |
| Fuse or relay number | Fuse amp rating | Protected components |
| 28 | 20A1 | Sony amplifier |
| 29 | 30A1 | Rear driver side door (window) |
| 30 | 30A1 | Rear passenger side door (window) |
| 31 | 15A1 | Not used (spare) |
| 32 | 10A1 | GPS, Voice control, Display, Adaptive cruise control, Radio frequency receiver |
| 33 | 20A1 | Radio, Active noise control |
| 34 | 30A1 | Run/start bus (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker) |
| 35 | 5A1 | Restraints control module |
| 36 | 15A1 | All-wheel drive relay, Auto-dimming rear view mirror (2013) Auto-dimming rear view mirror (2014) |
| 37 | 15A1 | Not used (spare) (2013) All-wheel drive module, Heated steering wheel module (2014) |
| 38 | 30A | Not used (spare) |
Ford Fusion (2015 and 2016)
| Fuse or relay number | Fuse amp rating | Protected components |
| 1 | 10A1 | Lighting (ambient, glove box, vanity, dome, trunk). |
| 2 | 7.5A1 | Memory seats, lumbar, power mirror. |
| 3 | 20A1 | Driver door unlock. |
| 4 | 5A1 | Not used (spare). |
| 5 | 20A1 | Subwoofer amplifier. |
| 6 | 10A2 | Heated seat relay coil. |
| 7 | 10A2 | Not used (spare). |
| 8 | 10A2 | Not used (spare). |
| 9 | 10A2 | Not used (spare). |
| 10 | 5A2 | Keypad. Power decklid module. Cellphone passport module. |
| 11 | 5A2 | Not used (spare). |
| 12 | 7.5A2 | Climate control. Gear shift |
| 13 | 7.5A2 | Steering wheel column lock. Cluster. Datelink logic. |
| 14 | 10A2 | Battery electronic control module. |
| 15 | 10A2 | Datalink gateway module. |
| 16 | 15A1 | Child lock. Decklid-liftglass release. |
| 17 | 5A2 | Tracking and blocking. |
| 18 | 5A2 | Ignition. Push button stop start switch. |
| 19 | 7.5A2 | Passenger airbag disabled indicator. |
| Fuse or relay number | Fuse amp rating | Protected components |
| Transmission range | ||
| 20 | 7.5A2 | Adaptive headlamp. |
| 21 | 5A2 | Humidity and in–car temperature sensor. |
| 22 | 5A2 | Occupant classification sensor. |
| 23 | 10A1 | Delayed accessory (power inverter logic, moonroof logic). |
| 24 | 20A1 | Central lock unlock. |
| 25 | 30A1 | Driver door (window, mirror). |
| 26 | 30A1 | Front passenger door (window, mirror). |
| 27 | 30A1 | Moonroof. |
| 28 | 20A1 | Amplifier. |
| 29 | 30A1 | Rear driver side door (window). |
| 30 | 30A1 | Rear passenger side door (window). |
| 31 | 15A1 | Not used (spare). |
| 32 | 10A1 | Global positioning system. Display. Voice control. Adaptive cruise control. Radio frequency receiver. |
| 33 | 20A1 | Active noise control. CD changer |
| 34 | 30A1 | Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker). |
| 35 | 5A1 | Restraints control module. |
| 36 | 15A1 | Auto-dimming rear view mirror. Continuous control damping suspension Rear heated seats. |
| 37 | 15A1 | All wheel drive. |
| Fuse or relay number | Fuse amp rating | Protected components |
| Heated steering wheel. | ||
| 38 | 30A | Not used (spare). |

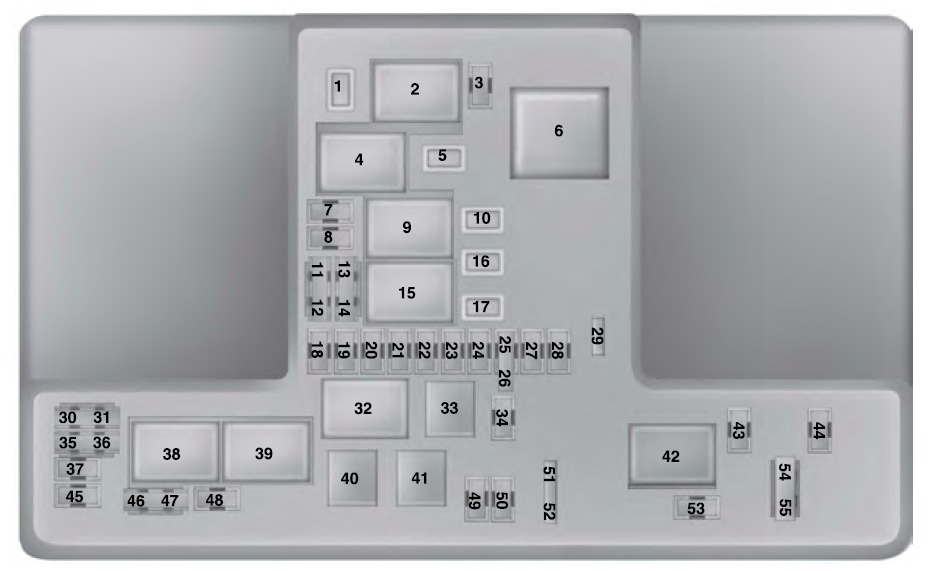

Engine Compartment Fuse Box Diagram
Ford Fusion (2013 and 2014)
The high-current fuses are coded as follows:
| Fuse or relay number | Fuse amp rating | Protected components |
| 1 | 25A3 | Wiper motor #2 |
| 2 | — | Starter relay |
| 3 | 15A1 | Autowipers |
| 4 | — | Blower motor relay |
| 5 | 20A3 | Power point 3 – Back of console |
| 6 | — | Not used |
| Fuse or relay number | Fuse amp rating | Protected components |
| 7 | 20A1 | Powertrain control module – vehicle power 1 |
| 8 | 20A1 | Powertrain control module – vehicle power 2 |
| 9 | — | Powertrain control module relay |
| 10 | 20A3 | Power point 1 – driver front |
| 11 | 15A2 | Powertrain control module – vehicle power 4 |
| 12 | 15A2 | Powertrain control module – vehicle power 3 |
| 13 | 10A2 | Powertrain control module – vehicle power 5 |
| 14 | 10A2 | Powertrain control module – vehicle power 6 |
| 15 | — | Run/start relay |
| 16 | 20A3 | Power point 2 – console |
| 17 | — | Not used |
| 18 | 10A1 | Powertrain control module – keep alive power |
| 19 | 10A1 | Run/start electronic power assist steering |
| 20 | 10A1 | Run/start lighting |
| 21 | 15A1 | Run/start transmission control, Transmis- sion oil pump start/stop |
| 22 | 10A1 | Air conditioner clutch solenoid |
| 23 | 15A1 | Run/start: blind spot information system, Rear view camera, Adaptive cruise control, Heads-up display |
| 24 | — | Not used |
| 25 | 10A2 | Run/start anti-lock brake system |
| Fuse or relay number | Fuse amp rating | Protected components |
| 26 | 10A2 | Run/start powertrain control module |
| 27 | 10A1 | Not used (spare) |
| 28 | — | Not used |
| 29 | — | Not used |
| 30 | — | Not used |
| 31 | — | Not used |
| 32 | — | Electronic fan #1 relay |
| 33 | — | Air conditioner clutch relay |
| 34 | — | Not used |
| 35 | — | Not used |
| 36 | — | Not used |
| 37 | — | Not used |
| 38 | — | Electronic fan #2 relay |
| 39 | — | Electronic fan #3 relay |
| 40 | — | Fuel pump relay |
| 41 | — | Horn relay |
| 42 | — | Not used |
| 43 | — | Not used |
| 44 | — | Not used |
| 45 | — | Not used |
| 46 | 10A2 | Alternator |
| 47 | 10A2 | Brake on/off switch |
| 48 | 20A1 | Horn |
| 49 | 5A1 | Mass air flow monitor |
| 50 | — | Not used |
| 51 | — | Not used |
| Fuse or relay number | Fuse amp rating | Protected components |
| 52 | — | Not used |
| 53 | 10A1 | Power seats |
| 54 | — | Not used |
| 55 | — | Not used |
Ford Fusion (2015 and 2016)
| Fuse or relay number | Fuse amp rating | Protected components |
| 1 | 30A3 | Wide open panoramic roof 1. |
| 2 | – | Starter relay. |
| 3 | 15A1 | Rain sensor. |
| Fuse or relay number | Fuse amp rating | Protected components |
| 4 | — | Blower motor relay. |
| 5 | 20A3 | Power point 3 – Back of console. |
| 6 | — | Not used. |
| 7 | 20A1 | Powertrain control module – vehicle power 1. |
| 8 | 20A1 | Powertrain control module – vehicle power 2. |
| 9 | — | Powertrain control module relay. |
| 10 | 20A3 | Power point 1 – driver front. |
| 11 | 15A2 | Powertrain control module – vehicle power 4. |
| 12 | 15A2 | Powertrain control module – vehicle power 3. |
| 13 | 10A2 | Powertrain control module – vehicle power 5. |
| 14 | 10A2 | Powertrain control module – vehicle power 6. |
| 15 | — | Run-start relay. |
| 16 | 20A3 | Power point 2 – console. |
| 17 | — | Not used. |
| 18 | — | Not used. |
| 19 | 10A1 | Run-start electronic power assist steering. |
| 20 | 10A1 | Run/start lighting. |
| 21 | 15A1 | Run/start transmission control. Transmission oil pump start/stop. |
| 22 | 10A1 | Air conditioner clutch solenoid. |
| 23 | 15A1 | Run-start. Blind spot information system. Rear view camera. Adaptive cruise control. |
| Fuse or relay number | Fuse amp rating | Protected components |
| Heads-up display. Voltage stability module. | ||
| 24 | — | Not used. |
| 25 | 10A2 | Run-start anti-lock brake system. |
| 26 | 10A2 | Run-start powertrain control module. |
| 27 | — | Not used. |
| 28 | — | Not used. |
| 29 | 5A1 | Mass air flow monitor. |
| 30 | — | Not used. |
| 31 | — | Not used. |
| 32 | — | Electronic fan 1 relay. |
| 33 | — | A/C clutch relay. |
| 34 | — | Not used. |
| 35 | — | Not used. |
| 36 | — | Not used. |
| 37 | — | Not used. |
| 38 | — | Electronic fan 2 relay |
| 39 | — | Electronic fan coil 2 and 3 relay. |
| 40 | — | Horn relay. |
| 41 | — | Not used. |
| 42 | — | Fuel pump coil relay. |
| 43 | — | Not used. |
| 44 | — | Not used. |
| 45 | — | Not used. |
| 46 | — | Not used. |
| 47 | — | Not used. |
| 48 | — | Not used. |
| Fuse or relay number | Fuse amp rating | Protected components |
| 49 | 10A1 | Keep alive power. |
| 50 | 20A1 | Horn. |
| 51 | — | Not used. |
| 52 | — | Not used. |
| 53 | 10A1 | Power seats. |
| 54 | 10A2 | Brake on off switch. |
| 55 | 10A2 | ALT sensor. |

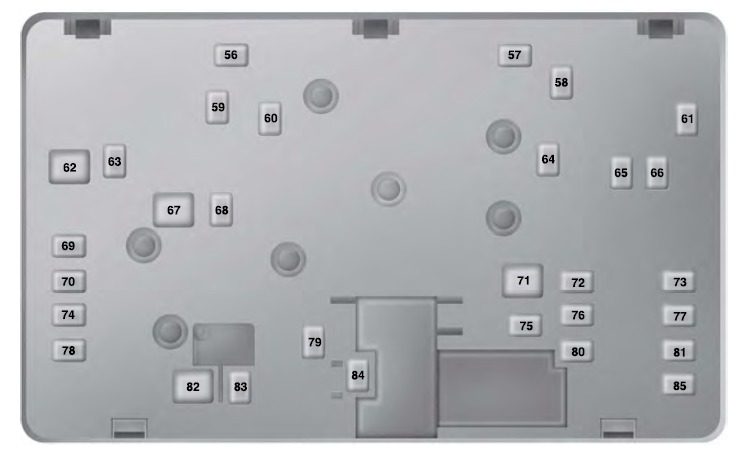

Engine Compartment – Bottom
Ford Fusion (2013 and 2014)
The high-current fuses are coded as follows:
| Fuse or relay number | Fuse amp rating | Protected components |
| 56 | 30A1 | Fuel pump feed |
| 57 | — | Not used |
| 58 | — | Not used |
| 59 | 30A1 | 500W Electronic fan 3 |
| 60 | 30A1 | 500W Electronic fan 1 |
| 61 | — | Not used |
| 62 | 50A2 | Body control module 1 |
| 63 | 20A1 | 500W Electronic fan 2 |
| 64 | — | Not used |
| Fuse or relay number | Fuse amp rating | Protected components |
| 65 | 20A1 | Front heated seat |
| 66 | — | Not used |
| 67 | 50A2 | Body control module 2 |
| 68 | 40A1 | Heated rear window |
| 69 | 30A1 | Anti-lock brake system valves |
| 70 | 30A1 | Passenger seat |
| 71 | — | Not used |
| 72 | 30A1 | Not used (spare) |
| 73 | 20A1 | Not used (spare) |
| 74 | 30A1 | Driver seat module |
| 75 | — | Not used |
| 76 | 20A1 | Transmission oil pump #2 stop/start |
| 77 | 30A1 | Not used (spare) |
| 78 | — | Not used |
| 79 | 40A1 | Blower motor |
| 80 | 30A1 | Not used (spare) |
| 81 | 40A1 | 110 volt inverter |
| 82 | 60A2 | Anti-lock brake system pump |
| 83 | 25A1 | Wiper motor #1 |
| 84 | 30A1 | Starter solenoid |
| 85 | 30A1 | Not used (spare) |
Ford Fusion (2015 and 2016)
| Fuse or relay number | Fuse amp rating | Protected components |
| 56 | — | Not used. |
| 57 | 20A1 | Diesel vaporizer or E100. |
| 58 | 30A1 | Fuel pump feed. |
| 59 | 30A2 | Electronic fan 3. |
| 60 | 30A2 | Electronic fan 1. |
| 61 | — | Not used. |
| 62 | 50A2 | Body control module 1. |
| Fuse or relay number | Fuse amp rating | Protected components |
| 63 | 20A1 25A | Electronic fan 2. (2014) Electronic fan 2. (2015) |
| 64 | — | Not used. |
| 65 | 20A1 | Front heated seat. |
| 66 | — | Not used. |
| 67 | 50A2 | Body control module 2. |
| 68 | 40A1 | Heated rear window. |
| 69 | 30A1 | Anti-lock brake system valves. |
| 70 | 30A1 | Passenger seat. |
| 71 | — | Not used. |
| 72 | 20A1 | Trans oil pump. |
| 73 | 20A1 | Rear heated seats. |
| 74 | 30A1 | Driver seat module. |
| 75 | 25A1 | Wiper motor 1. |
| 76 | 30A1 | Power lift-gate module. |
| 77 | 30A1 | Climate control seat module. |
| 78 | 40A1 | Trailer tow module. |
| 79 | 40A2 | Blower motor. |
| 80 | 25A1 | Wiper motor 2. |
| 81 | 40A1 | Inverter. |
| 82 | – | Not used. |
| 83 | 20A1 | TRCM shifter. |
| 84 | 30A1 | Starter solenoid. |
| 85 | 30A1 | Wide open panoramic roof 2. |
| Fuse or relay number | Fuse amp rating | Protected components |
| 86 | – | Not used. |
| 87 | 60A2 | Anti-lock brake system pump. |
