Fuse Box Diagrams & Location User Guide: Ford Mustang (2005 – 2009)

Fuse Box Diagrams & Location User Guide: Ford Mustang (2005 – 2009)

The Ford Mustang (2005–2009) features a more advanced electrical system compared to earlier models, making accurate fuse information essential. This user guide covers complete fuse box locations and easy-to-read diagrams to help you identify and replace fuses with confidence. Whether you’re troubleshooting lighting, power accessories, or other electrical components, this guide offers clear and reliable assistance.

Fuse Box Locations

Passenger Compartment Fuse Box

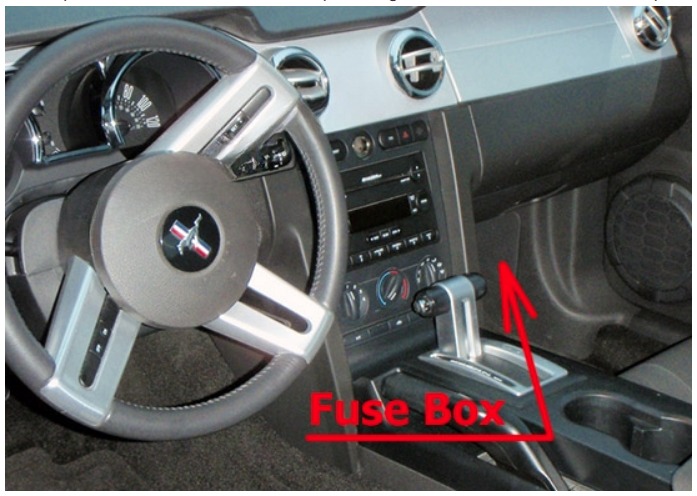

The fuse panel is located in the lower passenger side area behind the kick panel.

Ford Mustang (2005 – 2009) FIG-1

Remove the trim panel cover and the fuse cover to access the fuses.
To remove a fuse use the fuse puller tool provided on the fuse panel cover.

Engine Compartment Fuse Box

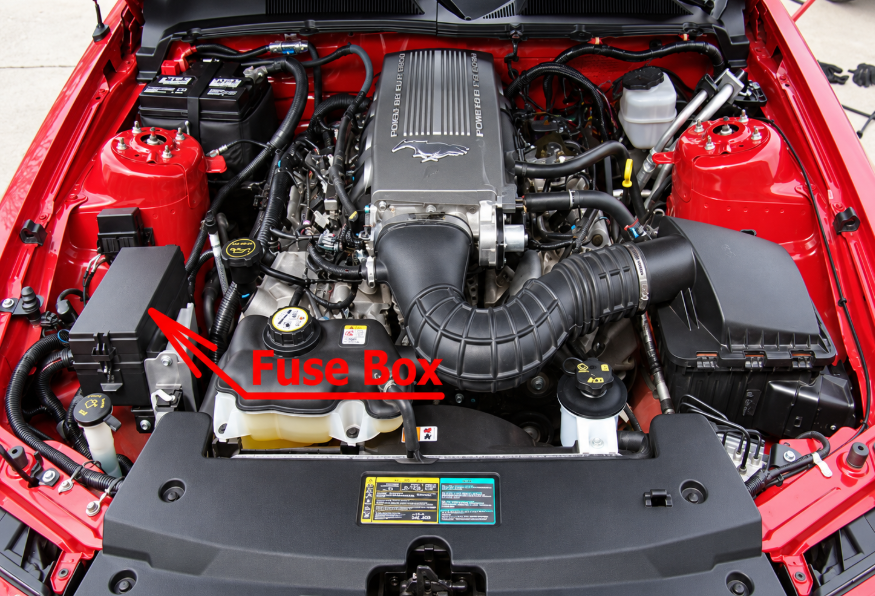

The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads

Ford Mustang (2005 – 2009) Engine Compartment Fuse Box

Auxiliary relay
On heated seat equipped vehicles, there is a relay box located behind the headlamp switch area containing two micro relays for the driver and passenger heated seats.

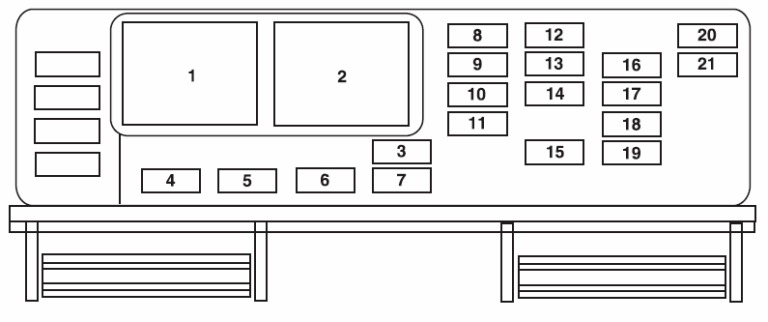

Passenger Compartment Fuse Box Diagram

Ford Mustang (2005 – 2009) FIG-3
Ford Mustang (2005 and 2006)
Fuse/Relay LocationFuse Amp RatingPassenger Compartment Fuse Panel Description
1Mini relayAccessory delay #1
2—Not used
310AWiper power
45APower mirrors
5—Not used
65AAccessory delay feeds
710A

5A (coupe) / 10A (convertible)

Overdrive cancel (2005)

Overdrive cancel (2006)

810ACluster, Data Link Connector

(DLC)

9—Not used
105AIntrusion Sensing Module (ISM),

Climate control

11—Not used
125AClimate control, Ignition
13—Not used
145AA/C cycle switch
1510ABrake On/Off (BOO) power
165ACluster
1710ARestraint Control Module (RCM), Passenger Occupant Detection System (PODS), Passenger Air

bag Deactivation Indicator (PADI)

1810AAnti-lock Brake System (ABS), Positive Crankcase Ventilation

(PCV) valve heater, Ignition

195APowertrain Control Module (PCM) relays, Passive Anti-Theft System

(PATS)

2010ARadio (Start)
2110AStarter relay
Ford Mustang (2007, 2008 & 2009)
Fuse/Relay LocationFuse Amp RatingPassenger Compartment Fuse Panel Description
1Mini RelayAccessory delay #1
2—Not used
310AWiper power / Blower motor relay
45APower mirrors
5—Not used
65AAccessory delay feeds
710AElectrochromic mirror
810ACluster, Data Link Connector (DLC)
9—Not used
105AIntrusion Sensing Module (ISM), Climate control
11—Not used
125AClimate control, Ignition
13—Not used
145AA/C cycle switch
1510ABrake On/Off (BOO) power
165ACluster
1710ARestraint Control Module (RCM), Passenger Occupant Detection System (PODS), Passenger Airbag Deactivation Indicator (PADI)
1810AAnti-lock Brake System (ABS)
195APowertrain Control Module (PCM) relay, Passive Anti-Theft System (PATS), Instrument cluster airbag warning lamp
2010ARadio (Start)
2110AStarter relay

Engine Compartment Fuse Box Diagram

Ford Mustang (2005 - 2006) Passenger compartment Fuse Box diagram 4
Ford Mustang (2005 and 2006)
Fuse/Relay LocationFuse Amp RatingPower Distribution Box Description
1—Not used
230A*Climate control blower
340A*Cooling fan
430A*Starter
530A*Right front window motor
630A*Rear amplifier (Shaker 1000 radio)
730A*Left front window motor
840A*Anti-lock Brake System (ABS) #1
930A*Rear amplifier (Shaker 1000 radio)
1030A*Wipers
1130A*Left rear window motor (Convertible only)
1230A*Right rear window motor (Convertible only)
1340A*Convertible top
1430A*Seat
15—Not used
1630A*Front amplifier (Shaker 500 radio)
20Mini RelayPCM #2
21Micro RelayFuel pump
22Mini RelayStarter
23Micro RelayPCM #1
24Micro RelayA/C clutch
25Mini RelayCooling fan (High-speed)
26Mini RelayHorn
27Micro RelayHigh beams
28Mini RelayCooling fan (Low-speed)
29Mini RelayRear defroster
30Micro RelayFog lamps
31Mini RelayConvertible top (Up)
32Mini RelayClimate control blower
33Mini RelayConvertible top (Down)
34—Not used
35—Not used
36—Not used
37—Not used
38—Not used
39—Not used
4015A**Engine #2
4115A**Fuel pump
4215A**Engine #3
4310A**Alternator
4410A**Delayed accessory
4510A**PCM
4625A**Horn
4715A**Engine #1
48DiodeA/C clutch
4915A**A/C clutch
5015A**High beams
5110A**Convertible top
5230A**Rear defroster
53DiodePCM
5410A**PCM delay
55—Not used
5620A**Radio
5720A**Decklid release
5815A**Fog lamps
5930A**SJB #5 (Instrument panel fuse box)
60—Not used
6120A**Power point #1 (Instrument panel)
6220A**SJB #7 (Instrument panel fuse box)
6330A**SJB #6 (Instrument panel fuse box)
6420A**Power point #2 (Console)
6530A**ABS #2
66—Not used
6730A**SJB #4 (Instrument panel fuse box)
6820A**Ignition
  • * Cartridge Fuses
  • ** Mini Fuses
Ford Mustang (2007, 2008 & 2009)
Fuse/Relay LocationFuse Amp RatingPower Distribution Box Description
1—Not used
230A*Climate control blower
340A*Cooling fan
430A*Starter
530A*Driver front window motor
630A*Rear amplifier (Shaker 1000 radio)
730A*Passenger front window motor
840A*Anti-lock Brake System (ABS) #1
930A*Rear amplifier (Shaker 1000 radio)
1030A*Wipers
1130A*Driver rear window motor (Convertible only)
1230A*Passenger rear window motor (Convertible only)
1340A*Convertible top
1430A*Driver seat
1530A*Passenger seat
1630A*Front amplifier (Shaker 500 radio)
20Mini RelayPCM
21Micro RelayFuel pump
22Mini RelayStarter (2007) / Starter (2008 and 2009)
23—Not used
24Micro RelayA/C clutch
25Mini RelayCooling fan (High-speed)
26Mini Relay / Micro RelayHorn (2007) / Horn (2008 and 2009)
27Micro RelayHigh beams
28Mini RelayCooling fan (Low-speed)
29Mini RelayRear defroster
30Micro RelayFog lamps
31Mini RelayConvertible top (Up)
32Mini RelayClimate control blower
33Mini RelayConvertible top (Down)
34Micro RelayDecklid
35—Not used
36—Not used
37—Not used
38—Not used
3915A**Engine #4
4015A**Engine #2
4115A**Fuel pump
4215A**Engine #3
4310A**Alternator
4410A**Delayed accessory
4510A**PCM
4625A**Horn
4715A**Engine #1
48DiodeA/C clutch (2007 and 2008) / Not used (2009)
4915A**A/C clutch
5015A**High beams
5110A**Convertible top
5230A**Rear defroster
53DiodePCM
54— / 20A**Not used (2007) / Left HID headlamp (2008 and 2009)
55— / 20A**Not used (2007) / Right HID headlamp (2008 and 2009)
5620A**Radio, SDARS
5720A**Decklid release
5815A**Fog lamps
5930A**SJB #5 (Passenger compartment fuse box)
60—Not used
6120A**Power point #1 (Instrument panel)
6220A**SJB #7 (Passenger compartment fuse box)
6330A**SJB #6 (Passenger compartment fuse box)
6420A**Power point #2 (Console)
6530A**ABS #2
6625A**Heated seats
6730A**SJB #4 (Passenger compartment fuse box)
6820A**Ignition
  • * Cartridge Fuses
  • ** Mini Fuses

Auxiliary Relay

Ford Mustang (2008)

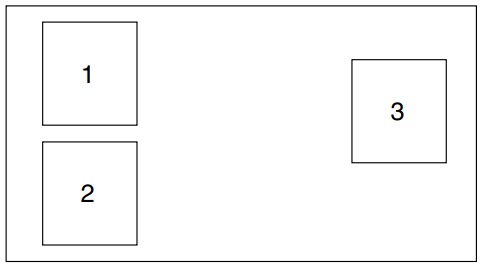

Auxiliary relay with HID headlamps

Ford Mustang (2005 – 2009) FIG-6

NoDescription
1Left HID headlamp
2Right HID headlamp
3Not used
Ford Mustang (2009)

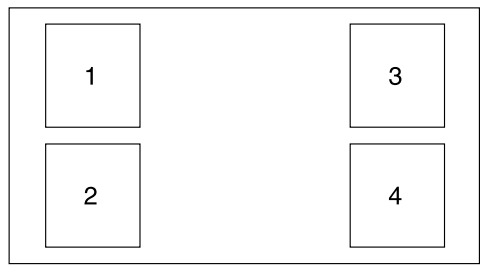

Ford Mustang (2005 – 2009) FIG-7

Auxiliary relay with HID headlamps (if equipped)

NoDescription
1Left HID headlamp
2Right HID headlamp
3Not used
4Not used
