Ford Ranger (2006 – 2011) Fuse Box Location & Diagrams
This Ford Ranger Fuse Box Location & Diagrams User Guide (2006–2011) provides clear visuals and detailed instructions to help you locate, identify, and replace fuses in both the cabin and engine compartment, making electrical troubleshooting simple and stress-free.
Fuse Box Locations

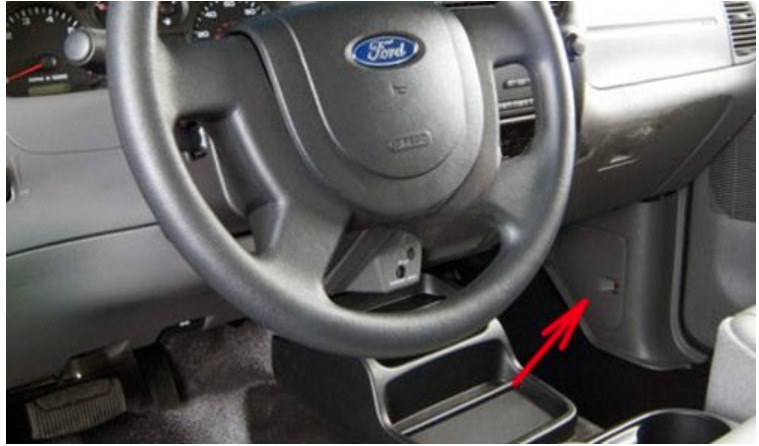

Passenger Compartment Fuse Box
The fuse panel is located under the right-hand side of the instrument panel behind the kick panel.

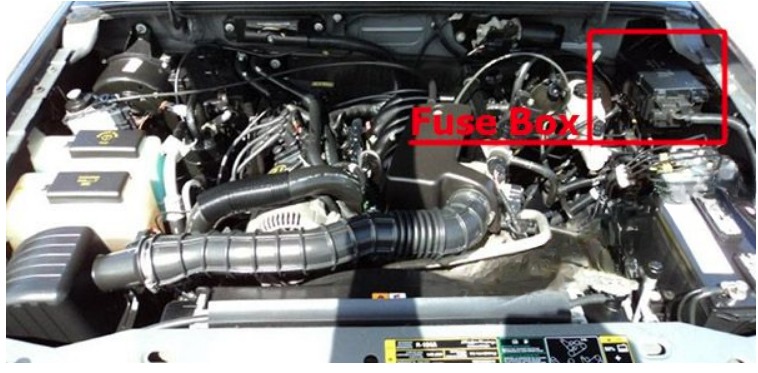

Engine Compartment Fuse Box
The power distribution box is located in the engine compartment.
Passenger Compartment Fuse Box Diagram
Ford Ranger (2006)
| Fuse | Ampere rating | Colour | Circuits protected |
| 1 | 80 | – | For protection of all circuits |
| 2 | 60 | – | Glow plug |
| 3 | 40 | – | Engine management systems, instrument cluster, cigar lighter1, electric windows1 |
| 4 | 60 | – | Headlamps |
| 5 | 20 | – | Injectors, fuel injection system |
| 6 | 40 | – | ABS motor, hazard warning lamps, brake lamps |
| 7 | 30 | – | Fuel warmer |
| 8 | 60 | – | Air conditioning, windscreen washers and wipers |
| 9 | 60 | – | Air conditioning, heated rear window1or central locking1or ABS solenoid1or electric windows1or tail lamps or fog lamps1 |
Inclinometer and compass fuse
| Fuse | Ampere rating | Colour | Circuits protected |
| 1 | 2 | – | For protection of all inclinometer and compass circuits |

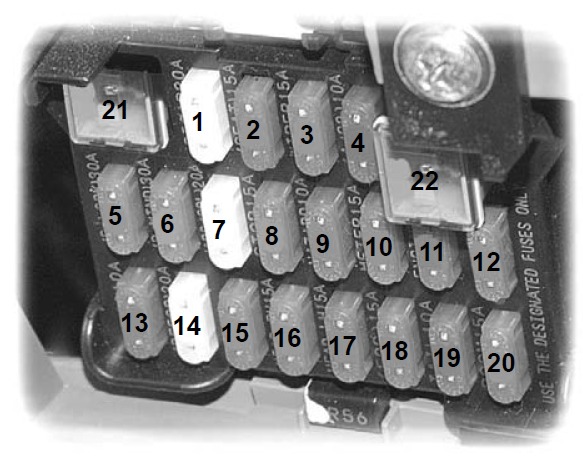

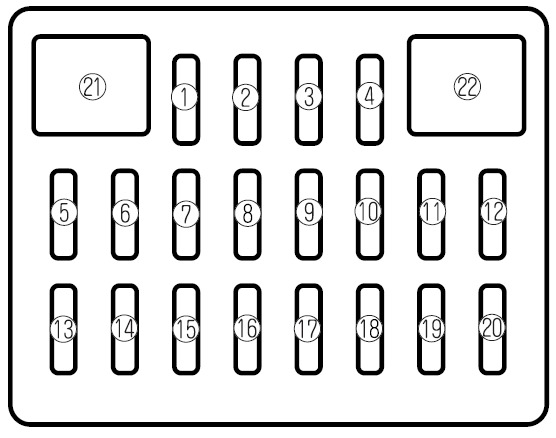

Ford Ranger (2008)
| DESCRIPTION | FUSE RATING | PROTECTED COMPONENT | |
| 1 | CIGAR | 20 A | Radio, Remote control mirrorí, Power out let |
| 2 | SEAT*1 | ― | ― |
| R.WIP*2 | ― | ― | |
| 3 | WIPER | 15 A | Windscreen wiper and washer |
| 4 | A/C2 | 10 A | Air conditionerí, ABS relayí |
| 5 | D.LOCK | 30 A | Power door locksí |
| 6 | P.WIND | 30 A | Power windowsí |
| 7 | ABS/SOL | 20 A | ABS solenoidí |
| 8 | STOP | 15 A | Brake lights, Horn |
| 9 | HAZARD | 10 A | Direction Indicators |
| 10 | METER | 15 A | Instrument cluster, Reverse lights, Direction indicators, RFWí |
| 11 | ENGINE | 15 A | Engine control system |
| 12 | ―*1 | ― | ― |
| P.POINT*2 | ― | ― | |
| 13 | A/C | 10 A | Magnet clutch |
| 14 | DEFOG | 20 A | Rear defoggerí |
| 15 | ―*1 | ― | ― |
| F.OPEN*2 | ― | ― | |
| 16 | HEAD RH | 15 A | Headlight (Right) |
| 17 | HEAD LH | 15 A | Headlight (Left) |
| 18 | FOG | 15 A | Front fog lightsí |
| 19 | TAIL | 10 A | Tail lights, Parking lights, Number plate lights |
| 20 | ROOM | 15 A | Overhead lights, Audio |
| 21 | ―*1 | ― | ― |
| R.A/C*2 | ― | ― | |
| 22 | P.WIND | 30 A | Power windowsí |

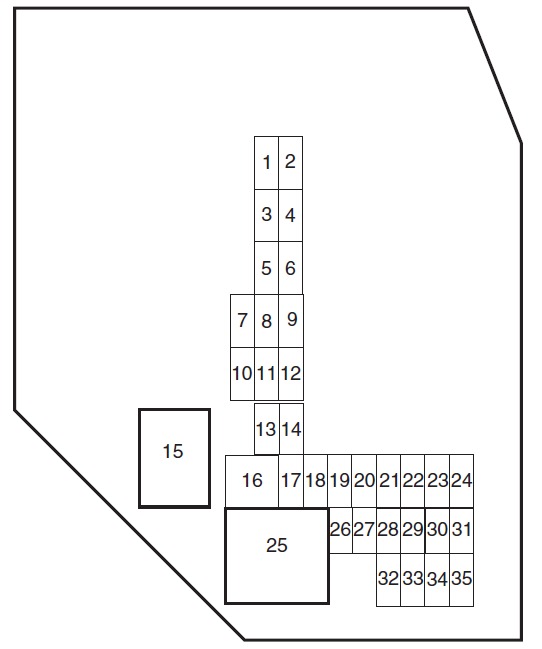

Ford Ranger (2007 and 2009)
The fuses are coded as follows:
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| 1 | 5A | Instrument panel dimmer switch |
| 2 | 10A | Trailer tow park lamps |
| 3 | 10A | Right low beam headlamp |
| 4 | 10A | Left low beam headlamp |
| 5 | 5A | Windshield wiper module (RUN/ACCY) |
| 6 | 10A | Radio (RUN/ACCY), Door switch illumination |
| 7 | — | Not used |
| 8 | 10A | Restraints Control Module (RCM), PADI (Passenger Air bag Deactivation Indicator), Occupant classification sensor (OCS) |
| 9 | 5A | Cluster air bag indicator |
| 10 | 10A | Cluster (RUN/START), 4×4 module (RUN/START) |
| 11 | 10A | Smart Junction Box (SJB) (Logic power) |
| 12 | 15A | Audiophile subwoofer amplifier, Satellite radio |
| 13 | 15A | Horn, Interior lamps |
| 14 | 15A | High beam headlamp, High beam indicator (cluster) |
| 15 | — | Not used |
| 16 | 30A cartridge fuse | Power windows |
| 17 | 15A | Turn signals/Hazards |
| 18 | — | Not used |
| 19 | 20A | Center High-Mounted Stop Lamp (CHMSL)/Stop lamps |
| 20 | 10A | Anti-lock Brake System (ABS) module, Speed control module, Back-up lamps, Overdrive cancel switch, Electronic flasher (turn/hazard) |
| 21 | 5A | Starter relay coil |
| 22 | 5A | Radio (START) |
| 23 | 30A | Headlamps (low and high beam) |
| 24 | 20A | Radio battery feed (B+) |
| 25 | — | Accessory relay (power windows) |
| 26 | 2A | Redundant cruise switch |
| 27 | 10A | Climate control blower relay/blend doors |
| 28 | 15A | 4×4 module battery feed (B+) |
| 29 | 20A | Cigar lighter, Diagnostic connector (OBD II) |
| 30 | 5A | Power mirrors |
| 31 | 20A | Front park lamps, Rear park lamps, License plate lamps, Dimmer switch, Trailer tow park lamps |
| 32 | 5A | Brake switch (logic), Brake-shift interlock |
| 33 | 5A | Instrument cluster battery feed (B+) |
| 34 | 20A | Power point |
| 35 | 15A | Power locks |
Ford Ranger (2010 and 2011)
The fuses are coded as follows:
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| 1 | 5A | Instrument panel dimmer switch |
| 2 | 10A | Trailer tow park lamps |
| 3 | 10A | Right low beam headlamp |
| 4 | 10A | Left low beam headlamp |
| 5 | 5A | Windshield wiper module (RUN/ACCY) |
| 6 | 10A | Radio (RUN/ACCY), Door switch illumination |
| 7 | 5A | Anti-lock brake system (ABS) (roll stability control) |
| 8 | 10A | Restraints control module (RCM), Passenger airbag deactivation indicator (PADI), Occupant classification sensor (OCS) |
| 9 | 5A | Cluster air bag indicator |
| 10 | 10A | Cluster (RUN/START), 4×4 module (RUN/START) |
| 11 | 10A | Passenger compartment fuse panel (Logic power) |
| 12 | 15A | Satellite radio |
| 13 | 15A | Horn, Interior lamps |
| 14 | 15A | High beam headlamp, High beam indicator (cluster) |
| 15 | — | Not used |
| 16 | 30A cartridge fuse | Power windows |
| 17 | 15A | Turn signals/Hazards |
| 18 | — | Not used |
| 19 | 20A | Center high-mounted stop lamp (CHMSL)/Stop lamps |
| 20 | 10A | ABS module, Speed control module, Back-up lamps, Overdrive cancel switch, Electronic flasher (turn) |
| 21 | 5A | Starter relay coil |
| 22 | 5A | Radio (START) |
| 23 | 30A | Headlamps (low and high beam) |
| 24 | 20A | Radio battery feed (B+) |
| 25 | — | Accessory relay (power windows) |
| 26 | 2A | Redundant cruise switch |
| 27 | 10A | Climate control blower relay/blend doors |
| 28 | 15A | 4×4 module battery feed (B+) |
| 29 | 20A | Cigar lighter, Diagnostic connector (OBD II) |
| 30 | 5A | Power mirrors |
| 31 | 20A | Front park lamps, Rear park lamps, License plate lamps, Dimmer switch, Trailer tow park lamps |
| 32 | 5A | Brake switch (logic) |
| 33 | 5A | Instrument cluster battery feed (B+) |
| 34 | 20A | Power point |
| 35 | 15A | Power locks |
Engine Compartment Fuse Box Diagram
Ford Ranger (2006)
| Fuse | Ampere rating | Colour | Circuits protected |
| 1 | 20 | yellow | Cigar lighter, audio, electric exterior mirrors, auxiliary power socket |
| 2 | 15 | blue | Heated seat |
| 3 | 15 | blue | Windscreen wipers and washers |
| 4 | 10 | red | Air conditioning, ABS relay |
| 5 | 30 | pink | Central locking |
| 6 | 30 | pink | Electric windows |
| 7 | 20 | yellow | ABS solenoid |
| 8 | 15 | blue | Brake lights, horn |
| 9 | 10 | red | Hazard warning flashers |
| 10 | 15 | blue | Instrument cluster, reversing lamps, direction indicators, remote free-wheel (RFW) system |
| 11 | 15 | blue | Engine management systems |
| 12 | – | – | Not used |
| 13 | 10 | red | Air conditioning magnetic clutch |
| 14 | 20 | yellow | Heated rear window |
| 15 | 10 | red | Rear fog lamp |
| 16 | 15 | blue | Right-hand headlamp |
| 17 | 15 | blue | Left-hand headlamp |
| 18 | 15 | blue | Front fog lamp |
| 19 | 10 | red | Rear lamps, side lamps, number plate lamp |
| 20 | 15 | blue | Interior lamps, warning system |
| 21 | – | – | Not used |
| 22 | 30 | pink | Electric windows |

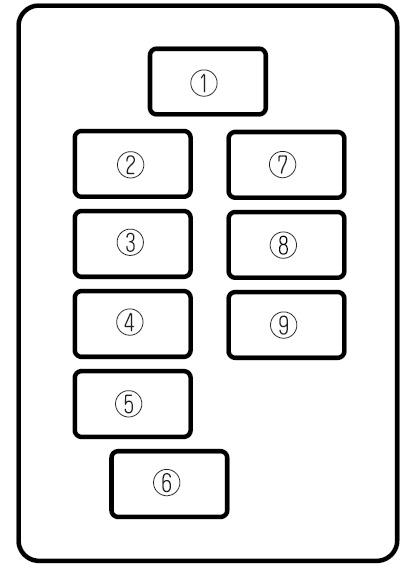

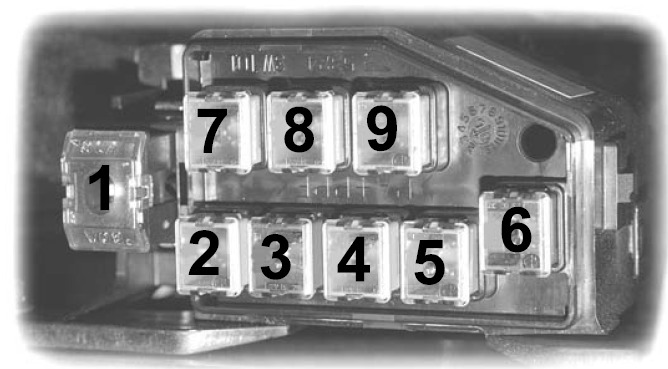

Ford Ranger (2008)
| DESCRIPTION | FUSE RATING | PROTECTED COMPONENT | |
| 1 | MAIN | 80 A | For protection of all circuits |
| 2 | GLOW | 60 A | Glow plugí |
| 3 | IG KEY1 | 40 A | Engine control system, Instrument cluster, Power Windowí |
| 4 | BTN2 | 60 A | Headlights, Hazard, Brake lights |
| 5 | INJ/FIP | 20 A | Injector, Fuel injection system |
| 6 | ABS | 40 A | ABS motorí |
| 7 | PTC/AT | 30 A | ATí |
| 8 | IG KEY2 | 60 A | Air conditioner, Windscreen wiper and washer |
| 9 | BTN1 | 60 A | Air conditioner, Rear defoggerí, Door lockí, ABS solenoidí, Power windowí, Room, Tail lights, Fog lightsí |

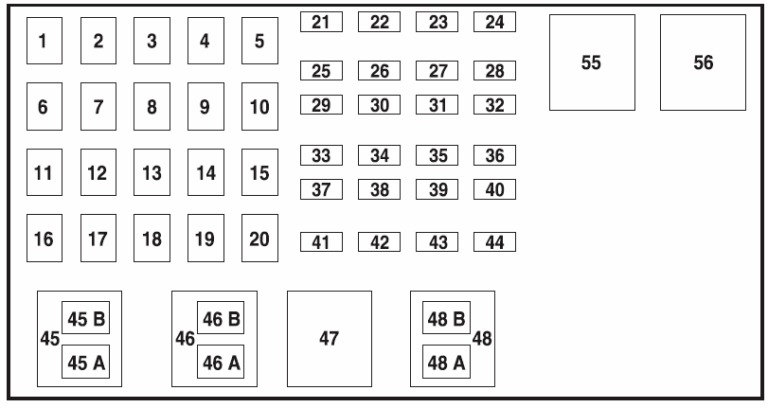

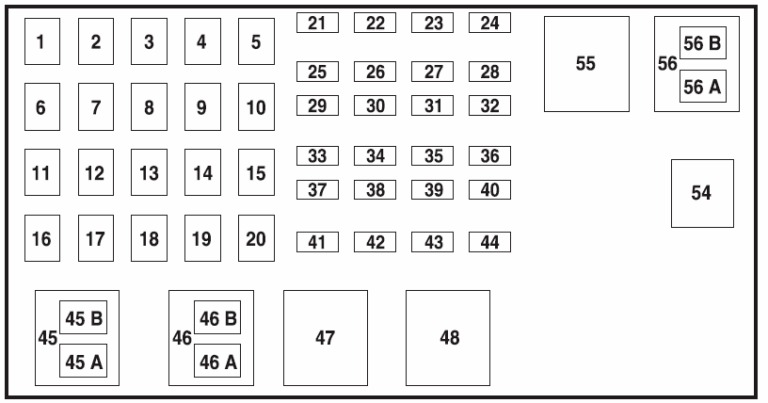

Ford Ranger (2007, 2009, 2010 and 2011)
2.3L Engine
The high-current fuses are coded as follows:
| Fuse/Relay Location | Fuse Amp Rating | Power Distribution Box Description |
| 1 | 40A** | Interior fuse panel (SJB) |
| 2 | — | Not used |
| 3 | 40A** | Interior fuse panel (SJB) |
| 4 | — | Not used |
| 5 | 50A** | Interior fuse panel (SJB) |
| 6 | — | Not used |
| 7 | 40A** 30A** | Starter solenoid (2007) Starter solenoid (2009, 2010 and 2011) |
| 8 | — | Not used |
| 9 | 40A** | Ignition switch |
| 10 | — | Not used |
| 11 | 30A** | Powertrain Control Module (PCM) relay |
| 12 | — | Not used |
| 13 | 30A** | Blower motor (climate control) |
| 14 | — | Not used |
| 15 | — | Not used |
| 16 | — | Not used |
| 17 | 40A** | Anti-lock Brake System (ABS) module |
| 18 | — | Not used |
| 19 | 20A** | Engine fan |
| 20 | — | Not used |
| 21 | 10A* | PCM keep alive power, Canister purge valve solenoid |
| 22 | — | Not used |
| 23 | 30A* | Fuel pump motor, Fuel injectors |
| 24 | — | Not used |
| 25 | 10A* | A/C clutch solenoid |
| 26 | — | Not used |
| 27 | — | Not used |
| 28 | — | Not used |
| 29 | — 30A* | Not used (2007) Wipers/washer (2009, 2010 and 2011) |
| 30 | — | Not used |
| 31 | 15A* | Fog lamps |
| 32 | — | Not used |
| 33 | 30A* | Anti-lock Brake System (ABS) module |
| 34 | — | Not used |
| 35 | — | Not used |
| 36 | — | Not used |
| 37 | — | Not used |
| 38 | 7.5A* | Trailer tow (right turn) |
| 39 | 15A* | PCM power |
| 40 | — | Not used |
| 41 | 10A* | Automatic transmission |
| 42 | 7.5A* | Trailer tow (left turn) |
| ccc | 20A* | Engine fan relay coil, A/C relay coil, IAC, Mass air flow sensor, Heated exhaust gas oxygen sensor, Catalyst module sensor, Vapor management valve solenoid |
| 44 | 15A* | Ignition coil, Capacitor |
| 45A | — | Not used |
| 45B | — | Not used |
| 46A | — | Fuel pump relay, Fuel injectors relay |
| 46B | — — | Washer pump relay (2007) Not used (2009, 2010 and 2011) |
| 47 | — | Engine fan relay |
| 48 | — | Starter relay |
| 49 | — | Not used |
| 50 | — | Not used |
| 51 | — | Not used |
| 52 | — | Not used |
| 53 | — | Not used |
| 54 | — | PCM relay |
| 55 | — | Blower relay |
| 56A | — | A/C clutch solenoid relay |
| 56B | — | Fog lamp relay |
| * Mini Fuses ** Maxi Fuses | ||
3.0L and 4.0L Engines
| Fuse/Relay Location | Fuse Amp Rating | Protected Circuits |
| 1 | 40A** | Interior fuse panel (SJB) |
| 2 | — | Not used |
| 3 | 40A** | Interior fuse panel (SJB) |
| 4 | — | Not used |
| 5 | 50A** | Interior fuse panel (SJB) |
| 6 | — | Not used |
| 7 | 30A** | Starter solenoid |
| 8 | — | Not used |
| 9 | 40A** | Ignition switch |
| 10 | — | Not used |
| 11 | 30A** | Powertrain Control Module (PCM) relay |
| 12 | — | Not used |
| 13 | 30A** | Blower motor (climate control) |
| 14 | — | Not used |
| 15 | — | Not used |
| 16 | — | Not used |
| 17 | 40A** | Anti-lock Brake System (ABS) module |
| 18 | — | Not used |
| 19 | — | Not used |
| 20 | — | Not used |
| 21 | 10A* | PCM keep alive power, Canister purge valve solenoid |
| 22 | — | Not used |
| 23 | 30A* | Fuel pump motor, Fuel injectors |
| 24 | — | Not used |
| 25 | 10A* | A/C clutch solenoid |
| 26 | — | Not used |
| 27 | 20A* | 4×4 module |
| 28 | — | Not used |
| 29 | — 30A* | Not used (2007) Wipers/washer (2009, 2010 and 2011) |
| 30 | — | Not used |
| 31 | 15A* | Foglamps |
| 32 | — | Not used |
| 33 | 30A* | Anti-lock Brake System (ABS) module |
| 34 | — | Not used |
| 35 | — | Not used |
| 36 | — | Not used |
| 37 | — | Not used |
| 38 | 7.5A* | Trailer tow (right turn) |
| 39 | 15A* | PCM power |
| 40 | — | Not used |
| 41 | 10A* | Automatic transmission |
| 42 | 7.5A* | Trailer tow (left turn) |
| 43 | 20A* | A/C relay coil, IAC, Mass air flow sensor, Heated exhaust gas oxygen sensor, Catalyst module sensor, Vapor management valve solenoid, EGR solenoid, Heated PCV |
| 44 | 15A* | Ignition coil, Capacitor |
| 45A | — — | Wiper HI/LO relay (2007) Not used (2009, 2010 and 2011) |
| 45B | — — | Wiper Park/Run relay (2007) Not used (2009, 2010 and 2011) |
| 46A | — | A/C clutch solenoid |
| 46B | — — | Washer pump relay (2007) Not used (2009, 2010 and 2011) |
| 47 | — | PCM relay |
| 48A | — | Fuel pump relay, Fuel injectors relay |
| 48B | — | Fog lamp relay |
| 51 | — | Not used |
| 52 | — | Not used |
| 53 | — | Not used |
| 54 | — | Not used |
| 55 | — | Blower relay |
| 56 | — | Starter relay |
| * Mini Fuses ** Maxi Fuses | ||
