Finding the right fuse is the first step in troubleshooting electrical issues in your seventh-generation Honda Civic. Whether your power windows have stopped working or your radio won’t turn on, this guide pinpoint the exact locations and provide clear diagrams for both the interior and engine bay fuse boxes for models produced between 2001 and 2005.

Fuses

All the electrical circuits in your car have fuses to protect them from a short circuit or overload. These fuses are located in two fuse boxes.

Fuse Box Location

Passenger Compartment

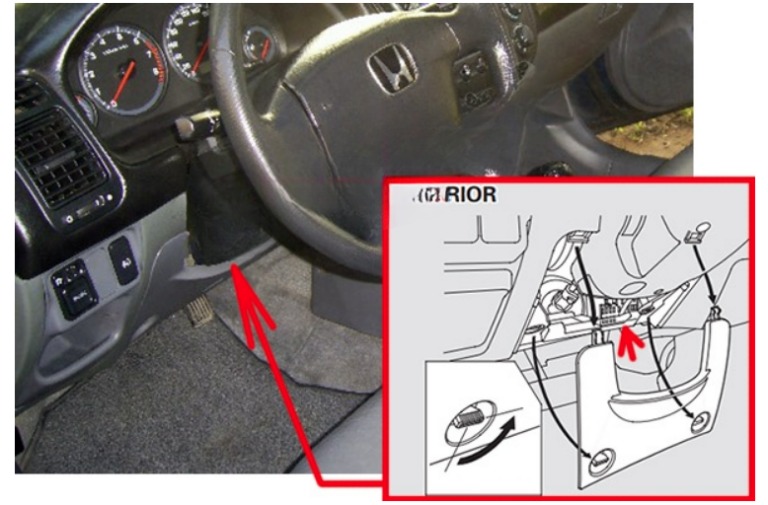

The interior fuse box is underneath the steering column. To open it, turn the knobs as shown.

Engine Compartment

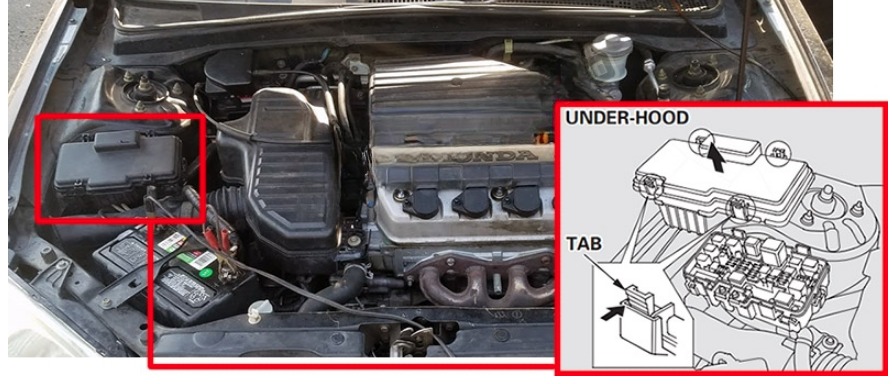

The under-hood fuse box is located in the engine compartment on the passenger’s side. To open it, push thetabsasshown.

Checking and Replacing Fuses If something electrical in your car stops working, the first thing you should check for is a blown fuse. Determine the diagram on the fuse box lid, which fuse or fuses control that component. Check those fuses first, but check all the fuses before deciding that a blown fuse is not the cause. Replace any blown fuses and check the component’s operation.

1. Turn the ignition switch to LOCK (0). Make sure the headlights and all other accessories are off.
2. Remove the cover from the fuse box.

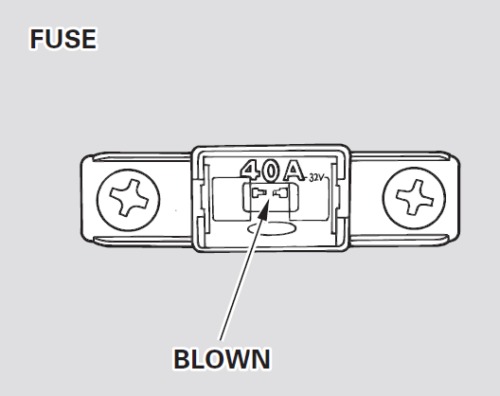

3. Check each of the large fuses in the under-hood fuse box by looking through the top at the wire inside. Removing these fuses requires a Phillips-head screw-driver.

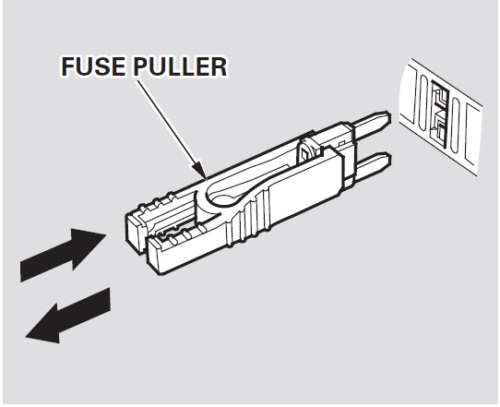

4. Check the smaller fuses in the under-hood fuse box and all the fuses in the interior fuse box by pulling out each fuse with the fuse puller provided in the interior fuse box.

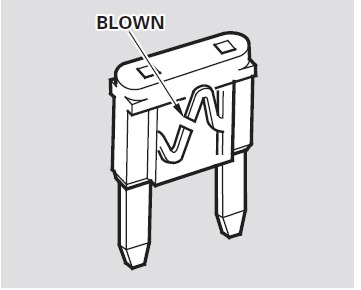

5. Look for a burned wire inside the fuse. If it is burned, replace it with oneof thesparefusesof thesame rating or lower.
   If you cannot drive the car without fixing the problem, and you do not have a spare fuse, take a fuse of the same rating or a lower rating from one of the other circuits. Make sure youcandowithoutthatcircuit temporarily (such as the accessory power socket or radio).
   If you replace the blown fuse with a spare fuse that has a lower rating, it might blow out again. This does not indicate anything wrong. Replace the fuse with one of the correct rating as soon as you can.
   Notice: Replacing a f use with one that has a higher rating greatly increases the chances of damaging the electrical system. If you do not have a replace-ment f use with the proper rating f or the circuit, install one with a lower rating.
6. If the replacement fuse of the same rating blows in a short time, there is probably a serious electrical problem in your car. Leave the blown fuse in that circuit and have your car checked by a qualified mechanic.

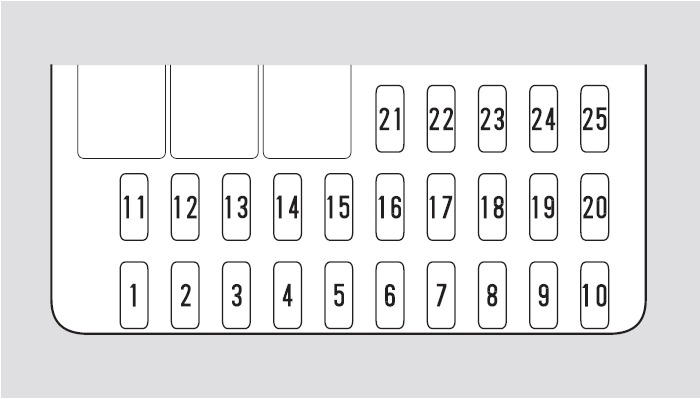

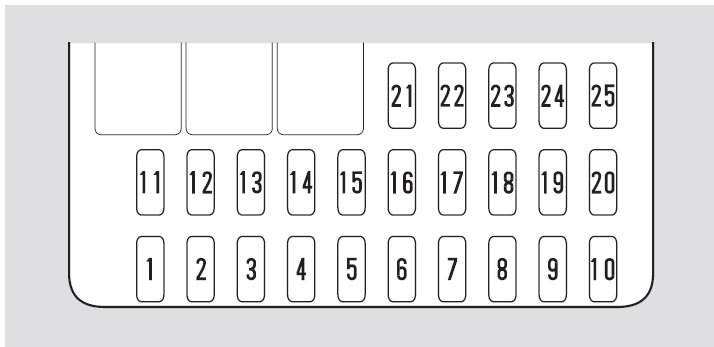

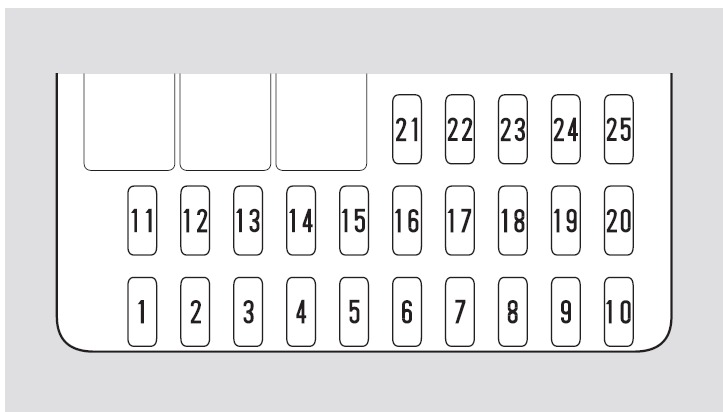

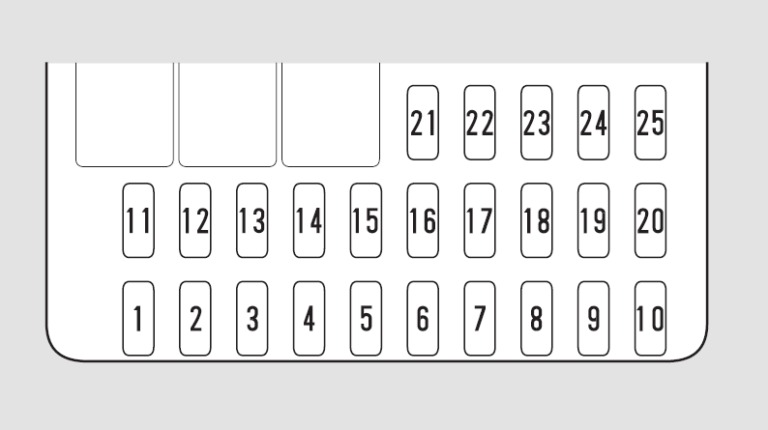

Passenger Compartment Fuse Box

Honda Civic (2001)

Interior Fuse Box

Honda Civic (2002 – 2003)

Honda Civic (2004)

Honda Civic (2005)

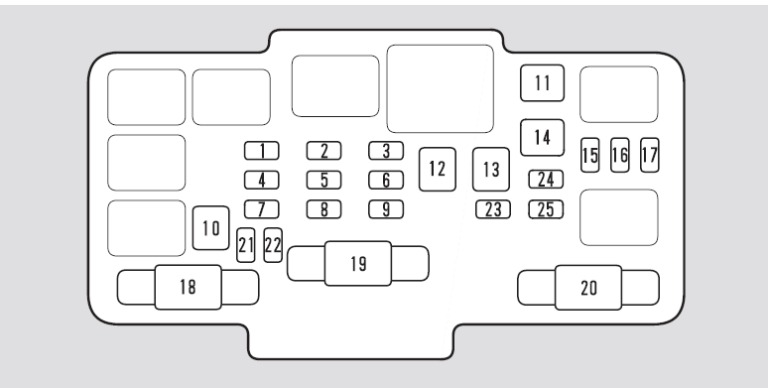

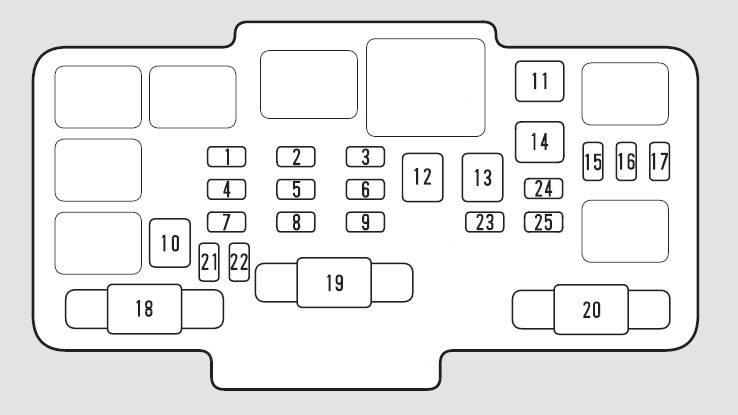

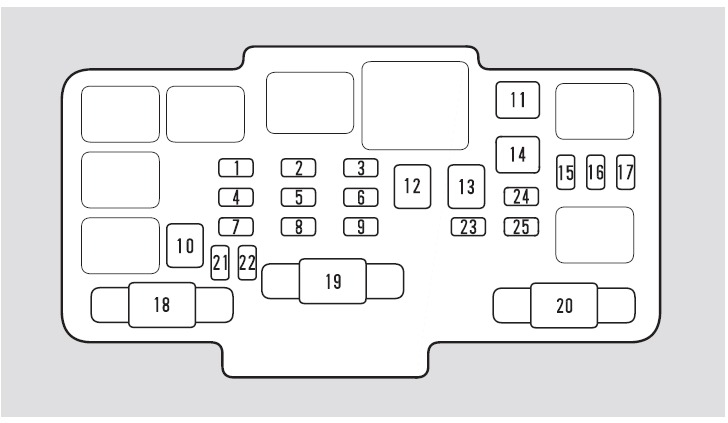

Engine Compartment Fuse Box

Honda Civic (2001)

Underhood Fuse Box

Honda Civic (2002 – 2003)

Honda Civic (2004)

Honda Civic (2005)
