Honda Civic (2012 – 2015) Fuse Box Location and Diagrams

Honda Civic (2012 – 2015) Fuse Box Location and Diagrams

This guide helps you quickly locate and identify the fuse boxes in the Honda Civic (2012–2015). It provides a clear overview of where each fuse box is positioned and how to read the fuse diagrams, making it easier to check, replace, or troubleshoot electrical fuses safely.

Fuse Box Locations

If any electrical devices are not working, turn the ignition switch to LOCK (0 and check to see if any applicable fuse is blown.

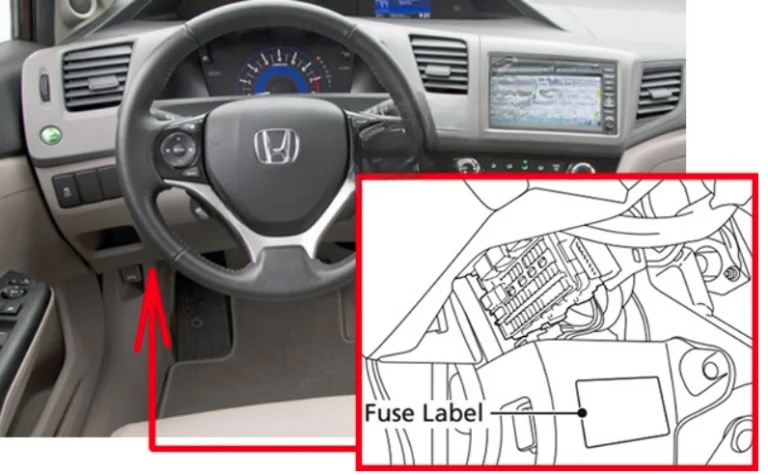

Interior Fuse Box

Honda Civic (2012 – 2015) FIG-1

  • Located under the dashboard.
  • Fuse locations are shown on the label on the side panel.
  • Locate the fuse in question by the fuse number and label number.

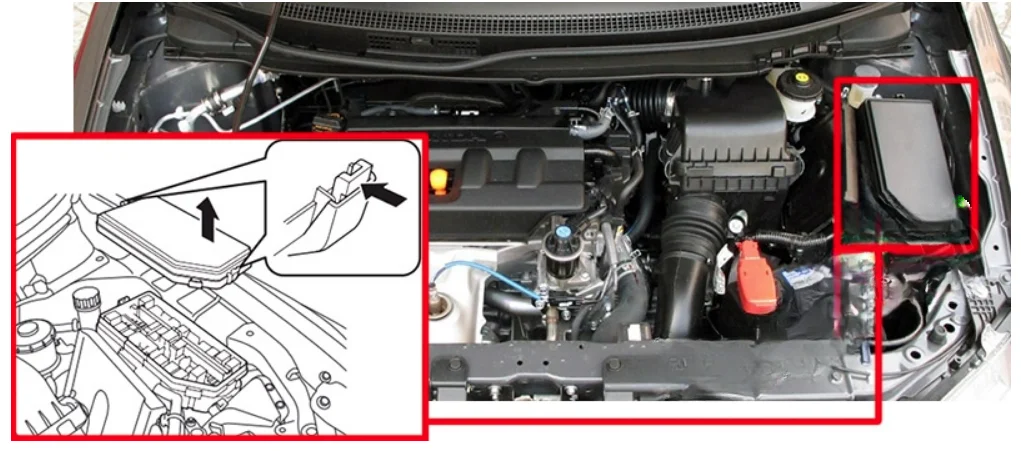

Engine Compartment Fuse Box

Honda Civic (2012 – 2015) FIG-2

Located near the brake fluid reservoir. Push the tabs to open the box. Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.

Inspecting and Changing Fuses

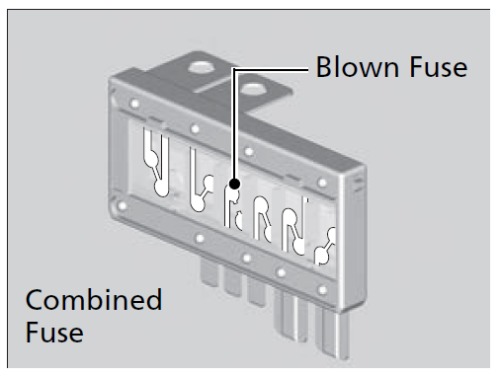

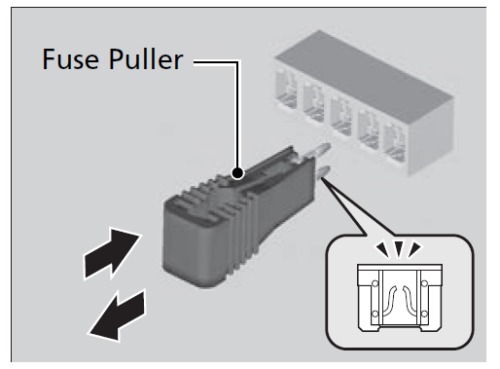

  1. Turn the ignition switch to LOCK (0. Turn headlights and all accessories off. Honda Civic (2012 – 2015) FIG-3 Honda Civic (2012 – 2015) FIG-4
  2. Remove the fuse box cover.
  3. Check the large fuse in the engine compartment.
    • If the fuse is blown, use a Phillips-head screwdriver to remove the screw and replace it with a new one.
  4. Inspect the small fuses in the engine compartment and the vehicle interior.
  5. If there is a burned out fuse, remove it with the fuse puller and replace it with a new one.

NOTICE
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
Replace fuse with a spare fuse of the same specified amperage.

Passenger Compartment Fuse Box Diagram

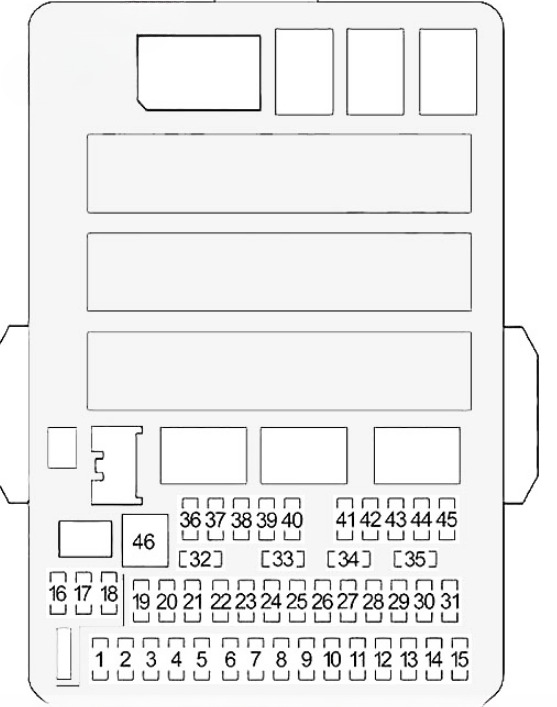

Honda Civic (2012 – 2013)

Honda Civic (2012 – 2015) FIG-5

Circuit ProtectedAmps
1                           −−
2                        ACG15 A
3                         SRS10 A
4                   Fuel Pump15 A
5                       Meter7.5 A
6               Power Window7.5 A
7                     VB SOL*(15 A)
8  Door Lock Motor 2 (Unlock)15 A
9  Door Lock Motor 1 (Unlock)15 A
10                         −−
11                 Moonroof*(20 A)
12                 Accessory Power Socket
(Center Console)*		(15 A)
13                        −−
14                Seat Heaters*(15 A)
15Driver’s Door Lock Motor (Unlock)*(10 A)
16−−
17−−
18−−
19ACC7.5 A
20ACC Key Lock7.5 A
21Daytime Running Lights7.5 A
22HAC7.5 A
23−−
Circuit ProtectedAmps
24ABS/VSA7.5 A
25−−
26−−
27      Accessory Power Socket          15 A

(Front)

28                Washer*15 A
29                  ODS7.5 A
(Lock)*
31                         −−
32    Door Lock Motor 2 (Lock)15 A
33    Door Lock Motor 1 (Lock)15 A
34                Small Lights7.5 A
35                Illumination7.5 A
36                         −−
37                         −−
38    Left Headlight High Beam10 A
39 Right Headlight High Beam10 A
40                    TPMS*(7.5 A)
41                 Door Lock20 A
42      Driver’s Power Window20 A
43                         −−
44                Front Passenger’s Side
Power Window		20 A
45                       −−
46                    Wiper30 A

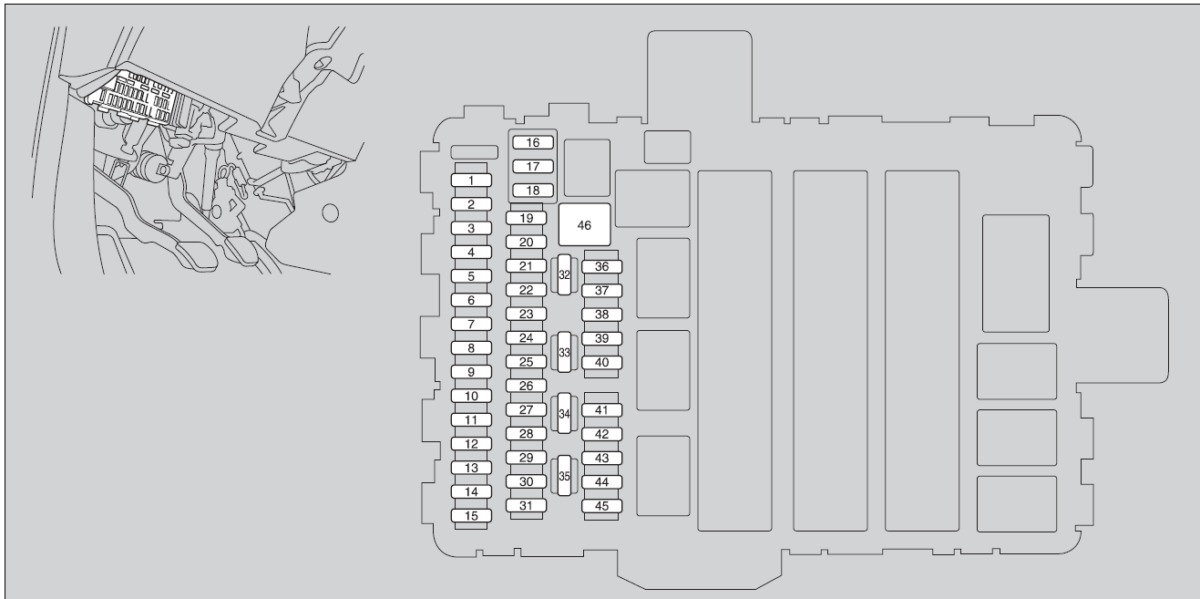

Honda Civic (2014 – 2015)

Honda Civic (2012 – 2015) FIG-6

Here’s the data formatted into a clean, structured table — perfect for a blog post. You can drop this directly into a WordPress table block or format it with HTML/CSS if needed.

Circuit protected and fuse rating

Circuit No.Circuit ProtectedAmps
1——
2ACG10 A
3SRS10 A
4Fuel Pump15 A
5IG1 Relay17.5 A
6Option7.5 A
7VB SOL*15 A
8Door Lock Motor 2 (Unlock)15 A
9Door Lock Motor 1 (Unlock)15 A
10Lumber Support*, Side Support*7.5 A
11——
12Accessory Power Socket (Console Compartment)*20 A
13Accessory Power Socket (Luggage Area)*20 A
14Seat Heaters*15 A
15Driver’s Door Lock Motor (Unlock)10 A
16–18——
19ACC7.5 A
20ACC Key Lock7.5 A
21Daytime Running Lights7.5 A
22HAC7.5 A
23Rear Wiper*10 A
24IG1 Relay27.5 A
25ACC*7.5 A
26Super Locking*20 A
27Accessory Power Socket (Front Console)20 A
28Washer*15 A
29ODS7.5 A
30Driver’s Door Lock Motor (Lock)10 A
31Smart*7.5 A
32Door Lock Motor 2 (Lock)15 A
33Door Lock Motor 1 (Lock)15 A
34Small Lights7.5 A
35Illumination7.5 A
36Rear Wiper Main*10 A
37Daytime Running Lights7.5 A
38Left Headlight High Beam10 A
39Right Headlight High Beam10 A
40Rear Fog Light7.5 A
41Door Lock20 A
42Driver’s Power Window20 A
43Rear Right Side Power Window20 A
44Front Passenger’s Side Power Window20 A
45Rear Left Side Power Window20 A
46Front Wiper30 A

Engine Compartment Fuse Box Diagram

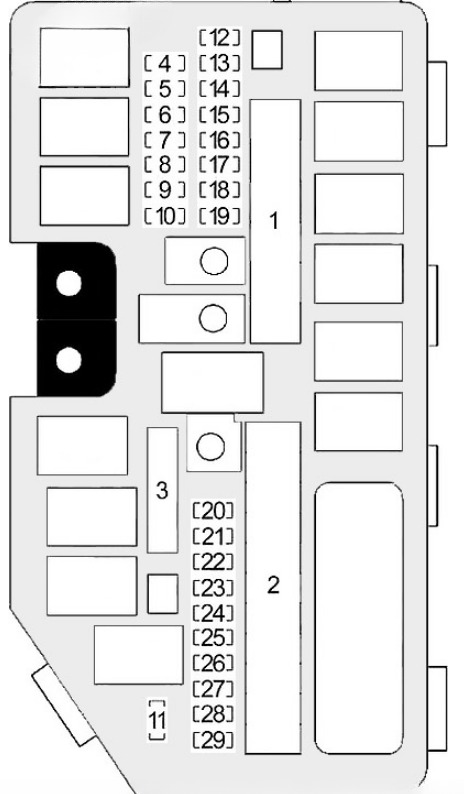

Honda Civic (2012 – 2013)

Honda Civic (2012 – 2015) FIG-7

Here’s a clean and blog-friendly table based on your data. You can copy-paste it into your blog’s HTML editor or into a WordPress block as a table:

Circuit No.Circuit ProtectedAmps
1EPS70 A
ABS/VSA Motor30 A
ABS/VSA FSR30 A
Main Fuse100 A
2IG Main50 A
Fuse Box Main60 A
Fuse Box Main 260 A
Headlight Main30 A
Rear Defogger40 A
Blower40 A
Sub Fan Motor20 A
Main Fan Motor20 A
3——
4Left Headlight Low Beam10 A
5Starter DIAG, ST MG7.5 A
Circuit ProtectedAmps
6     Right Headlight Low Beam10 A
7                           −−
8                           −−
9                           −−
10                         −−
11                   Oil Level7.5 A
12                 Fog Lights*(20 A)
13                         −−
14                    Hazard10 A
15                     FI Sub15 A
16                    IG Coil15 A
17                      Stop15 A
18                      Horn10 A
19             Premium Amp*(20 A)
20                         −−
21                       IGP15 A
22                      DBW15 A
23                    H/L LO20 A
24                         −−
25                 MG Clutch7.5 A
26                         −−
27                    SMALL20 A
28              Interior Lights7.5 A
29                    Backup10 A

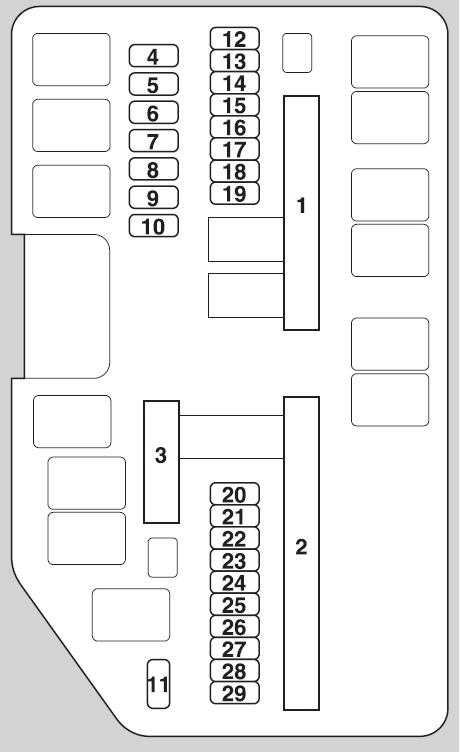

Honda Civic (2014 – 2015)

Honda Civic (2012 – 2015) FIG-8

Circuit protected and fuse rating

Circuit No.Circuit ProtectedAmps
1EPS70 A
—(30 A)*1
Glow70 A*2
ABS/VSA Motor40 A
ABS/VSA FSR20 A
ST/MG SW(30 A)
Main Fuse100 A1 / 150 A2
2IG Main50 A
Fuse Box Main 160 A
Fuse Box Main 2(40 A)
Headlight Main30 A
DC/DC 130 A
Rear Demister30 A
DC/DC 230 A
Heater Motor40 A
—(30 A)*1
Fuel Heater*230 A
Sub Fan Motor20 A1 / 30 A2
Main Fan Motor20 A1 / 30 A2
PTC Heater 1*240 A
PTC Heater 2*240 A
PTC Heater 3*240 A
PTC Heater 4*240 A
4IGPS7.5 A
5ST MOT Fuse, STRLD7.5 A
6Fuel Heater Monitor*27.5 A
7–10——
11Back Up 210 A
12Front Fog Lights*20 A
13Left e-pretensioner*30 A
14Hazard15 A
15IGP 2*115 A
LAF Sensor*210 A
16IG Coil*115 A
IGP 2*215 A
17Stop10 A
18Horn10 A
19Right e-pretensioner*30 A
20Right Headlight Low Beam10 A3 / 15 A4
21FI Main15 A1 / 20 A2
22DBW*115 A
Back Up FIECU*27.5 A
23Left Headlight Low Beam10 A3 / 15 A4
24Headlight Washer*30 A
25MG Clutch7.5 A
26Washer Main20 A
27Small Main20 A
28Interior Lights10 A
29Back Up10 A
