Honda Odyssey (1994 – 1998) Fuse Box Location & Diagrams
For Honda Odyssey owners (1994–1998), knowing the fuse box location is key to addressing electrical issues. This user guide offers clear fuse box diagrams and locations, helping you easily identify and replace blown fuses. Whether you’re dealing with a malfunctioning component or troubleshooting electrical problems, this guide makes it simple to find the issue and get your Odyssey back on the road.
Fuse Box Locations

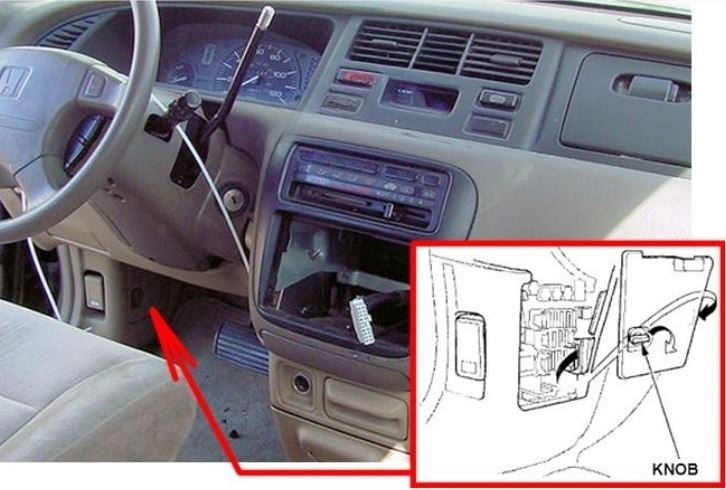

Passenger Compartment
The fuse box is underneath the instrument panel on the driver’s side. To open it, turn the knob clockwise.

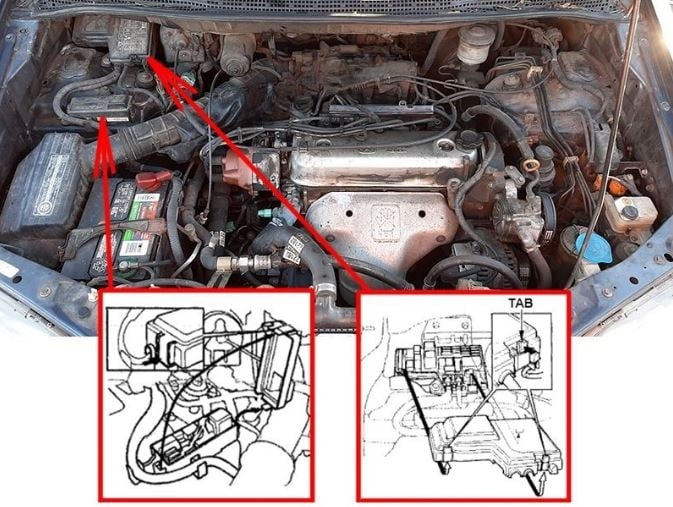

Engine Compartment
The main fuse box is located in the engine compartment on the passenger’s side. To open, push the tab as shown. Cars equipped with ABS have an additional fuse box in the engine compartment next to the main box.

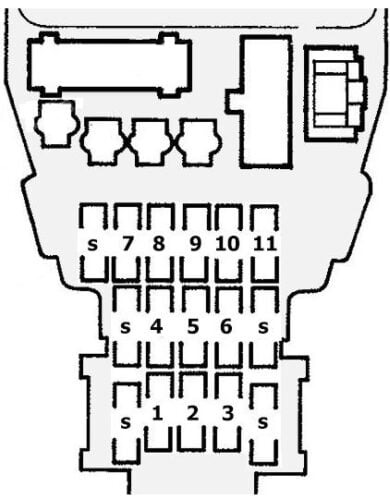

Engine Compartment Fuse Box Diagram
Honda Odyssey (1994 – 1998)
| No | Amp | Description |
|---|---|---|
| 1 | 10 A | Back-up Lights, Meter Lights (Turn Signal) |
| 2 | 15 A | Fuel Pump |
| 3 | 10 A | SRS |
| 4 | 7.5 A | ECU (Cruise Control) |
| 5 | 10 A | Window Relay, Sunroof, Rear Wiper |
| 6 | 10 A | Front Wiper Relay, Front Washer |
| 7 | 7.5 A | Power Mirror |
| 8 | 7.5 A | Heater Control Relay, A/C Clutch Relay, Cooling Fan Relay |
| 9 | 7.5 A | Starter Signal |
| 10 | 7.5 A | Daytime Running (On Canadian models) |
| 11 | 7.5 A | Radio |
| s | Spare Fuses |

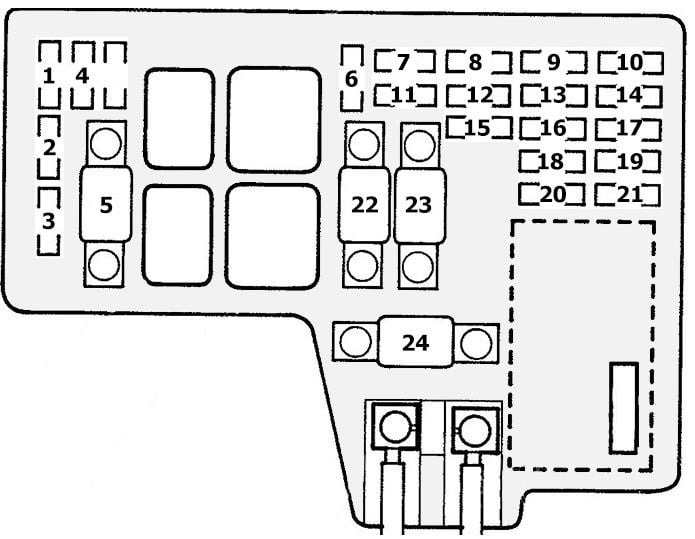

Passenger Compartment Fuse Box Main Diagram
Honda Odyssey (1994 – 1998)
| No | Amp | Description |
|---|---|---|
| 1 | 20 A | Cooling Fan |
| 2 | 15 A | Right Headlight |
| 3 | 15 A | Left Headlight |
| 4 | 30 A | Rear Defroster |
| 5 | 50 A | Ignition Switch |
| 6 | 20 A | Rear Right Power Window |
| 7 | 20 A | Front Right Power Window |
| 8 | 30 A | Sunroof |
| 9 | 20 A | Condenser Fan |
| 10 | 7.5 A | Back Up (Radio) |
| 11 | 20 A | Rear Left Power Window |
| 12 | 20 A | Front Left Power Window |
| 13 | 15 A | ECU (Injector) (PCM) |
| 14 | 20 A | Door Lock |
| 15 | 10 A | Daytime Running Light (on Canadian models) |
| 16 | 15 A | Dash lights, Exterior lights |
| 17 | 7.5 A | Interior Light |
| 18 | 20 A | Power Seat Height |
| 19 | 15 A | Radio, Cigarette Lighter |
| 20 | 15 A | Stop Light, Horn |
| 21 | 10 A | Hazard |
| 22 | 40 A | Heater Blower |
| 23 | 40 A | Wiper |
| 24 | 100 A | Battery |

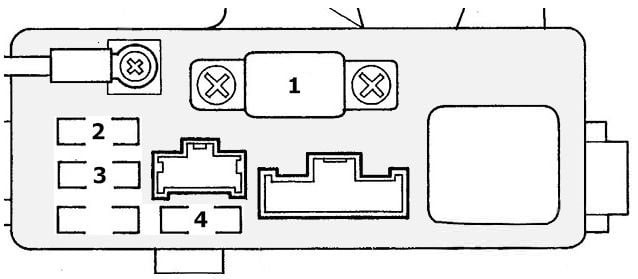

ABS Fuse Box
| No | Amp | Description |
|---|---|---|
| 1 | 40 A | ABS Motor |
| 2 | 20 A | ABS B1 |
| 3 | 15 A | ABS B2 |
| 4 | 10 A | ABS Unit |
