Honda Odyssey (2005 – 2010) Fuse Box Location & Diagrams
If you’re facing electrical issues in your 2005–2010 Honda Odyssey, knowing the fuse box location is crucial. This user guide provides clear, detailed diagrams to help you quickly locate and replace fuses and relays. With easy-to-follow instructions, this guide ensures that you can fix electrical problems efficiently, keeping your Odyssey running smoothly.
Fuse Box Locations
Passenger Compartment

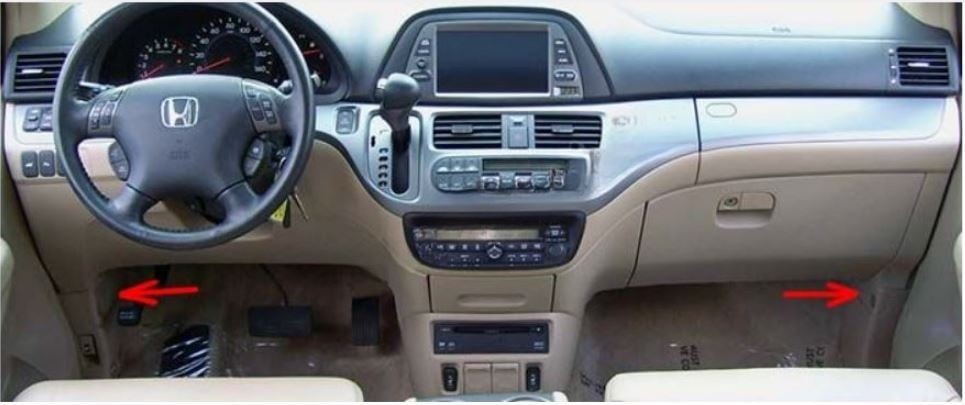

The interior fuse boxes are located under the dashboard on the driver’s and passenger’s side.

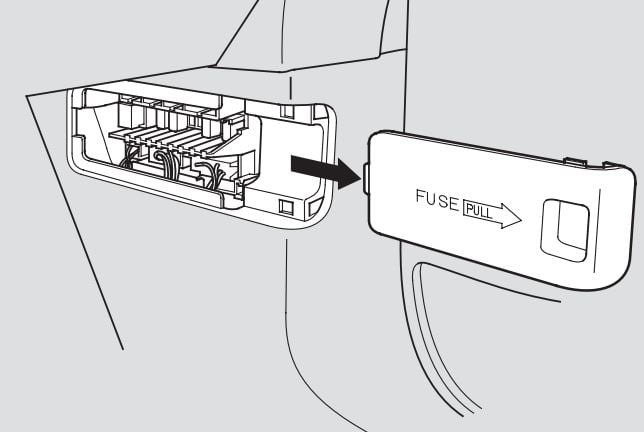

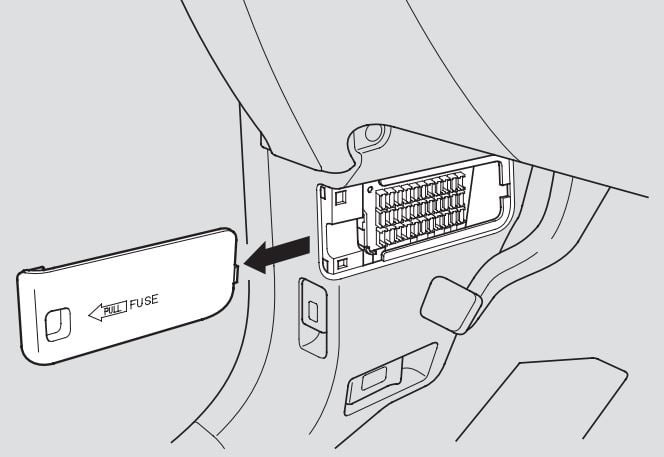

Driver’s side
Passenger’s side

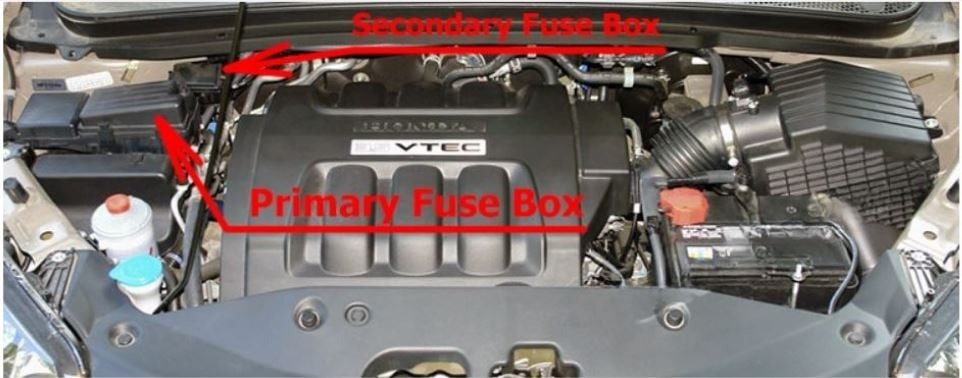

Engine Compartment

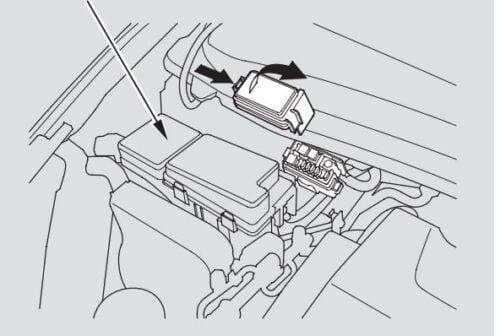

The primary under-hood fuse box is on the passenger’s side.

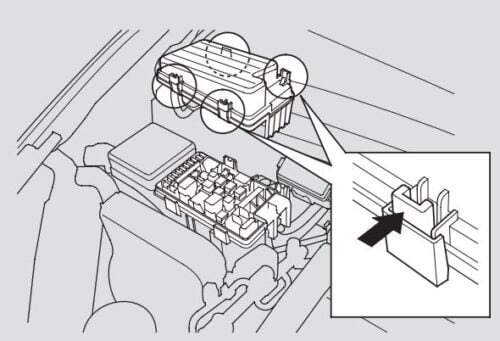

The secondary under-hood fuse box is behind the primary fuse box.
Passenger Compartment Fuse Box Diagram
Honda Odyssey (2005 and 2006)

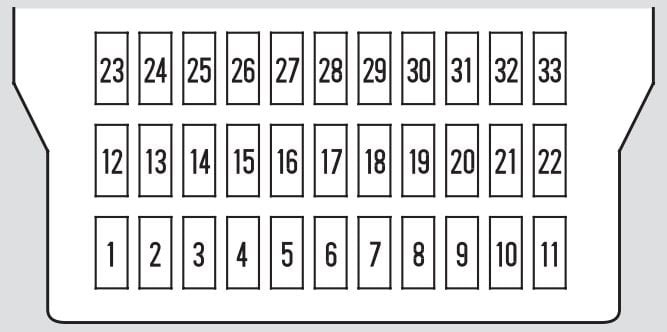

Passenger compartment, driver’s side
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | — | Not Used |
| 2 | 15 A | IG Coil |
| 3 | 10 A | Daytime Running Light (Canadian models) |
| 4 | 15 A | LAF |
| 5 | 7.5 A | Radio |
| 6 | 7.5 A | Interior Lights |
| 7 | 7.5 A | Back Up |
| 8 | 20 A | Door Lock |
| 9 | 10 A | Front Accessory Socket |
| 10 | 7.5 A | OPDS |
| 11 | 30 A | IG, Wiper |
| 12 | — 15 A | 2005: Not Used 2006: Rear Accessory Socket |
| 13 | 20 A | Left PSD Closer (If equipped) |
| 14 | 20 A | Dr Power Seat Slide (If equipped) |
| 15 | 20 A | ADJ Pedals (If equipped) |
| 16 | 20 A | Dr Power Seat Recline (If equipped) |
| 17 | 20 A | Power Tailgate Closer (If equipped) |
| 18 | 15 A | IG PCU |
| 19 | 15 A | IG Fuel Pump |
| 20 | 10 A | IG Washer |
| 21 | 7.5 A | IG Meter |
| 22 | 10 A | IG SRS |
| 23 | 7.5 A | IGP |
| 24 | 20 A | Left Rear Window |
| 25 | 20 A | Right Rear Window |
| 26 | 20 A | Passenger’s Window |
| 27 | 20 A | Driver’s Window |
| 28 | 20 A | Moonroof |
| 29 | — | Not Used |
| 30 | 10 A | IG HAC |
| 31 | — | Not Used |
| 32 | 10 A | ACC |
| 33 | 7.5 A | HAC Option |

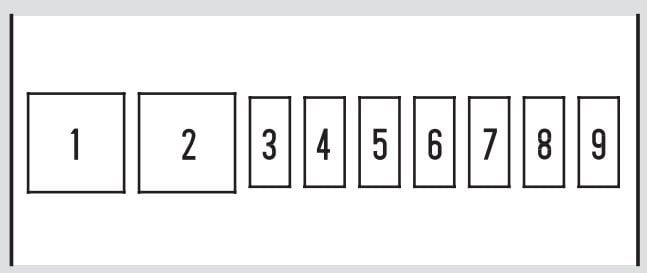

Passenger compartment, passenger’s side
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 30 A | Rear Blower |
| 2 | — | Not Used |
| 3 | 15 A | DBW |
| 4 | 20 A | Door Lock |
| 5 | — | Not Used |
| 6 | 15 A | Heated Seat |
| 7 | 7.5 A | Instrument Panel |
| 8 | 20 A | Right Power Sliding Door (If equipped) |
| 9 | 10 A 15 A | 2005: Accessory Sockets 2006: Front Accessory Sockets |
Honda Odyssey (2007 to 2010)
Passenger compartment, driver’s side
Driver’s Side, upper area
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 7.5 A | TPMS |
| 2 | 15 A | IG Coil |
| 3 | 10 A | Daytime Running Light |
| 4 | 15 A | LAF |
| 5 | 10 A | Radio |
| 6 | 7.5 A | Interior Lights |
| 7 | 7.5 A | Back Up |
| 8 | — | Not Used |
| 9 | 15 A | Front Accessory Socket |
| 10 | 7.5 A | OPDS |
| 11 | 30 A | IG Wiper |
| 12 | 15 A | Rear Accessory Socket |
| 13 | 20 A | Left Power Sliding Door Closer (optional) |
| 14 | 20 A | Driver Power Seat Slide (optional) |
| 15 | 20 A | Pedal Position Adjustment (optional) |
| 16 | 20 A | Dr Power Seat Recline (optional) |
| 17 | 20 A | Power Tailgate Closer (optional) |
| 18 | 15 A | IGACG |
| 19 | 15 A | IG Fuel Pump |
| 20 | 10 A | IG Washer |
| 21 | 7.5 A | IG Meter |
| 22 | 10 A | IG SRS |
| 23 | 7.5 A | IGP |
| 24 | 20 A | Left Rear Power Window |
| 25 | 20 A | Right Rear Power Window |
| 26 | 20 A | Passenger’s Power Window |
| 27 | 20 A | Driver’s Power Window |
| 28 | 20 A | Moonroof (optional) |
| 29 | — | Not Used |
| 30 | 10 A | IG HAC |
| 31 | 15 A | IG SOL |
| 32 | 10 A | ACC |
| 33 | 7.5 A | HAC OP |
| Upper area: | ||
| 1 | 7.5 A | STS |
Passenger compartment, passenger’s side
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 30 A | Rear Blower |
| 2 | — | Not Used |
| 3 | 15 A | DBW |
| 4 | 20 A | Door Lock |
| 5 | — | Not Used |
| 6 | 15 A | Heated Seat (optional) |
| 7 | 7.5 A | Instrument Panel |
| 8 | 20 A | Right Power Sliding Door Closer (optional) |
| 9 | 15 A — | 2007: Front Accessory Socket 2008-2010: Not Used |
Engine Compartment Fuse Box Diagram
Honda Odyssey (2005 and 2006)

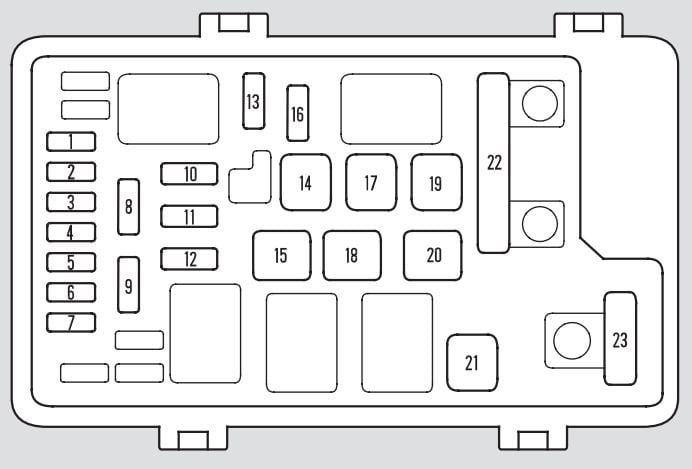

Engine compartment, primary fuse box
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 10 A | Left Headlight Low |
| 2 | 30 A | Rear Defroster Coil |
| 3 | 10 A | Left Headlight High |
| 4 | 15 A | Small Lights |
| 5 | 10 A | Right Headlight Low |
| 6 | 10 A | Right Headlight High |
| 7 | 7.5 A | Back Up |
| 8 | 15 A | FI ECU |
| 9 | 30 A | Condenser Fan |
| 10 | — | Not used |
| 11 | 30 A | Cooling Fan |
| 12 | 7.5 A | MG Clutch |
| 13 | 20 A | Horn, Stop |
| 14 | 30 A | Defroster |
| 15 | 40 A | Back Up |
| 16 | 15 A | Hazard |
| 17 | 30 A | VSA Motor |
| 18 | 30 A | VSA |
| 19 | 30 A | Option 1 |
| 20 | 40 A | Option 2 |
| 21 | 40 A | Heater Motor |
| 22 | 70 A | + B AS F/B |
| 22 | 120 A | Battery |
| 23 | 50 A | + B IGI Main |
| 23 | 40 A | Power Window |

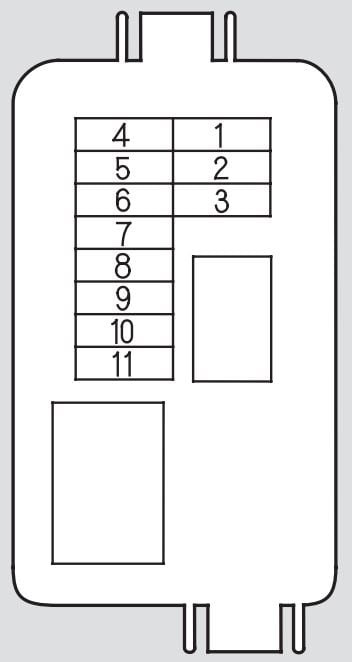

Engine compartment, secondary fuse box
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | — | Not Used |
| 2 | 40 A | Left Power Sliding Door (If equipped) |
| 3 | 40 A | Right Power Sliding Door (If equipped) |
| 4 | 40 A | Power Tailgate (If equipped) |
| 5 | 20 A | Premium |
| 6 | 20 A | AC Inverter |
| 7 | 10 A | Front Fog Light (If equipped) |
| 8 | 10 A | ACM |
| 9 | 7.5 A | TPMS (If equipped) |
| 10 | — | Not Used |
| 11 | 7.5 A | Rear Entertainment System (If equipped) |
Honda Odyssey (2007 to 2010)
Engine compartment, primary fuse box
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 10 A | Left Headlight Low |
| 2 | 30 A | Rear Defroster Coil |
| 3 | 10 A | Left Headlight High |
| 4 | 15 A | Small Lights |
| 5 | 10 A | Right Headlight High |
| 6 | 10 A | Right Headlight Low |
| 7 | 7.5 A | Back Up |
| 8 | 15 A | FI ECU (PCM) |
| 9 | 30 A | Condenser Fan |
| 10 | — | Not used |
| 11 | 30 A | Cooling Fan |
| 12 | 7.5 A | MG Clutch |
| 13 | 20 A | Horn, Stop |
| 14 | 30 A | Rear Defroster |
| 15 | 40 A | Back Up, ACC |
| 16 | 15 A | Hazard |
| 17 | 30 A | VSA Motor |
| 18 | 30 A | VSA |
| 19 | 30 A | Option 1 |
| 20 | 40 A | Option 2 |
| 21 | 40 A | Heater Motor |
| 22 | 70 A | Passenger’s Fuse Box |
| 22 | 120 A | Battery |
| 23 | 50 A | IG1 Main |
| 23 | 50 A | Power Window Main |
| 23 | 40 A | Power Window Main (For some types) |
Engine compartment, secondary fuse box
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | — | Not Used |
| 2 | 40 A | Left Power Sliding Door (optional) |
| 3 | 40 A | Right Power Sliding Door (optional) |
| 4 | 40 A | Power Tailgate (optional) |
| 5 | 20 A | Premium |
| 6 | 20 A | AC Inverter |
| 7 | 20 A | Fog Light (optional) |
| 8 | 10 A | ACM |
| 9 | — 20 A | 2007: Not Used 2008-2010: AS power Seat Slide (optional) |
| 10 | — 20 A | 2007: Not Used 2008-2010: AS power Seat Recline (optional) |
| 11 | 7.5 A | Rear Entertainment System (optional) |
