Honda Pilot (2003 – 2008) Fuse Box Location & Diagrams
For Honda Pilot owners of 2003-2008 models, understanding the fuse box layout is essential for smooth vehicle maintenance. This guide provides clear diagrams and step-by-step instructions to locate, identify, and replace fuses easily. Whether addressing electrical issues or performing routine checks, this user guide simplifies fuse management, keeping your Honda Pilot running reliably.
Fuse Box Locations
Passenger Compartment

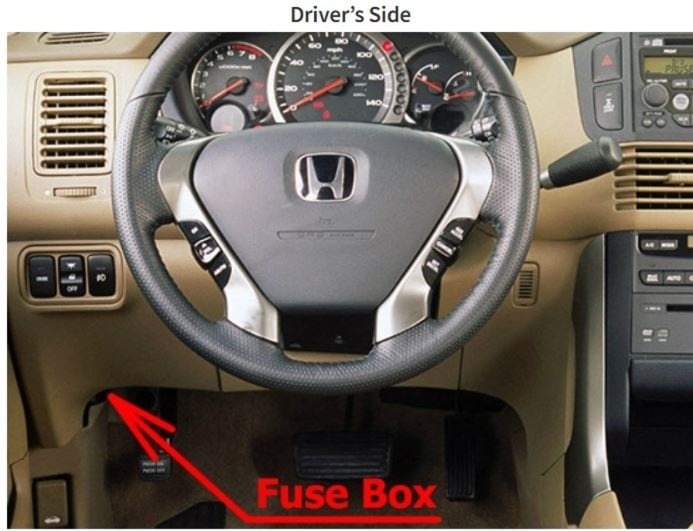

- The interior fuse boxes are located under the dashboard on the driver’s and passenger’s side.
- The interior fuse boxes are located underneath the dashboard on each side.
The primary under-hood fuse box is located on the passenger’s side. The secondary fuse box is next to the battery.

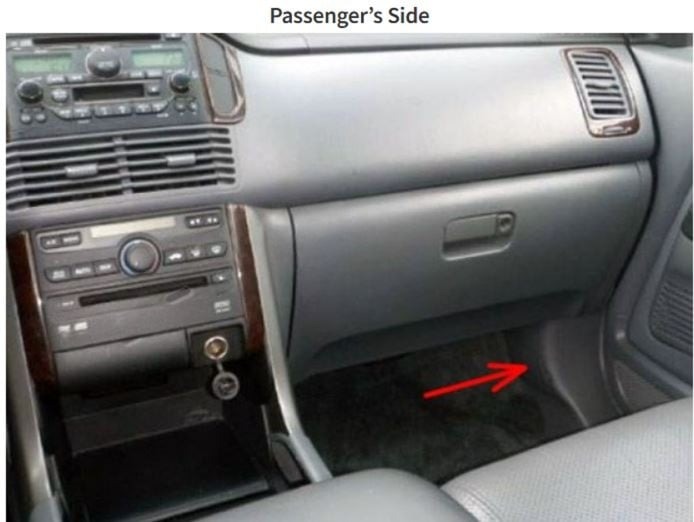

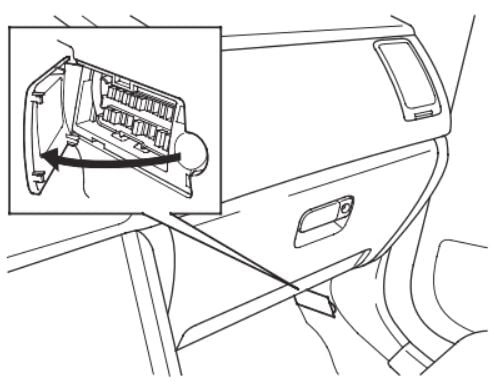

To open the fuse box on the passenger’s side, pull the right edge of the cover.

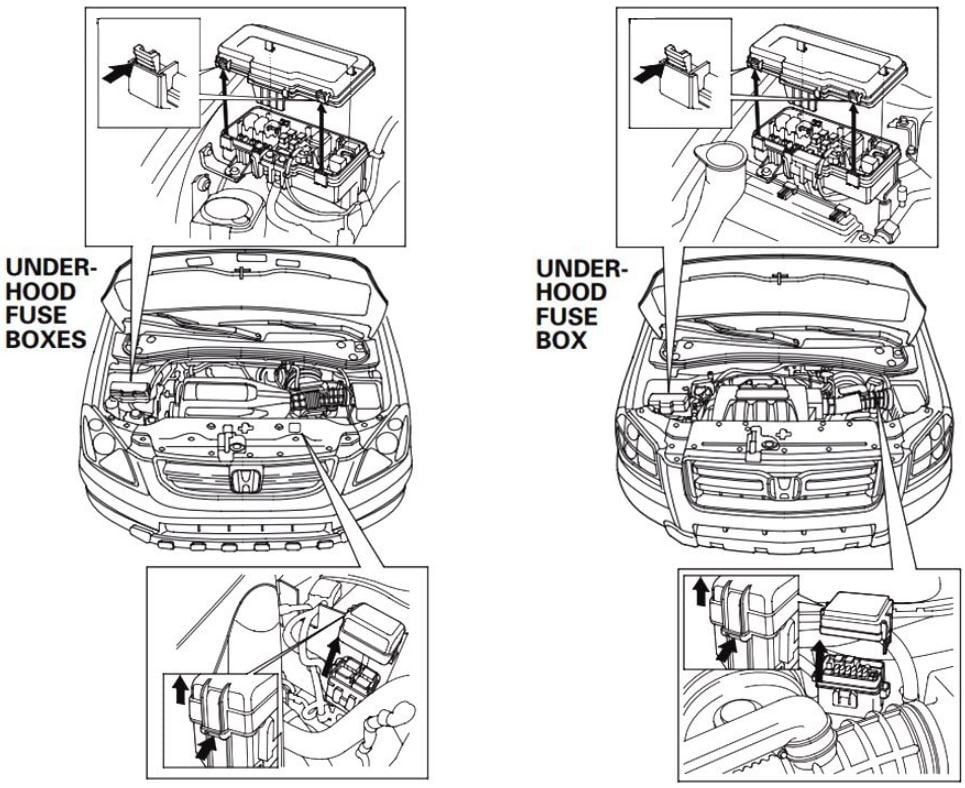

Engine Compartment
The primary under-hood fuse box is located on the passenger’s side of the engine compartment.
The secondary fuse box is in the engine compartment next to the battery, or on the left.
Passenger Compartment Fuse Box Diagram
Honda Pilot (2003 and 2004)

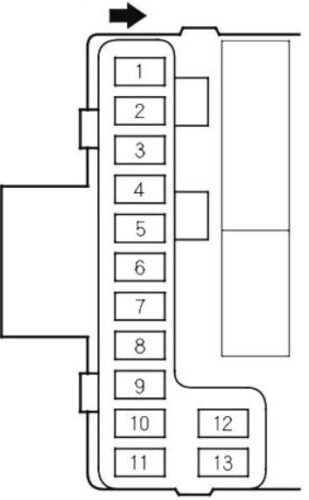

Passenger compartment, Driver’s Side
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 15 A | Fuel Pump |
| 2 | 10 A | SRS |
| 3 | 7.5 A | Heater Control, A/C Clutch Relay, Cooling Fan Relay |
| 4 | 7.5 A | Power Mirror, VTM-4 |
| 5 | 7.5 A | Daytime Running Light (On Canadian models) |
| 6 | 15 A | ECU (PCM), Cruise Control |
| 7 | 7.5 A | OPDS, Rear Wiper |
| 8 | 7.5 A | ACC Relay |
| 9 | 10 A | Back-up Lights, Instrument Lights |
| 10 | 7.5 A | Turn Signals |
| 11 | 15 A | IG Coil |
| 12 | 30 A | Front Wiper |
| 13 | 7.5 A | Starter Signal |

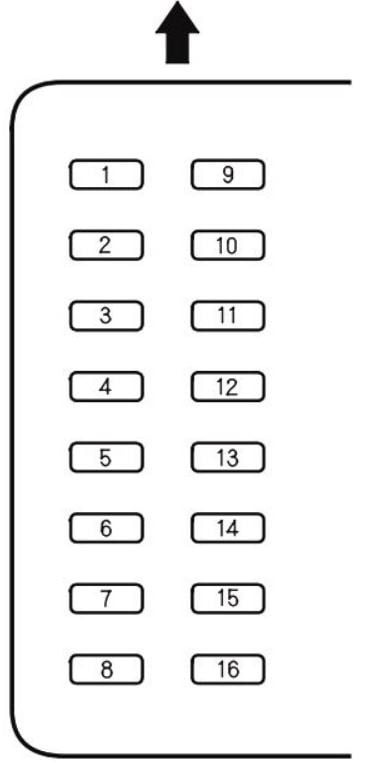

Passenger compartment, Passenger’s Side
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 20 A | Driver’s Power Window |
| 2 | 20 A | Driver’s Power Seat Reclining |
| 3 | 20 A | Heated Seat (Canadian models) |
| 4 | 20 A | Driver’s Power Seat Sliding |
| 5 | — | Not used |
| 6 | 10 A | Daytime Running Light (Canadian models) |
| 7 | 20 A | Driver’s side Rear Power Window |
| 8 | 20 A | Front Passenger’s Power Window |
| 9 | 15 A | Front Accessory Socket, Radio |
| 10 | 15 A | Small Light |
| 11 | 10 A | Interior Light, Navi |
| 12 | 20 A | Power Door Lock |
| 13 | 7.5 A | Back Up |
| 14 | 7.5 A | Moonroof |
| 15 | 20 A | Moonroof |
| 16 | 20 A | Passenger’s Side Rear Power Window |
Honda Pilot (2005 to 2008)
Passenger compartment, Driver’s Side
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 15 A | Fuel Pump |
| 2 | 10 A | SRS |
| 3 | 7.5 A | Heater Control, A/C Clutch Relay, Cooling Fan Relay |
| 4 | 7.5 A | Power Mirror, VTM-4 |
| 5 | 7.5 A | Daytime Running Light (Canadian models) |
| 6 | 15 A | ECU (PCM), Cruise Control |
| 7 | 7.5 A | OPDS, Rear Wiper |
| 8 | 7.5 A | ACC Relay |
| 9 | 10 A | Back-up Lights, Instrument Lights |
| 10 | 7.5 A | Turn Signals |
| 11 | 7.5 A | VTM-4 |
| 12 | 30 A | Front Wiper |
| 13 | — | Not used |
Passenger compartment, Passenger’s Side
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 20 A | Driver’s Power Window |
| 2 | 20 A | Driver’s Power Seat Reclining |
| 3 | 20 A | Heated Seat (Canadian models) |
| 4 | 20 A | Driver’s Power Seat Sliding |
| 5 | — | Not used |
| 6 | 10 A | Daytime Running Light (Canadian models) |
| 7 | 20 A | Driver’s side Rear Power Window |
| 8 | 20 A | Front Passenger’s Power Window |
| 9 | 15 A | Front Accessory Socket, Radio |
| 10 | 15 A | Small Light |
| 11 | 10 A | Interior Light, Navi |
| 12 | 20 A | Power Door Lock |
| 13 | 7.5 A | Back Up |
| 14 | 7.5 A | Moonroof |
| 15 | 20 A | Moonroof |
| 16 | 20 A | Passenger’s Side Rear Power Window |

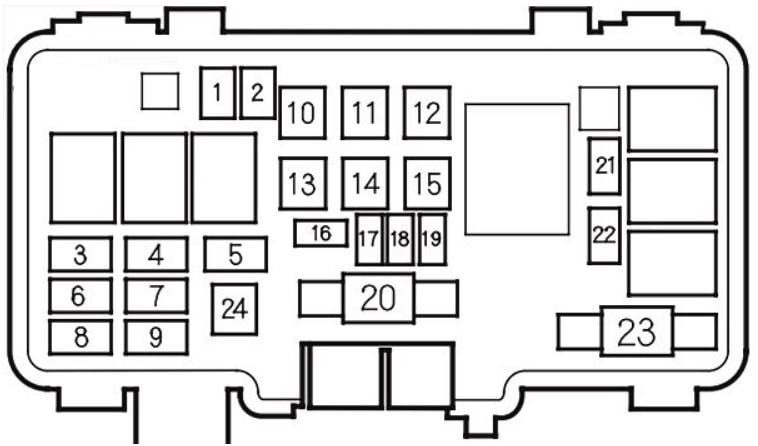

Engine Compartment Fuse Box Diagram
Honda Pilot (2003 and 2004)
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 20 A | Spare Fuse |
| 2 | 30 A | Spare Fuse |
| 3 | 20 A | Right Headlight |
| 4 | 15 A | ACG S |
| 5 | 15 A | Hazard |
| 6 | — | Not used |
| 7 | 20 A | Stop |
| 8 | 20 A | Left Headlight |
| 9 | 20 A | Radio |
| 10 | 40 A | Power Window Motor |
| 11 | 40 A | Power Seat |
| 12 | 30 A | Rear Defroster |
| 13 | 40 A | Back Up, ACC |
| 14 | 30 A | Rear A/C |
| 15 | 40 A | Heater Motor |
| 16 | 30 A | Cooling Fan |
| 17 | 7.5 A | Spare Fuse |
| 18 | 10 A | Spare Fuse |
| 19 | 15 A | Spare Fuse |
| 20 | 120 A | Battery |
| 21 | 30 A | Condenser Fan |
| 22 | 7.5 A | MG Clutch |
| 23 | 50 A | IGI Main |
| 24 | 20 A | Trailer (accessory) |
Engine compartment, secondary fuse box
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 40 A | ABS Motor |
| 2 | 20 A | ABS F/S |
| 3 | 20 A | Rear ACC Socket |
| 4 | 20 A | 4WD |
Honda Pilot (2005 to 2008)
Engine compartment, primary fuse box
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 20 A | Spare Fuse |
| 2 | 30 A | Spare Fuse |
| 3 | 20 A | Right Headlight |
| 4 | 15 A | ACG S |
| 5 | 15 A | Hazard |
| 6 | — | Not used |
| 7 | 20 A | Stop |
| 8 | 20 A | Left Headlight |
| 9 | 20 A | Radio |
| 10 | 40 A | Power Window Motor |
| 11 | 40 A | Power Seat |
| 12 | 30 A | Rear Defroster |
| 13 | 40 A | Back Up, ACC |
| 14 | 30 A | Rear A/C |
| 15 | 40 A | Heater Motor |
| 16 | 30 A | Cooling Fan |
| 17 | 7.5 A | Spare Fuse |
| 18 | 10 A | Spare Fuse |
| 19 | 15 A | Spare Fuse |
| 20 | 120 A | Battery |
| 21 | 30 A | Condenser Fan |
| 22 | 7.5 A | MG Clutch |
| 23 | 50 A | IGI Main |
| 24 | — | Trailer (accessory) |

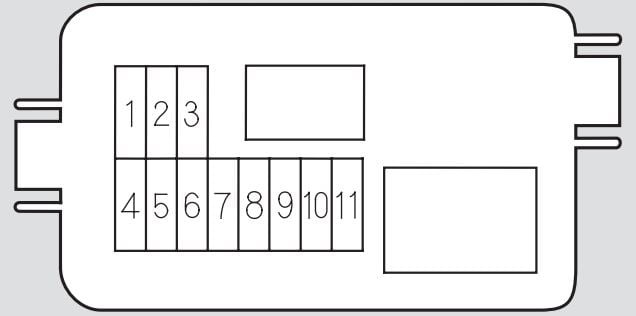

Engine compartment, secondary fuse box
Assignment of the fuses in the Engine compartment, secondary fusebox (2005)
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 40 A | ABS F/S Relay |
| 2 | 20 A | VSA F/S Relay |
| 3 | 30 A | VSA Motor |
| 4 | 40 A | ABS Motor |
| 5 | 20 A | 4WD |
| 6 | 20 A | Rear Accessory Socket |
| 7 | 15 A | ETCS |
| 8 | 15 A | IG Coil |
| 9 | 15 A | LAP |
| 10 | 7.5 A | TPMS |
| 11 | (15 A) | (FR FOG) |
Assignment of the fuses in the Engine compartment, secondary fusebox (2006, 2007 and 2008)
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 20 A | AC INVERTER |
| 2 | 40 A | VSA F/S Relay |
| 3 | 30 A | VSA Motor |
| 4 | 20 A | VTM-4 |
| 5 | 10 A | ACM |
| 6 | 15 A | Rear Accessory Socket |
| 7 | 15 A | ETCS |
| 8 | 15 A | IG Coil |
| 9 | 15 A | LAF |
| 10 | 7.5 A | TPMS |
| 11 | (20 A) | (FR FOG) |
