Jeep Wrangler (1987 – 1995) Fuse Box Location and Diagrams

Fuse box diagrams and locations for 1987–1995 Jeep Wrangler vehicles are covered in this blog . This information is needed to fix electrical problems, replace fuses, and maintain your Wrangler’s electrical system.

Passenger Compartment Fuse Box Diagram

Jeep Wrangler (1987 to 1995)

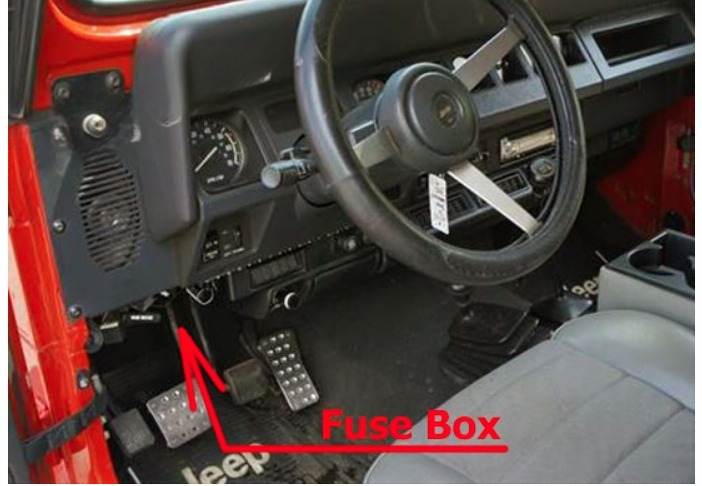

Fuse box location
It is located under the dashboard.

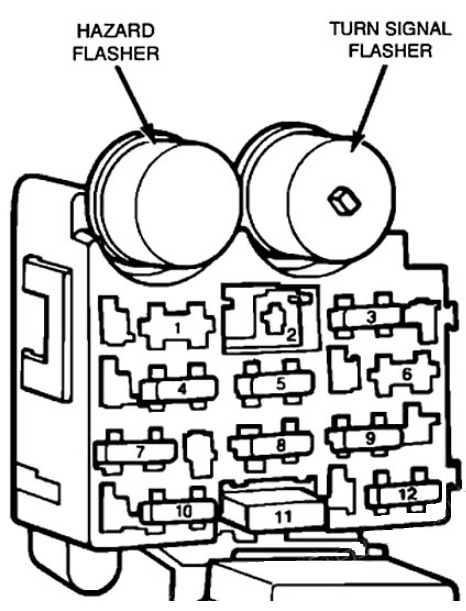

Fuse box diagram

No	Amp Rating	Description
1	20	Rear Window Wiper
2	–	–
3	15	Stop Lamp, Hazard Flasher, Underhood Lamp Stop Lamp Switch, Cruise Control
4	15	Turn Signal Flasher, Backup Lamps
5	10 or 20	(1987-1992) Courtesy Lamps, Dome Lamp Gauge Package, Radio (20A); (1992 to 1995) Automatic Shut-Down Relay, Fuel Pump Relay, P.C.M. (10A)
6	25	Rear Window Defogger Relay
7	20	Cigar Lighter , Radio, Cruise Control, Illumination Lamps
8	20	Headlamp Switch, Key Warning Switch, Panel Lamp Dimmer Switch, Rear Park/marker Lamps, Front Park/marker Lamps, Radio, Turn Signal Switch
9	15	Buzzer Module, Defogger Switch, Gauge Package, Tachometer, Emission Maintenance Timer, Warning Lamps, Gauges, Heated Rear Window Relay, Back-Up Lamps, A/C Compressor Clutch Relay, Defogger Relay
10	5	Instrument Panel, Illumination Lamps
11		(1987 to1989) Wiper Switch, Wiper Motor; (1990 to 1995) Wiper Switch, Wiper Motor
12	25	Blower Motor, A/C Compressor Clutch

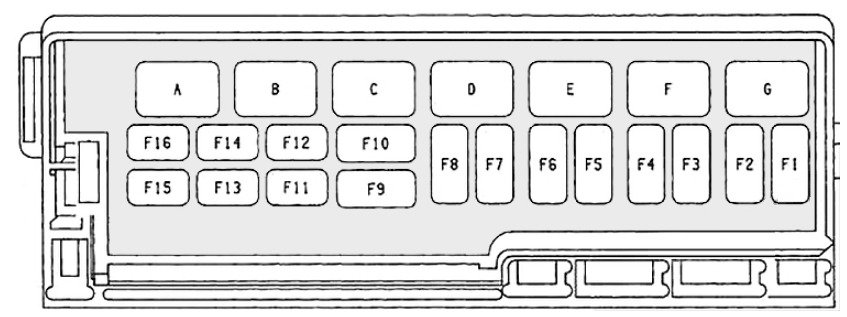

Engine Compartment Fuse Box Diagram

Jeep Wrangler (1992 to 1995)

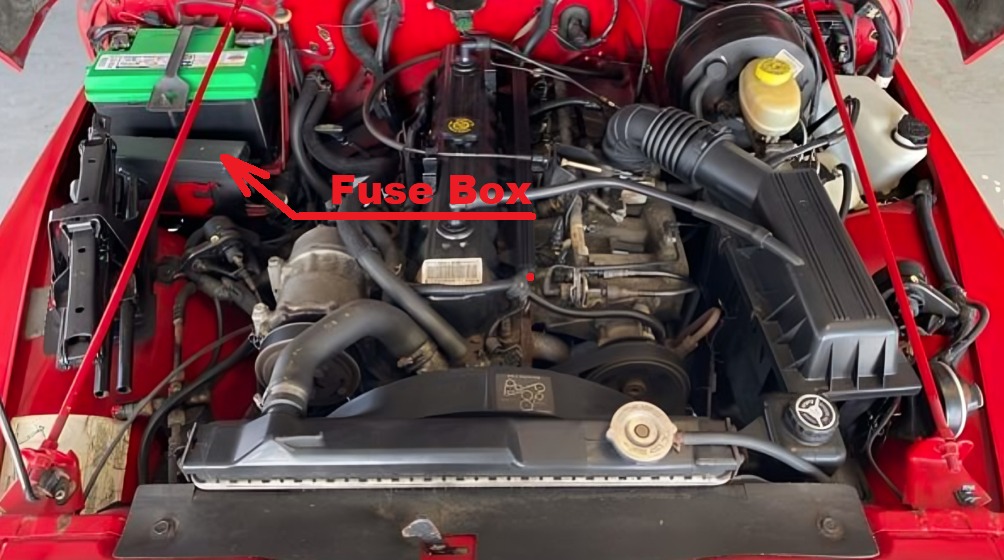

Fuse box location
