Jeep Wrangler (2007 – 2018) Fuse Box Location and Diagrams
This blog covers 2007–2018 Jeep Wrangler fuse box diagrams and locations. Get accurate, model-specific information about interior and engine compartment fuse panels, fuse operations, and electrical difficulties.
Fuse Box Location

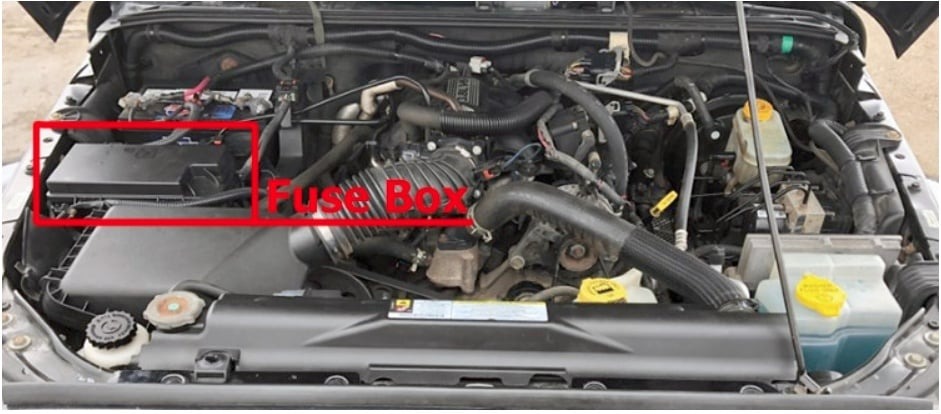

Engine Compartment Fuse Box
The Totally Integrated Power Module (TIPM) is located in the engine compartment near the battery.
his center contains cartridge fuses, mini fuses and relays. A label that identifies each component is printed on the inside of the cover.

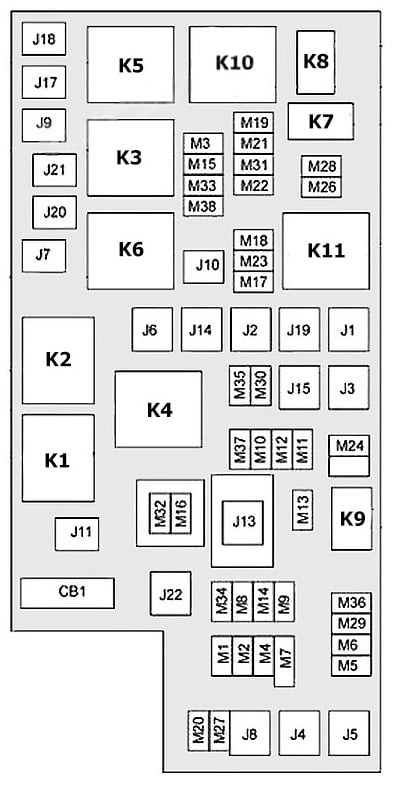

Engine Compartment Fuse Box Diagram
Jeep Wrangler (2007)
| Cavity | Cartridge Fuse | Mini Fuse | Description |
| J1 | 40 Amp Green | Power Folding Seat | |
| J2 | 30 Amp Pink | Transfer Case / Pwr Liftgate Module | |
| J3 | 40 Amp Green | Rear Door Module (RR DOOR NODE) | |
| J4 | 25 Amp Natural | Driver Door Node | |
| J5 | 25 Amp Natural | Passenger Door Node | |
| J6 | 40 Amp Green | Anti-Lock Brake Sys- tem (ABS) Pump / ESP | |
| J7 | 30 Amp Pink | Anti-Lock Brake Sys- tem (ABS) Valve / ESP | |
| J8 | 40 Amp Green | Power Memory Seat (If Equipped) |
| Cavity | Cartridge Fuse | Mini Fuse | Description |
| J9 | 40 Amp Green | PZEV Motor / Flex Fuel | |
| J10 | 30 Amp Pink | Headlamp Wash Relay / Manual Tuning Valve | |
| J11 | 30 Amp Pink | Sway Bar / THATCHAM Lock- Unlock / Power Slid- ing Door Module | |
| J13 | 60 Amp Yellow | Ignition Off Draw (IOD) — Main | |
| J14 | 40 Amp Green | EBL (Rear Window Defogger) | |
| J15 | 30 Amp Pink | Rear Blower | |
| J17 | 40 Amp Green | Starter Solenoid |
| J18 | 20 Amp Yellow | Powertrain Control Module (PCM) Trans Range | |
| J19 | 60 Amp Yellow | Radiator Fan | |
| J20 | 30 Amp Pink | Front Wiper LO / HI | |
| J21 | 20 Amp Yellow | Front / Rear Washer | |
| J22 | 25 Amp Natural | Sunroof Module | |
| M1 | 15 Amp Blue | Center High Mounted Stop Light (CHMSL) / Brake Switch | |
| M2 | 20 Amp Yellow | Trailer Lighting |
| M3 | 20 Amp Yellow | Frt / Rear Axle Lockers | |
| M4 | 10 Amp Red | Trailer Tow | |
| M5 | 25 Amp Natural | Inverter | |
| M6 | 20 Amp Yellow | Power Outlet #1 / Rain Sensor | |
| M7 | 20 Amp Yellow | Power Outlet #2 (BATT / ACC SELECT) | |
| M8 | 20 Amp Yellow | Front Heated Seat | |
| M9 | 20 Amp Yellow | Rear Heated Seat (If Equipped) |
| M10 | 20 Amp Yellow | Ignition Off Draw — Vehicle Entertainment System (IOD-VES), Satellite Digital Audio Receiver (SDARS), DVD, Hands Free Module (HFM), RA- DIO, Antenna (ANT), Universal Garage Door Opener (UGDO), Vanity Lamp (VANITY LP) | |
| M11 | 10 Amp Red | (Ignition Off Draw) IOD-HVAC / ATC, MW SENSR, Under- hood Lamp (UH LMP) |
| M12 | 30 Amp Green | Amplifier (AMP) | |
| M13 | 20 Amp Yellow | Ignition Off Draw— Cabin Compartment Node (IOD-CCN), Wireless Control Module (WCM), SI- REN, Clock Module (CLK MOD), Multi- Function Control Switch (MULTIFCTN SW) | |
| M14 | 20 Amp Yellow | Trailer Tow (Export Only) |
| M15 | 20 Amp Yellow | COL MOD, IR SNS, Heater Ventilation, Air Conditioning / Automatic Tempera- ture Control (HVAC / ATC), Rear View Mirror (RR VW MIR), Cabin Compartment Node (CCN), Transfer Case Switch (T-CASE SW), RUN / ST, Multi- Function Control Switch (MULTIFTCN SW), Tire Pressure Monitor (TPM), Glow Plug Module (GLW PLG MOD) — Export Diesel Only |
| M16 | 10 Amp Red | Occupant Restraint Controller / Occupant Classification Module (ORC / OCM) | |
| M17 | 15 Amp Blue | Left Tail / License / Park Lamp (LT-TAIL / LIC / PRK LMP) | |
| M18 | 15 Amp Blue | Right Tail / Park / Run Lamp (RT-TAIL / PRK / RUN LMP) | |
| M19 | 25 Amp Natural | Auto Shut Down (ASD #1 and #2) | |
| M20 | 15 Amp Blue | Cabin Compartment Node Interior Light (CCN INT LIGHT), Switch Bank (SW BANK), Steering Con- trol Module (SCM) |
| M21 | 20 Amp Yellow | Auto Shut Down (ASD #3) | |
| M22 | 10 Amp Red | Right Horn (RT HORN (HI / LOW) | |
| M23 | 10 Amp Red | Left Horn (LT HORN (HI / LOW) | |
| M24 | 25 Amp Natural | Rear Wiper (REAR WIPER) | |
| M25 | 20 Amp Yellow | Fuel Pump (FUEL PUMP), Diesel Lift Pump (DSL LIFT PUMP) — Export Only | |
| M26 | 10 Amp Red | Power Mirror Switch (PWR MIRR SW), Driver Window Switch (DRVR WIND SW) |
| M27 | 10 Amp Red | Ignition Switch (IGN SW), Window Module (WIN MOD) | |
| M28 | 10 Amp Red | Next Generation Con- troller (NGC), Trans- mission Feed (TRANS FEED), J1962 | |
| M29 | 10 Amp Red | Occupant Classifica- tion Module (OCM) | |
| M30 | 15 Amp Blue | Rear Wiper Module (RR WIPER MOD), Power Folding Mirror (PWR FOLD MIR) | |
| M31 | 20 Amp Yellow | Back-Up Lamps (B / U LAMPS) |
| M32 | 10 Amp Red | Occupant Restraint Controller (ORC), TT EUROPE | |
| M33 | 10 Amp Red | Next Generation Con- troller (NGC), Global Powertrain Engine Controller (GPEC) | |
| M34 | 10 Amp Red | Park Assist (PRK ASST), Heater Venti- lation, Air Condition- ing Module (HVAC MOD), Headlamp Wash (HDLP WASH), Compass (COMPAS) | |
| M35 | 10 Amp Red | Heated Mirrors |
| M36 | 20 Amp Yellow | Power Outlet #3 (BATT) | |
| M37 | 10 Amp Red | Anti-Lock Brake Sys- tem (ABS), Electronic Stability Program (ESP), Stop Lamp Switch (STP LP SW), Fuel Pump Rly Hi Control | |
| M38 | 25 Amp Natural | Lock / Unlock Motors (LOCK / UNLOCK MTRS) |
Jeep Wrangler (2008, 2009 and 2010)
| Cavity | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| J1 | — | — | |
| J2 | 30 Amp Pink | Transfer Case Module | |
| J3 | — | — | |
| J4 | 25 Amp Natural | Driver Door Node | |
| J5 | 25 Amp Natural | Passenger Door Node | |
| J6 | 40 Amp Green | Anti-Lock Brake Svstem (ABS) Pump Feed/ESP | |
| J7 | 30 Amp Pink | Anti-Lock Brake Svstem (ABS) Valve Feed/ESP | |
| J8 | — | — | |
| J9 | 40 Amp Green | PZEV Sec Motor Feed/ Flex Fuel | |
| J10 | 30 Amp Pink | Headlamp Wash Relay/ Manifold Tuning Valve | |
| J11 | 30 Amp Pink | Sway Bar | |
| J13 | 60 Amp Yellow | Ignition Off Draw (IOD) — Main | |
| J14 | 40 Amp Green | EBL (Rear Window De-fogRer) | |
| J15 | 30 Amp Pink | Rear Blower | |
| J17 | 40 Amp Green | Starter Solenoid | |
| J18 | 20 Amp Yellow | Powertrain Control Module (PCM) Trans Range | |
| J19 | 60 Amp Yellow | Radiator Fan | |
| J20 | 30 Amp Pink | Front Wiper LO/HI | |
| J21 | 20 Amp Yellow | Front/Rear Washer | |
| J22 | — | Spare | |
| M1 | 15 Amp Blue | Center High-Mounted Stop Light (CHMSL)/ Switch Stop Lamp Feed | |
| M2 | 20 Amp Yellow | Relay Trailer Lighting (Stop) | |
| M3 | 20 Amp Yellow | Frt/Rear Axle Locker Relay | |
| M4 | — | — | |
| M5 | — | — | |
| M6 | 20 Amp Yellow | Power Outlet #1/Rain Sensor | |
| M7 | 20 Amp Yellow | Power Outlet #2 (BATT/ACC SELECT) | |
| M8 | 20 Amp Yellow | Front Heated Seat | |
| M9 | 20 Amp Yellow | Rear Heated Seat (If Equipped) | |
| M10 | 20 Amp Yellow | Ignition Off Draw — Vehicle Entertainment System (IOD-VES), Satellite Digital Audio Receiver (SDARS), DVD, Hands-Free Module (HFM), RADIO, Antenna (ANT), Universal Garage Door Opener (UGEKD), Vanity Lamp (VANITY LP) | |
| M11 | 10 Amp Red | (Ignition Off Draw) IOD-HVAC/ ATC, MW SENSR, Underhood Lamp (UH LMP) | |
| M12 | 30 Amp Green | Amplifier (AMP) | |
| M13 | 20 Amp Yellow | Ignition Off Draw— Cabin Compartment Node (IOD-CCN), Wireless Control Module (WCM), SIREN, Multifunction Control Switch (MULTIFCTN SW) | |
| M14 | 20 Amp Yellow | Trailer Tow (Export Only) | |
| M15 | 20 Amp Yellow | COL MOD, IR SNS, Heater Ventilation, Air Conditioning/ Automatic Temperature Control (HVAC/ATC), Rear View Mirror (RR VW MIR), Cabin Compartment Node (CCN), Transfer Case Switch (T-CASE SW), RUN/ST, Multi-Function Control Switch (MULTIFTCN SW), Tire Pressure Monitor (TPM), Glow Plug Module (GLW PLG MOD) — Export Diesel Only | |
| M16 | 10 Amp Red | Occupant Restraint Controller (ORC) | |
| M17 | 15 Amp Blue | Left Tail/License/Park Lamp (LT-TAIL/LIC/ PRK LMP) | |
| M18 | 15 Amp Blue | Right Tail/Park/Run Lamp (RT-TAIL/PRK/ RUN LMP) | |
| M19 | 25 Amp Natural | Auto Shut Down (ASD #1 and #2) | |
| M20 | 15 Amp Blue | Cabin Compartment Node Interior Light (CCN INT LIGHT), Switch Bank (SW BANK) | |
| M21 | 20 Amp Yellow | Auto Shut Down (ASD #3) | |
| M22 | 10 Amp Red | Right Horn (RT HORN (HI/LOW) | |
| M23 | 10 Amp Red | Left Horn (LT HORN (HI/LOW) | |
| M24 | 25 Amp Natural | Rear Wiper (REAR WIPER) | |
| M25 | 20 Amp Yellow | Fuel Pump (FUEL PUMP), Diesel Lift Pump (DSL LIFT PUMP) — Export Only | |
| M26 | — | — | |
| M27 | 10 Amp Red | Ignition Switch Feed, Wireless Module | |
| M28 | 10 Amp Red | PCM Feed/TCM | |
| M29 | — | — | |
| M30 | 15 Amp Blue | Wiper Motor Frt, J1962 Diagnostic Feed | |
| M31 | 20 Amp Yellow | Backup Lamps (B/U LAMPS) | |
| M32 | 10 Amp Red | Occupant Restraint Controller (ORC), TT EUROPE | |
| M33 | 10 Amp Red | Next Generation Controller (NGC), Global Powertrain Engine Controller (GPEC) | |
| M34 | 10 Amp Red | Park Assist (PRK ASST), Heater Ventilation, Air Conditioning Module (HVAC MOD), Headlamp Wash (HDLP WASH), Compass (COMPAS) | |
| M35 | 10 Amp Red | Heated Mirrors | |
| M36 | 20 Amp Yellow | Power Outlet | |
| M37 | 10 Amp Red | Anti-Lock Brake System (ABS), Electronic Stability Program (ESP), Stop Lamp Switch (STP LP SW), Fuel Pump Rly Hi Control | |
| M38 | 25 Amp Natural | Lock/Unlock Motors (LOCK/UNLOCK MTRS) |
Jeep Wrangler (2011 to 2017)
| Cavity | Cartridge Fuse | Mini Fuse | Description |
| J1 | – | – | – |
| J2 | 30 Amp Pink | – | Transfer Case Module |
| J3 | – | – | – |
| J4 | 25 Amp Clear | – | Driver Door Node |
| J5 | 25 Amp Clear | – | Passenger Door Node |
| J6 | 40 Amp Green | – | Anti-Lock Brake System (ABS) Pump/ Stability Control System |
| J7 | 30 Amp Pink | – | Anti-Lock Brake System (ABS) Valve/ Stability Control System |
| J8 | – | – | – |
| J9 | 40 Amp Green | – | PZEV Sec Motor/Flex Fuel |
| J10 | 30 Amp Pink | – | Headlamp Wash Relay/Manifold Tuning Valve |
| J11 | 30 Amp Pink | – | Sway Bar |
| J12 | 30 Amp Pink – | – – | (2011 to 2016) Rear Blower Motor/Radiator Fan (2017) – |
| J13 | 60 Amp Yellow | – | Ignition Off Draw (IOD) – Main |
| J14 | 40 Amp Green | – | Rear Defroster |
| J15 | 40 Amp Green | – | Front Blower |
| J17 | 40 Amp Green | – | Starter Solenoid |
| J18 | 20 Amp Blue | – | Powertrain Control Module (PCM) Trans Range |
| J19 | 60 Amp Yellow | – | Radiator Fan |
| J20 | 30 Amp Pink | – | Front Wiper LO/HI |
| J21 | 20 Amp Blue | – | Front/Rear Washer |
| J22 | – | – | Spare |
| M1 | – | 15 Amp Blue | Center High-Mounted Stop Light (CHMSL)/Switch Stop Lamp Feed |
| M2 | – | 20 Amp Yellow | Relay Trailer Lighting (Stoplamp) |
| M3 | – | 20 Amp Yellow | Frt/Rear Axle Locker Relay |
| M4 | – | 2 Amp Grey | Clock Spring |
| M5 | – | 25 Amp Clear | Power Inverter – If Equipped |
| M6 | – | 20 Amp Yellow | Power Outlet #1/Rain Sensor |
| M7 | – | 20 Amp Yellow | Power Outlet #2 (BATT/ACC SELECT) |
| M8 | – | 20 Amp Yellow | Front Heated Seat |
| M9 | – | 20 Amp Yellow | Rear Heated Seat – If Equipped |
| M10 | – | 15 Amp Blue | Ignition Off Draw – Vehicle Entertainment System, Satellite Digital Audio Receiver (SDARS), DVD, Hands-Free Module, RA- DIO, Antenna, Universal Garage Door Opener, Vanity Lamp |
| M11 | – | 10 Amp Red | (Ignition Off Draw) Climate Control Sys- tem, Underhood Lamp |
| M12 | – | 30 Amp Green | Amplifier |
| M13 | – | 20 Amp Yellow | Ignition Off Draw – Cabin Compartment Node, Wireless Control Module, SIREN, Multifunction Control Switch |
| M14 | – | 20 Amp Yellow | Trailer Tow (Export Only) |
| M15 | – | 20 Amp Yellow | Climate Control System, Rear View Mirror, Cabin Compartment Node, Transfer Case Switch, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – Export Diesel Only |
| M16 | – | 10 Amp Red | Airbag Module |
| M17 | – | 15 Amp Blue | Left Tail/License/Park Lamp |
| M18 | – | 15 Amp Blue | Right Tail/Park/Run Lamp |
| M19 | – | 25 Amp Clear | Auto Shut Down (ASD #1 and #2) |
| M20 | – | 15 Amp Blue | Cabin Compartment Node Interior Light, Switch Bank |
| M21 | – | 20 Amp Yellow | Auto Shut Down (ASD #3) |
| M22 | – | 10 Amp Red | Right Horn (HI/LOW) |
| M23 | – | 10 Amp Red | Left Horn (HI/LOW) |
| M24 | – | 25 Amp Clear | Rear Wiper |
| M25 | – | 20 Amp Yellow | Fuel Pump, Diesel Lift Pump – Export Only |
| M26 | – | 10 Amp Red – | (2012 to 2016) Power Window Switch, Driver Window Switch (2011) – |
| M27 | – | 10 Amp Red | Ignition Switch Feed, Wireless Module |
| M28 | – | 10 Amp Red | Powertrain Control Module |
| M29 | – | 10 Amp Red | Powertrain |
| M30 | – | 15 Amp Blue | Wiper Motor Frt, J1962 Diagnostic Feed |
| M31 | – | 20 Amp Yellow | Backup Lamps |
| M32 | – | 10 Amp Red | Airbag Controller, TT EUROPE |
| M33 | – | 10 Amp Red | Powertrain Controller |
| M34 | – | 10 Amp Red | Park Assist, Climate Control System, Headlamp Wash, Compass |
| M35 | – | 10 Amp Red | Heated Mirrors |
| M36 | – | 20 Amp Yellow | Power Outlet |
| M37 | – | 10 Amp Red | Anti-Lock Brake System, Electronic Stabil- ity Control, Stop Lamp Switch, Fuel Pump Relay |
| M38 | – | 25 Amp Clear | Lock/Unlock Motors |
Jeep Wrangler (2018)
| Cavity | Cartridge Fuse | Micro Fuse | Description |
| F01 | – | – | Spare |
| F02 | 40 Amp Green | – | Starter |
| F03 | – | 5 Amp Tan | Intelligent Battery Sensor (IBS) |
| F04 | – | 20 Amp Yellow | Fuel Pump MTR/FPCM |
| F05 | – | 5 Amp Tan | Security Gateway |
| F06 | – | – | Spare |
| F07 | – | 15 Amp Blue | Low Temp Radiator Cooling Pump (LTR) — If Equipped |
| F08 | – | 15 Amp Blue | Trans Control Module TCM-8HP CYGNUS |
| F09 | – | – | Spare |
| F10 | – | 15 Amp Blue | Key Ignition Node (KIN)/Radio Frequency Hub(RF HUB)/Electric Steering Column Lock (ESCL) |
| F11 | – | 10 Amp Red | UCI Port (USB & AUX) |
| F12 | – | 25 Amp Clear | HIFI Amplifier |
| F13 | – | – | Spare |
| F14 | – | – | Spare |
| F15 | – | 15 Amp Blue | Instrument Panel Cluster (IPC)/Switch Bank- Heavy Duty Electrical Pkg (SWITCH BANK-HD ELEC) |
| F16 | – | – | Spare |
| F17 | – | – | Spare |
| F18 | – | 10 Amp Red | Air Conditioning Clutch (AC CLUTCH) |
| F19 | – | – | Spare |
| F20 | 30 Amp Pink | – | Central Body Controller (CBC) 1-INTERIOR LIGHTS |
| F21 | – | 20 Amp Yellow | REAR WIPER |
| F22 | – | 10 Amp Red | Engine Control Module (ECM)/Powertrain Control Module (PCM)/Motor Generator Unit (MGU) WAKE UP/Power Pack Unit (PPU) WAKE UP |
| F23 | – | 10 Amp Red | Powertrain Control Module (PCM)/Engine Control Module (ECM) |
| F24 | – | – | Spare |
| F25 | – | 10 Amp Red | Module Shift By Wire (MOD_SBW) |
| F26 | 40 Amp Green | – | Central Body Controller (CBC) 2-EXTERIOR LIGHTS #1 |
| F27 | 30 Amp Pink | – | Front Wipers |
| F28 | 40 Amp Green | – | Central Body Controller (CBC) 3-POWER LOCKS |
| F29 | 40 Amp Green | – | Central Body Controller (CBC) 4-EXTERIOR LIGHTS #2 |
| F30 | – | – | Spare |
| F31 | – | 10 Amp Red | DIAGNOSTIC PORT |
| F32 | – | 10 Amp Red | Heating Ventilation Air Conditioning Mod (HVAC CTRL MOD)/Steering Column Lock (SCL)/Occupant Classification Module (OCM)/Driver Presence Detection Module (DPDM) |
| F33 | – | 10 Amp Red | ParkTronics System (PTS)/Infrared Camera Module (IRCM)/Airbag Disable Lamps (AIRBAG DISABLE LMPS) |
| F34 | – | 10 Amp Red | Electronic Stability Control (ESC)/Electric Hydraulic Power Steering (EHPS)/Smart Bar Control Module (SBCM) WAKE UP |
| F35 | 30 Amp Pink | – | BRAKE VAC PMP — If Equipped |
| F36 | 30 Amp Pink | – | TRLR TOW MOD — If Equipped |
| F37 | 30 Amp Pink | – | TRLR TOW CONN 7W — If Equipped |
| F38 | 20 Amp Blue | – | Engine Control Module ECM |
| F39 | – | – | Spare |
| F40 | – | 15 Amp Blue | DriveTrain Control Module (DTCM)/Axle Lock (AXLE LOC) FT_RR |
| F41 | – | 15 Amp Blue | Instrument Cluster (IC)/Security GateWay (SGW) WAKE UP |
| F42 | – | 10 Amp Red | Power Control Relay Control Feed (Electric Stop/Start)/Spare (Belt Starter Generator) — If Equipped |
| F43 | 20 Amp Yellow | PWR OUTLET (CARGO) BATT | |
| F44 | – | 10 Amp Red | InfraRed Camera (IRCAM) HEATERS |
| F45 | – | 20 Amp Yellow | PWR OUTLET (CARGO) IGN* |
| F46 | – | 10 Amp Red | AUTO HDLP LVL MOD/LVL MTR/HDLP SW |
| F47 | – | – | Spare |
| F48 | – | – | Spare |
| F49 | – | 10 Amp Red | Occupant Restraint Controller ORC |
| F50 | – | 10 Amp Red | HD ACC — If Equipped |
| F51 | – | 10 Amp Red | Digital TV (DSRC)/USB/InSide RearView Mirror (ISRVM)/ Compass Module (CSGM) |
| F52 | – | 20 Amp Yellow | CIGAR LTR |
| F53 | – | – | Spare |
| F54 | – | – | Spare |
| F55 | – | – | Spare |
| F56 | – | 10 Amp Red | IN-CAR TEMP SENSOR |
| F57 | – | 20 Amp Yellow | Frt Drvr Htd Seat |
| F58 | – | 20 Amp Yellow | Frt Pass Htd Seat |
| F59 | – | – | Spare |
| F60 | – | 15 Amp Blue | Comfort Steering Wheel Module (CSWM) (HTD STR WHEEL) |
| F61 | – | 10 Amp Red | Left Blind Spot Sensor (LBSS)/Right Blind Spot Sensor (RBSS) |
| F62 | – | – | Spare |
| F63 | – | 10 Amp Red | Occupant Restraint Controller (ORC) |
| F64 | – | – | Spare |
| F65 | – | – | Spare |
| F66 | 40 Amp Green | – | HVAC BLOWER MTR FRT |
| F67 | – | – | Spare |
| F68 | – | – | Spare |
| F69 | – | 5 Amp Tan | Motor Generator Unit MGU Belt Starter Gen- erator (BSG) — If Equipped |
| F70 | – | 25 Amp Clear | INJ/IGN COIL (GAS)/GLO PLUG MOD (DSL) |
| F71 | – | – | Spare |
| F72 | – | 10 Amp Red | HD ELEC ACC PKG — If Equipped |
| F73 | 20 Amp Blue | – | PWR TOP LT |
| F74 | 20 Amp Blue | – | PWR TOP RT |
| F75 | – | 10 Amp Red | Power Pack Unit – Battery Pack Control Module & Auxiliary Power Module (PPU- BPCM & APM) Belt Starter Generator (BSG) — If Equipped |
| F76 | – | 20 Amp Yellow | ECM (GAS)/PCM (DSL) |
| F77 | – | 10 Amp Red | HTD MIRRORS |
| F78 | – | 10 Amp Red | COMP/INTRUSION/SIREN/INTRUSION SNSRS |
| F79 | – | 20 Amp Yellow | SMART BAR CTRL MOD |
| F80 | – | 15 Amp Blue | Powertrain Control Module (PCM) |
| F81 | 30 Amp Pink | – | REAR DEFROSTER (EBL) |
| F82 | 30 Amp Pink | – | FUEL HTR — If Equipped |
| F83 | 60 Amp Yellow | GLOW PLUG — If Equipped | |
| F84 | 30 Amp Pink | – | UREA HTR CTRL UNIT — If Equipped |
| F85 | – | 10 Amp Red | PM SENSOR — If Equipped |
| F86 | 30 Amp Pink | – | BRAKE VAC PMP 2 — If Equipped |
| F87 | – | 10 Amp Red | SUPPLY/PURGING PMP — If Equipped |
| F88 | 20 Amp Blue | – | NOx SENSOR #1/ #2 — IF Equipped |
| F89 | – | 10 Amp Red | Steering Column Control Module (SCCM)/ Cruise Control (CRUISE CTL)/Digital TV (DTV) |
| F90 | 20 Amp Blue | – | TRLR TOW PARK LMP — If Equipped |
| F91 | – | 20 Amp Yellow | HORN |
| F92 | 40 Amp Green | – | HD ACCY #2 — If Equipped |
| F93 | 40 Amp Green | – | HD ACCY #1 — If Equipped |
| F94 | – | 10 Amp Red | Tire Pressure Monitor (TPM)/RF Hub system (CORAX) |
| F95 | – | – | Spare |
| F96 | – | 10 Amp Red | PWR MIRROR SW |
| F97 | – | 20 Amp Yellow | RADIO/TBM |
| F98 | – | 10 Amp Red | SW BANK-HD ELEC/OFF ROAD |
| F99 | – | – | Spare |
| F100 | 30 Amp Pink | – | ESC-ECU & VALVES |
| F101 | 30 Amp Pink | – | DriveTrain Control Module (DTCM) |
| F102 | – | 15 Amp Blue | DUAL USB PORT |
| F103 | – | 15 Amp Blue | HD ACCY #3 — If Equipped |
| F104 | – | 15 Amp Blue | PPU COOL PUMP — If Equipped |
| F105 | – | 10 Amp Red | Integrated Center Stack (ICS)/Heat Ventila- tion Air Conditioning (HVAC) |
| F106 | 40 Amp Green | – | Electronic Speed Control (ESC)-PUMP MTR |
| F107 | – | 20 Amp Yellow | TRLR TOW STOP/TURN LT — If Equipped |
| F108 | – | 15 Amp Blue | HD ACCY #4 — If Equipped |
| F109 | – | 20 Amp Yellow | TRLR TOW STOP/TURN RT — If Equipped |
| F110 | 30 Amp Pink | – | POWER INVERTER |
| F111 | 20 Amp Blue | – | TRLR TOW BACKUP — If Equipped |
Relays
| № | Description |
|---|---|
| K1 | Ignition (Run/Accessory) |
| K2 | Ignition (Run) |
| K3 | Starter |
| K4 | Ignition (Run-Start) |
| K5 | Transmission Control Module (TCM) |
| K6 | Rear Window Defogger (Hard Top) |
| K7 | Not Used |
| K8 | Not Used |
| K9 | Not Used |
| K10 | Automatic Shutdown |
| K11 | Radiator Fan Control |
