KIA Rio (2006 – 2011) Fuse Box Diagrams & Location
Find the KIA Rio (2006–2011) fuse box schematics and locations with this guide. To fix electrical faults, repair blown fuses, and maintain vehicle performance, learn about fuse operations, layouts, and identification.
Fuse Box Locations
Instrument panel Fuse Box

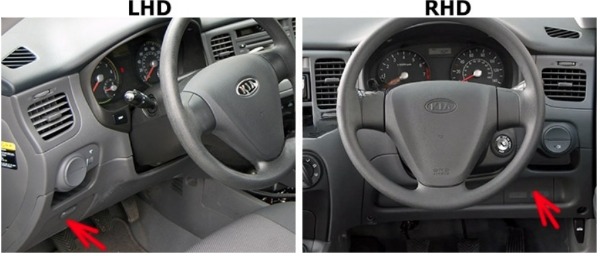

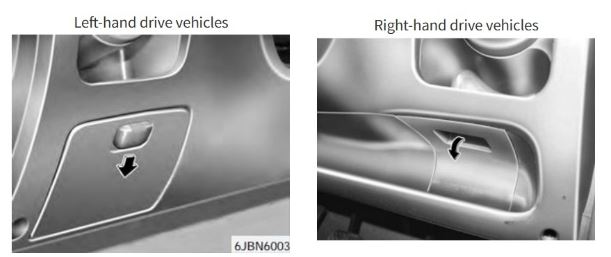

The fuse box is located behind the cover below the steering wheel.

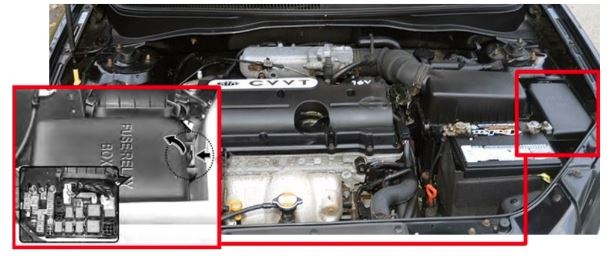

Engine Compartment Fuse Box

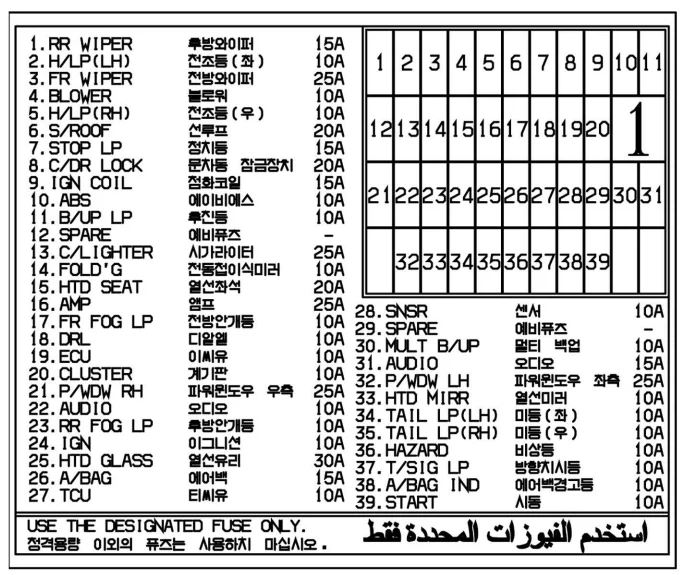

Instrument panel Fuse Box Diagram
KIA Rio (2006 to 2011) Fuse Box
Assignment of the fuses in the Instrument panel
| Description | Amp rating | Protected component |
|---|---|---|
| RR WIPER | 15A | Rear wiper |
| H/LP(LH) | 10A | Headlight (left) |
| FR WIPER | 25A | Front wiper |
| BLOWER | 10A | Blower |
| H/LP(RH) | 10A | Headlight (right) |
| S/ROOF | 20A | Sunroof |
| STOP LP | 15A | Stop light |
| C/DR LOCK | 20A | Central door lock |
| IGN COIL | 15A | Ignition coil |
| ABS | 10A | ABS |
| B/UP LP | 10A | Back-up light |
| SPARE | – | Spare fuse |
| C/LIGHTER | 25A | Cigar lighter |
| FOLD’G | 10A | Outside rearview mirror folding |
| HTD SEAT | 20A | Seat warmer |
| AMP | 25A | Amplifier |
| FR FOG LP | 10A | Front fog light |
| DRL | 10A | Daytime running light |
| ECU | 10A | Engine control unit |
| CLUSTER | 10A | Cluster |
| P/WDW RH | 25A | Power window (right) |
| AUDIO | 10A | Audio |
| RR FOG LP | 10A | Rear fog light |
| IGN | 10A | Ignition |
| HTD GLASS | 30A | Rear window defroster |
| A/BAG | 15A | Air bag |
| TCU | 10A | Automatic transaxle control |
| SNSR | 10A | Sensors |
| SPARE | – | Spare fuse |
| MULT B/UP | 10A | Cluster, ETACS, A/C, Clock, Room lamp |
| AUDIO | 15A | Audio |
| P/WDW LH | 25A | Power window (left) |
| HTD MIRR | 10A | Outside rearview mirror heater |
| TAIL LP(LH) | 10A | Tailliqht (left) |
| TAIL LP(RH) | 10A | Taillight (right) |
| HAZARD | 10A | Hazard warning light |
| T/SIG LP | 10A | Turn signal light |
| A/BAG IND | 10A | Air bag warning |
| START | 10A | Start motor |

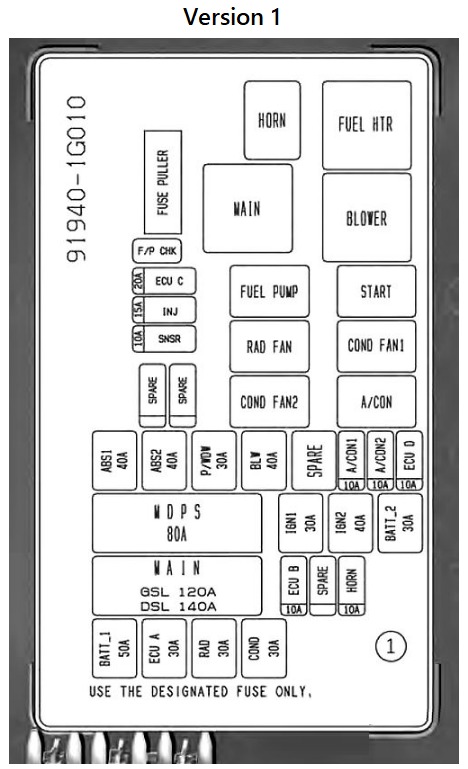

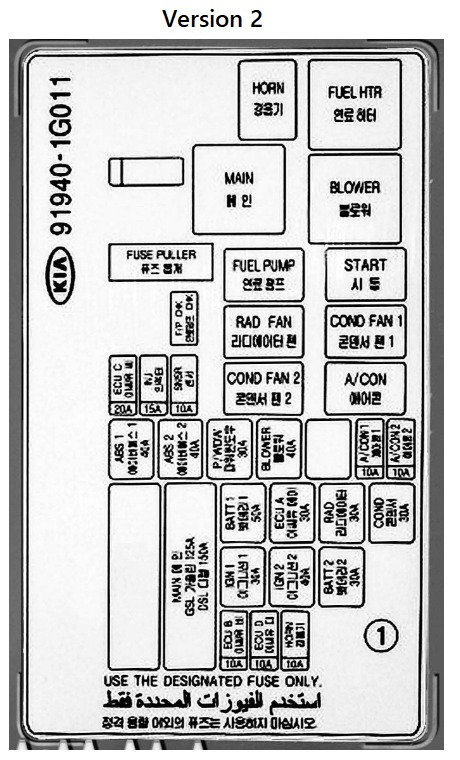

Engine Compartment Fuse Box Diagram
KIA Rio (2006 to 2011) Fuse Box
Diesel engine only
Assignment of the fuses in the Engine compartment
| Description | Amp rating | Protected component |
|---|---|---|
| BATT_1 | 50A | Alternator, Battery |
| ECU A | 30A | Engine control unit |
| RAD | 30A | Radiator fan |
| COND | 30A | Condenser fan |
| ECU B | 10A | Engine control unit |
| SPARE | – | Spare fuse |
| HORN | 10A | Horn |
| IGN1 | 30A | Ignition |
| IGN2 | 40A | Ignition |
| BATT_2 | 30A | Alternator, Battery |
| MAIN | 120A / 150A (Diesel) | Alternator |
| MDPS | 80A | Power steering wheel |
| ABS1 | 40A | ABS |
| ABS2 | 40A | ABS |
| P/WDW | 30A | Power window |
| BLW | 40A | Blower |
| SPARE | – | Spare fuse |
| A/CON1 | 10A | Air conditioner |
| A/CON2 | 10A | Air conditioner |
| ECU D | 10A | Engine control unit |
| SNSR | 10A | Sensors |
| INJ | 15A | Injector |
| ECU C | 20A | Engine control unit |
| SPARE | – | Spare fuse |
| SPARE | – | Spare fuse |
| HORN | – | Horn relay |
| MAIN | – | Main relay |
| FUEL PUMP | – | Fuel pump relay |
| RAD FAN | – | Radiator fan relay |
| COND FAN2 | – | Condenser fan relay |
| FUEL HTR | – | Fuel filter heater relay |
| BLOWER | – | Blower motor relay |
| START | – | Start motor relay |
| COND FAN1 | – | Condenser fan relay |
| A/CON | – | Air conditioner relay |

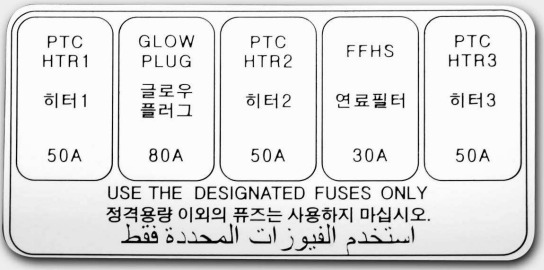

| Diesel Engine: | ||
| PTC HTR1 | 40A | PTC heater 1 |
| GLOW PLUG | 80A | Glow plug |
| PTC HTR2 | 50A | PTC heater 2 |
| FFHS | 30A | Fuel filter |
| PTC HTR3 | 40A | PTC heater 3 |
