KIA Sportage (2004 – 2010) Fuse Box Location & Diagrams
This user guide provides comprehensive information on the KIA Sportage fuse box location and diagrams for models from 2004 to 2010. Whether you’re troubleshooting electrical issues or performing maintenance, this guide will help you easily locate the fuse boxes and understand their layouts. Stay informed and keep your KIA Sportage in top condition with these helpful diagrams and tips.
Fuse Box Locations

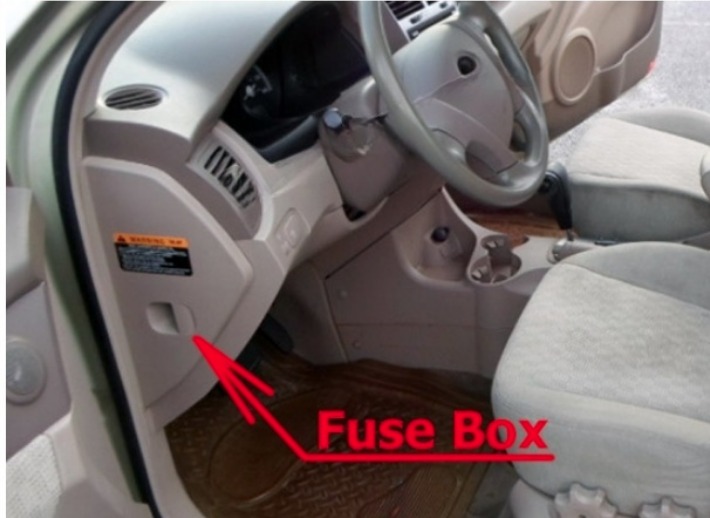

Instrument panel Fuse Box

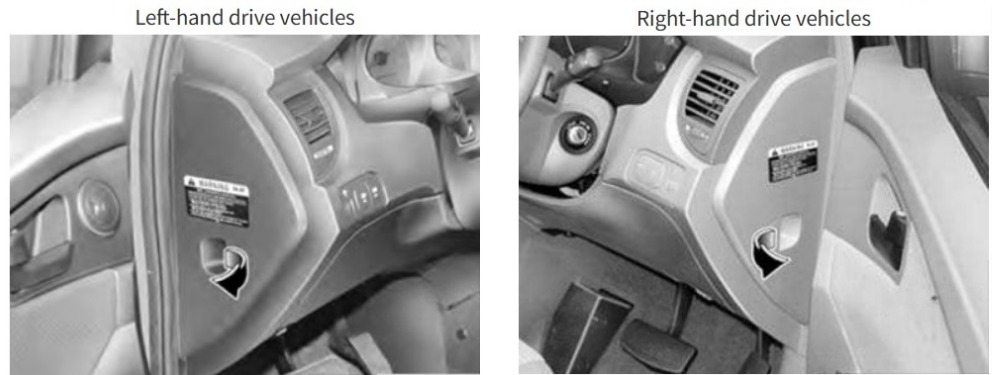

The fuse box is located behind the cover on the driver’s side of the instrument panel.

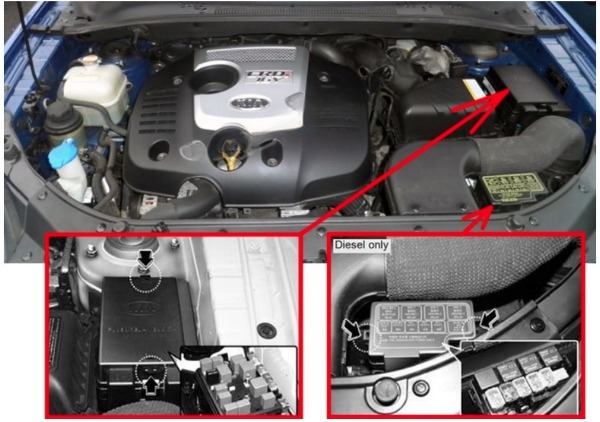

Engine Compartment Fuse Box
Instrument panel Fuse Box Diagram
KIA Sportage (2004 to 2010)

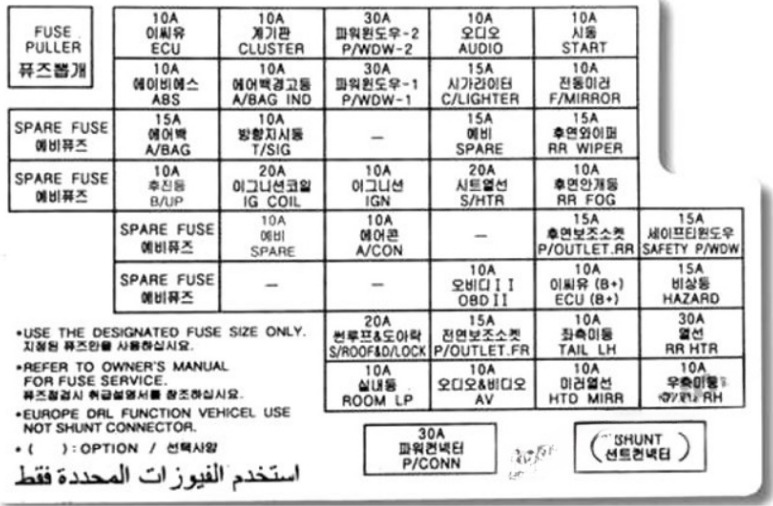

Left-hand drive vehicles

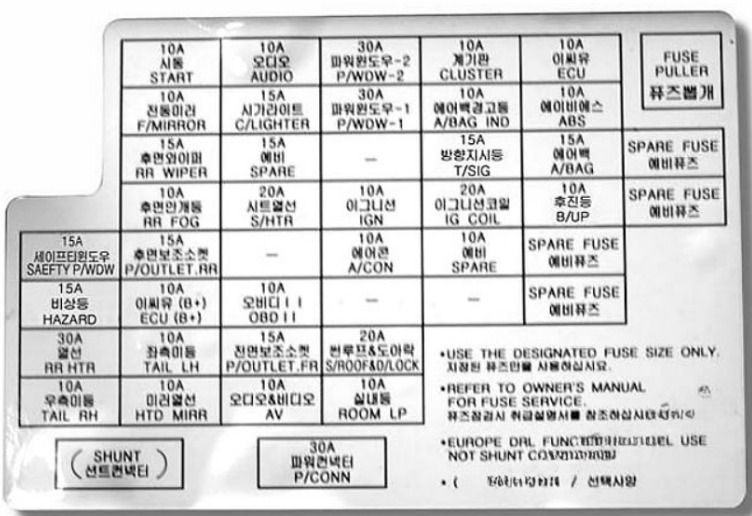

Right-hand drive vehicles
| Description | Amp rating | Protected component |
|---|---|---|
| TAIL RH | 10A | Taillight (right) |
| RR HTR | 30A | Rear defroster |
| HAZARD | 15A | Hazard warning light |
| SAFETY P/WDW | 15A | Safety power window |
| HTD MIRR | 10A | Outside rearview mirror defroster |
| TAIL LH | 10A | Taillight (left) |
| ECU (B+) | 10A | TCU, Immobilizer |
| P/OUTLET.RR | 15A | Power outlet (rear) |
| RR FOG | 10A | Rear fog lamp |
| RR WIPER | 15A | Rear wiper |
| F/MIRROR | 10A | Folding the outside rearview mirror |
| START | 10A | Ignition lock/inhibitor switch, Theft-alarm system |
| AV | 10A | Audio |
| P/OUTLET.FR | 15A | Power outlet (front) |
| OBD II | 10A | OBD II, Diagonosis |
| S/HTR | 20A | Seat warmer |
| SPARE | 15A | Spare fuse |
| C/LIGHTER | 15A | Cigar lighter |
| AUDIO | 10A | ETACS, Audio, Door lock, Electric remote control mirror |
| ROOM LP | 10A | Cluster, ETACS, A/C, Clock, Room lamp |
| S/ROOF & D/LOCK | 20A | Sunroof, Door lock |
| A/CON | 10A | Air conditioner |
| IGN | 10A | Fuel filter heater, AQS, Headlight |
| P/WDW-1 | 30A | Power window (left) |
| P/WDW-2 | 30A | Power window (right) |
| SPARE | 10A | Spare fuse |
| IG COIL | 20A | Ignition coil |
| T/SIG | 15A | Turn signal light |
| A/BAG IND | 10A | Cluster |
| CLUSTER | 10A | Cluster |
| SPARE FUSE | 15A | Spare fuse |
| SPARE FUSE | 10A | Spare fuse |
| B/UP | 10A | Back-up light |
| A/BAG | 15A | Airbag |
| ABS | 10A | Anti-lock brake system |
| ECU | 10A | TCS, ESP, Immobilizer |
| SPARE FUSE | 30A | Spare fuse |
| SPARE FUSE | 20A | Spare fuse |
| P/CONN | 30A | Power connector fuse |
| SHUNT CONN | – | Shunt connector |

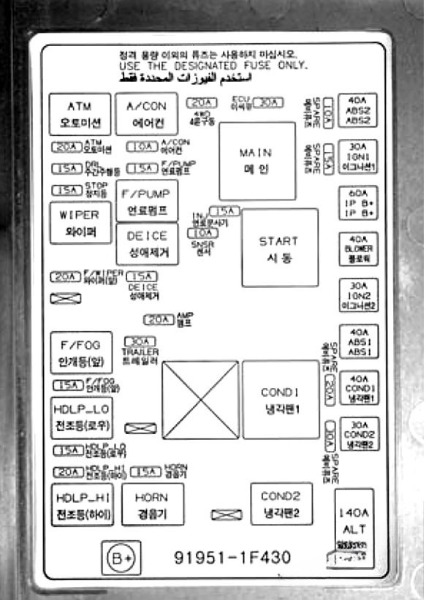

Engine Compartment Fuse Box Diagram
KIA Sportage (2004 to 2010)
| Description | Amp rating | Protected component |
|---|---|---|
| A/CON | – | Air conditioner relay |
| ATM | – | Automatic transaxle control relay |
| COND2 | – | Condenser (low) relay |
| DEICE | – | Defroster relay |
| F/FOG | – | Front fog light relay |
| F/PUMP | – | Fuel pump relay |
| HDLP HI | – | Headlight (high) relay |
| HDLP LO | – | Headlight (low) relay |
| HORN | – | Horn relay |
| WIPER | – | Wiper relay |
| COND1 | – | Condenser (high) relay |
| MAIN | – | Main relay |
| START | – | Start motor relay |
| COND1 | 40A | Condenser (high) |
| COND2 | 30A | Condenser (low) |
| IGN1 | 30A | Ignition switch |
| IGN2 | 30A | Start motor |
| ABS1 | 40A | ABS, ESP |
| ABS2 | 40A | ABS, ESP |
| IP B+ | 60A | In panel B+ |
| BLOWER | 40A | Blower |
| ALT | 120A (2.0L Gasoline) 140A (2.7L Gasoline, 2.0L Diesel) | Alternator |
| A/CON | 10A | Air conditioner |
| SNSR | 10A | Sensors |
| DEICE | 15A | Defroster |
| DRL | 15A | Daytime running light |
| F/FOG | 15A | Front fog light |
| F/PUMP | 15A | Fuel pump |
| F/WIPER | 20A | Front wiper |
| HDLP HI | 20A | Headlight (high) |
| HDLP LO | 15A | Headlight (low) |
| HORN | 15A | Horn |
| INJ | 15A | Injector |
| STOP | 15A | Stop light |
| 4WD | 20A | 4WD ECM |
| AMP | 20A | Amplifier |
| ATM | 20A | Automatic transaxle control |
| ECU | 30A | Engine control unit |
| SPARE | 10A | Spare fuse |
| SPARE | 15A | Spare fuse |
| SPARE | 20A | Spare fuse |
| SPARE | 30A | Spare fuse |

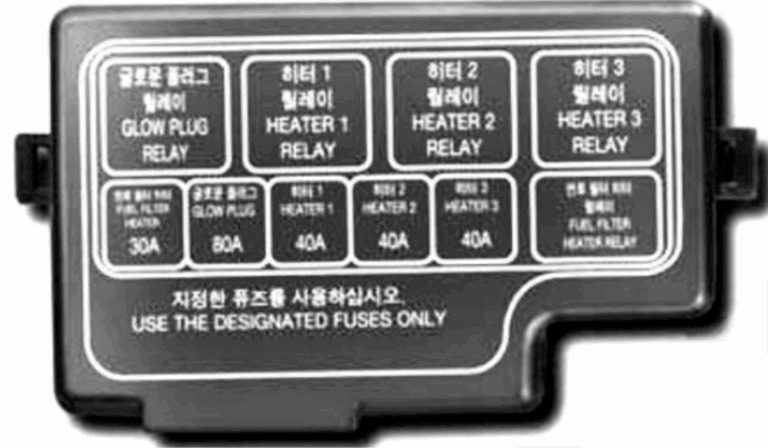

Sub-panel in the engine compartment (Diesel only)
KIA Sportage (2004 to 2010)
| Description | Amp rating | Protected component |
|---|---|---|
| GLOW PLUG RELAY | – | Glow plug relay |
| HEATER 1 RELAY | – | PTC heater relay 1 |
| HEATER2 RELAY | – | PTC heater relay 2 |
| HEATER3 RELAY | – | PTC heater relay 3 |
| FUEL FILTER HEATER RELAY | – | Fuel filter heater relay |
| FUEL FILTER HEATER | 30A | Fuel filter heater |
| GLOW PLUG | 80A | Glow plug |
| HEATER 1 | 40A | PTC heater 1 |
| HEATER2 | 40A | PTC heater 2 |
| HEATER3 | 40A | PTC heater 3 |
