Lincoln MKS (2013 – 2016) Fuse Box Location and Diagrams

Lincoln MKS (2013 – 2016) Fuse Box Location and Diagrams

The 2013–2016 Lincoln MKS fuse box diagrams and locations are covered in this guide. To keep your car safe and running, understand how to identify fuse functions, access fuse panels, and fix electrical faults.

Fuse Box Locations

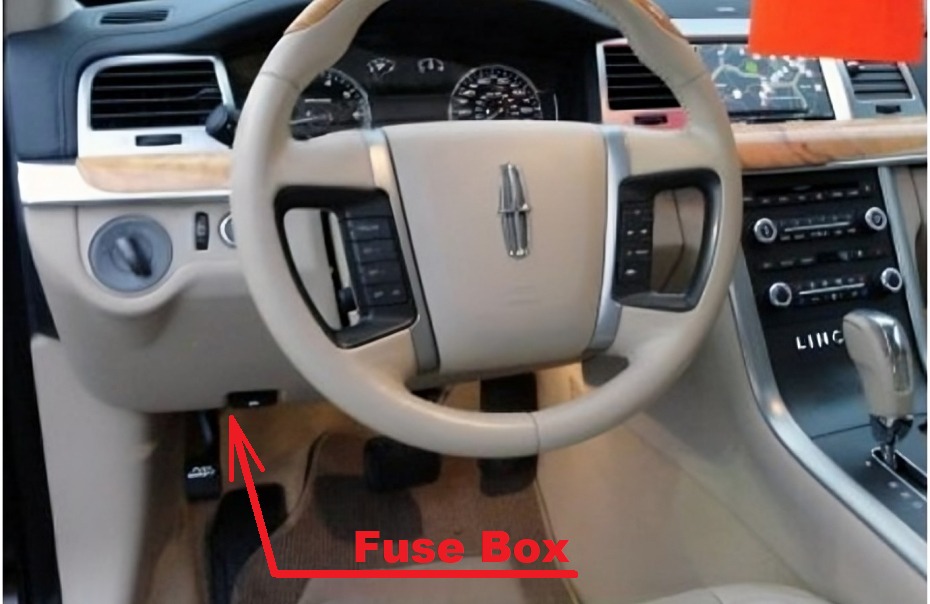

Passenger Compartment Fuse Box
The fuse panel is located under the instrument panel to the left of the steering wheel (behind the cover).Lincoln MKS Fuse Box Location and Diagrams User Guide (2013 - 2016) fig 1

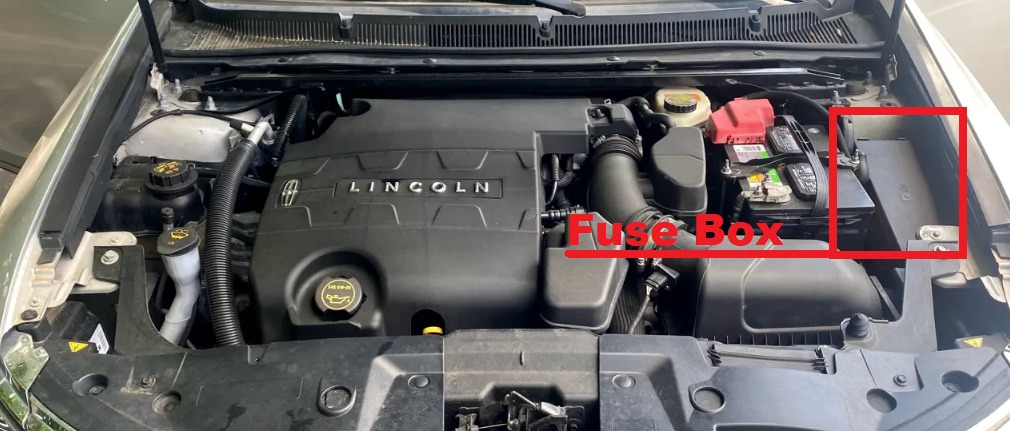

Engine Compartment Fuse Box
The power distribution box is located in the engine compartment (left-side).Lincoln MKS Fuse Box Location and Diagrams User Guide (2013 - 2016) fig 2

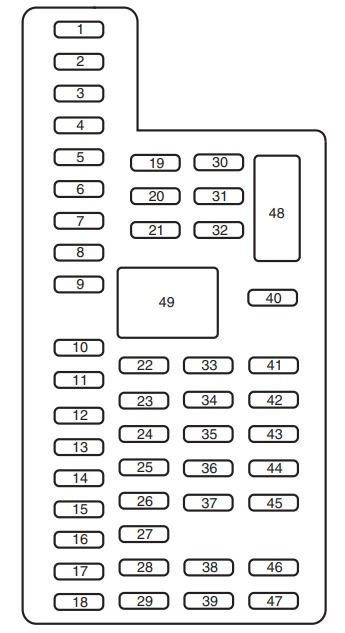

Passenger Compartment Fuse Box Diagram

Lincoln MKS (2013 and 2014)Lincoln MKS Fuse Box Location and Diagrams User Guide (2013 - 2016) fig 3
NoAmp ratingProtected Components
130ALeft front and right rear smart window motors
215ADriver seat switch
330ARight front smart window motor
410ADemand lamps battery saver relay
520AAudio amplifier, Active noise control module
65ANot used (spare)
77.5ADriver seat module logic, Left front door zone module, Keypad
810ANot used (spare)
910ASYNC® module, Electronic finish panel, Radio frequency transceiver module
1010ARun accessoiy relay, Wiper relay, Rain-sense subfuse
1110AIntelligent access module logic, Heads-up display
1215APuddle lamp, Backlighting LED, Interior lighting
1315ARight turn signals
1415ALeft turn signals
1515AStop lamp, Backup lamp
1610ARight front low beam
1710ALeft front low beam
1810AStart button, Keypad illumination, Brake shift interlock, Powertrain control module wake-up, Immobilizer transceiver module
1920AAudio amplifiers
2020AAll lock motor relay and coil, Driver lock motor relay and coil
2110ANot used (spare)
2220AHorn relay
2315ASteering wheel control module logic, Instrument cluster
2415ASteering wheel control module, Datalink
2515ADecklid release
265APush button start switch
2720AIntelligent access module power
2815ANot used (spare)
2920ARadio, Global positioning system module
3015AFront park lamps
315ANot used (spare)
3215ASmart window motors, Master window and mirror switch, Rear window power sunshade module, Lock switch illumination
3310ASuspension module
3410AReverse park aid module, Automatic high beam and lane departure module, Rear heated seat module, Blind spot monitor module, Rear video camera
355AMotorized humidity sensor, Heads-up display
3610AHeated steering wiieel
3710ANot used (spare)
3810AMoonroof module and switch
3915AHigh beams
4010ARear park lamps
417.5AOccupant classification sensor, Restraint control module
425ANot used (spare)
4310ANot used (spare)
4410ANot used (spare)
455ANot used (spare)
4610AClimate control module
4715AFog lamp relay
4830A Circuit BreakerFront passenger power window, Rear power windows
Lincoln MKS (2015)Lincoln MKS Fuse Box Location and Diagrams User Guide (2013 - 2016) fig 4
NoAmp ratingProtected components
130ALeft front and right rear smart window motors.
215ADriver seat switch.
330ARight front smart window motor.
410ADemand lamps battery saver relay.
520AAudio amplifier Active noise control module.
65ANot used (spare).
77.5 ADriver seat module logic. Left front door zone module. Keypad.
810ANot used (spare).
910ASYNC module. Electronic finish panel. Radio frequency transceiver module.
1010ARun accessory relay. Wiper relay. Rain-sense subfuse.
1110AIntelligent access module logic. Heads-up display.
1215APuddle lamp.
Backlighting LED. Interior lighting.
1315ARight-hand direction indicators.
1415ALeft-hand direction indicators.
1515AStop lamp. Backup lamp.
1610ARight front low beam.
1710ALeft front low beam.
1810AStart button. Keypad illumination. Brake-shift interlock. Powertrain control module wake-up. Immobilizer transceiver module.
1920AAudio amplifiers.
2020AAll lock motor relay and coil. Driver lock motor relay and coil.
2110ANot used (spare).
2220AHorn relay.
2315ASteering wheel control module logic Instrument cluster.
2415ASteering wheel control module.
24Datalink.
2515ADecklid release.
265APush button ignition switch.
2720AIntelligent access module power.
2815ANot used (spare).
2920ARadio. Global positioning system module
3015AFront park lamps.
315ANot used (spare).
3215ASmart window motors. Master window and mirror switch. Rear window power sunshade module. Lock switch illumination.
3310ASuspension module.
3410AReverse park aid module. Automatic high beam and lane departure module. Rear heated seat module. Blind spot monitor module. Rear video camera.
355AMotorized humidity sensor. Heads-up display.
3610AHeated steering wheel.
3710ANot used (spare).
3810AMoonroof module and switch.
3915AHigh beams.
4010ARear park lamps.
417.5 AOccupant classification sensor. Restraint control module.
425ANot used (spare).
4310ANot used (spare).
4410ANot used (spare).
455ANot used (spare).
4610AClimate control module.
4715AFog lamp relay.
4830A Circuit breakerFront passenger power window. Rear power windows.
Lincoln MKS (2016)Lincoln MKS Fuse Box Location and Diagrams User Guide (2013 - 2016) fig 4
NoAmp ratingProtected components
130ALeft front and right rear smart window motors.
215ADriver seat switch.
330ARight front smart window motor.
410ADemand lamps battery saver relay.
520AAudio amplifier Active noise control module.
65ANot used (spare).
77.5 ADriver seat module logic. Left front door zone module. Keypad.
810ANot used (spare).
910ASYNC module. Electronic finish panel. Radio frequency transceiver module.
1010ARun accessory relay. Wiper relay. Rain-sense subfuse.
1110AIntelligent access module logic. Heads-up display.
1215APuddle lamp.
Backlighting LED. Interior lighting.
1315ARight-hand direction indicators.
1415ALeft-hand direction indicators.
1515AStop lamp. Backup lamp.
1610ARight front low beam.
1710ALeft front low beam.
1810AStart button. Keypad illumination. Brake-shift interlock. Powertrain control module wake-up. Immobilizer transceiver module.
1920AAudio amplifiers.
2020AAll lock motor relay and coil. Driver lock motor relay and coil.
2110ANot used (spare).
2220AHorn relay.
2315ASteering wheel control module logic Instrument cluster.
2415ASteering wheel control module.
2515ADecklid release.
265APush button ignition switch.
2720AIntelligent access module power.
2815ANot used (spare).
2920ARadio. Global positioning system module
3015AFront park lamps.
315ANot used (spare).
3215ASmart window motors. Master window and mirror switch. Rear window power sunshade module. Lock switch illumination.
3310ASuspension module.
3410AReverse park aid module. Automatic high beam and lane departure module. Rear heated seat module. Blind spot monitor module. Rear video camera.
355AMotorized humidity sensor. Heads-up display.
3610AHeated steering wheel.
3710ANot used (spare).
3810AMoonroof module and switch.
3915AHigh beams.
4010ARear park lamps.
417.5 AOccupant classification sensor. Restraint control module.
425ANot used (spare).
4310ANot used (spare).
4410ANot used (spare).
455ANot used (spare).
4610AClimate control module.
4715AFog lamp relay.
4830A Circuit breakerFront passenger power window. Rear power windows.

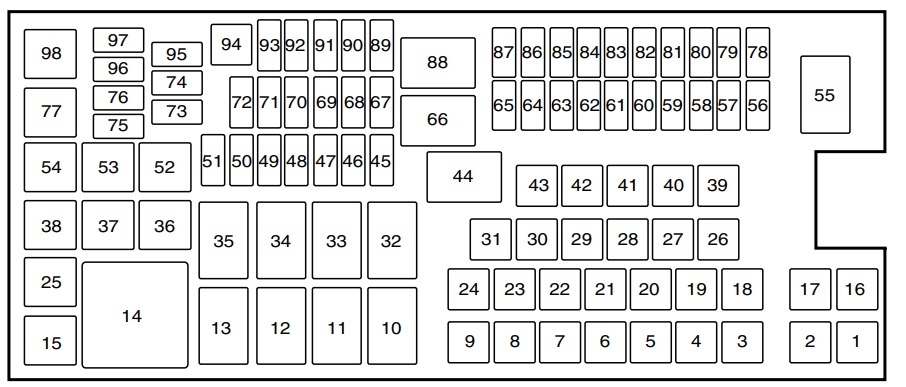

Engine Compartment Fuse Box Diagram

Lincoln MKS (2013 and 2014)Lincoln MKS Fuse Box Location and Diagrams User Guide (2013 - 2016) fig 6
NoAmp ratingProtected Components
1—Not used
2—Not used
3—Not used
430A**Wiper motor relay
550A**Anti-lock brake system pump
6—Not used
7—Not used
820A**Moonroof, Power sunshade
920A**Second row powerpoint
10—Not used
11—Heated rear window relay
12—Not used
13—Starter motor relay
14—Left-hand cooling fan #2 relay
15—Fuel pump relay
16—Not used
17—Not used
1840 A**Front blower motor relay
1930A**Starter relay
2020A**Storage bin power point
2120A**Rear heated seat module
22—Not used
2330A**Driver power seat, Memory module
24—Not used
25—Not used
2640 A**Heated rear window relay
2720A**Cigar lighter
2830A**Climate controlled seats
2940 A**Electric fan relay 1
3040 A**Electric fan relay 2
3125A**Electric fan relay 3
32—Not used
33—Right-hand cooling fan relay
34—Blower motor relay
35—Left-hand cooling fan #1 relay
36—Not used
37—Not used
38—Not used
39—Not used
4030A**Left front smart window motor
4130A**Left rear smart window motor
4230A**Passenger power seat
4320A**Anti-lock brake system valves
44—Not used
455A*Rain sensor
46—Not used
47—Not used
48—Not used
49—Not used
5015A*Heated mirrors
51—Not used
52—Not used
53—Not used
54—Not used
55—Wiper relay
56—Not used
5720A*Left high-intensity discharge headlamp
5810 A*Alternator A-line
5910 A*Brake on/off switch
60—Not used
61—Not used
6210 A*A/C clutch relay
63—Not used
64—Not used
6530A*Fuel pump relay, Fuel injectors
66—Powertrain control module relay
6720A*Oxygen sensor heater, Mass airflow sensor, Variable camshaft timing solenoid valve, Canister vent solenoid, Canister purge solenoid
6820A*Ignition coils
6920A*Vehicle power #1 (powertrain control module)
7015A*A/C clutch, Fan control relay coils (1-3), Variable air conditioning compressor, Auxiliary transmission warmup, Turbo charge waste-gate control, Electronic compressor bypass valve, All-wheel drive module, Positive crankcase ventilation heater
71—Not used
72—Not used
73—Not used
74—Not used
75—Not used
76—Not used
77—Not used
7820A*Right high-intensity discharge headlamp
795A*Adaptive cruise control module
80—Not used
81—Not used
82—Not used
83—Not used
84—Not used
85—Not used
867.5A*Powertrain control module keep-alive power and relay, Canister vent solenoid
875A*Run/start relay
88—Run/start relay
895A*Front blower relay coil, Electrical power assist steering module
9010 A*Powertrain control module run/start
9110 A*Adaptive cruise control module
9210 A*Anti-lock brake system module, Adaptive headlamp module
935A*Rear window defroster relay
9430A**Passenger compartment fuse panel run/start
95—Not used
96—Not used
97—Not used
98—A/C clutch relay
*Mini Fuses;
**Cartridge Fuses
Lincoln MKS (2015)Lincoln MKS Fuse Box Location and Diagrams User Guide (2013 - 2016) fig 7
NoAmp ratingProtected components
1–Not used.
2–Not used.
3–Not used.
430AWiper motor relay.
550AAnti-lock brake system pump.
6–Not used.
7–Not used.
820AMoonroof, power sunshade.
920ASecond row power point.
10–Not used.
11–Heated rear window relay.
12–Not used.
13–Starter motor relay.
14–Left-hand cooling fan number 2 relay.
15–Fuel pump relay.
16–Not used.
17–Not used.
1840AFront blower motor relay.
1930AStarter relay.
2020AStorage bin power point.
2120ARear heated seat module.
22–Massage control seats relay.
2330ADriver power seat.
23Memory module.
24–Not used.
25–Not used.
2640AHeated rear window relay.
2720ACigar lighter.
2830AClimate controlled seats.
2940AElectric fan relay 1.
3040AElectric fan relay 2.
3125 AElectric fan relay 3.
32–Not used.
33–Right-hand cooling fan relay.
34–Blower motor relay.
35–Left-hand cooling fan Number 1 relay.
35–Not used.
37–Not used.
38–Not used.
39–Not used.
4030ALeft front smart window motor.
4130ALeft rear smart window motor.
4230APassenger power seat.
4320AAnti-lock brake system valves.
44–Not used.
455ARain sensor.
46–Not used.
47–Not used.
48–Not used.
49–Not used.
5015 AHeated Mirrors.
51–Not used.
52–Not used.
53–Not used.
54–Not used.
55–Wiper relay.
56–Not used.
5720ALeft-hand high intensity discharge headlamp.
5810AAlternator A-line.
5910ABrake on/off switch.
60–Not used.
61–Not used.
62–A/C clutch relay.
63–Not used.
6415AMassage control seats.
6530AFuel pump relay. Fuel injectors.
66–Powertrain control module relay.
6720AOxygen sensor heater.
67Mass airflow sensor.
67Variable camshaft timing solenoid valve.
67Canister vent solenoid.
67Canister purge solenoid.
6820AIgnition coils.
6920AVehicle power 1 (powertrain control module).
7015AA/C clutch.
70Fan control relay coils 1-3).
70Variable air conditioning compressor.
70Auxiliary transmission warmup.
70Turbo charge waste-gate control.
70Electronic compressor bypass valve.
70All-wheel drive module.
70Positive crankcase ventilation heater.
71–Not used.
72–Not used.
73–Not used.
74–Not used.
75–Not used.
76–Not used.
77–Not used.
7820ARight high-intensity discharge headlamp.
795AAdaptive cruise control module
80–Not used.
81–Not used.
82–Not used.
83–Not used.
84–Not used.
85–Not used.
867.5 APowertrain control module.
86Keep alive power and relay.
86Canister vent solenoid.
875ARun/start relay.
88–Run/start relay.
895AFront blower relay coil.
89Electrical power assist steering module.
9010APowertrain control module run/start.
9110AAdaptive cruise control module.
9210AAnti-lock brake system module.
92Adaptive headlamp module.
935ARear window defroster relay.
9430APassenger compartment fuse panel run/start.
95–Not used.
96–Not used.
97–Not used.
98–Not used.
Lincoln MKS (2016)Lincoln MKS Fuse Box Location and Diagrams User Guide (2013 - 2016) fig 8
NoAmp ratingProtected components
1–Not used.
2–Not used.
3–Not used.
430AWiper motor relay.
550AAnti-lock brake system pump.
6–Not used.
7–Not used.
820AMoonroof. Power sunshade.
920ASecond row power point.
10–Not used.
11–Heated rear window relay.
12–Not used.
13–Starter motor relay.
14–Left-hand cooling fan number 2 relay.
15–Fuel pump relay.
16–Not used.
17–Not used.
1840AFront blower motor relay.
1930AStarter relay.
2020AStorage bin power point.
2120ARear heated seat module.
22–Not used.
2330ADriver power seat.
23Memory module.
24–Not used.
25–Not used.
2640AHeated rear window relay.
2720ACigar lighter.
2830AClimate controlled seats.
2940AElectric fan relay 1.
3040AElectric fan relay 2.
3125AElectric fan relay 3.
32RelayMassage control seat relay.
33–Right-hand cooling fan relay.
34–Blower motor relay.
35–Left-hand cooling fan Number 1 relay.
36–Not used.
37–Not used.
38–Not used.
39–Not used.
4030ALeft front smart window motor.
4130ALeft rear smart window motor.
4230APassenger power seat.
4320AAnti-lock brake system valves.
44–Not used.
455ARain sensor.
46–Not used.
47–Not used.
48–Not used.
49–Not used.
5015AHeated Mirrors.
51–Not used.
52–Not used.
53–Not used.
54–Not used.
55–Wiper relay.
56–Not used.
5720ALeft-hand high intensity discharge headlamp.
5810AAlternator A-line.
5910ABrake on/off switch.
60–Not used.
61–Not used.
6210AA/C clutch.
63–Not used.
6415 AMassage control seats.
6530AFuel pump relay. Fuel injectors.
66–Powertrain control module relay.
6720AOxygen sensor heater.
67Mass airflow sensor.
67Variable camshaft timing solenoid valve.
67Canister vent solenoid.
67Canister purge solenoid.
6820AIgnition coils.
6920AVehicle power 1 (powertrain control module).
7015 AA/C clutch.
70Fan control relay coils 1-3.
70Variable air conditioning compressor.
70Auxiliary transmission warmup.
70Turbo charge waste-gate control.
70Electronic compressor bypass valve.
70All-wheel drive module.
70Positive crankcase ventilation heater.
71–Not used.
72–Not used.
73–Not used.
74–Not used.
75–Not used.
76–Not used.
77–Not used.
7820ARight high-intensity discharge headlamp.
79–Not used.
80–Not used.
81–Not used.
82–Not used.
83–Not used.
84–Not used.
85–Not used.
867.5 APowertrain control module.
86Keep alive power and relay.
86Canister vent solenoid.
875ARun/start relay.
88–Run/start relay.
895AFront blower relay coil.
89Electrical power assist steering module.
9010APowertrain control module run/start.
9110AAdaptive cruise control module.
9210AAnti-lock brake system module.
92Adaptive headlamp module.
935ARear window defroster relay.
9430APassenger compartment fuse panel run/start.
95–Not used.
96–Not used.
97–Not used.
98–A/C Clutch relay.

Related Posts

Leave a Comment

Your email address will not be published. Required fields are marked *

Scroll to Top
