Lincoln MKZ (2013 – 2016) Fuse Box Location & Diagrams

Lincoln MKZ (2013 – 2016) Fuse Box Location & Diagrams

The Lincoln MKZ (2013-2016) comes equipped with a fuse box to ensure the vehicle’s electrical systems function smoothly. This user guide provides a comprehensive overview of the fuse box location and diagrams, making it easier to identify and troubleshoot any issues related to fuses. Whether you’re replacing a blown fuse or understanding the setup, this guide has you covered.

Fuse Box Locations

Passenger Compartment Fuse Box
The fuse panel is located under the instrument panel to the left of the steering column.

Lincoln MKZ Fuse Box FIG-1

Engine Compartment Fuse Box
The power distribution box is located in the engine compartment (left-side).

Lincoln MKZ Fuse Box FIG-2

Power Distribution Box – Bottom
There are fuses located on the bottom of the fuse box.

To access the bottom of the fuse box, do the following:

Lincoln MKZ Fuse Box FIG-3

  1. Release the two latches, located on both sides of the fuse box.
  2. Raise the inboard side of the fuse box from the cradle.
  3. Move the fuse box toward the center of the engine compartment.
  4. Pivot the outboard side of the fuse box to access the bottom side.

Passenger Compartment Fuse Box Diagram

Lincoln MKZ (2013 and 2014)

Lincoln MKZ Fuse Box FIG-4

Fuse or relay numberFuse amp ratingProtected components
110A1Lighting (ambient, glovebox, vanity, dome, trunk)
27.5A1Memory seats, Lumbar, Power mirror
320A1Driver door unlock
45A1Not used (spare)
520A1Subwoofer amplifier, THX amplifier
610A2Not used (spare)
710A2Not used (spare)
810A2Not used (spare)
910A2Not used (spare)
105A2Power trunk logic, Keypad
115A2Not used (spare)
127.5A2Climate control, Gear shift
137.5A2Steering wheel column, Cluster, Datalink logic
1410A2Not used (spare)
1510A2Datalink/Gateway module
1615A1Trunk release
175A2Not used (spare)
185A2Ignition, Push button stop/start
Fuse or relay numberFuse amp ratingProtected components
195A2Passenger airbag disabled indicator, Transmission range
205A2Adaptive headlamps
215A2Humidity and in-car temperature, Rear climate seats
225A2Occupant classification sensor
2310A1Delayed accessory (power inverter logic, moonroof logic)
2430A1Central lock/unlock
2530A1Driver’s door (window, mirror)
2630A1Front passenger’s door (window, mirror)
2730A1Moonroof
2820A1THX amplifier
2930A1Rear driver side door (window)
3030A1Rear passenger side door (window)
3115A1Not used (spare)
3210A1GPS, Voice control, Display, Adaptive cruise control, Radio frequency receiver
3320A1Radio, Active noise control
3430A1Run/start bus (fuse #19, 20, 21, 22, 35,

36, 37, circuit breaker)

355A1Restraints control module
3615A1Continuous control damping suspen- sion, Auto-dimming rear view mirror
3715A1All-wheel drive relay, Heated steering wheel
3830ARear window shade

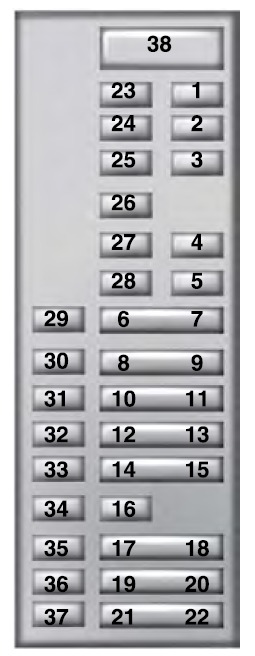

Lincoln MKZ (2015 and 2016)

Lincoln MKZ Fuse Box FIG-5

Fuse or relay numberFuse amp ratingProtected components
1

1

10A

Lighting (ambient, glove box, vanity, dome, trunk).
2

1

7.5A

Memory seats, Lumbar, Power mirror.
3

1

20A

Driver door unlock.
4

1

5A

Not used (spare).
5

1

20A

Subwoofer amplifier.
6

2

10A

Heated seat relay coil.
7

2

10A

Not used (spare).
8

2

10A

Not used (spare).
9

2

10A

Not used (spare).
10

2

5A

Power trunk logic. Keypad.

Cellphone passport module.

11

2

5A

Not used (spare).
12

2

7.5A

Climate control, Gear shift.
13

2

7.5A

Steering wheel column. Cluster.

Datalink logic.

14

2

10A

Battery electronic control module.
15

2

10A

Datalink-Gateway module.
16

1

15A

Trunk release. Child lock.
17

2

5A

Tracking and blocking.
18

2

5A

Ignition.

Push button stop-start.

19

2

7.5A

Passenger-airbag-disabled indicator. Transmission range.
20

2

7.5A

Adaptive headlamps.
11

2

5A

Not used (spare).
12

2

7.5A

Climate control, Gear shift.
13

2

7.5A

Steering wheel column. Cluster.

Datalink logic.

14

2

10A

Battery electronic control module.
15

2

10A

Datalink-Gateway module.
16

1

15A

Trunk release. Child lock.
17

2

5A

Tracking and blocking.
18

2

5A

Ignition.

Push button stop-start.

19

2

7.5A

Passenger-airbag-disabled indicator. Transmission range.
20

2

7.5A

Adaptive headlamps.
32

1

10A

GPS.

Voice control.

Adaptive cruise control. Radio frequency receiver. Display.

33

1

20A

Radio.

Active noise control. CD changer.

34

1

30A

Run-start bus (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).
35

1

5A

Restraints control module.
36

1

15A

Continuous control damping suspension module. Auto dimming rear view mirror.

Rear heated seats.

37

1

15A

Heated steering wheel. All wheel drive.
3830ANot used (spare).

Engine Compartment Fuse Box Diagram

Lincoln MKZ (2013 and 2014)

Lincoln MKZ Fuse Box FIG-5

Fuse or relay numberFuse amp ratingProtected components
125A3Not used (spare)
2–Starter relay
315A1Autowipers
4–Blower motor relay
520A3Power point 3 – Back of console
6–Not used
720A1Powertrain control module – vehicle power 1
820A1Powertrain control module – vehicle power 2
9–Powertrain control module relay
1020A3Power point 1 – driver front
1115A2Powertrain control module – vehicle power 4
1215A2Powertrain control module – vehicle power 3
1310A2Powertrain control module – vehicle power 5
1410A2Powertrain control module – vehicle power 6
15–Run/start relay
1620A3Power point 2 – console
17–Not used
1810A1Powertrain control module – keep alive power
1910A1Run/start electronic power assist steering
2010A1Run/start lighting
2115A1Run/start transmission control, Transmission oil pump start/stop
2210A1Air conditioner clutch solenoid
2315A1Run/start: Blind spot information system, Rear view camera, Adaptive cruise control, Heads-up display, Shifter
24–Not used
2510A2Run/start anti-lock brake system
2610A2Run/start powertrain control module
27–Not used
28–Not used
29–Not used
30–Not used
31–Not used
32–Electronic fan #1 relay
33–Air conditioner clutch relay
34–Not used
35–Not used
36–Not used
37–Not used
38–Electronic fan #2 relay
39–Electronic fan #3 relay
40–Fuel pump relay
41–Horn relay
42–Not used
43–Not used
44–Not used
45–Not used
4610A2Alternator
4710A2Brake on/off switch
4820A1Horn
495A1Mass air flow monitor
50–Not used
51–Not used
52–Not used
5310A1Power seats
54–Not used
55–Not used

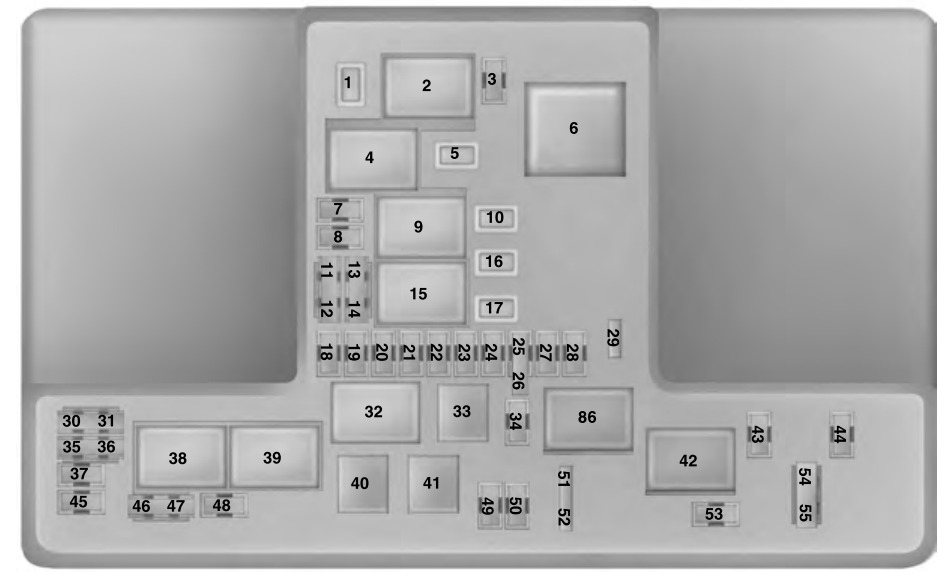

Lincoln MKZ (2015 and 2016)

Lincoln MKZ Fuse Box FIG-6

Fuse or relay numberFuse amp ratingProtected components
1

3

30A

Wide open panoramic roof 1.
2–Starter relay.
3

1

15A

Rain sensor.
4–Blower motor relay.
5

3

20A

Power point 3 – Back of console.
6–Not used.
7

1

20A

Powertrain control module – vehicle power 1.
8

1

20A

Powertrain control module – vehicle power 2.
9–Powertrain control module relay.
10

3

20A

Power point 1 – driver front.
11

2

15A

Powertrain control module – vehicle power 4.
12

2

15A

Powertrain control module – vehicle power 3.
13

2

10A

Powertrain control module – vehicle power 5.
14

2

10A

Powertrain control module – vehicle power 6.
15–Run-start relay.
16

3

20A

Power point 2 – console.
17–Not used.
18–Not used.
19

1

10A

Run-start electronic power assist steering.
20

1

10A

Run-start lighting.
21

1

15A

Run-start transmission control. Transmission oil pump start-stop.
22

1

10A

Air conditioner clutch solenoid.
23

1

15A

Run-start: blind spot information system, rear view camera, adaptive cruise control, heads-up display, shifter.

Voltage stability module.

24–Not used.
25

2

10A

Run-start anti-lock brake system.
26

2

10A

Run-start powertrain control module.
27–Not used.
28–Not used.
29

1

5A

Mass air flow monitor.
30–Not used.
31–Not used.
32–Electronic fan #1 relay.
33–Air conditioner clutch relay.
34–Not used.
35–Not used.
36–Not used.
37–Not used.
38–Electronic fan 2 relay.
39–Electronic fan coil 2 and 3 relay.
40–Horn relay.
41–Not used.
42–Fuel pump relay coil.
43–Not used.
44–Not used.
45–Not used.
46–Not used.
47–Not used.
48–Not used.
49

1

10A

Keep-alive power.
50

1

20A

Horn.
51–Not used.
52–Not used.
53

1

10A

Power seats.
54

2

10A

Brake on-off switch.
55

2

10A

Alt sensor.

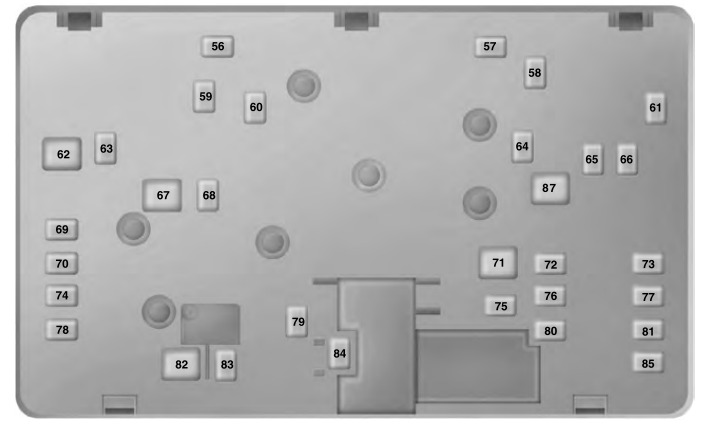

Power Distribution Box – Bottom

Lincoln MKZ (2013 and 2014)

Lincoln MKZ Fuse Box FIG-8

Fuse or relay numberFuse amp ratingProtected components
5630A1Fuel pump feed
57–Not used
58–Not used
5930A1500W electronic fan 3
6030A1500W electronic fan 1
61–Not used
6250A2Body control module 1
6320A1500W electronic fan 2
64–Not used
6520A1Front heated seat
66–Not used
6750A2Body control module 2
6840A1Heated rear window
6930A1Anti-lock brake system valves
7030A1Passenger seat
71–Not used
7230A1Panoramic roof #1
7320A1Rear climate controlled seats
7430A1Driver seat module
75–Not used
7620A1Transmission oil pump #2 stop/start
7730A1Front climate controlled seats
78–Not used
7940A1Blower motor
8030A1Power trunk
8140A1Inverter
8260A2Anti-lock brake system pump
8325A1Wiper motor #1
8430A1Starter solenoid
8530A1Panoramic roof #2
Lincoln MKZ (2015 and 2016)

Lincoln MKZ Fuse Box FIG-9

Fuse or relay numberFuse amp ratingProtected components
56–Not used.
57

1

20A

Diesel vaporizer or E100.
58

1

30A

Fuel pump feed.
59

1

30A

Electronic fan 3.
60

1

30A

Electronic fan 1.
61–Not used.
62

2

50A

Body control module 1.
63

1

20A

Electronic fan 2.
64–Not used.
65

1

20A

Front heated seat.
66–Not used.
67

2

50A

Body control module 2.
68

1

40A

Heated rear window.
69

1

30A

Anti-lock brake system valves.
70

1

30A

Passenger seat.
71–Not used.
72

1

20A

Transmission oil pump.
73

1

20A

Rear climate controlled seats.
74

1

30A

Driver seat module.
75

1

25A

Wiper motor 1.
76

1

30A

Power lift gate module.
77

1

30A

Front climate controlled seats.
78

1

40A

Trailer tow module.
79

2

40A

Blower motor.
80

1

25A

Wiper motor 2.
81

1

40A

Inverter.
82–Not used.
83

1

20A

TRCM shifter.
84

1

30A

Starter solenoid.
85

1

30A

Wide open panoramic roof 2.
86–Not used.
87

2

60A

Anti-lock brake system pump.
