Lincoln Navigator (2015 – 2017) Fuse Box Location & Diagrams
The Lincoln Navigator (2015-2017) features a well-organized fuse box that is essential for maintaining your vehicle’s electrical systems. In this comprehensive guide, we explore the fuse box location and provide detailed diagrams to help you identify and replace fuses with ease. Whether you’re troubleshooting electrical issues or performing routine maintenance, this user-friendly guide has you covered.
Fuse Box Locations
Passenger Compartment Fuse Box

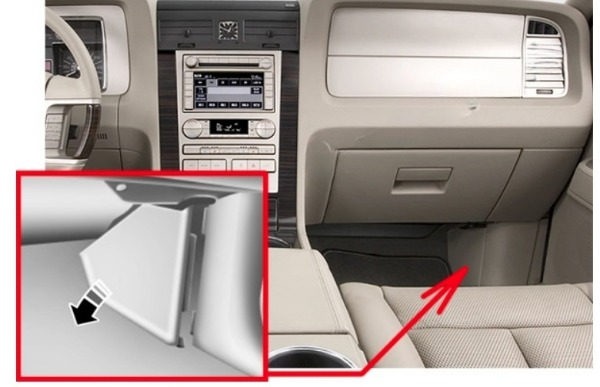

The fuse panel is located under the right-hand side of the instrument panel.
To remove the trim panel for access to the fuse box, pull the panel toward you and swing it out away from the side and remove it. To reinstall it, line up the tabs with the grooves on the panel, then push it shut.
To remove the fuse box cover, press in the tabs on both sides of the cover, then pull the cover off.
To reinstall the cover, place the top part of the cover on the fuse panel, then push the bottom part of the cover until you hear it click shut. Gently pull on the cover to make sure it is seated properly.

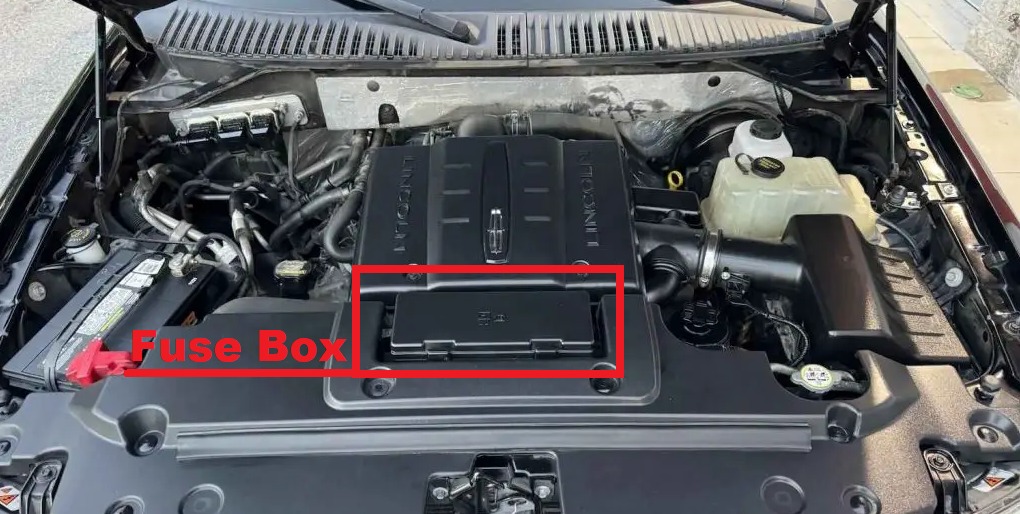

Engine Compartment Fuse Box
The fuse panel is located under the right-hand side of the instrument panel.

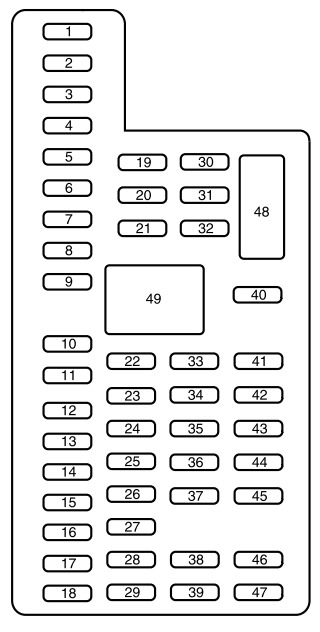

Passenger Compartment Fuse Box Diagram
Lincoln Navigator (2015, 2016 and 2017)
| No | Amp rating | Protected components |
|---|---|---|
| 1 | 30A | Driver window. |
| 2 | 15A | Rear seat control. Multimedia gateway module. |
| 3 | 30A | Passenger window. |
| 4 | 10A | Demand lamps. |
| 5 | 20A | Amplifier. |
| 6 | 5A | Rear electronic automatic temperature control. |
| 7 | 7.5 A | Power mirror. Driver seat memory switch. |
| 8 | — | Not used. |
| 9 | 10A | SYNC. Power lift gate. Electric finish panel. Display. |
| 10 | 10A | Run accessory relay. |
| 11 | 10A | Passive entry/start module. |
| 12 | 15A | Interior lighting. Puddle lamps. |
| 13 | 15A | Right turn and stop/turn signals. |
| 14 | 15A | Left turn and stop/turn signals. |
| 15 | 15A | Reverse lamp. Center high mount stop lamp. EC mirror. |
| 16 | 10A | Right front low beam. |
| 17 | 10A | Left front low beam. |
| 18 | 10A | Brake shift interlock/start button LED/keypad illumination. Third row power folding seat. Passive entry touch start. |
| 19 | 20A | Subwoofer amplifier. THX amplifier. |
| 20 | 20A | Lock/unlock relays. |
| 21 | — | Not used. |
| 22 | 20A | Horn. |
| 23 | 15A | Steering wheel control module. Cluster. |
| 24 | 15A | Adjustable pedals/power adjustable column. Datalink. |
| 25 | 15A | Liftgate release decklid. Liftglass release motor. |
| 26 | 5A | Push to start switch. |
| 27 | 20A | Passive entry/start module. |
| 28 | 15A | Ignition switch. Key inhibit switch. |
| 29 | 20A | Radio. GPS. |
| 30 | 15A | Front park lamps. |
| 31 | 5A | Trailer brake on/off. |
| 32 | 15A | Power vent. Front windows motor. Power inverter. |
| 33 | 10A | CCD suspension module. |
| 34 | 10A | Rear park assist. Rear camera. BUS. Heated seat. |
| 35 | 5A | Climate module. O/D switch. |
| 36 | — | Not used. |
| 37 | 10A | 4X4 module. |
| 38 | 10A | EC mirror. Moonroof. DVD. |
| 39 | 15A | Left and right front high beams. |
| 40 | 10A | Rear park/tail lamps. |
| 41 | 7.5 A | Restraints control module. |
| 42 | — | Not used. |
| 43 | — | Not used. |
| 44 | — | Not used. |
| 45 | 5A | Not used (spare). |
| 46 | 10A | Climate control. |
| 47 | — | Not used. |
| 48 | — / 30A | Not used / Front passenger and rear windows circuit breaker (2017). |
| 49 | — / Relay | Not used / Windows and vents relay (2017). |

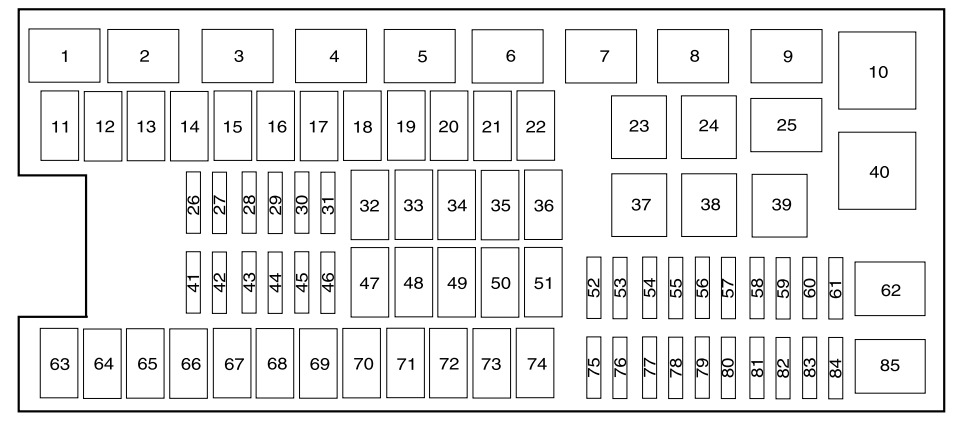

Engine Compartment Fuse Box Diagram
Lincoln Navigator (2015, 2016 and 2017)
| No | Amp rating | Protected components |
|---|---|---|
| 1 | Relay | Rear washer relay. |
| 2 | Relay | Starter relay. |
| 3 | Relay | Blower motor relay. |
| 4 | Relay | Rear wiper relay. |
| 5 | Relay | Fuel pump relay. |
| 6 | Relay | Electronic cooling fan. |
| 7 | Relay | Rear window defroster. Heated mirror relay. |
| 8 | Relay | Electronic cooling fan. |
| 9 | Relay | Run/start relay. |
| 10 | Relay | Power distribution box relay. |
| 11 | 40A | Power running boards. Heated seats. |
| 12 | 40A | Run/start relay. |
| 13 | 30A | Starter relay. |
| 14 | 50A | Electronic cooling fan. |
| 15 | 20 A | RH HID headlamp. |
| 16 | 50 A | Electronic fan. |
| 17 | 20 A | LH HID headlamp. |
| 18 | 30A | Trailer brake. |
| 19 | 20 A | Power point (console). |
| 20 | — | Not used. |
| 21 | 30A | Trailer tow module. |
| 22 | 30A | Passenger power seat. |
| 23 | Relay | Air conditioner clutch relay. |
| 24 | Relay | Trailer tow park lamp relay. |
| 25 | — | Not used. |
| 26 | 10A | ALT sensor. |
| 27 | 20A | 4×4 all wheel drive module. |
| 28 | 25A | Trailer tow park lamp relay. |
| 29 | 10A | Integrated wheel end solenoid. |
| 30 | 10A | Air conditioner clutch relay. |
| 31 | 15A | Trailer tow back up lamp. |
| 32 | 40A | Blower motor relay. |
| 33 | 40A | 110-volt AC power point. |
| 34 | 30A | Auxiliary blower motor. |
| 35 | 50A | Powertrain control module relay. |
| 36 | 30A | Power liftgate. |
| 37 | — | Not used. |
| 38 | — | Not used. |
| 39 | Relay | Trailer tow backup lamps relay. |
| 40 | Relay | Electronic fan 2 relay. |
| 41 | 10A | Powertrain control module keep-alive power. |
| 42 | 5A | Run/start relay. |
| 43 | 10A | Brake on/off switch. |
| 44 | 20A | Fuel pump relay. |
| 45 | 10A | Not used (spare). |
| 46 | 15A | Front/rear washer pump. |
| 47 | 30A | Rear wiper motor. |
| 48 | 40A | Trailer tow module. |
| 49 | — | Not used. |
| 50 | 30A | Front wiper motor relay. |
| 51 | 40A | Rear window defroster and heated mirror relay. |
| 52 | 10A | Anti-lock brake system run/start feed. |
| 53 | 5A | Powertrain control module ISP. |
| 54 | 5A | Power steering. |
| 55 | 15A | Headlamp control module. |
| 56 | 30A | Passenger compartment fuse panel run/start feed. |
| 57 | 5A | Blower motor run/start. |
| 58 | — | Not used. |
| 59 | 15A | Heated mirrors. |
| 60 | — | Not used. |
| 61 | — | Not used. |
| 62 | — | Not used. |
| 63 | 25 A | Electronic fan. |
| 64 | 30A | Moonroof. |
| 65 | 20 A | Auxiliary power point (instrument panel valance panel). |
| 66 | 20 A | Auxiliary power point (rear of center console). |
| 67 | 40A | Front row climate controlled seats. |
| 68 | 30A | Anti-lock brake system valves. |
| 69 | 60A | Anti-lock brake system pump. |
| 70 | 30A | Third row power fold seat. |
| 71 | 20 A | Auxiliary power point/cigar lighter. |
| 72 | 20 A | Auxiliary power point (right rear quarter panel). |
| 73 | 20 A | Rear seat climate module. |
| 74 | 30A | Driver power seat. |
| 75 | 25A | Vehicle power 1 – powertrain control module. |
| 76 | 20A | Vehicle power 2 – powertrain control module. |
| 77 | 20A | Vehicle power 4 – ignition coils. |
| 78 | — | Not used. |
| 79 | 15A | Vehicle power 3 – powertrain control module. |
| 80 | — | Not used. |
| 81 | — | Not used. |
| 82 | 5A | Rain sensor. |
| 83 | — | Not used. |
| 84 | — | Not used. |
| 85 | — / Relay | Not used (2015) / Wiper motor relay. |
