Lincoln Town Car (1998 – 2002) Fuse Box Location & Diagrams
If you own a Lincoln Town Car from 1998 to 2002, knowing the location of the fuse box and understanding its diagrams is crucial for effective vehicle maintenance. This user guide provides clear instructions and diagrams to help you troubleshoot and replace fuses efficiently, ensuring your car stays in optimal working condition.
Fuse Box Locations

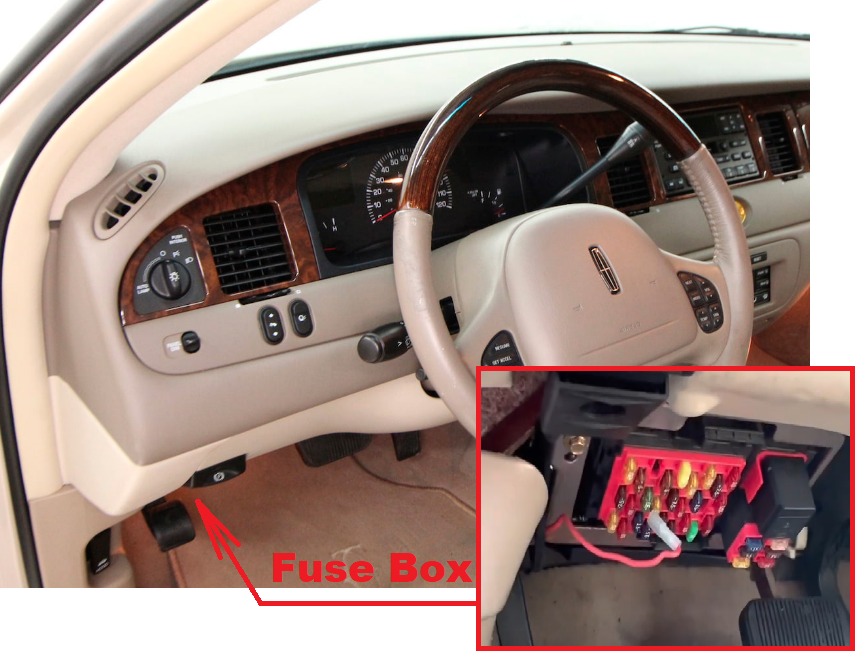

Passenger Compartment Fuse Box
The fuse panel is located below and to the left of the steering wheel by the brake pedal. Remove the panel cover to access the fuses.

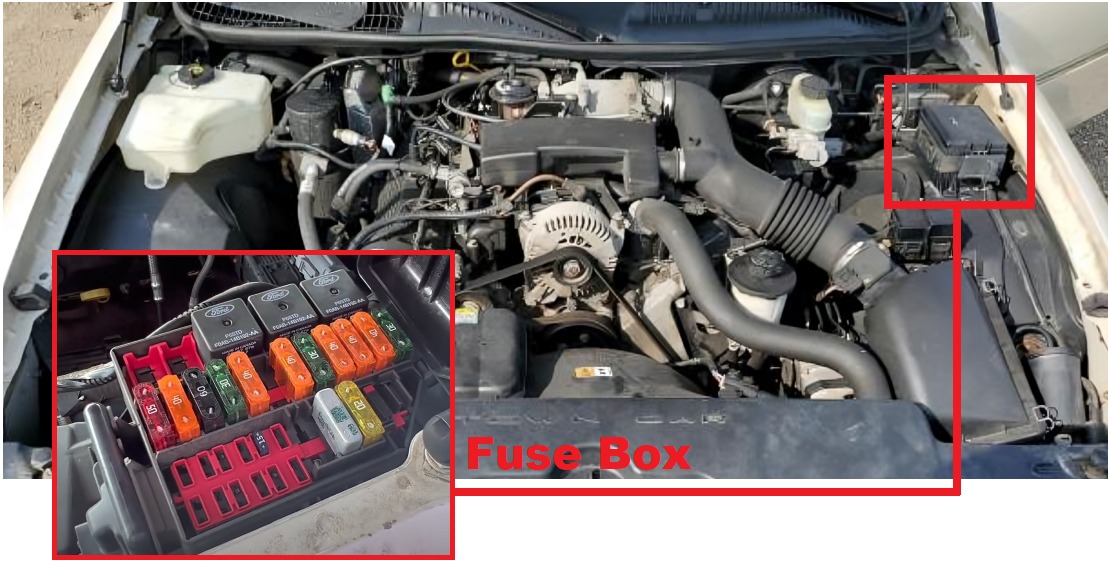

Engine Compartment Fuse Box
The power distribution box is located in the engine compartment.

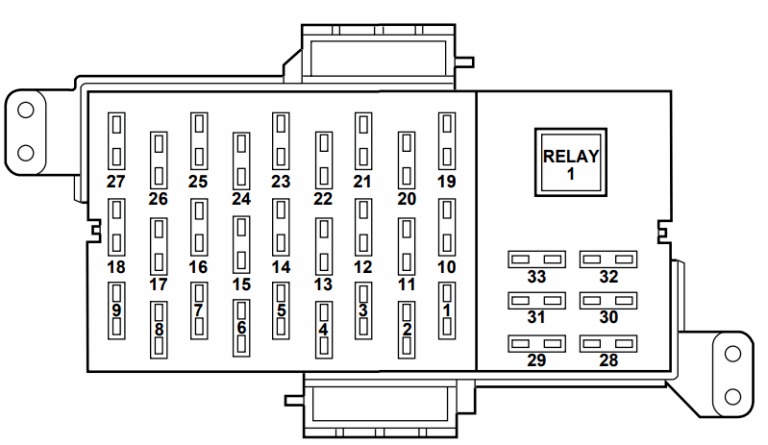

Passenger Compartment Fuse Box Diagram
Lincoln Town Car (1998, 1999 and 2000)
| No | Amp Rating | Description |
|---|---|---|
| 1 | 10A | 1998: Lighting Control Module (LCM) 1999-2000: Lighting Control Module (LCM), Left-Hand Low Beam Headlamp |
| 2 | 30A | EATC Blower Motor |
| 3 | 10A | 1998: Lighting Control Module (LCM) 1999-2000: Lighting Control Module (LCM), Right-Hand Low Beam Headlamp |
| 4 | 7.5A | Instrument Cluster |
| 5 | 7.5A | 1998: Lighting Control Module (LCM) 1999-2000: Lighting Control Module (LCM), Park/Tail Lamps |
| 6 | 15A | EATC, Heated Seats |
| 7 | 15A | Lighting Control Module (LCM), Day/Night Sensor/Amplifier |
| 8 | 10A | Shift Lock, Speed Control, Air Suspension, Steering Wheel Rotation Sensor |
| 9 | 20A | 1998: Lighting Control Module (LCM), Multi-Function Switch 1999-2000: Lighting Control Module (LCM), Multi-Function Switch, Hi Beam Headlamps |
| 10 | 20A | 1998: Brake Pedal Position (BPP) Switch, Brake Pressure Switch 1999-2000: Brake Pedal Position (BPP) Switch, Brake Pressure Switch, Stop Lamps |
| 11 | 10A | Electronic Crash Sensor (Airbag) |
| 12 | 15A | 1998: Instrument Cluster, Anti-Theft, Ignition Switch 1999-2000: Instrument Cluster, Anti-Theft, Ignition Switch, Ignition Coils |
| 13 | 10A | Anti-Lock Brake Module, Traction Control Switch |
| 14 | 7.5A | Transmission Control Switch, Lighting Control Module (LCM) |
| 15 | 20A | 1998: Multi-Function Switch 1999-2000: Multi-Function Switch, Turn Signals |
| 16 | 30A | Wiper Control Module (WCM), Windshield Wiper Motor |
| 17 | 10A | 1998: Digital Transmission Range (DTR) Sensor 1999-2000: Digital Transmission Range (DTR) Sensor, Back-Up Lamps, EC Mirrors |
| 18 | 7.5A | Lighting Control Module (LCM), Front Radio Control Unit, Cellular Telephone Transceiver, Electronic Day/Night Mirror, Compass Module |
| 19 | 10A | EATC, Clock, Instrument Cluster, PCM |
| 20 | 7.5A | Lighting Control Module (LCM), ABS, Shift Lock |
| 21 | 20A | 1998: Multi-Function Switch 1999-2000: Multi-Function Switch, Hazard Lamps |
| 22 | 20A | Multi-Function Switch, High Mounted Stop Lamps |
| 23 | 20A | Datalink Connector, I/P Cigar Lighter |
| 24 | 5A | Front Radio Control Unit |
| 25 | 15A | 1998: Lighting Control Module (LCM) 1999-2000: Lighting Control Module (LCM), Courtesy/Demand Lamps |
| 26 | 5A | 1998: Digital Transmission Range (DTR) Sensor 1999-2000: Digital Transmission Range (DTR) Sensor, Starter Relay Coil |
| 27 | 20A | Fuel Filler Door Release Switch |
| 28 | 10A | Heated Mirrors |
| 29 | 20A | 1998: LF Door Module 1999-2000: LF Door Module, Door Locks, Decklid Release |
| 30 | 7.5A | LF Seat Module, Trunk Lid Release Switch, Door Lock Switches, LF Seat Control Switch, LF Door Module, Power Mirror Switch |
| 31 | 7.5A | Main Light Switch, Lighting Control Module (LCM) |
| 32 | 15A | Not Used |
| 33 | 15A | Front Radio Control Unit, Digital Compact Disk Changer, Cellular Telephone Transceiver |
| Relay 1 | – | 1998: Accessory Delay Relay 1999-2000: Accessory Delay Relay (Signature/Cartier) or Power Window Relay (Executive) |
Lincoln Town Car (2001 and 2002)
| No | Amp Rating | Description |
|---|---|---|
| 1 | 10A | Lighting Control Module (LCM), Left-Hand Low Beam Headlamp |
| 2 | 30A | EATC Blower Motor |
| 3 | 10A | Lighting Control Module (LCM), Right-Hand Low Beam Headlamp |
| 4 | 7.5A | Instrument Cluster |
| 5 | 7.5A | Lighting Control Module (LCM), Instrument Panel Light |
| 6 | 15A | EATC, Heated Seats |
| 7 | 15A | Lighting Control Module (LCM), Day/Night Sensor/Amplifier, Park/Tail Lamps |
| 8 | 10A | Shift Lock, Speed Control, Air Suspension, Steering Wheel Rotation Sensor |
| 9 | 20 A | Lighting Control Module (LCM), Multi-Function Switch, Hi Beam Headlamps |
| 10 | 10A | Restraint Control Module (RCM), Air Bags |
| 11 | — | Not Used |
| 12 | 15A | Instrument Cluster, Anti-Theft, Ignition Switch, Ignition Coils |
| 13 | 10A | Anti-Lock Brake Module, Traction Control Switch |
| 14 | 7.5A | Transmission Control Switch, Lighting Control Module (LCM), VCS |
| 15 | 20A | Multi-Function Switch, Turn Signals |
| 16 | 30A | Wiper Control Module (WCM), Windshield Wiper Motor |
| 17 | 10A | Digital Transmission Range (DTR) Sensor, Back-Up Lamps, EC Mirrors |
| 18 | 7.5A | Lighting Control Module (LCM), Front Radio Control Unit, Cellular Telephone Transceiver, Electronic Day/Night Mirror, Compass Module/Rear Audio/Climate Control Module, VCS |
| 19 | 10A | EATC, Clock, Instrument Cluster, PCM |
| 20 | 7.5A | Lighting Control Module (LCM), ABS, Shift Lock |
| 21 | 20A | Multi-Function Switch, Hazard Lamps |
| 22 | 20A | Multi-Function Switch, High Mounted Stop Lamps, Stop Lamps |
| 23 | 20A | Datalirik Connector, I/P Cigar Lighter, Reardoor Cigar Lighters (Long Wheel Base Only) |
| 24 | 5A | Front Radio Control Unit |
| 25 | 15A | Lighting Control Module (LCM), Courtesy/Demand Lamps |
| 26 | 5A | Digital Transmission Range (DTR) Sensor, Starter Relay Coil |
| 27 | 20A | Fuel Filler Door Release Switch |
| 28 | 10A | Heated Mirrors |
| 29 | 20A | LF Door Module, Door Locks, Decklid Release |
| 30 | 7.5A | LF Seat Module, Trunk Lid Release Switch, Door Lock Switches, LF Seat Control Switch, LF Door Module, Power Mirror Switch |
| 31 | 7.5A | Main Light Switch, Lighting Control Module (LCM) |
| 32 | 25A | Brake Pedal Position Switch (BPP), Brake Pressure Switch, Fuses 20 and 22 |
| 33 | 15A | Front Radio Control Unit, Digital Compact Disk Changer, Cellular Telephone Transceiver, VCS |
| Relay 1 | — | Accessory Delay Relay (Signature/Cartier) or Power Window Relay (Executive) |

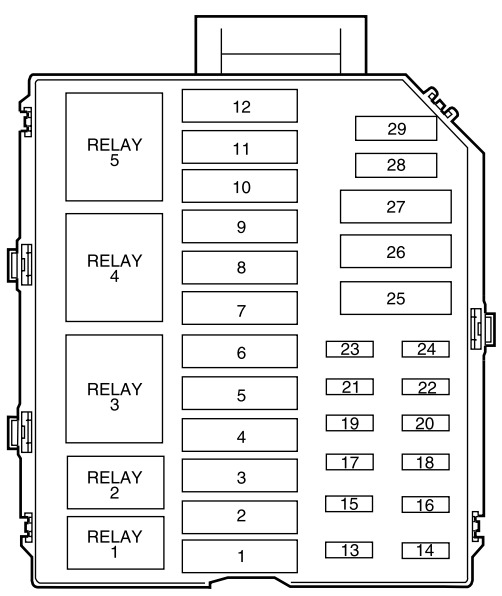

Engine Compartment Fuse Box Diagram
Lincoln Town Car (1998, 1999 and 2000)
| No | Amp Rating | Description |
|---|---|---|
| 1 | 50A | Ignition Switch |
| 2 | 40A | Ignition Switch |
| 3 | 50A | Cooling Fan-High Speed |
| 4 | 30A | PCM Power Relay |
| 5 | 40A | I/P Fuse Panel, Fuses 10, 19, 21, 23, 25, 27, 32 (Long Wheel Base Only) |
| 6 | 30A | Starting System |
| 7 | 50A | I/P Fuse Panel, Fuses 1, 3, 5, 7, 9, 31 |
| 8 | 30A | Driver Power Seat, I/P Fuse Panel, Fuse 30 |
| 9 | 50A | Anti-Lock Brakes |
| 10 | 40A | Rear Defrost |
| 11 | 40A | Accessory Delay Relay (Signature/Cartier), Power Window Relay (Executive), I/P Fuse Panel, Fuse 29 |
| 12 | 30A | Air Suspension |
| 13 | 15A | Charging System |
| 14 | 20A | Fuel Pump |
| 15 | 10A | 1998: Air Bags (10A) 1999-2000: Not Used |
| 16 | 30A | Heated Seats |
| 17 | 10A | Air Suspension |
| 18 | 15A | Horn |
| 19 | 30A | Subwoofer, I/P Fuse Panel, Fuse 23 |
| 20 | 15A | Fuel Injectors |
| 21 | 15A | 1998: Heated Oxygen Sensors 1999-2000: Heated Oxygen Sensors, Transmission Solenoids, EVAP Canaster Vent Solenoid, EGR Vacuum Regulator, EVAP Vapor Management Valve |
| 22 | — | Not Used |
| 23 | — | Not Used |
| 24 | 20A | Auxiliary Power Outlet |
| 25 | 30A | Power Lumbar, Passenger Power Seat |
| 26 | 30A | Cooling Fan-Low Speed (Circuit Breacker) |
| 27 | — | Not Used |
| Relays | ||
| 1 | — | Fuel Pump Relay |
| 2 | — | A/C Clutch Relay |
| 3 | — | PCM Power Relay |
| 4 | — | Air Suspension Relay |
| 5 | — | Rear Defrost Relay |

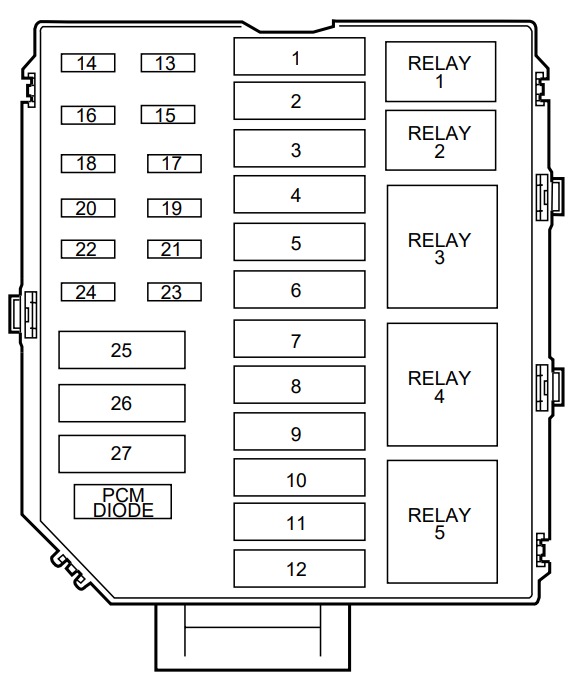

Lincoln Town Car (2001 and 2002)
| No | Amp Rating | Description |
|---|---|---|
| 1 | 50A | Ignition Switch |
| 2 | 40A | Ignition Switch |
| 3 | 50A | Cooling Fan-High Speed |
| 4 | 30A | PCM Power Relay |
| 5 | 40A | I/P Fuse Panel, Fuses 11, 19, 21, 23, 25, 27, and 32 (Long Wheel Base Only) |
| 6 | — | Not Used |
| 7 | 40A | I/P Fuse Panel, Fuses 1, 3, 5, 7, 9, 31 |
| 8 | 30A | Driver Power Seat, I/P Fuse Panel, Fuse 30, Adjustable Pedal, Passenger Power Seat |
| 9 | 40A | Anti-Lock Brakes |
| 10 | 40A | Rear Defrost, I/P Fuse Panel, Fuse 28 |
| 11 | 40A | Accessory Delay Relay (Sigriature/Cartier), Power Window Relay (Executive), I/P Fuse Panel, Fuse 29 |
| 12 | 30A | Air Suspension |
| 13 | 30A | Rear Heated Seats (Long Wheel Base Only) |
| 14 | 20A | Rear Power Point (Long Wheel Base Only) |
| 15 | 20A | Rear Power Point (Longe Wheel Base) |
| 16 | 30A | Heated Seats |
| 17 | 10A | Air Suspension |
| 18 | 15A | Horn |
| 19 | 30A | Subwoofer, I/P Fuse Panel, Fuse 33 |
| 20 | 15A | Fuel Injectors, PCM |
| 21 | 15A | Heated Oxygen Sensors, Transmission Solenoids, EVAP Canaster Vent Solenoid, EGR Vacuum Regulator, EVAP Vapor Management Valve |
| 22 | 20A | Fuel Pump |
| 23 | 15A | Charging System |
| 24 | 20A | Auxiliary Power Outlet |
| 25 | 30A | Passenger Seat (Long Wheel Base Only) |
| 26 | 30A | Cooling Fan-Low Speed (Circuit Breacker) |
| 27 | 20A | Anti-Lock Brakes |
| 28 | — | PCM Diode |
| 29 | — | Not used |
| Relays: | ||
| 1 | — | Fuel Pump Relay |
| 2 | — | A/C Clutch Relay |
| 3 | — | PCM Power Relay |
| 4 | — | Air Suspension Relay |
| 5 | — | Rear Defrost Relay |
