MINI Clubman F54 (2015 – 2024) Fuse Box Location & Diagrams
The MINI Clubman F54 (2015–2024) features multiple fuse boxes that protect essential electrical systems. Knowing their locations and fuse assignments makes it easier to identify electrical faults and replace blown fuses correctly. This guide provides clear fuse box locations, diagrams, fuse ratings, and protected component details for the Clubman.
Fuse Box Location

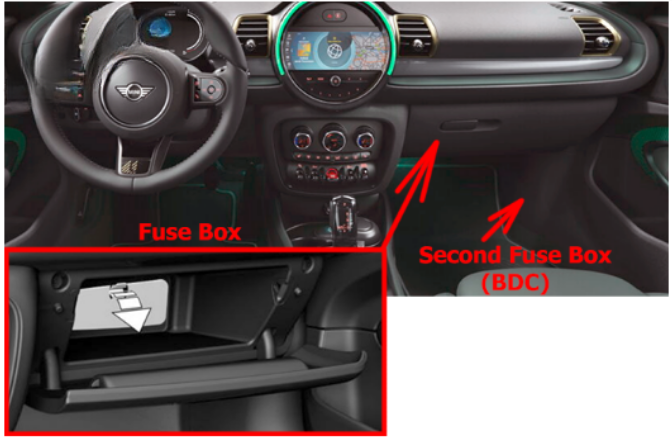

Passenger Compartment Fuse Box
The fuse box is located in the glove compartment.
- Open the glove compartment.
- Swing the cover down, arrow.

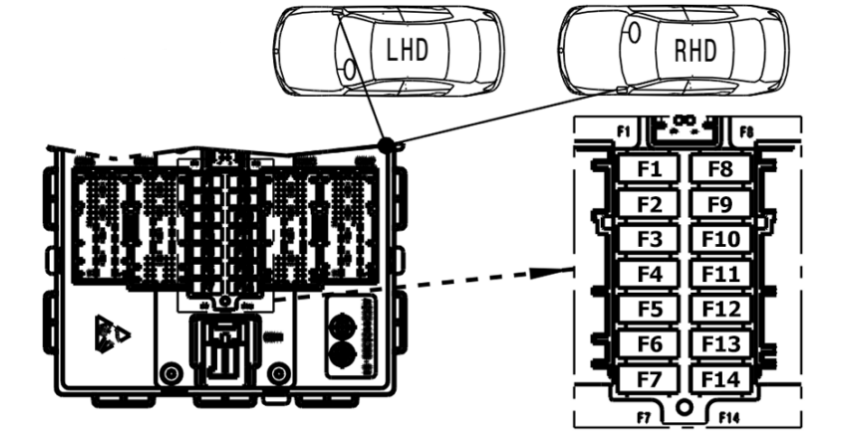

Body Domain Controller
It is located in the front pillar on the passenger side, under the glove box.
Fuse Box Diagram

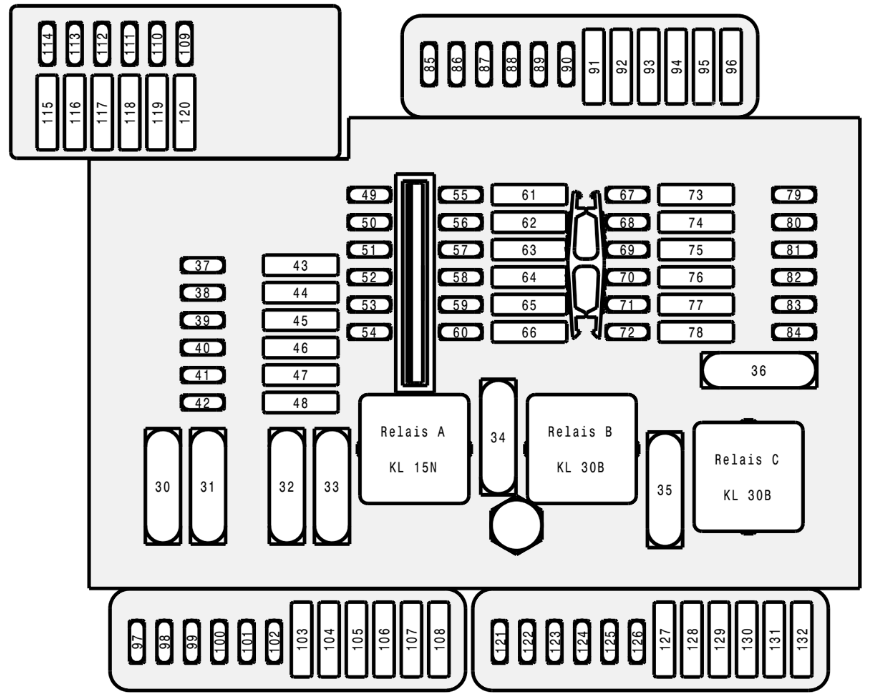

Passenger Compartment Fuse Box
| № | Amps | Description |
|---|---|---|
| 31 | 50A | Heated Windscreen Relay |
| 32 | 40A | Body Domain Controller |
| 34 | 40A | Blower Output Stage |
| 35 | 50A | Body Domain Controller |
| 37 | 5A | Parking Brake Button |
| 38 | 5A | Siren with Tilt Alarm Sensor, Driver’s Door Microwave Sensor, Passenger’s Door Microwave Sensor, Rear Left Microwave Sensor, Rear Right Microwave Sensor |
| 39 | 5A | Roof Function Centre |
| 40 | 5A | Dynamic Stability Control (DSC) |
| 41 | 5A | Instrument Cluster Control Unit |
| 42 | 5A | Remote Control Receiver |
| 43 | 30A | Roof Function Centre |
| 44 | 20A | Right Headlight (2016-2024) |
| 45 | 30A | without Electromechanical Parking Brake: Dynamic Stability Control (DSC) |
| 40A | with Electromechanical Parking Brake: Dynamic Stability Control (DSC) | |
| 46 | 5A | Natural Vacuum Leak Detection |
| 47 | 20A | Left Headlight (2016-2024) |
| 30A | Longitudinal Torque Distribution (2015-2016) | |
| 48 | 30A | Selective Catalytic Reduction (SCR) Control Unit |
| 49 | 5A | Electrical Exhaust Flap, Control Electronics for Electric Auxiliary Heater 2 |
| 50 | 5A | Radiator Shutter Drive Unit, Environmental Air Catalyst Sensor |
| 51 | 5A | Base Plate Fan |
| 52 | 5A | Electrochromic Interior Rear View Mirror |
| 53 | 5A | Automatic Recirculated Air Control (AUC) Sensor |
| 54 | 5A | Electromechanical Power Steering |
| 55 | 4A | Reversing Camera, Parking Assistant |
| 56 | 5A | Vehicle Sound Generator |
| 58 | 10A | Steering Column Switch Cluster |
| 59 | 5A | Camera-Based Driver Assistance System (2015) |
| 60 | 5A | Optional Extra System |
| 61 | 20A | Headunit (Radio or Navigation System) |
| 62 | 5A | Interior Light, Rain Light Solar Condensation Sensor, Vanity Mirror Light |
| 63 | 20A | Trailer Socket, Preparation for Trailer Socket |
| 64 | 20A | 12V Power Socket (Luggage) |
| 65 | 20A | Front Cigarette Lighter (12V Power Socket) |
| 66 | 20A | Electric Fuel Pump Control Electronics |
| 67 | 5A | Exterior Mirror (Front Passenger) |
| 7.5A | Exterior Mirror (Front Passenger) | |
| 68 | 5A | Touchbox, Controller (CON), USB Hub, USB Charging Socket 3 |
| 69 | 5A | Exterior Mirror (Switch Block – Driver’s Door) |
| 7.5A | Exterior Mirror (Switch Block – Driver’s Door) | |
| 70 | 5A | Luggage Compartment Light, Glove Compartment Light, Rear Lid Button on Inside of Rear Lid |
| 71 | 7.5A | Instrument Cluster Control Unit |
| 72 | 5A | Electric Fan Cut-Out Relay |
| 73 | 10A | Driver’s Seat Backrest with Adjustment (Valve Block) |
| 74 | 7.5A | Petrol: Turbocharger Coolant Pump |
| 76 | 10A | Diesel: Diesel Particulate Sensor |
| 5A | Airbag Indicator Light | |
| 77 | 10A | Nitrogen Oxide Sensor after Selective Catalytic Reduction (SCR) Catalytic Converter |
| 78 | 15A | Selective Catalytic Reduction (SCR) Control Unit |
| 79 | 5A | Base Plate, Wireless Charging Oddments Tray, Wireless Charging Oddments Tray Aerial Amplifier |
| 80 | 5A | Central Instrument, Central Information Display, Airbag Indicator Light |
| 81 | 15A | Electronic Transmission Control |
| 82 | 5A | Selector Level |
| 83 | 5A | Digital Motor Electronics |
| 7.5A | Digital Motor Electronics | |
| 84 | 5A | Clutch Module (Manual Transmission), Twin-Clutch Gearbox Control Unit, Twin-Clutch Gearbox Relay |
| 85 | 5A | Electrochromic Interior Rear View Mirror |
| 87 | 5A | DVD Changer |
| 89 | 5A | Chronometer (2015) |
| 91 | 15A | Active Sound Design |
| 92 | 10A | Optional Extra System |
| 93 | 40A | Convertible: Convertible Top Module |
| 94 | 5A | Convertible: Convertible Top Module |
| 96 | 40A | Convertible: Convertible Top Module |
| 97 | 5A | Auxiliary Control Unit |
| 101 | 5A | ID Reader, Car Sharing Module (CSM) |
| 103 | 20A | Right Headlight (2015-2016) |
| 104 | 20A | Left Headlight (2015-2016) |
| 107 | 40A | Tailgate Function Module |
| 109 | 5A | Bi-Stable Relay |
| 110 | 5A | Bi-Stable Relay |
| 111 | 5A | Bi-Stable Relay |
| 115 | 5A | Convenience Charging Electronics |
| 119 | 20A | Trailer Module, Trailer Socket |
| 120 | 20A | Trailer Module, Trailer Socket |
| 121 | 7.5A | USB Charging Socket 4 |
| 127 | 30A | Driver’s Seat Heating Electronics (Basic Version), Driver’s Seat Module (High Version) |
| 128 | 30A | Front Passenger Seat Heating Electronics |
| 129 | 30A | HiFi Amplifier |
| 131 | 30A | Longitudinal Torque Distribution |
| 132 | 20A | 12V Power Socket №1, 12V Power Socket №2, 12V Power Socket 4 (Luggage) |

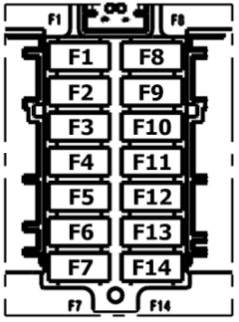

Body Domain Controller
| № | Amps | Protected Component |
|---|---|---|
| 1 | 30A | Power Window (Passenger) |
| 2 | 30A | Power Window Rear (Driver’s Side) |
| 3 | 20A | Door Lock (Front Passenger) |
| 4 | 30A | Power Window (Driver) |
| 5 | 30A | Rear Window Defogger |
| 6 | 30A | Power Window Rear (Passenger Side) |
| 7 | 20A | Door Lock (Driver) |
| 8 | – | – |
| 9 | 5A | Light Operating Unit, Steering Column Switch Cluster, Driver Assistance System Operating Facility with Hazard Warning Switch |
| 10 | 7.5A | Diagnosis Socket |
| 11 | 7.5A | Diagnosis Socket, Heating/Air Conditioning System, Tailgate Function Module |
| 12 | 5A | Evaluation Electronics for Contact-Free Tailgate Opening, Telematic Communication Box, Electronic Outer Door Handle Module (Driver/Passenger) |
| 13 | 15A | Horn |
| 14 | 15A | Rear Wiper & Washer |
