MINI Countryman U25 (2025 & 2026) Fuse Box Location & Diagrams
The MINI Countryman U25 (2025 & 2026) features multiple fuse boxes that protect essential electrical systems and components. Knowing their locations and fuse assignments makes it easier to identify electrical issues, check blown fuses, and understand the vehicle’s power distribution. This blog provides clear fuse box locations and diagrams for these models.
Fuse Box Location

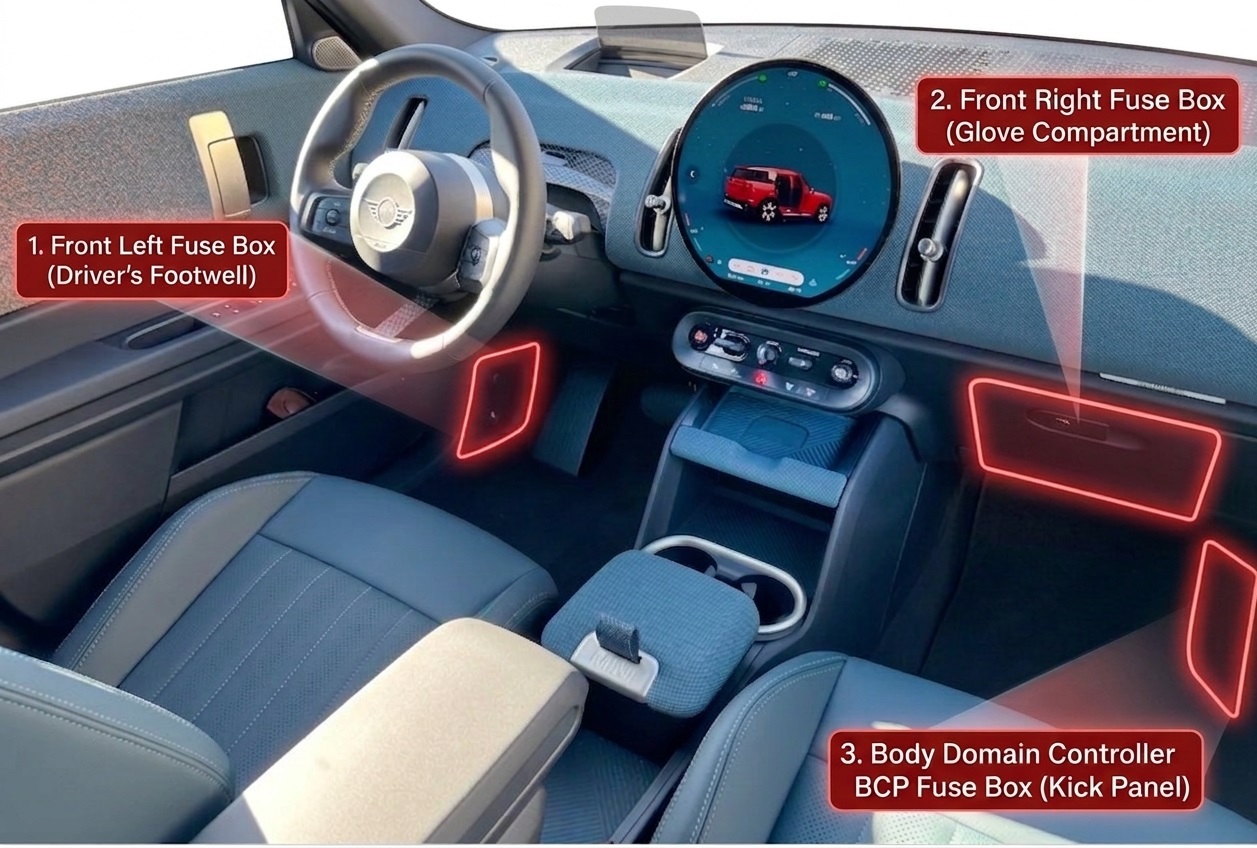

Passenger Compartment Fuse Box
The MINI Countryman U25 has three fuse boxes, and all three of these fuse panels are located inside the passenger cabin.
Fuse Box Diagrams
Passenger Compartment Fuse Box

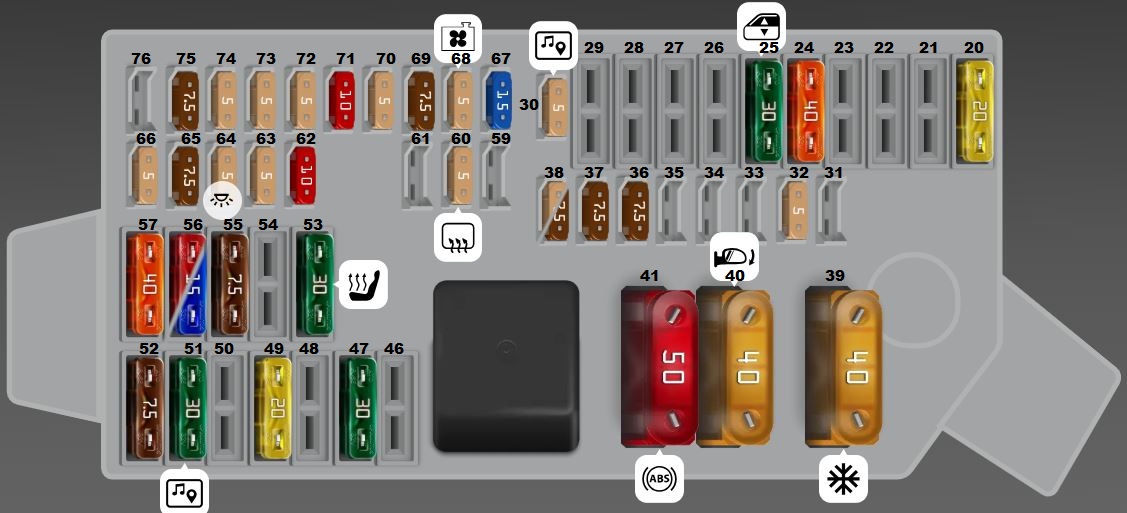

Front Left Fuse Box
| Type | No. | Description |
| Fuse ATO 40A | 24 | Sound system |
| Fuse ATO 30A | 25 | Electric windows, Electric mirrors |
| Fuse MINI 5A | 30 | Infotainment, START-STOP system |
| Fuse MINI 7.5A | 36 | Door module; Automatic soft closing |
| Fuse MINI 7.5A | 37 | [Electric, Plugin-Hybrid] |
| Fuse MINI 5A | 38 | 48V |
| Fuse MINI 7.5A | 38 | 48V [Electric, Plugin-Hybrid] |
| Fuse MAXI 40A | 39 | Air Conditioning System, Heating / Independent aux. heater |
| Fuse MAXI 40A | 40 | Electric mirrors [Combustion engine] |
| Fuse MAXI 50A | 41 | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Parking brake, START-STOP system |
| Fuse ATO 30A | 47 | Seat adjustment |
| Fuse ATO 20A | 49 | [Electric, Plugin-Hybrid] DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| Fuse ATO 30A | 51 | Sound system, Infotainment |
| Fuse ATO 7.5A | 52 | DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| Fuse ATO 30A | 53 | Heated seats |
| Fuse ATO 7.5A | 55 | [Electric, Plugin-Hybrid] DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| Fuse ATO 10A | 56 | DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| Fuse ATO 15A | 56 | [Electric, Plugin-Hybrid] DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| Fuse ATO 40A | 57 | [Combustion engine] Replacement top module; Alternating relay. |
| Fuse MINI 5A | 60 | Rear window defroster (defogger), Steering column function control module |
| Fuse MINI 10A | 62 | Driving assistance |
| Fuse MINI 5A | 63 | Sound system |
| Fuse MINI 5A | 64 | Interior lights |
| Fuse MINI 5A | 66 | Seat adjustment |
| Fuse MINI 15A | 67 | [Electric, Plugin-Hybrid] Hybrid system |
| Fuse MINI 5A | 68 | Electric fan, Parking sensors / Home link (garage door opener), Driving assistance, Hybrid system |
| Fuse MINI 7.5A | 69 | NFC |
| Fuse MINI 5A | 70 | DME – Digital Motor Electronics / Integrated Voltage Module – IVM, Hybrid system |
| Fuse MINI 10A | 71 | Gear Indicator / DSC – Dynamic Stability Control / SMG – Sequential Manual Gearbox |
| Fuse MINI 5A | 72 | Driving assistance |
| Fuse MINI 5A | 74 | 48V, Hybrid system |

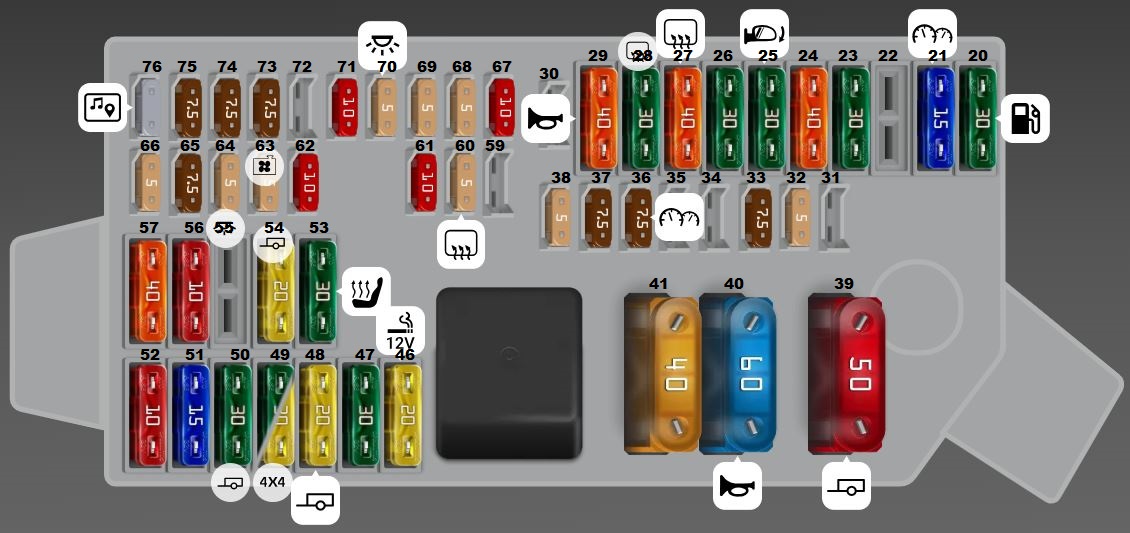

Front Right Fuse Box
| Type | No. | Description |
| Fuse ATO 30A | 20 | Fuel pump |
| Fuse ATO 15A | 21 | Instrument cluster, Head-Up Display (HUD), Infotainment |
| Fuse ATO 30A | 23 | Replacement top module; Alternating relay, Replacement top module; Alternating relay |
| Fuse ATO 40A | 24 | Trunk lid (tailgate) lock; Automatic tailgate closing |
| Fuse ATO 30A | 25 | Electric mirrors |
| Fuse ATO 30A | 26 | Fuel Injection & similar electronics [Combustion engine] |
| Fuse ATO 40A | 27 | Rear window defroster (defogger), Steering column function control module |
| Fuse ATO 30A | 28 | Rear window defroster (defogger), Steering column function control module |
| Fuse ATO 40A | 29 | Horn, On-Board Diagnostics (OBD), Infotainment, BCP, Main headlights / Rain sensor / Light sensor / Electronic ride height control |
| Fuse MINI 5A | 32 | Alarm |
| Fuse MINI 7.5A | 33 | Door module / Automatic soft-close, Sound system |
| Fuse MINI 7.5A | 36 | Instrument cluster, Parking sensors / Home link (garage door opener), Head-Up Display (HUD), Infotainment |
| Fuse MINI 7.5A | 37 | [Hybrid system] |
| Fuse MINI 5A | 38 | Replacement top module; Alternating relay |
| Fuse MAXI 50A | 39 | Trailer module |
| Fuse MAXI 60A | 40 | Horn, On-Board Diagnostics (OBD), Infotainment, BCP, Main headlights / Rain sensor / Light sensor / Electronic ride height control |
| Fuse MAXI 40A | 41 | [Combustion engine] Sound system |
| Fuse ATO 20A | 46 | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| Fuse ATO 30A | 47 | Seat adjustment |
| Fuse ATO 20A | 48 | Trailer module |
| Fuse ATO 30A | 49 | [Combustion engine] Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD, Fuel Injection & similar electronics |
| Fuse ATO 20A | 49 | [Hybrid system] Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD, Fuel Injection & similar electronics |
| Fuse ATO 30A | 50 | Trailer module |
| Fuse ATO 15A | 51 | [Combustion engine] Fuel Injection & similar electronics |
| Fuse ATO 10A | 52 | [Combustion engine] Fuel Injection & similar electronics |
| Fuse ATO 30A | 53 | Heated seats |
| Fuse ATO 20A | 54 | Trailer module |
| Fuse ATO 10A | 56 | [Combustion engine] Fuel Injection & similar electronics |
| Fuse ATO 40A | 57 | [Combustion engine] Replacement top module; Alternating relay |
| Fuse MINI 5A | 60 | Rear window defroster (defogger), Steering column function control module |
| Fuse MINI 10A | 61 | Steering column function control module |
| Fuse MINI 10A | 62 | Driving assistance |
| Fuse MINI 5A | 63 | Electric fan |
| Fuse MINI 5A | 64 | Interior lights |
| Fuse MINI 7.5A | 65 | Parking sensors / Home link (garage door opener), Head-Up Display (HUD) |
| Fuse MINI 5A | 66 | Seat adjustment |
| Fuse MINI 10A | 67 | Driving assistance |
| Fuse MINI 5A | 68 | Parking sensors / Home link (garage door opener) |
| Fuse MINI 5A | 69 | Driving assistance |
| Fuse MINI 5A | 70 | Trunk lid (tailgate) lock; Automatic tailgate closing, interior lights |
| Fuse MINI 10A | 71 | Seatbelts |
| Fuse MINI 7.5A | 73 | Replacement top module; Alternating relay, Electrochromic rear view mirror |
| Fuse MINI 7.5A | 74 | Fuel Injection & similar electronics, Hybrid system |
| Fuse MINI | 76 | Parking sensors / Home link (garage door opener), Infotainment |

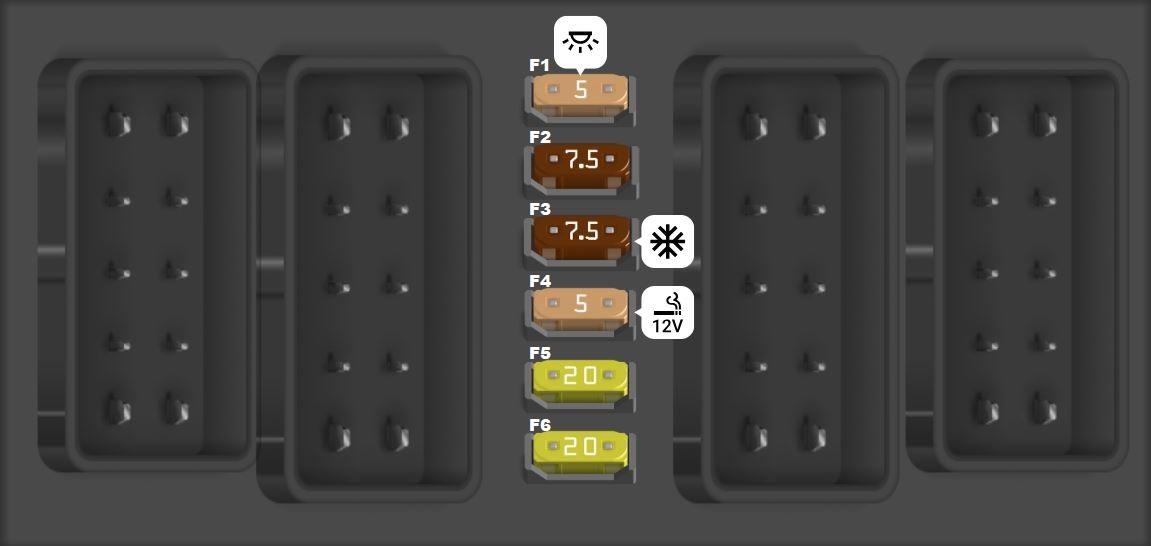

Body Domain Controller
| Type | No. | Description |
| Fuse MINI 5A | F1 | Steering column function control module, Driving assistance, Main headlights / Rain sensor / Light sensor / Electronic ride height control, Interior lights |
| Fuse MINI 7.5A | F2 | On-board diagnostics (OBD), Hybrid system |
| Fuse MINI 7.5A | F3 | Air conditioning system, Tailgate |
| Fuse MINI 5A | F4 | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V), Infotainment, Tailgate, Door module / Automatic soft-close, STAR-STOP system |
| Fuse MINI 20A | F5 | Door module / Automatic soft-close |
| Fuse MINI 20A | F6 | Door module / Automatic soft-close |
