Mitsubishi L200 (2002 – 2005) Fuse Box Location & Diagrams
The Mitsubishi L200 (2002–2005) relies on two primary fuse boxes to protect its electrical circuits from power surges. Knowing the exact location and function of each fuse is essential for troubleshooting common issues like failing headlights or interior electronics. This guide provides clear diagrams and descriptions to help you maintain your vehicle’s electrical system efficiently.
Passenger Compartment Fuse Box
Mitsubishi L200 (2002 to 2005)

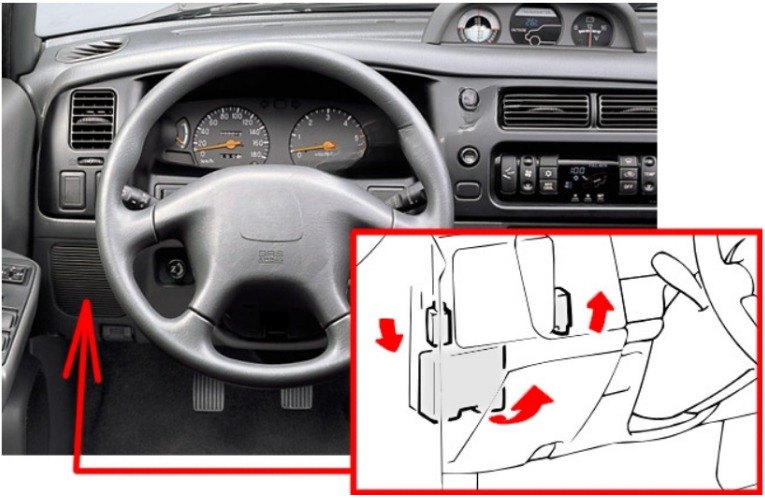

Fuse box location
The fuse box is located in the instrument panel (on the left side). You may have to remove some trim pieces to access it.

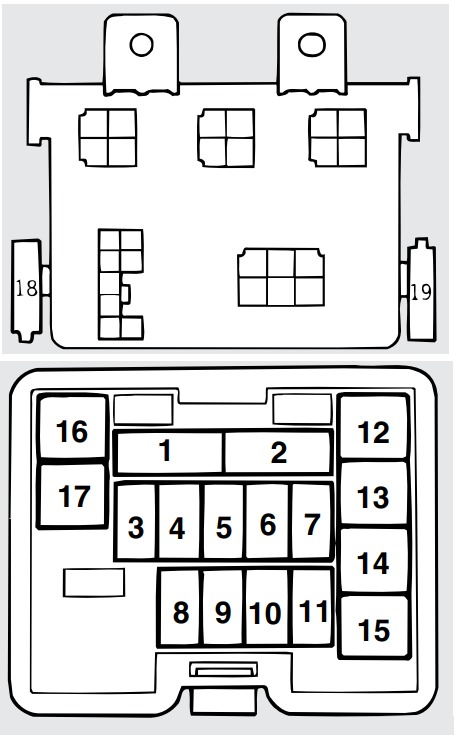

Fuse box diagram

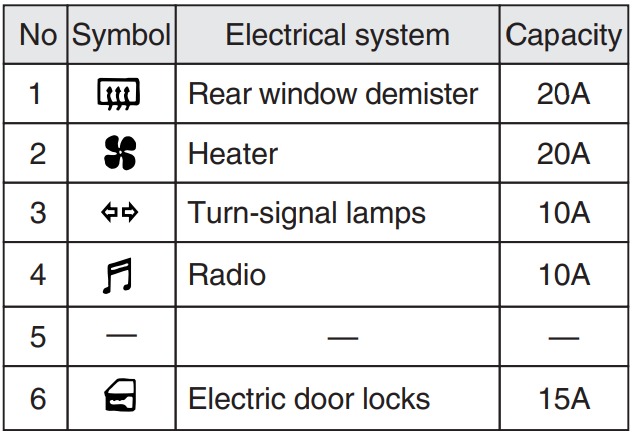

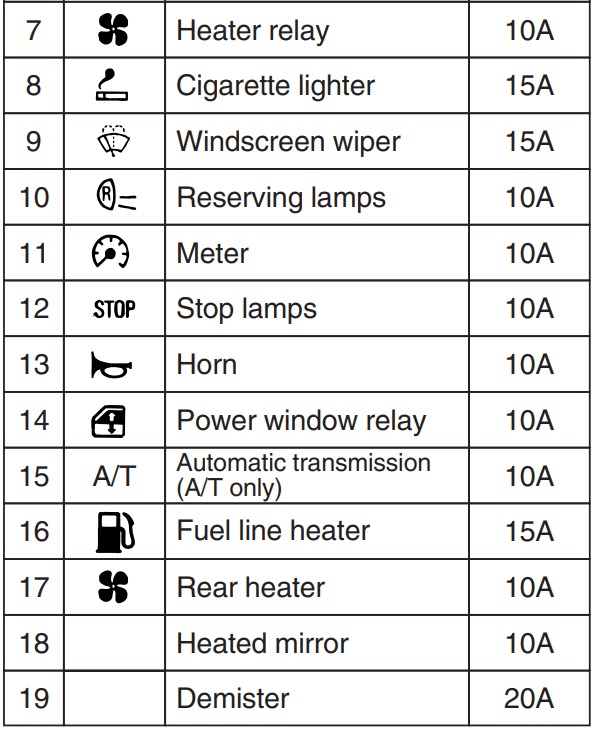

Assignment of the fuses in the Instrument Pane
Engine Compartment Fuse Box
Mitsubishi L200 (2002 to 2005)

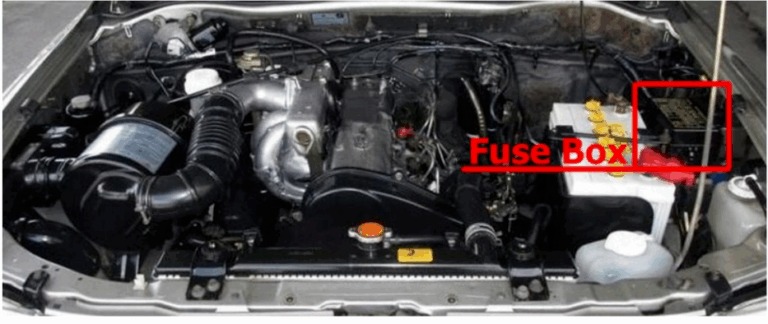

Fuse box location

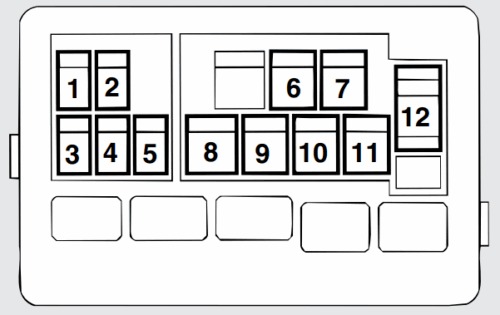

Fuse box diagram

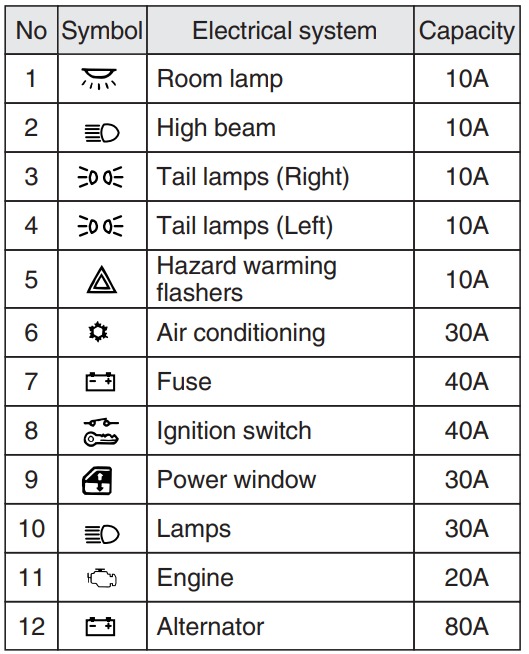

Assignment of the fuses in the Engine Compartment Fuse Box
