Mitsubishi Outlander (2003 – 2006) Fuse Box Diagrams & Location
Finding the fuse box in your first-generation Mitsubishi Outlander is essential for troubleshooting electrical issues like failed headlights or power outlets. This guide provides the exact locations and detailed diagrams for both the interior and engine compartment fuse blocks for models produced between 2003 and 2006.
Passenger Compartment Fuse Box
Mitsubishi Outlander (2003 to 2006)

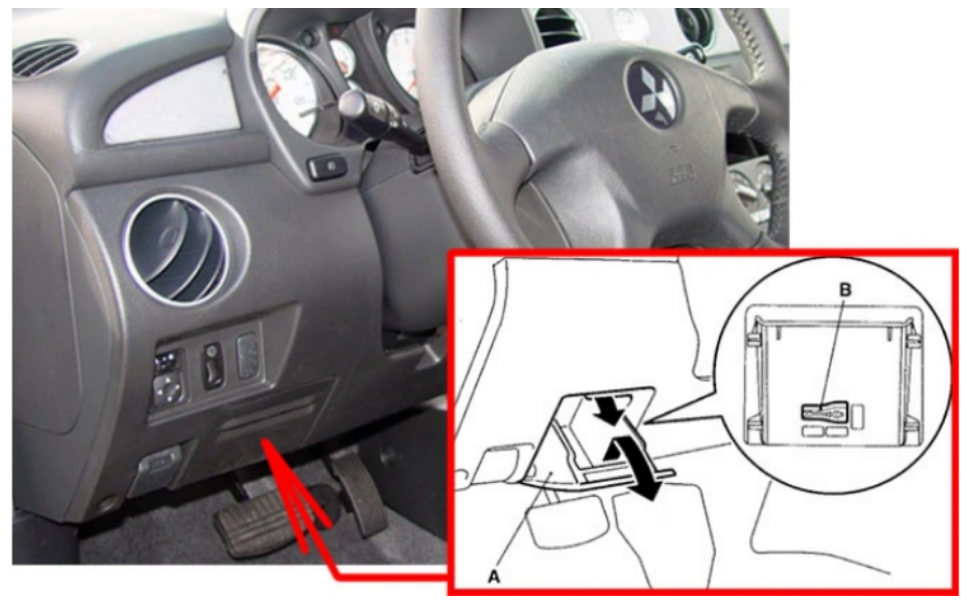

Fuse box location
The fuse panel is located behind the storage compartment in the instrument panel. Open the storage compartment (A) and pull it toward you while lifting it up to remove it. Use fuse puller (B) to remove the fuses.

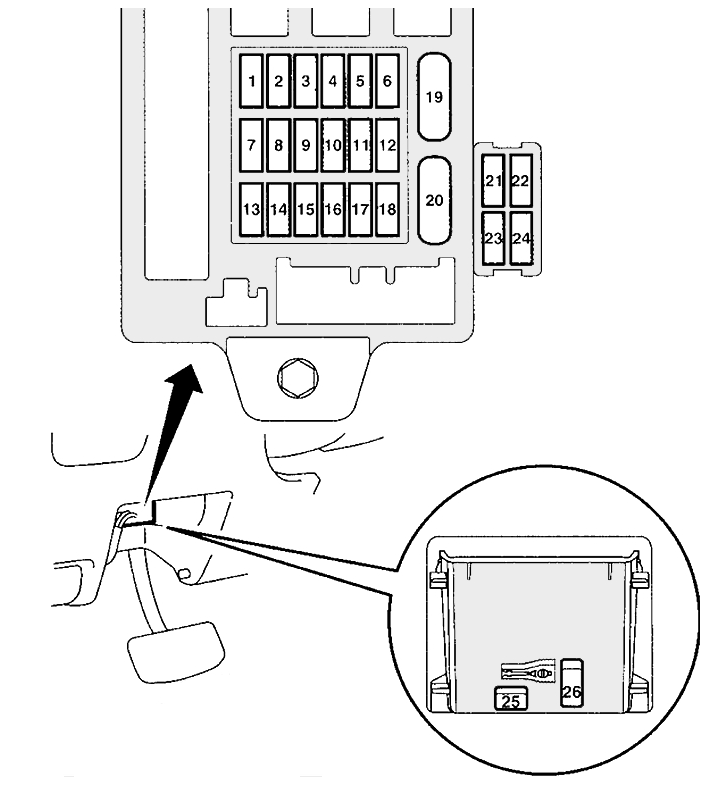

Fuse box diagram
Assignment of the fuses in the instrument panel
| No | Electrical system | Capacity |
|---|---|---|
| 1 | Ignition coil | 10A |
| 2 | Gauge | 7.5A |
| 3 | Back-up lights | 7.5A |
| 4 | Cruise control | 7.5A |
| 5 | Relay | 7.5A |
| 6 | Door mirror heater | 7.5A |
| 7 | Windshield wiper | 20A |
| 8 | Engine control | 7.5A |
| 9 | Cigarette lighter | 15A |
| 10 | Not used | – |
| 11 | Outside rearview mirrors | 7.5A |
| 12 | Engine control | 15A |
| 13 | Radio | 10A |
| 14 | Rear window wiper | 15A |
| 15 | Power door locks | 15A |
| 16 | Rear fog light | 10A |
| 17 | Not used | – |
| 18 | Dome light | 10A |
| 19 | Heater | 30A |
| 20 | Rear window defogger | 30A |
| 21 | Sunroof | 20A |
| 22 | Heated seat | 10A |
| 23 | Intercooler water spray | 10A |
| 24 | Not used | – |
| 25 | Spare fuse | 20A |
| 26 | Spare fuse | 30A |
Engine Compartment Fuse Box
Mitsubishi Outlander (2003 to 2006)

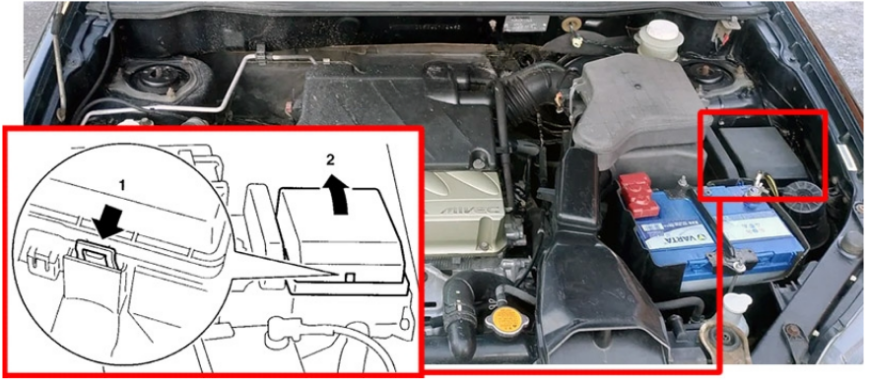

Fuse box location
To access, push the lock lever, then remove the fuse block cover.

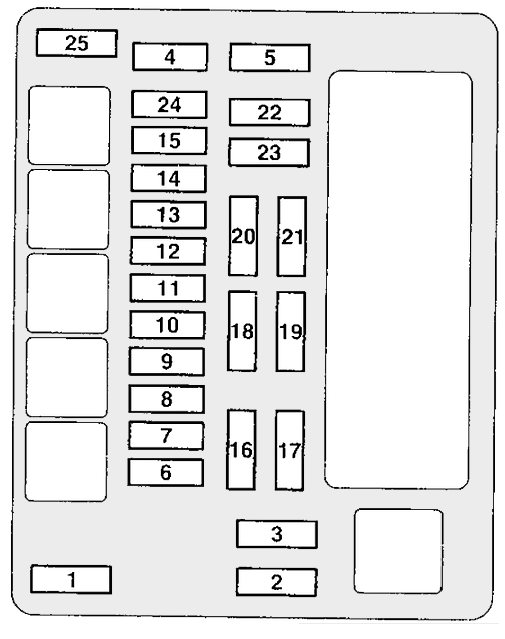

Fuse box diagram
Assignment of the fuses in the engine compartment
| No | Electrical system | Capacity |
|---|---|---|
| 1 | Fuse (+B) | 60A |
| 2 | Radiator fan motor | 50A |
| 3 | Anti-lock braking system (ABS) | 60A |
| 4 | Ignition switch | 40A |
| 5 | Power window control | 30A |
| 6 | Front fog lights/ Daytime running lights (DLR) | 15A |
| 7 | Heated seat | 20A |
| 8 | Horn | 10A |
| 9 | Engine control | 20A |
| 10 | Air conditioning | 10A |
| 11 | Stop lights | 15A |
| 12 | Audio amplifier | 20A |
| 13 | Alternator | 7.5A |
| 14 | Hazard warning flasher | 10A |
| 15 | Automatic transaxle | 20A |
| 16 | Headlight high beam (right) | 10A |
| 17 | Headlight high beam (left) | 10A |
| 18 | Headlight low beam (right) | 10A |
| 19 | Headlight low beam (left) | 10A |
| 20 | Tail light (right) | 7.5A |
| 21 | Tail light (left) | 15A |
| 22 | Dome light | 10A |
| 23 | Radio | 10A |
| 24 | Fuel pump | 15A |
| 25 | Accessory socket | 15A |
