Mitsubishi Outlander (2014 – 2021) Fuse Box Location & Diagrams
The Mitsubishi Outlander (2014–2021) belongs to the third generation, and this blog covers its fuse box diagrams and locations. It helps you quickly find the right fuse when something stops working, making troubleshooting easier for all Outlander owners.
Fuse Box Locations
Passenger Compartment

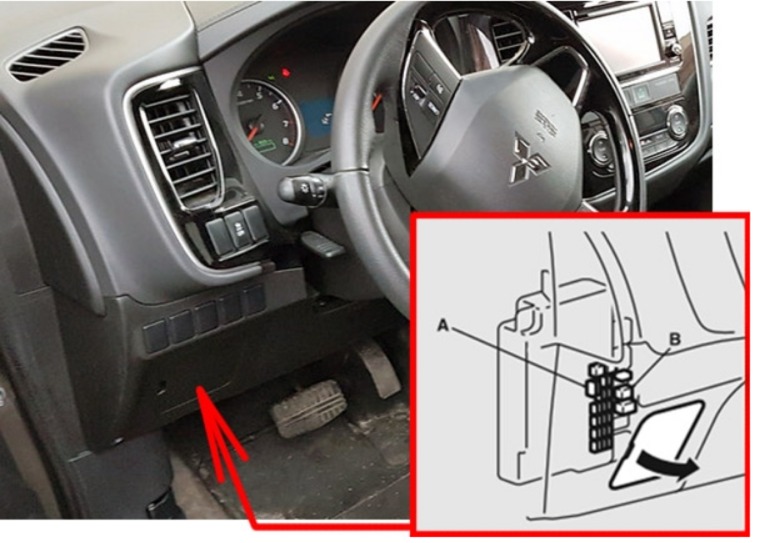

The fuse box is located in the instrument panel (on the driver’s side) to the left of the steering wheel, behind the cover.
A – Main fuse block; B – Sub fuse block
Engine Compartment

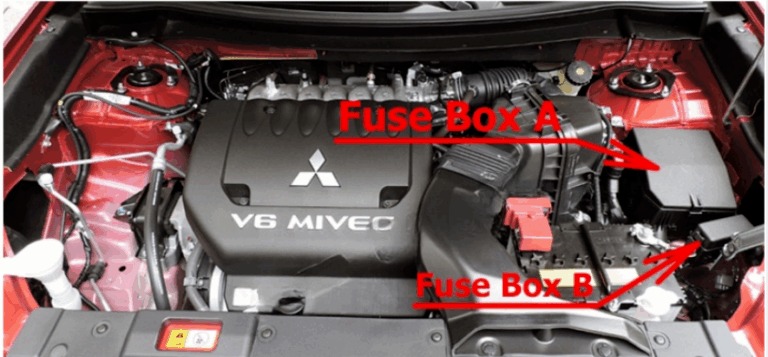

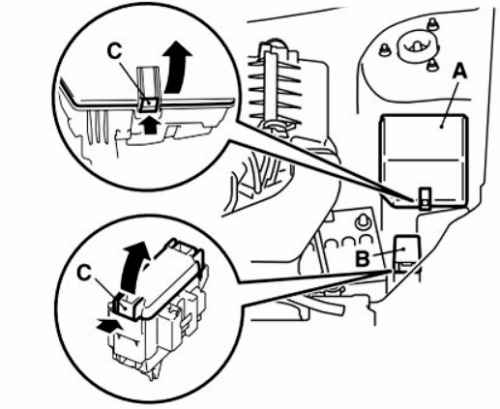

It is located in the engine compartment (left-side).
A – Main fuse block; B – Sub fuse block (if equipped).

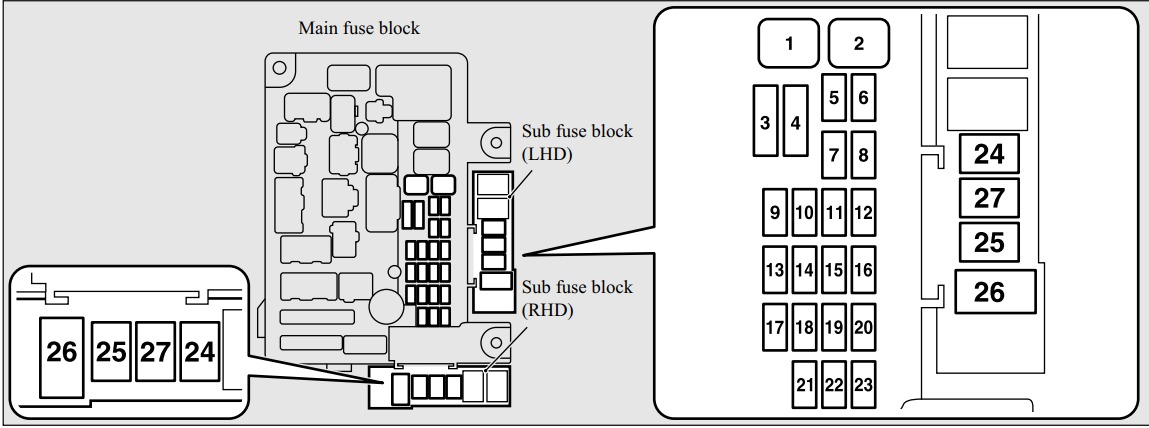

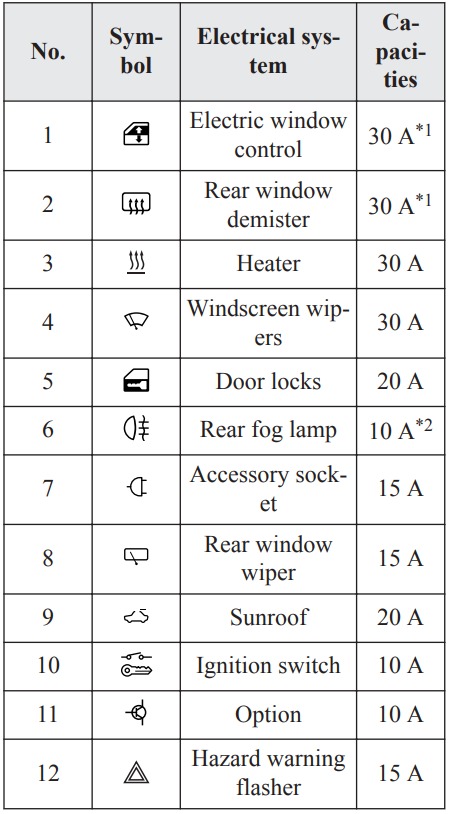

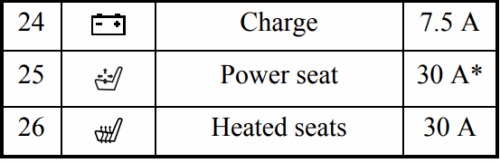

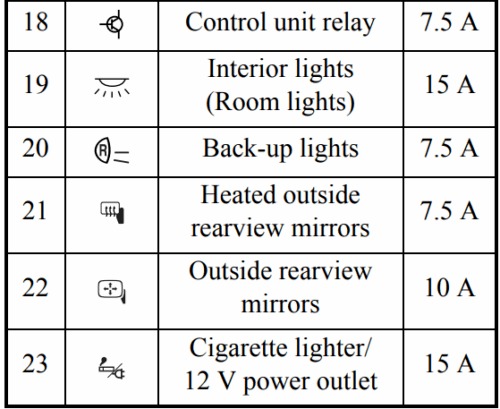

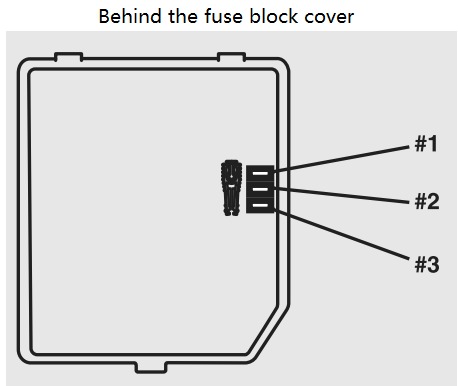

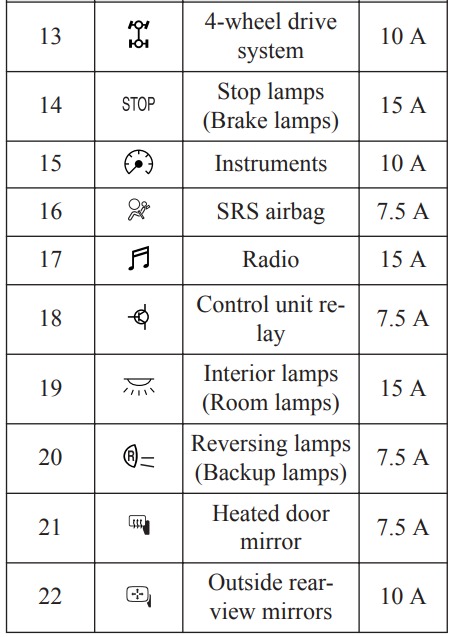

Passenger Compartment Fuse Box Diagram

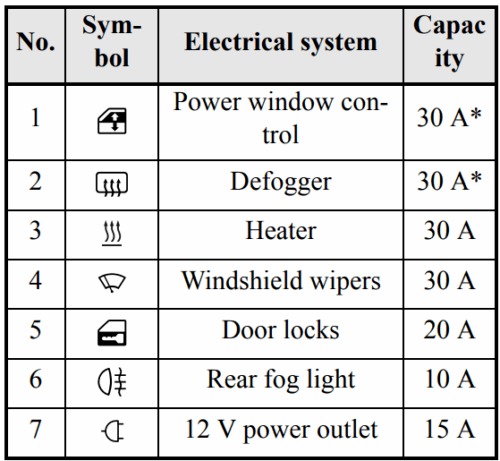

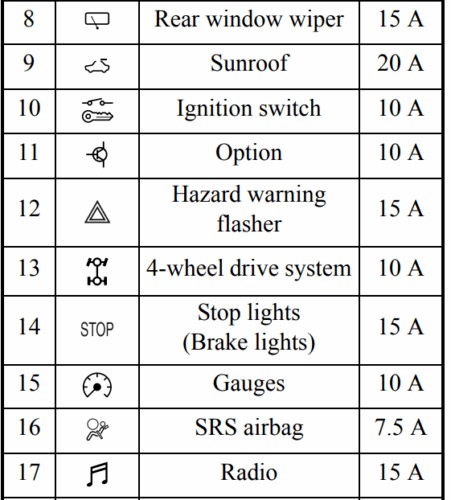

Mitsubishi Outlander (2014, 2015 and 2016)

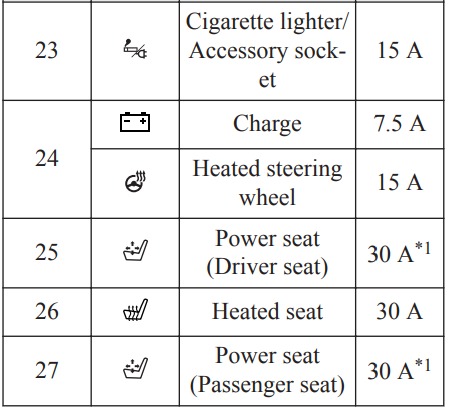

Mitsubishi Outlander (2017 to 2021)

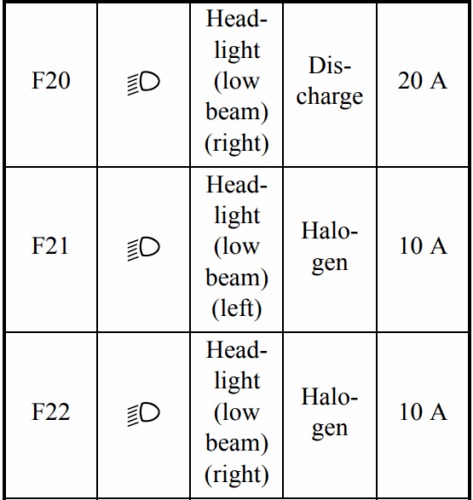

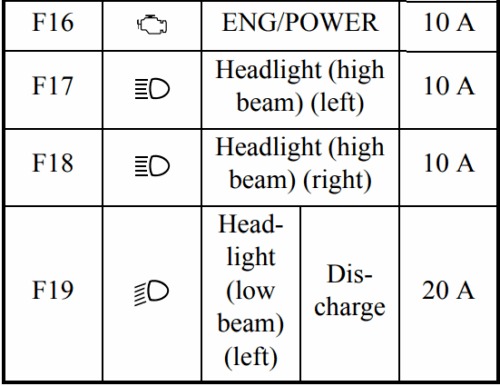

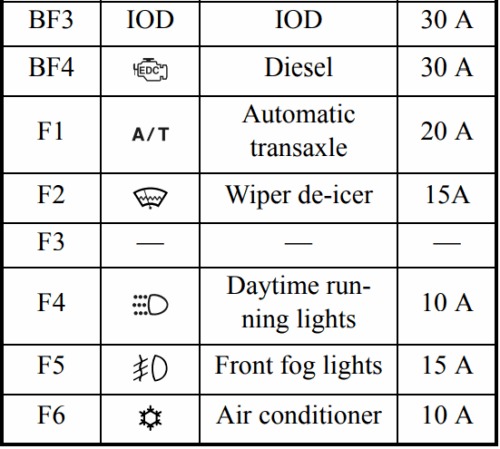

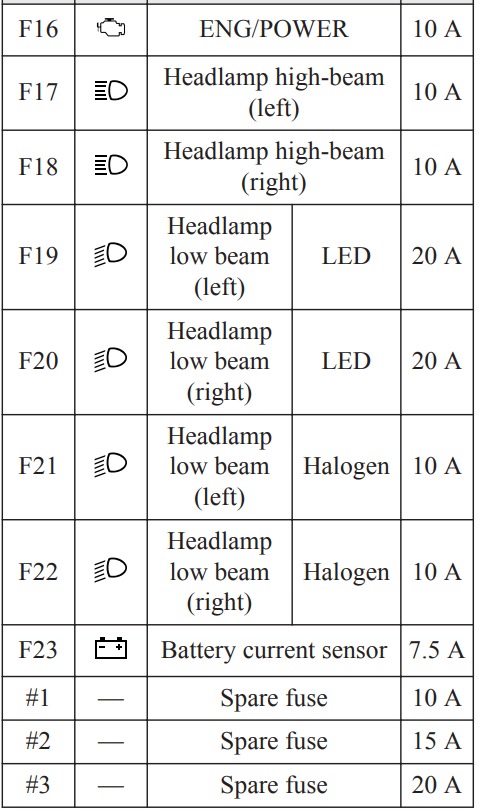

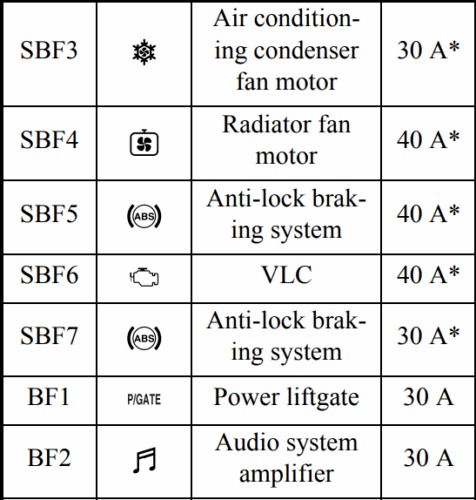

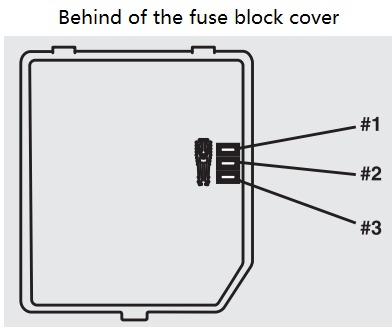

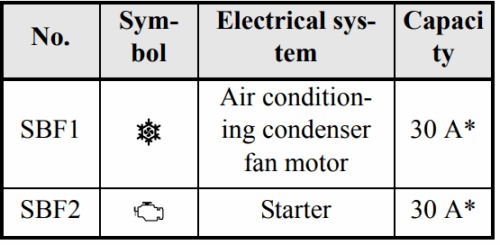

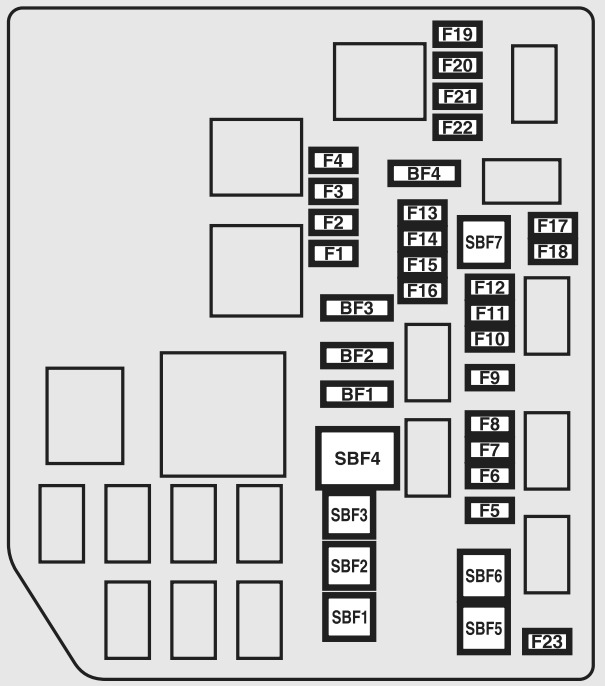

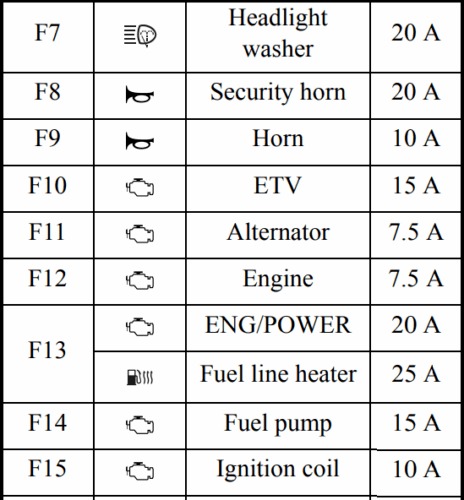

Engine Compartment Fuse Box Diagram

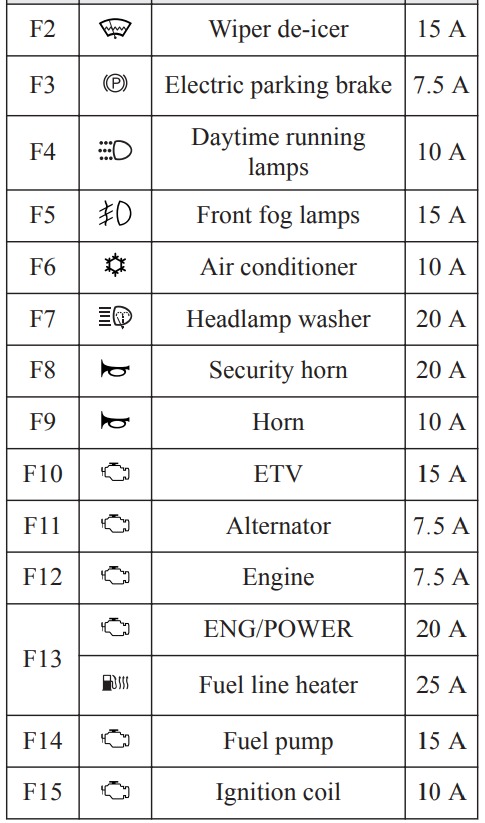

Mitsubishi Outlander (2014, 2015 and 2016)
Mitsubishi Outlander (2017 to 2021)

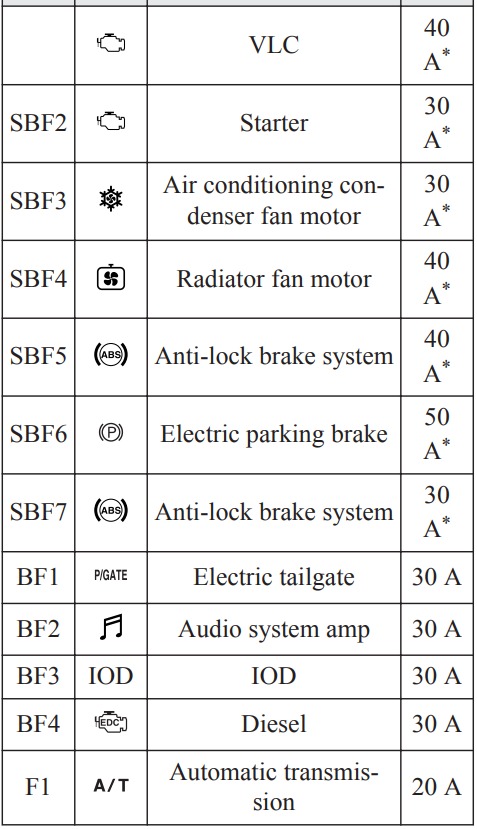

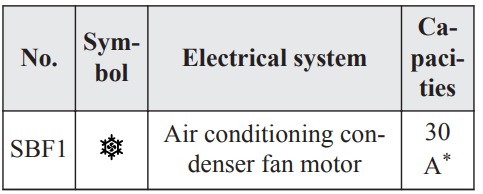

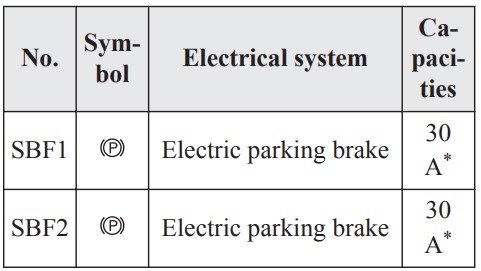

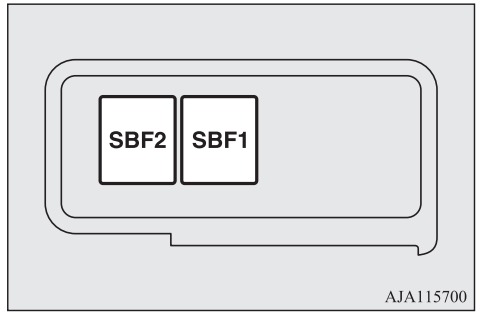

Sub fuse block
