Nissan Murano (2015 – 2024) Fuse Box Location & Diagrams
Explore the fuse box locations and detailed fuse diagrams for the Nissan Murano (2015–2024). This guide helps you quickly identify fuse and relay positions, understand fuse assignments, and troubleshoot electrical issues with clear information for every model year in this generation.
Fuse Box Location

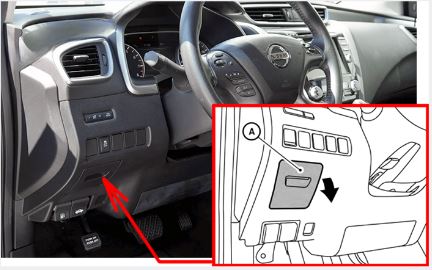

Passenger Compartment Fuse Box
Pull down on the fuse box cover A to remove.

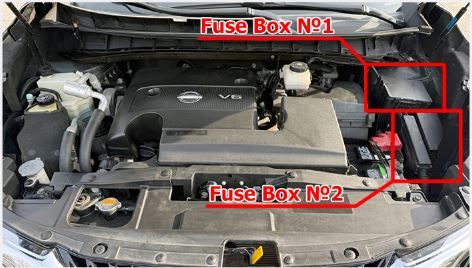

Engine Compartment Fuse Boxes
Remove the fuse box cover by pushing the tab and lifting the cover up.
Fuse Box Diagrams

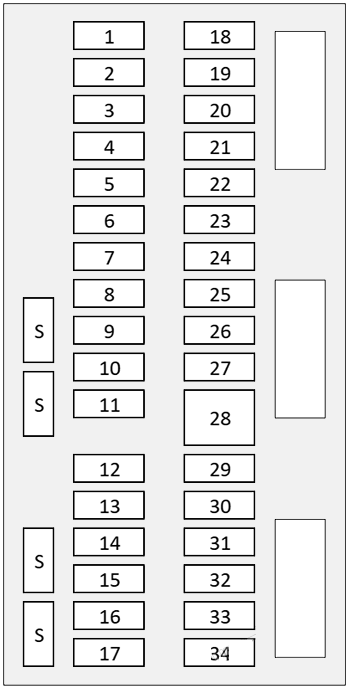

Passenger Compartment Fuse Box
| № | Amps | Name | Description |
|---|---|---|---|
| 1 | 15A | BLOWER MOTOR | AC blower motor |
| 3 | 20A | POWER OUTLET | Auxiliary power outlet |
| 4 | 20A | POWER OUTLET | Auxiliary power outlet |
| 5 | 10A | ACC RELAY | Protects several accesory circuits |
| 6 | 10A | HEATED MIRROR | Mirror heater |
| 7 | 15A | RR DEF | Rear window defogger |
| 8 | 15A | RR DEF | Rear window defogger |
| 9 | 10A | ELEC PARTS (BAT-1) | ELEC PARTS (BAT-1) |
| 10 | 5A | ILLUMINATION | Illumination |
| 11 | 15A | BLOWER MOTOR | AC blower motor |
| 12 | 15A | HEATED SEAT RR | HEATED SEAT RR |
| 13 | 10A | ELEC PARTS (IGN) | Protects several circuits |
| 15 | 5A | METER (IGN) | Instrument cluster |
| 16 | 10A | AIR BAG | Airbag |
| 17 | 15A | HEATED SEAT FR | HEATED SEAT FR |
| 18 | 10A | ROOM LAMP | Dome light and interior light |
| 20 | 15A | DOOR LOCK FR | Power door lock system |
| 21 | 15A | DOOR LOCK RR | Power door lock system |
| 22 | 15A | RR WIPER | Rear wiper |
| 23 | 10A | HEATED STRG | Heated steering wheel |
| 24 | 10A | ELEC PARTS (ACC) | Protects several circuits |
| 26 | 10A | ELEC PARTS (BAT-2) | ELEC PARTS (BAT-2) |
| 27 | 10A | STOP LAMP | Stop lights |
| 28 | EXTENDED STORAGE SW | ||
| 29 | 15A | BOSE/RSE | BOSE/RSE |
| 30 | 15A | BOSE | Audio system |
| 31 | 10A | METER (BAT) | Instrument cluster |
| 32 | 5A | ELEC PARTS (BAT CUT) | ELEC PARTS (BAT CUT) |
| 33 | 20A | AUDIO | Audio system |
| 34 | 5A | BCM SIGNAL | BCM SIGNAL |
| S | SPARE | Spare Fuses | |
Engine Compartment Fuse Boxes

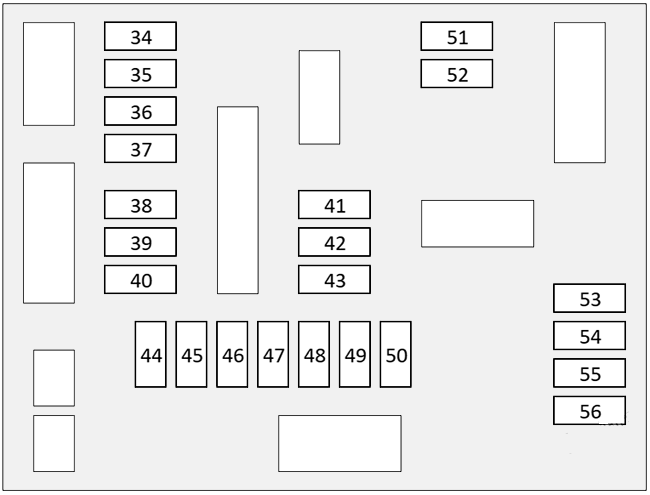

Fuse Box №1
| № | Amps | Name | Description |
|---|---|---|---|
| 34 | 10A | H/LAMP HI RH | High beam headlights (Right), auto light system, DRL system |
| 35 | 10A | H/LAMP HI LH | High beam headlights (Left), auto light system, DRL system |
| 36 | 15A | H/LAMP LO RH | Low beam headlights (Right), auto light system, DRL system |
| 37 | 15A | H/LAMP LO LH | Low beam headlights (Left), auto light system, DRL system |
| 38 | 10A | ECM VB | Engine control module (ECM) |
| 39 | 10A | ENG SOL | Engine control module (ECM) |
| 40 | 15A | O2 SENS | O2 SENS |
| 41 | 30A | FR WIPER | Windshield wiper relay (front) |
| 42 | 15A | FR FOG LAMP | Fog light relay |
| 43 | 10A | DTRL | Auto light system, DRL system |
| 44 | 15A | IGN COIL | IGN COIL |
| 45 | 10A | INJECTOR | INJECTOR |
| 46 | 10A | A/T CONT | BCM (body control module), CVT control system, engine control system, Intelligent Key, NVIS, start system |
| 47 | 15A | FUEL PUMP | Fuel pump relay |
| 48 | 10A | STARTER IG | STARTER IG |
| 49 | 10A | ABS CONT | ABS, Brake control system, electronic power steering control |
| 50 | 10A | WASHER MTR | BCM, driver assistance systems, windshield wiper and washer |
| 51 | 10A | TAIL LH / ILLUMI | Parking lights, license plate light, rear lights |
| 52 | 10A | TAIL RH / CLEARANCE | Auto light system, parking lights, license plate light, rear lights |
| 53 | 10A | AIR CONT | Air conditioning relay |
| 55 | 15A | THROTTLE MTR | Throttle relay |
| 56 | 10A | ECM BAT | ECM BAT |

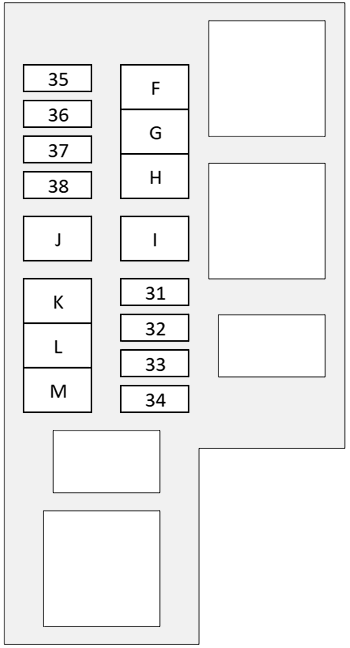

Fuse Box №2
| № | Amps | Name | Description |
|---|---|---|---|
| 31 | 15A | WIPER DEICER | Deicer or defroster |
| 32 | 15A | HORN | Horn |
| 33 | 10A | 4WD | All wheel drive system |
| 34 | 30A | TOWING | Trailer lights |
| 35 | 5A/15A | AC SEAT LH / E/ACM RR | Heated left seat / Electronic module rear |
| 36 | 10A | ALT / ANTI THEFT | Battery and charging system; Anti-theft system |
| 37 | 30A | RR FLIP UP SEAT | Electric folding rear seats |
| 38 | 5A/15A | AC SEAT RH/ E/ACM FR | Heated right seat / Electronic module front |
| F | 40A | IGN SW | Ignition switch |
| G | 40A | AUTO BACK DOOR | Electric tailgate |
| H | 40A | BCM | Body control module |
| I | 40A | RAD FAN MOTOR-2 | Cooling fan motor 2 |
| J | 40A | RAD FAN MOTOR-1 | Cooling fan motor 1 |
| K | 30A | VDC SOL | Vehicle dynamics control solenoid |
| L | 30A | HEAD LAMP WASHER | Headlight washer |
| M | 40A/50A | VDC MOTOR | Vehicle dynamics control solenoid |
