Nissan Qashqai & Rogue Sport (2007 – 2013) Fuse Box Location and Diagrams
Fuse box diagrams and locations for the 2007–2013 Nissan Qashqai and Rogue Sport are covered in this guide. This blog helps you locate fuse panels, understand fuse functions, and fix electrical issues to keep your car running smoothly.
Passenger Compartment Fuse Box
2007 – 2013 Nissan (Qashqai & Rogue Sport)

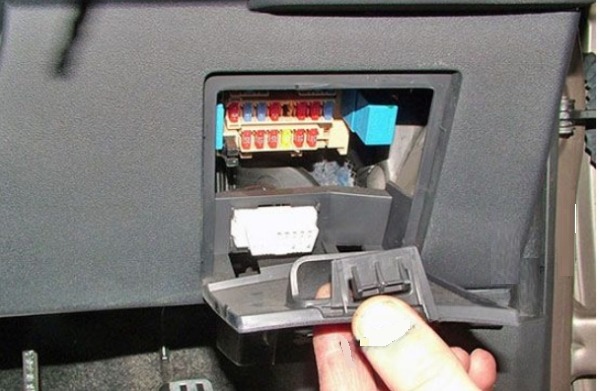

Fuse Box Location

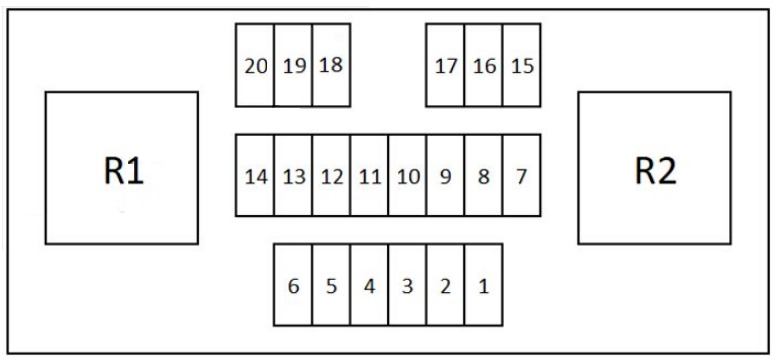

Fuse Box Diagram
| № | Amp | Component |
|---|---|---|
| R1 | Ignition auxiliary circuits relay | |
| R2 | Heater blower relay | |
| F1 | 10A | Heated seats |
| F2 | 10A | Air bags |
| F3 | 20A | Steering column function control module |
| F4 | 10A | Electrics |
| F5 | 10A | Interior electrical control unit |
| F6 | 10A | Heated door mirrors |
| F7 | 15A | 12 V socket (rear) |
| F8 | 10A | Electrics |
| F9 | 10A | Interior electrical control unit |
| F10 | 20A | Not used |
| F11 | 10A | BPP switch |
| F12 | 15A | Audio system |
| F13 | 15A | Transmission control module (TCM) |
| F14 | – | Not used |
| F15 | 15A | AC/heater blower motor |
| F16 | 15A | AC/heater blower motor |
| F17 | 10A | Not used |
| F18 | – | Not used |
| F19 | 15A | Cigarette lighter/charging socket |
| F20 | 10A | Audio system, electric exterior mirrors |
Engine Compartment Fuse Box
2007 – 2013 Nissan (Qashqai & Rogue Sport)
Fuse Box Location

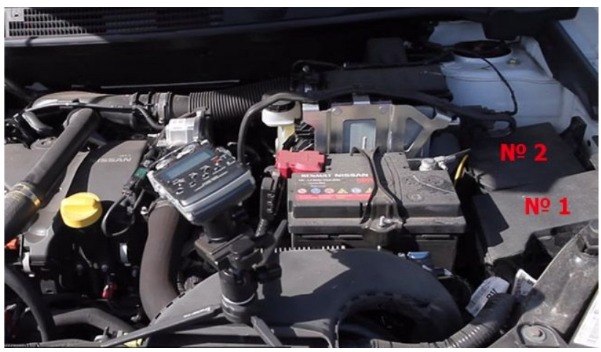

The fuse boxes is located in the engine compartment (left-side).
- Fuse Box 1
- Fuse Box 2

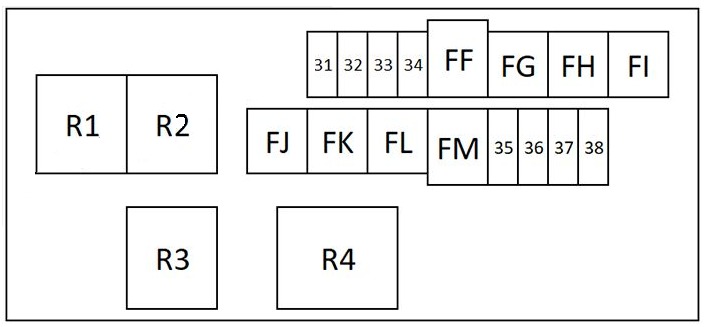

Fuse Box #1 Diagram
| № | Amp | Component |
|---|---|---|
| R1 | Engine coolant pump motor relay | |
| R2 | Horn relay | |
| R3 | Headlamp washer pump relay | |
| R4 | Not used | |
| FF | 60A | Power steering |
| FG | 30A | Headlamp washers |
| FH | 30A | ABS |
| FI | 40A | ABS |
| FJ | 40A | Not used |
| FK | 40A | Ignition switch |
| FL | 30A | Not used |
| FM | 50A | Engine coolant blower motor |
| F31 | 20A | Engine coolant pump motor relay |
| F32 | 10A | Four wheel drive system |
| F33 | 10A | Attemator |
| F34 | 10A | Horn |
| F35 | 30A | Auxiliary heater |
| F36 | 10A | Not used |
| F37 | 30A | Auxiliary heater |
| F38 | 30A | Auxiliary heater |

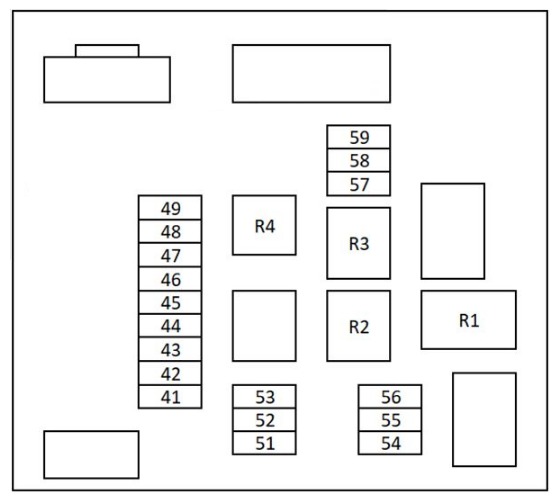

Fuse Box #2 Diagram
| № | Amp | Component |
|---|---|---|
| R1 | Heated rear window relay | |
| R2 | Not used | |
| R3 | Not used | |
| R4 | Ignition main circuits relay | |
| F41 | 15A | Defrost the tailgate, heater mirrors |
| F42 | 15A | Defrost the tailgate, heater mirrors |
| F43 | 15A | Front fog lamps |
| F44 | 30A | Wind screen wipers |
| F45 | 15A | Headlamp low beam, right |
| F46 | 15A | Headlamp low beam, left |
| F47 | 10A | Head lamp high beam, right |
| F48 | 10A | Head lamp high beam, left |
| F49 | 10A | Lamp tail lights |
| F51 | 15A | transmission |
| F52 | 20A | Engine management |
| F53 | 10A | A/C compressor clutch |
| F54 | 10A | Reversing lamps |
| F55 | 10A | Transmission |
| F56 | 10A | Engine management |
| F57 | 15A | Engine management |
| F58 | 10A | Engine management |
| F59 | 10A | ABS |
