Saab 9-5 (2000 – 2009) Fuse Box Location & Diagrams
This blog covers the Saab 9-5 (2000–2009) fuse box locations and diagrams, helping you identify fuse panels, fuse ratings, and protected circuits. Find clear information for checking or replacing fuses related to lighting, accessories, electronics, and other essential vehicle systems.
Fuse Box Location

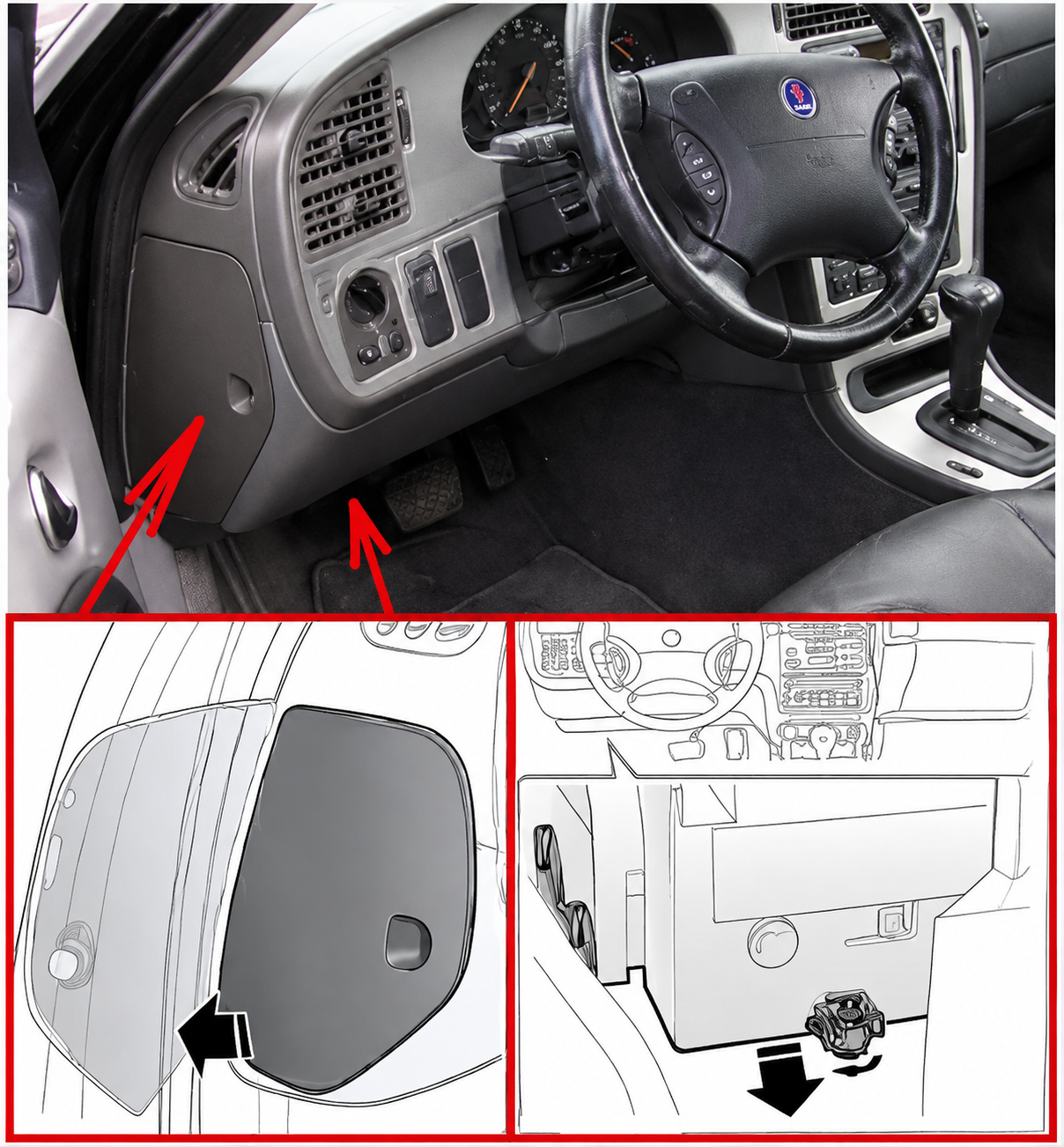

Passenger Compartment Fuse Box
The fuse box is located behind the cover on the driver’s side of the instrument panel. The relay panel is located under the dashboard.

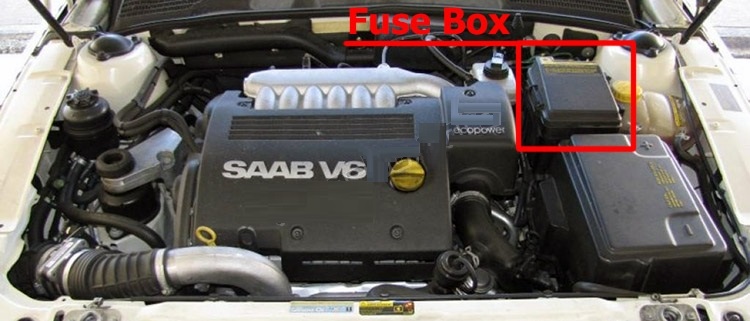

Engine Compartment Fuse Box
Fuse Box Diagrams
Passenger Compartment Fuse Box

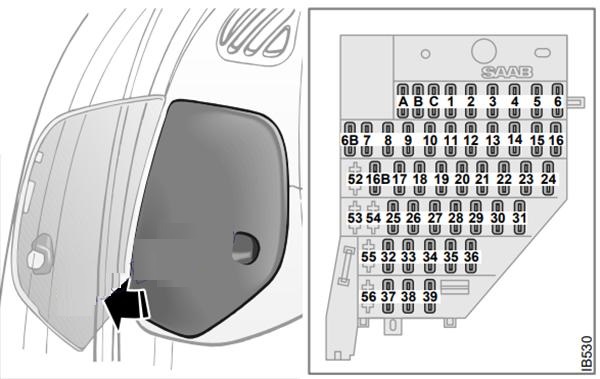

Saab 9-5 (2000 & 2001)
| # | Amp | Function |
|---|---|---|
| A | 25/30 | Trailer lights |
| B | 10 | Automatic transmission |
| C | 7,5 | Electric door mirrors; DICE |
| 1 | 15 | Brake lights; shift-lock override |
| 2 | 15 | Reversing lights |
| 3 | 10 | Parking lights, left |
| 4 | 30 | Parking lights, right |
| 5 | 7,5 | DICE/TWICE |
| 6 | 30 | Electric windows, right |
| 6B | 5 | Stop lights, trailer |
| 7 | 10 | Fuel injection |
| 8 | 15 | Trunk lighting; door lighting; SID; car phone |
| 9 | 15 | Audio System; diagnostic instrument |
| 10 | 15 | Memory function, door mirrors; heating, rear seat |
| 11 | 30 | Central locking; electrically adjusted passenger seat |
| 12 | 7,5 | Automatic transmission |
| 13 | 20 | Audio System, amplifier |
| 14 | 30 | Ignition system, engine |
| 15 | 15 | Preheated oxygen sensor (catalytic converter) |
| 16 | 20 | DICE (direction indicators) |
| 16B | — | — |
| 17 | 20 | Engine-management system |
| 18 | 7,5 | Door-mirror heating |
| 19 | 20 | Fuel pump |
| 20 | 15 | ACC; interior lighting; rear fog light |
| 21 | 10 | Audio System; rear-view mirror with auto dimming function |
| 22 | 40 | Interior fan; air pump (V6 only) |
| 23 | 15 | Sunroof |
| 24 | 40 | Rear-window heating |
| 25 | 30 | Electrically adjustable driver’s seat; fuel-filler flap |
| 26 | 7,5 | ABS brakes; ACC |
| 27 | 10 | Engine-management system |
| 28 | 7,5 | Airbag (SRS) |
| 29 | 7,5 | Automatic transmission |
| 30 | 7,5 | Starter motor |
| 31 | 7,5 | Cruise control; water valve 2001: Cruise control; water valve; fog lights, front |
| 32 | 15 | Ventilated front seats |
| 33 | 7,5 | Direction-indicator switch |
| 34 | 30 | Cigarette lighter |
| 35 | 15 | Daytime running light |
| 36 | 30 | Electric windows, left |
| 37 | 30 | Windshield wipers; fog lights, front |
| 38 | 30 | Electric heating, front seats |
| 39 | 20 | Limp-home solenoid (automatic transmission) |
| 52-56 | Spare fuses |
Saab 9-5 (2002 to 2009)
| Fuse No. | Amp / Function (2002–2009 Variations) |
|---|---|
| A | 30A – Trailer lights |
| B | 10A – Automatic transmission |
| C | 7.5A – Electric door mirrors; DICE manual beam length adjustment (2003–2009). 2002: Electric door mirrors; DICE |
| 1 | 15A – Brake lights. 2007–2009: Includes Park Brake Shift Lock (automatic transmission) |
| 2 | 15A – Reversing lights |
| 3 | 10A – Parking lights, left. 2005–2009: Parking lights and taillights, left |
| 4 | 10A – Parking lights, right. 2005–2009: Parking lights and taillights, right |
| 5 | 7.5A – DICE/TWICE |
| 6 | 30A – Electric windows, right; trailer charging |
| 6B | 5A (2002–2003) / 7.5A (2004–2009) – Brake lights, trailer |
| 7 | 10A – Engine injectors |
| 8 | 15A – Trunk lighting; trunk lock; door lighting; circulation pump; parking assistant. 2003–2009: Includes SID |
| 9 | 15A – Audio System; CD changer. 2002: Also diagnostic instrument |
| 10 | 15A – Rear seat heating; sunroof/moonroof remote control receiver. 2002: Door mirrors; rear seat heating |
| 11 | 30A – Electrically adjusted passenger seat. 2002: Also central locking |
| 12 | 7.5A – Automatic transmission |
| 13 | 20A – Audio System amplifier |
| 14 | 30A – Ignition system, engine |
| 15 | 20A – Fuel pump. 2002: Preheated oxygen sensor; fuel pump |
| 16 | 20A – DICE (direction indicators) |
| 16B | Empty (2002–2004). OnStar (2005–2009) |
| 17 | 20A – Engine-management system; main instrument; DICE/TWICE. 2002: Engine-management system only |
| 18 | 40A – Door-mirror heating; rear-window heating |
| 19 | 10A – OnStar; Telematics |
| 20 | 15A – ACC; interior lighting; rear fog light; high beam flasher. 2002: Without high beam flasher |
| 21 | 10A – Audio System; rear-view mirror; navigation; Cruise Control; load angle sensor (xenon). 2002: Includes xenon low beam headlights |
| 22 | 40A – Interior fan |
| 23 | 15A – Central locking; navigation accessory; door mirror memory. 2002: Sunroof |
| 24 | 40A – Air pump (3.0t V6 only) (2002–2004). 2007–2009: 20A Main light switch |
| 25 | 30A – Electrically adjustable driver’s seat. 2002–2004: Includes fuel-filler flap |
| 26 | 7.5A – Driver seat memory; mirrors memory; sunroof/moonroof; parking assistant; seatbelt reminder. 2007–2009: Includes ACC |
| 27 | 10A – Engine-management system; SID; main instrument |
| 28 | 7.5A – Airbag (SRS) |
| 29 | 7.5A – ABS/TCS/ESP (2002–2004). ABS/ESP (2005–2009) |
| 30 | 7.5A – Starter motor. 2007–2009: Includes transmission control module |
| 31 | 7.5A – Cruise control; water valve; front fog lights; rain sensor |
| 32 | 15A – Ventilated front seats. 2007–2009: Empty |
| 33 | 7.5A – Direction-indicator switch |
| 34 | 30A – Cigarette lighter front/rear (2002–2004). 12V socket front/rear (2005–2009) |
| 35 | 15A – Daytime running light |
| 36 | 30A – Electric windows, left |
| 37 | 30A – Windshield wipers. 2003: Includes rain sensor |
| 38 | 30A – Electric heating, front seats |
| 39 | 20A – Limp-home solenoid; OnStar; Telematics |
| 52–56 | Spare fuses (2002 only) |
Passenger Compartment Relay Panel

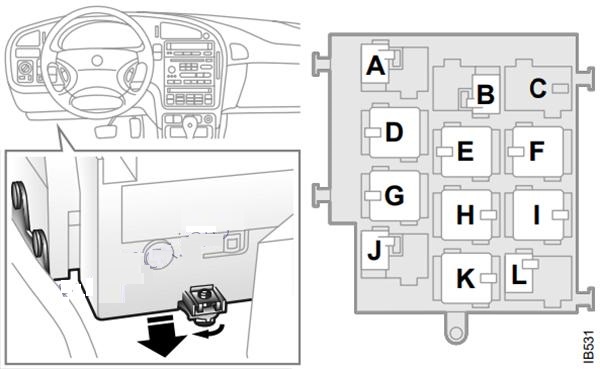

Saab 9-5 (2000 & 2001)
| # | Function |
|---|---|
| A | – |
| B | Electric heating of rear seat |
| C | – |
| D | – |
| E | Main relay (engine management system) |
| F | Fuel filler flap |
| G | Fuel pump |
| H | Ignition switch |
| I | Rear-window / door mirrors heating |
| J | Reversing lights |
| K | Starter relay |
| L | Limp-home function |

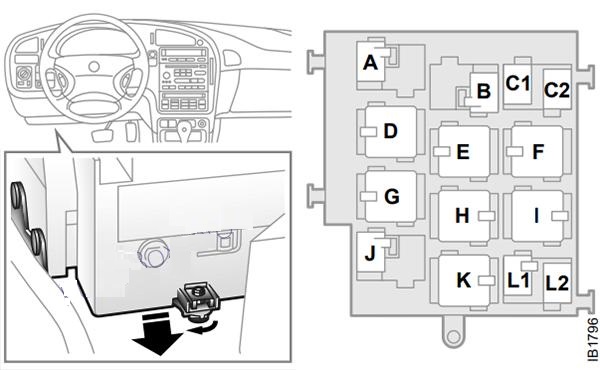

Saab 9-5 (2002 to 2009)
| # | Function |
|---|---|
| A | — |
| B | Electric heating of rear seat |
| C1 | — |
| C2 | — |
| D | — |
| E | Main relay (engine management system) |
| F | — 2002-2004: Fuel filler flap |
| G | Fuel pump |
| H | Ignition switch |
| I | Rear-window / door mirrors heating |
| J | — |
| K | Starter relay |
| L1 | Limp-home function |
| L2 | — 2002-2004: Bootlid 2005: Trunklid |
Engine Compartment Fuse Box

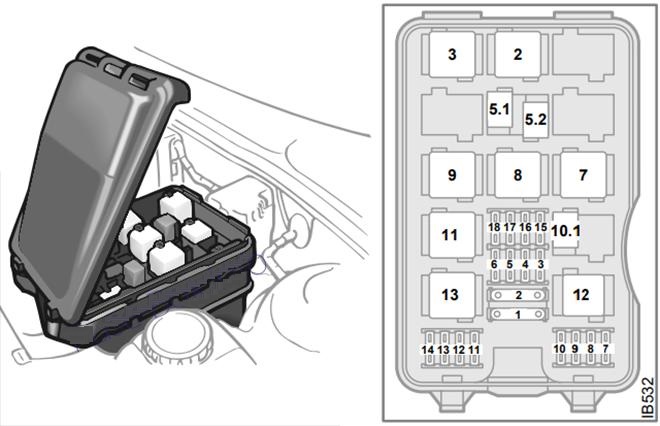

Saab 9-5 (2000 & 2001)
| # | Amp | Function |
| 1 | 60 | ABS (Maxi fuse) |
| 2 | — | — |
| 3 | 15 | Horn |
| 4 | 10 | Rear window wiper (9-5 Wagon) |
| 5 | 15 | Fog lights (front spoiler) |
| 6 | 30 | Radiator fan, high speed |
| 7 | 15 | Low beam headlight, right |
| 8 | 15 | High beam headlight, right |
| 9 | 15 | Low beam headlight, left |
| 10 | 15 | High beam headlight, left |
| 11 | 10 | Headlight beam-length adjustment (certain markets only); headlamp washers/wipers |
| 12 | Spotlights (accessory) | |
| 13 | 15 | Autochecking of lights 2001: High beam flasher |
| 14 | 10 | A/C; car alarm siren |
| 15 | 30 | Radiator fan |
| 16 | — | — |
| 17 | — | — |
| 18 | — | — |
| Relays: | ||
| 1 | Washer, front/rear | |
| 2 | Low beam headlight | |
| 3 | High beam headlight | |
| 4 | Extra lights (accessory) | |
| 5.1 | Horn | |
| 5.2 | — — 2001: Rain sensor | |
| 6 | Wiper, rear (9-5 Wagon) | |
| 7 | Radiator fan, low speed | |
| 8 | Radiator fan, high speed, left fan | |
| 9 | A/C-com pressor | |
| 10.1 | Front fog lights | |
| 10.2 | Headlamp wipers | |
| 11 | Windshield wipers | |
| 12 | Radiator fan, high speed, right fan | |
| 13 | Autochecking of headlights | |

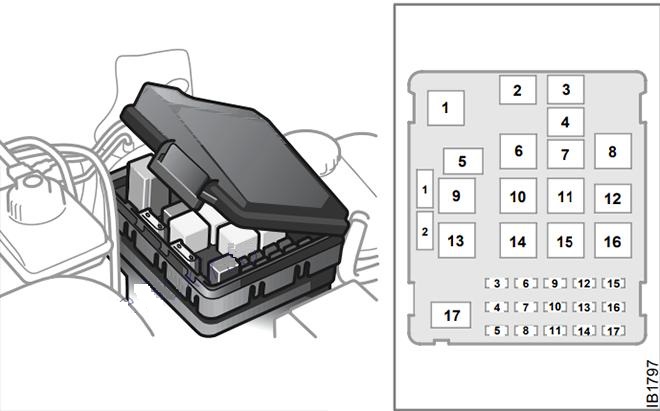

Saab 9-5 (2002 – 2009)
| # | Amp | Function |
| 1 | 40 | Radiator fan, high speed |
| 2 | 40 60 | ABS/ESP 2002-2004: ABS/TCS/ESP |
| 3 | 30 – | ABS/ESP 2002-2004: – |
| 4 | 7.5 | Load angle sensor (cars with xenon headlights) |
| 5 | 15 | Heater |
| 6 | 10 | A/C; car alarm siren |
| 7 | 15 | Bulb test |
| 8 | — | — |
| 9 | 20 – | Headlight washers 2002-2003: – |
| 10 | 15 | High beam headlight, left |
| 11 | 15 | Low beam headlight left |
| 12 | 15 | High beam headlight, right |
| 13 | 15 | Low beam headlight, right |
| 14 | 30 | Radiator fan, high speed |
| 15 | 15 | Fog lights (front spoiler) |
| 16 | 30 | Wiper, rear |
| 17 | 15 | Horn |
| 18 | — | — |
| Relays: | ||
| 1 | Bulb test; head light; high beam flasher | |
| 2 | Headlight washer | |
| 3 | Front fog lights | |
| 4 | Wiper, rear (9-5 SportWagon) | |
| 5 | — | |
| 6 | — | |
| 7 | Rain sensor | |
| 8 | Radiator fan, low speed | |
| 9 | Radiator fan, high speed | |
| 10 | A/C-compressor | |
| 11 | Radiator fan, high speed, right fan | |
| 12 | Horn | |
| 13 | Extra lights (accessory) | |
| 14 | High beam headlight | |
| 15 | Low beam headlight | |
| 16 | — | |
| 17 | Windshield wipers | |
