Saab 9-7x (2005 – 2009) Fuse Box Location & Diagrams
The Saab 9-7X (2005–2009) has fuse boxes that protect important electrical circuits throughout the vehicle. Finding the correct fuse location and understanding its assignment helps with electrical troubleshooting and fuse replacement. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Saab 9-7X.
Fuse Box Location

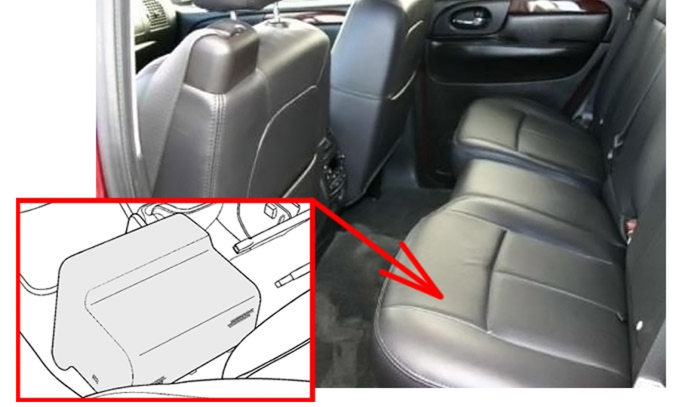

Passanger Compartment Fuse Box
The rear underseat fuse block is located on the driver’s side of the vehicle, under the second-row seat. Pull the seat cushion forward to access the fuse block.

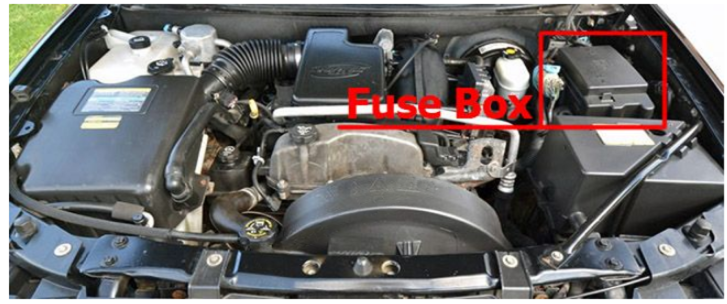

Engine Compartment Fuse Box
Fuse Box Diagram

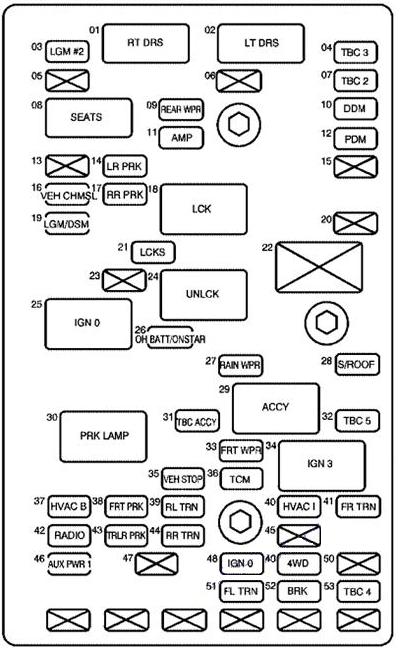

Passanger Compartment Fuse Box
| Fuse No. | Usage |
|---|---|
| 01 | 2005–2006: Right Door Control Module 2007–2009: Passenger Door Control Module |
| 02 | 2005–2006: Left Door Control Module 2007–2009: Driver Door Control Module |
| 03 | 2005–2006: Endgate Module 2 2007–2009: Liftgate Module 2 |
| 04 | 2005–2009: Truck Body Controller 3 |
| 05 | 2005–2009: Blank |
| 06 | 2005–2009: Blank |
| 07 | 2005–2009: Truck Body Controller 2 |
| 08 | 2005–2009: Power Seats |
| 09 | 2005–2009: Rear Wiper |
| 10 | 2005–2009: Driver Door Module |
| 11 | 2005–2009: Amplifier |
| 12 | 2005–2009: Passenger Door Module |
| 13 | 2005–2009: Blank |
| 14 | 2005–2006: Left Rear Parking Lamps2007–2009: Driver Side Rear Parking Lamps |
| 15 | 2005–2009: Blank |
| 16 | 2005–2009: Vehicle Center High-Mounted Stoplamp (CHMSL) |
| 17 | 2005–2006: Right Rear Parking Lamp 2007–2009: Passenger Side Rear Parking Lamps |
| 18 | 2005–2009: Locks |
| 19 | 2005–2009: Liftgate Module / Driver Seat Module |
| 20 | 2005–2009: Blank |
| 21 | 2005–2009: Locks |
| 22 | 2005–2006: Not Used 2007–2009: Blank |
| 23 | 2005–2009: Blank |
| 24 | 2005–2009: Unlock |
| 25 | 2005–2009: Ignition 0 |
| 26 | 2005–2009: Overhead Battery / OnStar® System |
| 27 | 2005–2009: Rainsense Wipers |
| 28 | 2005–2009: Sunroof |
| 29 | 2005–2009: Accessory |
| 30 | 2005–2009: Parking Lamps |
| 31 | 2005–2009: Truck Body Controller Accessory |
| 32 | 2005–2009: Truck Body Controller 5 |
| 33 | 2005–2009: Front Wipers |
| 34 | 2005–2009: Ignition 3 |
| 35 | 2005–2009: Vehicle Stop |
| 36 | 2005–2009: Transmission Control Module |
| 37 | 2005–2009: Heat, Ventilation, Air Conditioning B |
| 38 | 2005–2009: Front Parking Lamps |
| 39 | 2005–2009: Rear Left Turn Signal |
| 40 | 2005–2009: Heat, Ventilation, Air Conditioning 1 |
| 41 | 2005–2009: Front Right Turn Signal |
| 42 | 2005–2009: Radio |
| 43 | 2005–2009: Trailer Park |
| 44 | 2005–2009: Rear Right Turn Signal |
| 45 | 2005–2009: Blank |
| 46 | 2005–2009: Auxiliary Power 1 |
| 47 | 2005–2009: Blank |
| 48 | 2005–2009: Ignition 0 |
| 49 | 2005–2008: Not Used 2009: Four Wheel Drive |
| 50 | 2005–2009: Blank |
| 51 | 2005–2009: Front Left Turn Signal |
| 52 | 2005–2009: Brakes |
| 53 | 2005–2009: Truck Body Controller 4 |

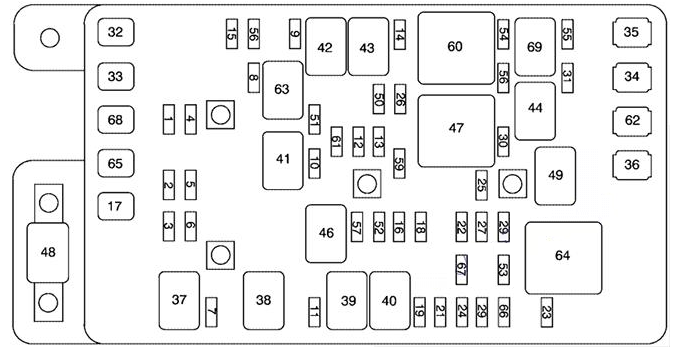

Engine Compartment Fuse Box
Saab 9-7x (2005)

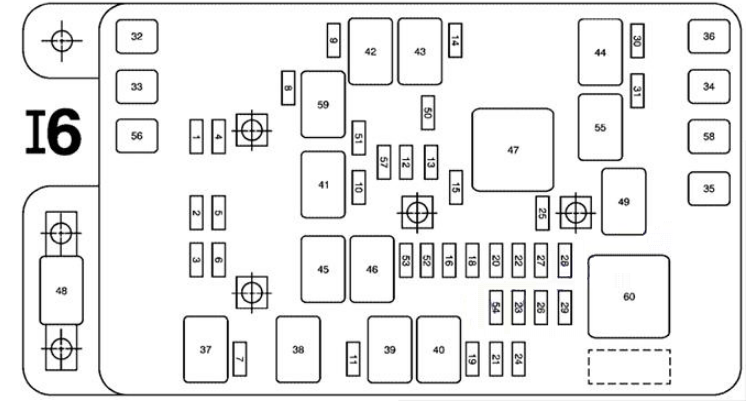

L6 engine
| № | Usage |
|---|---|
| 1 | Electronically Controlled Air Suspension |
| 2 | Passenger’s Side Headlamp High Beam |
| 3 | Passenger’s Side Headlamp Low Beam |
| 4 | Trailer Back-Up |
| 5 | Driver’s Side Headlamp High Beam |
| 6 | Driver’s Side Headlamp Low Beam |
| 7 | Washer |
| 8 | Automatic Transfer Case |
| 9 | Windshield Washer |
| 10 | Powertrain Control Module B |
| 11 | Fog Lamps |
| 12 | Stoplamp |
| 13 | Cigar Lighter |
| 14 | Ignition Coils |
| 15 | Electric Adjustable Pedals |
| 16 | Ignition B |
| 18 | Airbag System |
| 19 | Electric Brake |
| 20 | Cooling Fan |
| 21 | Horn |
| 22 | Ignition E |
| 23 | Electronic Throttle Control |
| 24 | Instrument Panel Cluster/Driver Information Center (DIC) |
| 25 | Brake Transmission Shift Interlock |
| 26 | Engine 1 |
| 27 | Backup |
| 28 | Powertrain Control Module I |
| 29 | Oxygen Sensor |
| 30 | Air Conditioning |
| 31 | Truck Body Controller 1 |
| 50 | Passenger’s Side Trailer Turn |
| 51 | Driver’s Side Trailer Turn |
| 52 | Hazard Flashers |
| 53 | Headlamp Driver Module |
| 54 | A.I.R. Solenoid |
| 57 | Ignition A |
| 32 | Trailer |
| 33 | Anti-lock Brake System |
| 34 | Ignition A |
| 35 | Driver’s Side Headlamp |
| 36 | Blower Motor |
| 56 | Trailer Turn Signal, Stoplamp |
| 58 | Passenger’s Side Headlamp |
| 48 | Instrument Panel Battery |
| Relays: | |
| 37 | Headlamp Washer |
| 38 | Rear Windshield Washer |
| 39 | Fog Lamps |
| 40 | Horn |
| 41 | Fuel Pump |
| 42 | Windshield Washer |
| 43 | High-Beam Headlamp |
| 44 | Air Conditioning |
| 45 | Cooling Fan |
| 46 | Headlamp Driver Module |
| 47 | Starter |
| 49 | Electric Adjustable Pedals |
| 55 | A.I.R. Solenoid |
| 59 | Low-Beam Headlamp |
| 60 | Ignition 1 |

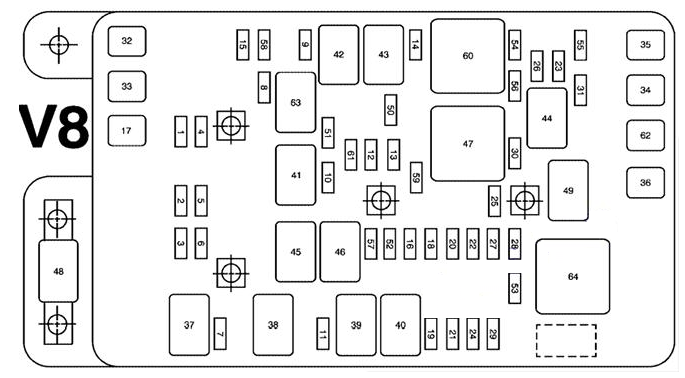

V8 engine
| № | Usage |
|---|---|
| 1 | Electrically Controlled Air Suspension |
| 2 | Passenger’s Side Headlamp High Beam |
| 3 | Passenger’s Side Headlamp Low Beam |
| 4 | Trailer Back-Up |
| 5 | Driver’s Side Headlamp High Beam |
| 6 | Driver’s Side Headlamp Low Beam |
| 7 | Washer |
| 8 | Automatic Transfer Case |
| 9 | Windshield Washer |
| 10 | Powertrain Control Module B |
| 11 | Fog Lamps |
| 12 | Stoplamp |
| 13 | Cigarette Lighter |
| 14 | Ignition Coils |
| 15 | Transmission Control Module/Canister |
| 16 | Ignition B |
| 18 | Airbag System |
| 19 | Electric Brake |
| 20 | Cooling Fan |
| 21 | Horn |
| 22 | Ignition E |
| 23 | Electronic Throttle Control |
| 24 | Instrument Panel Cluster/Driver Information Center |
| 25 | Brake Transmission Shift Interlock |
| 26 | Engine 1 |
| 27 | Backup |
| 28 | Engine Control Module 1 |
| 29 | Engine Control Module |
| 30 | Air Conditioning |
| 31 | Injector Bank A |
| 50 | Passenger’s Side Trailer Turn |
| 51 | Driver’s Side Trailer Turn |
| 52 | Hazard Flashers |
| 53 | Transmission |
| 54 | Oxygen Sensor B |
| 55 | Oxygen Sensor A |
| 56 | Injector Bank B |
| 57 | Headlamp Driver Module |
| 58 | Truck Body Controller 1 |
| 59 | Electric Adjustable Pedals |
| 61 | Ignition A |
| 17 | Trailer Turn Signal, Stoplamp |
| 32 | Trailer |
| 33 | Anti-lock Brake System |
| 34 | Ignition A |
| 35 | Blower Motor |
| 36 | Driver’s Side Headlamp |
| 62 | Passenger’s Side Headlamp |
| 48 | Instrument Panel Battery |
| Relays: | |
| 37 | Headlamp Washer |
| 38 | Rear Window Washer |
| 39 | Fog Lamps |
| 40 | Horn |
| 41 | Fuel Pump |
| 42 | Windshield Washer |
| 43 | High-Beam Headlamp |
| 44 | Air Conditioning |
| 45 | Cooling Fan |
| 46 | Headlamp Driver Module |
| 47 | Starter |
| 49 | Electric Adjustable Pedals |
| 60 | Powertrain |
| 63 | Low-Beam Headlamp |
| 64 | Ignition 1 |
Saab 9-7x (2006)

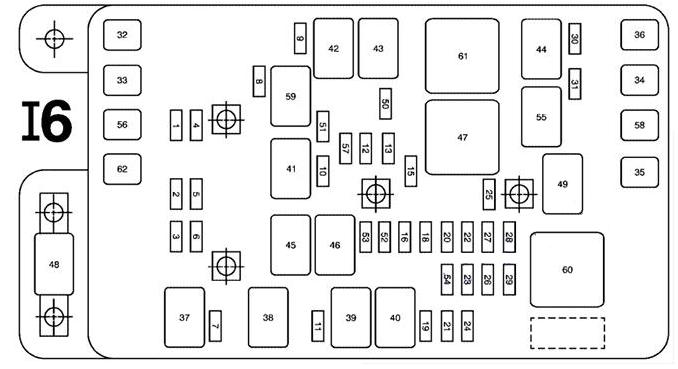

L6 engine
| № | Usage |
|---|---|
| 1 | Electronically Controlled Air Suspension |
| 2 | Passenger’s Side Headlamp High Beam |
| 3 | Passenger’s Side Headlamp Low Beam |
| 4 | Trailer Back-Up |
| 5 | Driver’s Side Headlamp High Beam |
| 6 | Driver’s Side Headlamp Low Beam |
| 7 | Washer |
| 8 | Automatic Transfer Case |
| 9 | Windshield Washer |
| 10 | Powertrain Control Module B |
| 11 | Fog Lamps |
| 12 | Stoplamp |
| 13 | Cigar Lighter |
| 15 | Electric Adjustable Pedals |
| 16 | Ignition B |
| 18 | Airbag System |
| 19 | Electric Brake |
| 20 | Cooling Fan |
| 21 | Horn |
| 22 | Ignition E |
| 23 | Electronic Throttle Control |
| 24 | Instrument Panel Cluster/Driver Information Center (DIC) |
| 25 | Brake Transmission Shift Interlock |
| 26 | Engine 1 |
| 27 | Backup |
| 28 | Powertrain Control Module I |
| 29 | Oxygen Sensor |
| 30 | Air Conditioning |
| 31 | Truck Body Controller 1 |
| 50 | Passenger’s Side Trailer Turn |
| 51 | Driver’s Side Trailer Turn |
| 52 | Hazard Flashers |
| 53 | Headlamp Driver Module |
| 54 | Air Injection Reactor Solenoid |
| 57 | Ignition A |
| 32 | Trailer |
| 33 | Anti-lock Brake System |
| 34 | Ignition A |
| 35 | Driver’s Side Headlamp |
| 36 | Blower Motor |
| 56 | Trailer Turn Signal, Stoplamp |
| 58 | Passenger’s Side Headlamp |
| 48 | Instrument Panel Battery |
| Relays: | |
| 37 | Headlamp Washer |
| 38 | Rear Windshield Washer |
| 39 | Fog Lamps |
| 40 | Horn |
| 41 | Fuel Pump |
| 42 | Windshield Washer |
| 43 | High-Beam Headlamp |
| 44 | Air Conditioning |
| 45 | Cooling Fan |
| 46 | Headlamp Driver Module |
| 47 | Starter |
| 49 | Electric Adjustable Pedals |
| 55 | Air Injection Reactor Solenoid |
| 59 | Low-Beam Headlamp |
| 60 | Ignition 1 |
| 61 | Powertrain |
| 62 | Vehicle Stability Enhancement System (StabiliTrak) |

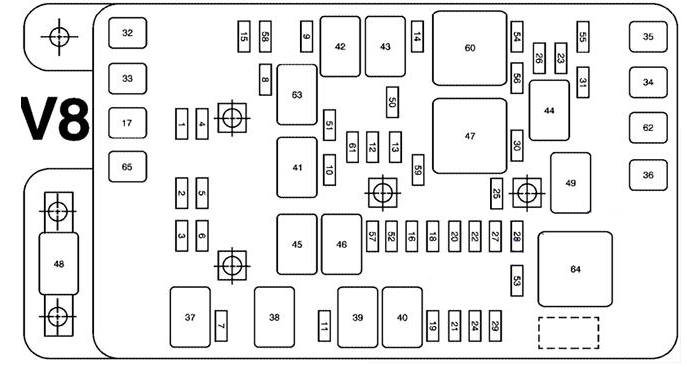

V8 engine
| № | Usage |
|---|---|
| 1 | Electrically Controlled Air Suspension |
| 2 | Passenger’s Side Headlamp High-Beam |
| 3 | Passenger’s Side Headlamp Low-Beam |
| 4 | Trailer Back-Up |
| 5 | Driver’s Side Headlamp High-Beam |
| 6 | Driver’s Side Headlamp Low-Beam |
| 7 | Washer |
| 8 | Automatic Transfer Case |
| 9 | Windshield Washer |
| 10 | Powertrain Control Module B |
| 11 | Fog Lamps |
| 12 | Stoplamp |
| 13 | Cigarette Lighter |
| 14 | Ignition Coils |
| 15 | Transmission Control Module/Canister |
| 16 | Ignition B |
| 18 | Airbag System |
| 19 | Electric Brake |
| 20 | Cooling Fan |
| 21 | Horn |
| 22 | Ignition E |
| 23 | Electronic Throttle Control |
| 24 | Instrument Panel Cluster/Driver Information Center |
| 25 | Brake Transmission Shift Interlock |
| 26 | Engine 1 |
| 27 | Backup |
| 28 | Engine Control Module 1 |
| 29 | Engine Control Module |
| 30 | Air Conditioning |
| 31 | Injector Bank A |
| 50 | Passenger’s Side Trailer Turn |
| 51 | Driver’s Side Trailer Turn |
| 52 | Hazard Flashers |
| 53 | Transmission |
| 54 | Oxygen Sensor B |
| 55 | Oxygen Sensor A |
| 56 | Injector Bank B |
| 57 | Headlamp Driver Module |
| 58 | Truck Body Controller 1 |
| 59 | Electric Adjustable Pedals |
| 61 | Ignition A |
| 17 | Trailer Turn Signal, Stoplamp |
| 32 | Trailer |
| 33 | Anti-lock Brake System |
| 34 | Ignition A |
| 35 | Blower Motor |
| 36 | Driver’s Side Headlamp |
| 62 | Passenger’s Side Headlamp |
| 65 | Vehicle Stability Enhancement System (StabiliTrak®) |
| 48 | Instrument Panel Battery |
| Relays: | |
| 37 | Headlamp Washer |
| 38 | Rear Window Washer |
| 39 | Fog Lamps |
| 40 | Horn |
| 41 | Fuel Pump |
| 42 | Windshield Washer |
| 43 | High-Beam Headlamp |
| 44 | Air Conditioning |
| 45 | Cooling Fan |
| 46 | Headlamp Driver Module |
| 47 | Starter |
| 49 | Electric Adjustable Pedals |
| 60 | Powertrain |
| 63 | Low-Beam Headlamp |
| 64 | Ignition 1 |
Saab 9-7x (2007 & 2008)

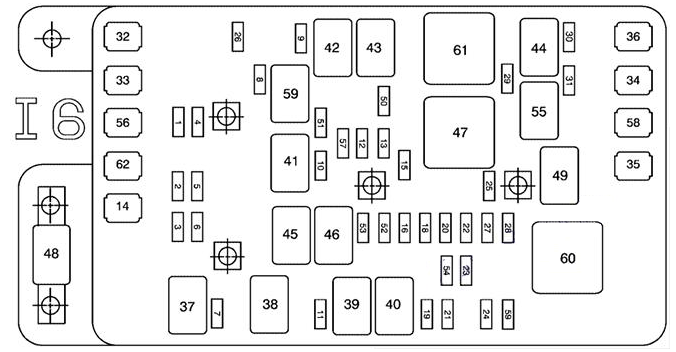

L6 engine
| № | Usage |
|---|---|
| 1 | Electronically Controlled Air Suspension |
| 2 | Passenger’s Side Headlamp High-Beam |
| 3 | Passenger’s Side Headlamp Low-Beam |
| 4 | Trailer Back-Up |
| 5 | Driver’s Side Headlamp High-Beam |
| 6 | Driver’s Side Headlamp Low-Beam |
| 7 | Windshield Wiper |
| 8 | Automatic Transfer Case |
| 9 | Windshield Washer |
| 10 | Powertrain Control Module B |
| 11 | Fog Lamps |
| 12 | Stoplamp |
| 13 | Cigarette Lighter |
| 15 | Electric Adjustable Pedals |
| 16 | Ignition B |
| 18 | Airbag System |
| 19 | Electric Brake |
| 20 | Cooling Fan |
| 21 | Horn |
| 22 | Ignition E |
| 23 | Electronic Throttle Control |
| 24 | Instrument Panel Cluster/Driver Information Center (DIC) |
| 25 | Brake Transmission Shift Interlock |
| 26 | Transmission Control Module (TCM) Canister |
| 27 | Backup |
| 28 | Powertrain Control Module 1 |
| 29 | Oxygen Sensor |
| 30 | Air Conditioning |
| 31 | Truck Body Controller 1 |
| 50 | Passenger’s Side Trailer Turn |
| 51 | Driver’s Side Trailer Turn |
| 52 | Hazard Flashers |
| 53 | Headlamp Driver Module |
| 54 | Air Injection Reactor Solenoid |
| 57 | Ignition A1 |
| 59 | Regulated Voltage Control |
| 14 | Trailer Stoplamp/Turn Signal |
| 32 | Trailer |
| 33 | Anti-lock Brake System |
| 34 | Ignition A |
| 35 | Driver’s Side Headlamp |
| 36 | Blower Motor |
| 56 | Air Pump |
| 58 | Passenger’s Side Headlamp |
| 62 | Vehicle Stability Enhancement System (StabiliTrak) |
| 48 | Instrument Panel Battery |
| Relays: | |
| 37 | Headlamp Washer |
| 38 | Rear Windshield Wiper/Washer |
| 39 | Fog Lamps |
| 40 | Horn |
| 41 | Fuel Pump |
| 42 | Windshield Washer |
| 43 | High-Beam Headlamp |
| 44 | Air Conditioning |
| 45 | Cooling Fan |
| 46 | Headlamp Driver Module |
| 47 | Starter |
| 49 | Electric Adjustable Pedals |
| 55 | Air Injection Reactor Solenoid |
| 59 | Low-Beam Headlamp |
| 60 | Ignition 1 |
| 61 | Powertrain |
| 62 | Vehicle Stability Enhancement System (StabiliTrak) |

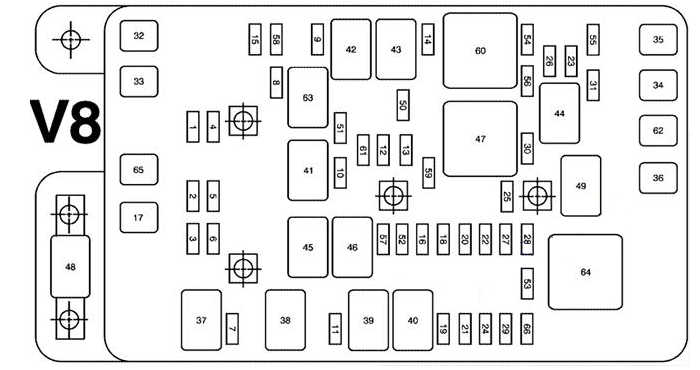

V8 engine
| № | Usage |
|---|---|
| 1 | Electrically Controlled Air Suspension |
| 2 | Passenger’s Side Headlamp High-Beam |
| 3 | Passenger’s Side Headlamp Low-Beam |
| 4 | Trailer Back-Up |
| 5 | Driver’s Side Headlamp High-Beam |
| 6 | Driver’s Side Headlamp Low-Beam |
| 7 | Windshield Wiper |
| 8 | Automatic Transfer Case |
| 9 | Windshield Washer |
| 10 | Powertrain Control Module B |
| 11 | Fog Lamps |
| 12 | Stoplamp |
| 13 | Cigarette Lighter |
| 14 | Ignition Coils |
| 15 | Transmission Control Module/Canister |
| 16 | Ignition B |
| 18 | Airbag System |
| 19 | Electric Brake |
| 20 | Cooling Fan |
| 21 | Horn |
| 22 | Ignition E |
| 23 | Electronic Throttle Control |
| 24 | Instrument Panel Cluster/Driver Information Center |
| 25 | Brake Transmission Shift Interlock |
| 26 | Engine 1 |
| 27 | Backup |
| 28 | Engine Control Module 1 |
| 29 | Engine Control Module |
| 30 | Air Conditioning |
| 31 | Injector Bank A |
| 50 | Passenger’s Side Trailer Turn |
| 51 | Driver’s Side Trailer Turn |
| 52 | Hazard Flashers |
| 53 | Transmission |
| 54 | Oxygen Sensor B |
| 55 | Oxygen Sensor A |
| 56 | Injector Bank B |
| 57 | Headlamp Driver Module |
| 58 | Truck Body Controller 1 |
| 59 | Electric Adjustable Pedals |
| 61 | Ignition A1 |
| 66 | Regulated Voltage Control |
| 17 | Trailer Turn Signal, Stoplamps |
| 32 | Trailer |
| 33 | Anti-lock Brake System |
| 34 | Ignition A |
| 35 | Blower Motor |
| 36 | Driver’s Side Headlamp |
| 62 | Passenger’s Side Headlamp |
| 65 | Vehicle Stability Enhancement System (StabiliTrak) |
| 48 | Instrument Panel Battery |
| Relays: | |
| 37 | Headlamp Washer |
| 38 | Rear Wiper |
| 39 | Fog Lamps |
| 40 | Horn |
| 41 | Fuel Pump |
| 42 | Windshield Washer |
| 43 | High-Beam Headlamp |
| 44 | Air Conditioning |
| 45 | Cooling Fan |
| 46 | Headlamp Driver Module |
| 47 | Starter |
| 49 | Electric Adjustable Pedals |
| 60 | Powertrain |
| 63 | Low-Beam Headlamp |
| 64 | Ignition 1 |
Saab 9-7x (2009)
| № | Usage |
|---|---|
| 1 | Electronically Controlled Air Suspension |
| 2 | Passenger Side Headlamp High-Beam |
| 3 | Passenger Side Headlamp Low-Beam |
| 4 | Trailer Back-Up |
| 5 | Driver Side Headlamp High-Beam |
| 6 | Driver Side Headlamp Low-Beam |
| 7 | Windshield Wiper |
| 8 | Automatic Transfer Case |
| 9 | Windshield Washer |
| 10 | Powertrain Control Module B |
| 11 | Fog Lamps |
| 12 | Stoplamp |
| 13 | Cigarette Lighter |
| 14 | Ignition Coils |
| 15 | Transmission Control Module Canister |
| 16 | Ignition B |
| 18 | Airbag |
| 19 | Electric Brake |
| 21 | Horn |
| 22 | Ignition E |
| 23 | Electronic Throttle Control |
| 24 | Instrument Panel Cluster/Driver Information Center (DIC) |
| 25 | Brake Transmission Shift Interlock |
| 26 | Engine 1 |
| 27 | Backup Lamps |
| 28 | Engine Control Module 1 |
| 29 | Engine Control Module |
| 30 | Air Conditioning |
| 31 | Injector 1 |
| 50 | Passenger Side Trailer Turn |
| 51 | Driver Side Trailer Turn |
| 52 | Hazard Flashers |
| 53 | Transmission |
| 54 | Oxygen Sensor B |
| 55 | Oxygen Sensor A |
| 56 | Injector B |
| 57 | Headlamp Drive Module |
| 58 | Truck Body Computer/Controller |
| 59 | Electric Adjustable Pedals |
| 61 | Ignition A1 |
| 66 | Regulated Voltage Control |
| 67 | Air Solenoid |
| 17 | Trailer Stoplamp/Turn Signal |
| 32 | Trailer |
| 33 | Antilock Brake System |
| 34 | Ignition A |
| 35 | Blower |
| 36 | Driver Side Headlamp |
| 62 | Passenger Side Headlamp |
| 65 | Vehicle Stability Enhancement System (StabiliTrak) |
| 68 | Air Pump |
| 48 | Instrument Panel Battery |
| Relays: | |
| 37 | Headlamp Wiper |
| 38 | Rear Windshield Wiper/Washer |
| 39 | Fog Lamps |
| 40 | Horn |
| 41 | Fuel Pump |
| 42 | Windshield Washer |
| 43 | High-Beam Headlamp |
| 44 | Air Conditioning |
| 46 | Headlamp Driver Module |
| 47 | Starter |
| 49 | Electric Adjustable Pedals |
| 60 | Powertrain |
| 63 | Low-Beam Headlamps |
| 64 | Ignition 1 |
| 69 | Air Solenoid |
Related Posts:
