Skoda Citigo (2011 – 2015) Fuse Box Location and Diagrams

This Guide covers Skoda Citigo (2011–2015) fuse box diagrams and locations. With neatly labeled fuse boxes, this compact city car can identify electrical issues quickly and keep vital vehicle systems running smoothly.

Passenger Compartment Fuse Box

Skoda Citigo (2011 to 2015)

Fuse box location

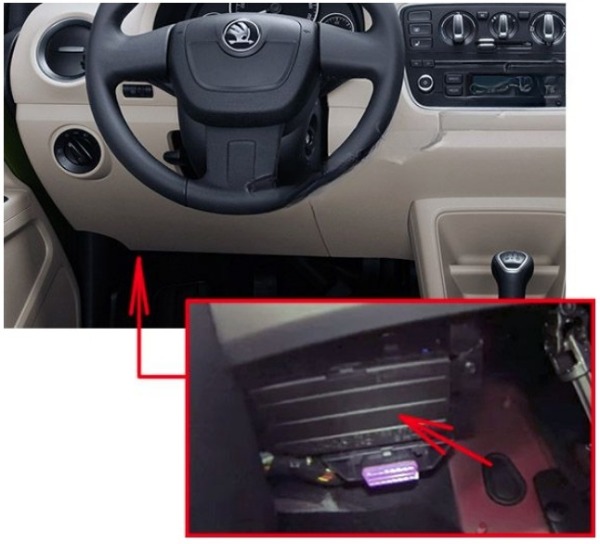

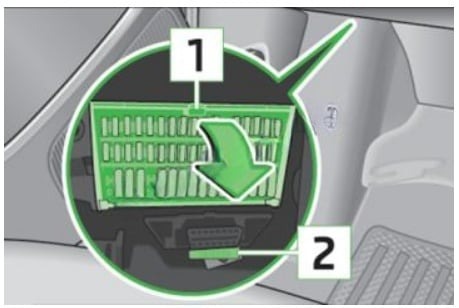

The fuses are located underneath the steering wheel on the underside of the dash panel.

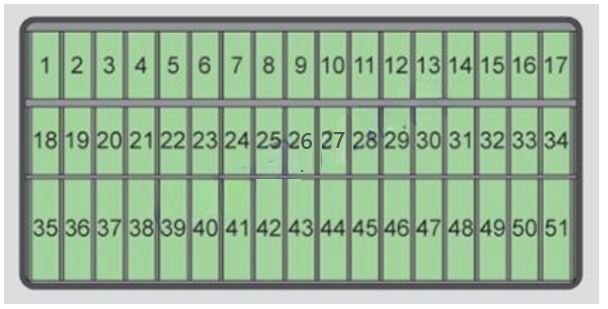

Fuse box diagram

No.	Power consumer
1	Telephone, radiator fan, instrument cluster, engine control unit
2	Diagnostic port, air compressor, bar with buttons, control unit for air conditioning
3	Clutch pedal switch, brake pedal switch
4	Switch illumination, number plate light
5	Lever under the steering wheel, central control unit
6	Headlamp beam adjustment, exterior mirror adjustment
7-8	Automatic gearbox
9	Airbag, bar with buttons
10	Park Assist
11	Headlights
12	The rear fog light
13	Headlights
14	Rear window wiper
15	Light switch
16	Steering force assistance
17	Windscreen washer
18	Reverse light switch
19	Injection valves, coolant pump
20	ABS/ESP
21	Parking lights,
22	Daytime running lights
23	Headlights
24	Headlight flasher
25	Windscreen Wiper and Washer System
26	Not assigned
27	Interior lighting
28	Diagnostic connector
29	Central control unit
30	Exterior mirror heater
31	Radiator fan, lambda probe
32	Blinking light, brake light, daytime running lights, rear light
33	Main beam
34	Main beam
35	Fuel pump
36	Cigarette lighter, 12-volt power socket
37	Air blower for heating and air conditioning
38	Radio
39	Panoramic sliding roof, horn
40	Engine control unit
41	Central locking system
42	Ignition module
43	Seat heaters
44	Fuel pump
45	Light switch
46	Rear window heater
47	Power windows
48	Horn
49	Windscreen wipers
50	Fog lights, headlight
51	Power windows

Fuses in the Dash Panel

Skoda Citigo (2011 to 2015)

Fuse box location

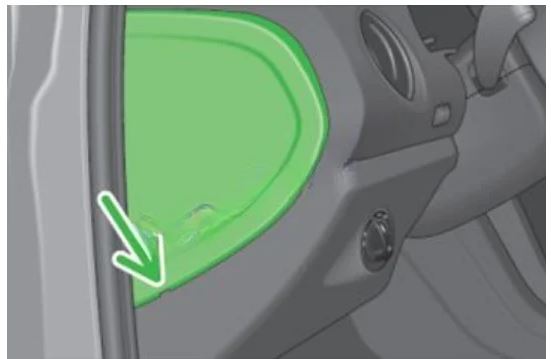

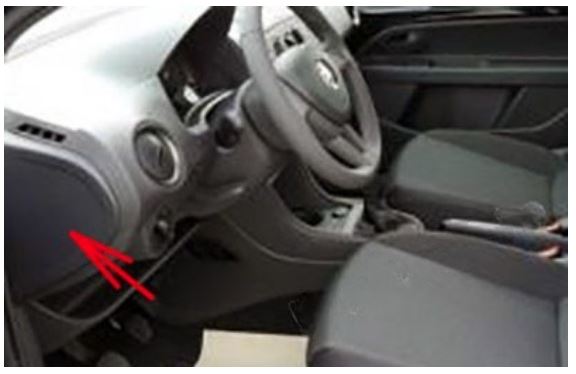

On vehicles with the START-STOP system, the fuses are on the left side of the dash panel behind a cover.

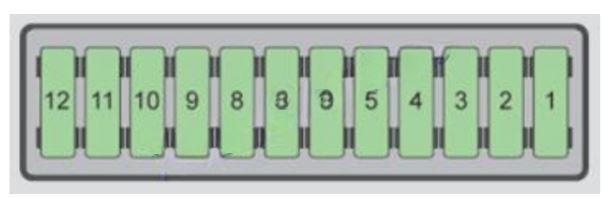

Fuse box diagram

No.	Power consumer
1	ABS/ESP
2	Instrument cluster
3	Radio, diagnosis
4	DC-DC voltage converter, starter relay, bar with buttons
5	Not assigned
6	Not assigned
7	Not assigned
8	Not assigned
9	Headlights
10	Headlights
11	Starter
12	DC-DC voltage converter, ABS, instrument cluster, radio
