Skoda Fabia (2015 – 2020) Fuse Box Location and Diagrams
This guide covers the third-generation Skoda Fabia (NJ) from 2015 to 2020. Fuse box schematics for Skoda Fabia 2015–2020, fuse panel locations, and fuse layout and assignments are here.
Passenger Compartment Fuse Box
Skoda Fabia (2015 to 2020)

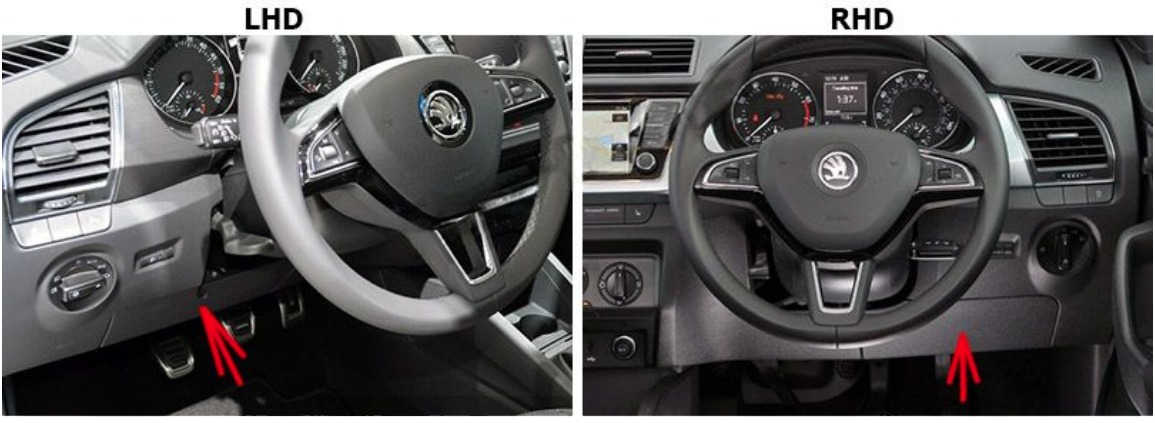

Fuse Box Location

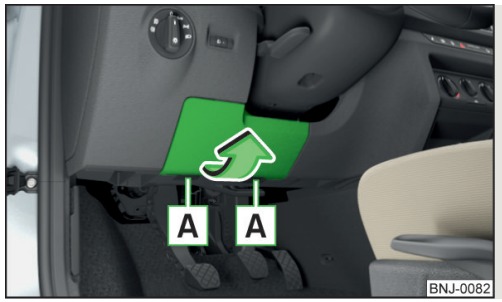

The fuse box is located behind the cover below the steering wheel.

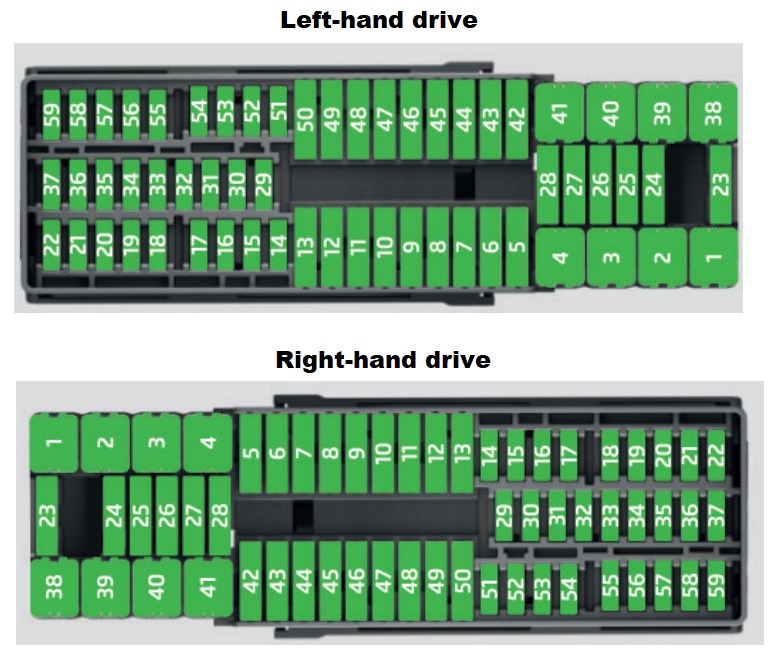

Fuse Box Diagram
| No. | Power consumer |
|---|---|
| 1 | Left parking light, parking light, high-mounted brake light |
| 2 | Central locking, front and rear window washer system (vehicle with KESSY or ACC) |
| 3 | Relay for ignition |
| 4 | Right-hand light, rear fog light, license plate light |
| 5 | Power windows – driver |
| 6 | Central control unit, interior lighting |
| 7 | Horn |
| 8 | Towing hitch – left light |
| 9 | Operating lever beneath the steering wheel, engine control unit (only without KESSY), automatic gearbox (only without KESSY), selector lever of the automatic gearbox (only without KESSY), ESC (only without KESSY), control unit for trailer detection (only without KESSY), power steering (only without KESSY), airbag (only without KESSY) |
| 10 | Power windows – rear left |
| 11 | Headlight cleaning system |
| 12 | Radio display |
| 13 | 2015-2019: 12-volt socket in luggage compartment |
| 14 | Operating lever under the steering wheel, light switch, ignition key removal lock (automatic gearbox), diagnostic connector, headlight flasher, SmartGate controller, rain sensor, light sensor |
| 15 | Control unit for air conditioning system, selector lever of the automatic gearbox |
| 16 | Instrument cluster, emergency call |
| 17 | Alarm system, horn |
| 18 | 2020: Databus |
| 19 | Not assigned |
| 20 | Not assigned |
| 21 | Not assigned |
| 22 | Front and rear windscreen wiper system |
| 23 | Not assigned |
| 24 | Blower fan for air conditioning system, heating, control unit for air conditioning, heating |
| 25 | Not assigned |
| 26 | Heated front seats |
| 27 | Rear window wiper |
| 28 | Not assigned |
| 29 | Airbag |
| 30 | Power windows (2015-2018), light switches, reverse light switches, control unit for air conditioning system, control unit for park assist, exterior mirror, power feed for center button strip, power feed for side button strip, interior mirror |
| 31 | Fuel pump, control unit for radiator fan, cruise control, coil of the relay for the front and rear windscreen wipers |
| 32 | 2015-2018: Diagnostic connector, headlight range adjustment 2019-2020: Diagnostics connection, headlamp leveling, washing nozzle heating, LED headlights |
| 33 | Coil on starter relay, clutch pedal switch |
| 34 | 2015-2018: Heated windscreen washer jets 2019-2020: USB charge function |
| 35 | 2015-2018: Not assigned 2019-2020: “Blind spot” detection |
| 36 | Heated front seats |
| 37 | Radar |
| 38 | Not assigned |
| 39 | 2015-2018: Electrical auxiliary heating system 2019-2020: Not assigned |
| 40 | 2019-2020: Databus |
| 41 | Rear window heater |
| 42 | Power windows – front passenger |
| 43 | Towing hitch – contact in the socket |
| 44 | Cigarette lighter, 12-volt power socket |
| 45 | Power windows – rear right |
| 46 | Front and rear window washer, operating lever under the steering wheel |
| 47 | Towing hitch – contact in the socket |
| 48 | Towing hitch – right light |
| 49 | Control unit for fuel pump |
| 50 | Radio |
| 51 | Heating of the external mirror, washer nozzle heating |
| 52 | KESSY control unit |
| 53 | KESSY steering lock |
| 54 | Not assigned |
| 55 | 2015-2018: Heated front seats |
| 56 | Not assigned |
| 57 | Not assigned |
| 58 | Not assigned |
| 59 | Not assigned |
Engine Compartment Fuse Box
Skoda Fabia (2015 to 2020)

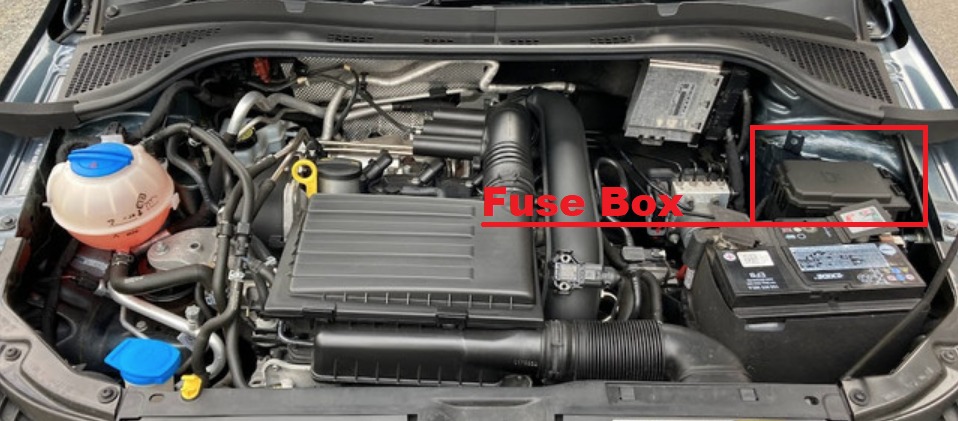

Fuse Box Location

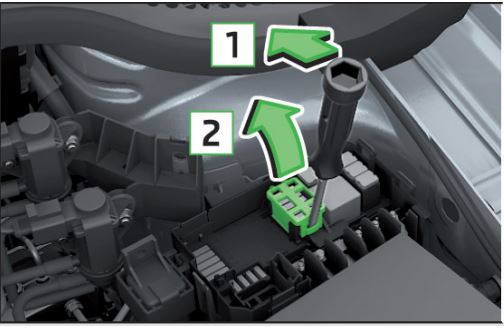

Remove the cover

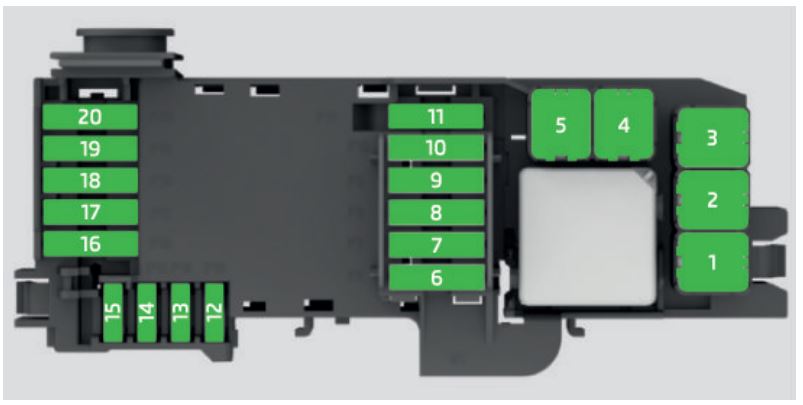

Fuse Box Diagram
| No. | Power consumer |
|---|---|
| 1 | Radiator fan |
| 2 | 2015-2018: Control unit for glow plug system |
| 3 | Control unit for ABS/ESC |
| 4 | 2015-2018: Electrical auxiliary heating system |
| 5 | 2015-2018: Electrical auxiliary heating system |
| 6 | Automatic gearbox |
| 7 | Engine control unit |
| 8 | Windscreen wipers |
| 9 | Central control unit / 12 volt battery data module |
| 10 | Control unit for ABS/ESC |
| 11 | 2015-2018: Not assigned 2019-2020: Vacuum pump for the brake system |
| 12 | Engine components |
| 13 | Brake pedal switch |
| 14 | Engine components, coil of the fuel pump relay |
| 15 | Engine control unit |
| 16 | Starter |
| 17 | Engine control unit |
| 18 | 2015-2018: Engine components, coils of the relay for auxiliary electric heater, radiator fan 2019-2020: Radiator fan, wastegate, oil temperature sensor, valve for activated charcoal filter, valve for intake manifold |
| 19 | Lambda probe |
| 20 | 2015-2018: Engine components, control unit for glow plug system, heating the crankcase ventilation 2019-2020: Ignition coils |
