Skoda Superb (2001 – 2007) Fuse Box Location and Diagrams
The 2001–2007 Skoda Superb is covered here. Finding thorough fuse box diagrams, the location of the fuse panels, and the fuse assignments will help you diagnose electrical difficulties.
Passenger Compartment Fuse Box
Skoda Superb (2001 to 2007)
Fuse Box Location

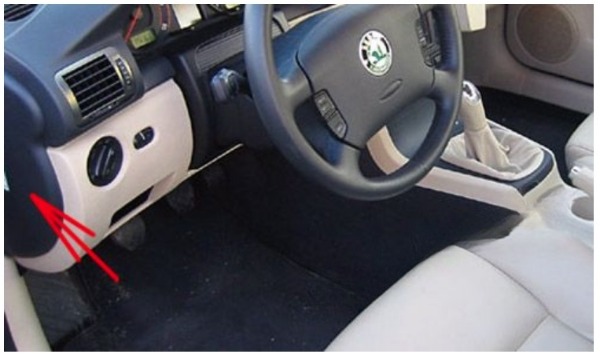

The fuse box is located on the left side of the dash panel behind a cover.

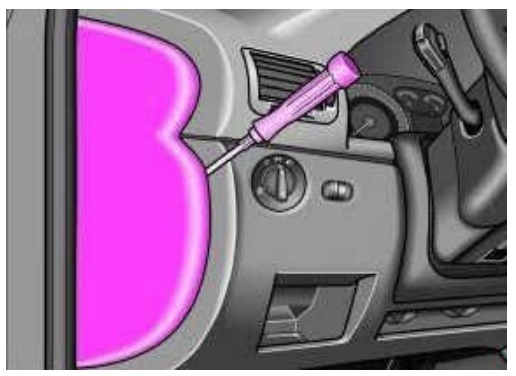

Use a screwdriver to take off the fuse box cover.

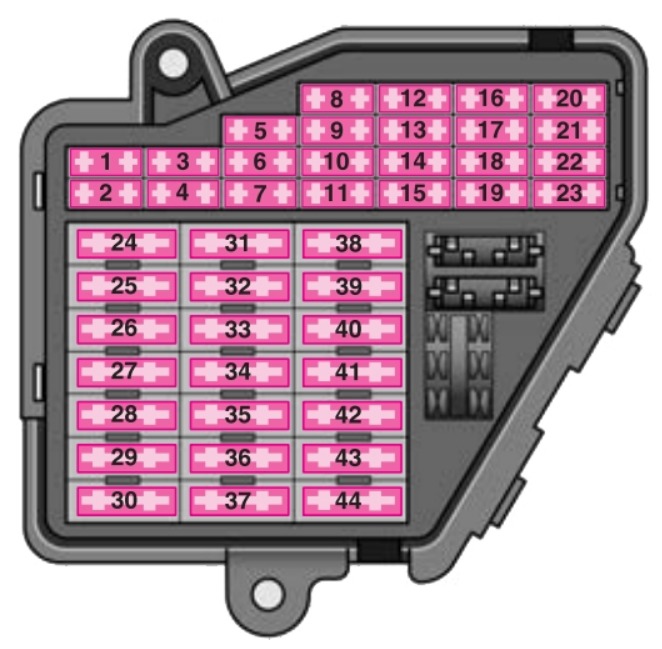

Fuse Box Diagram
Assignment of the fuses in the dash panel
| No | Power consumer | Amperes |
|---|---|---|
| 1 | Heatable windscreen washing nozzles | 5 |
| 2 | Turn signals | 10 |
| 3 | Not assigned | |
| 4 | Licence plate light | 5 |
| 5 | Instrument cluster – warning lights, seat heaters, cruise control system, exterior mirror adjustment, lighting of controls and switches, outside temperature display, air conditioning, audible parking aid, navigation system, multifunction steering wheel | 10 |
| 6 | Heating of the external mirror | 5 |
| 7 | ABS, EDS, ASR, ESP, cruise control system, engine electronics | 10 |
| 8 | Automatic headlight beam adjustment | 5 |
| 9 | Parking aid | 5 |
| 10 | CD changer, mobile phone, multifunction steering wheel | 5 |
| 11 | Electrically adjustable seats (until 2006) | 5 |
| 11 | DVD player (since 2006) | 7.5 |
| 12 | Power supply for diagnostic socket | 10 |
| 13 | Brake lights | 10 |
| 14 | Central locking control unit, interior lighting | 10 |
| 15 | Instrument cluster, air conditioning, automatic gearbox, exterior mirror adjustment memory and navigation system | 10 |
| 16 | ESP | 5 |
| 17 | Two-way radio system, special vehicles (police etc.) | 10 |
| 18 | Right main beam | 10 |
| 19 | Left main beam | 10 |
| 20 | Low beam on the right | 15 |
| 21 | Low beam on the left | 15 |
| 22 | Parking light on the right | 5 |
| 23 | Parking light on the left | 5 |
| 24 | Windscreen washer system, windscreen wiper pump and intermittent switch | 25 |
| 25 | Fan for fresh air, the air conditioning unit, Climatronic | 30 |
| 26 | Rear window heating, recirculated air mode | 30 |
| 27 | Not assigned | |
| 28 | Fuel pump, diesel additional pump | 20 |
| 29 | Engine control | 20 |
| 30 | Electric sliding/tilting roof / DVD player | 20/7.5 |
| 31 | Reversing lights, cruise control system, automatic gearbox, automatic dimming interior mirror | 15 |
| 32 | Engine control, cruise control system | 20 |
| 33 | Cigarette lighter | 15 |
| 34 | Engine control | 15 |
| 35 | Trailer socket | 30 |
| 36 | Fog lights | 15 |
| 37 | Radio, navigation | 20 |
| 38 | Central locking system | 15 |
| 39 | Hazard warning light system | 15 |
| 40 | Horn | 25 |
| 41 | Not assigned | |
| 42 | ESP | 25 |
| 43 | Engine control | 15 |
| 44 | Seat heaters | 30 |
