Suzuki Swift (2004 – 2010) Fuse Box Location & Diagrams
The Suzuki Swift (2004-2010) is a compact and reliable car, and understanding its fuse box layout is key to maintaining smooth operation. This user guide offers a step-by-step breakdown of fuse box locations and diagrams, making it easier to troubleshoot electrical issues and replace blown fuses. Keep your Suzuki Swift running efficiently with this helpful guide.
Passenger Compartment Fuse Box
Suzuki Swift (2004 to 2010)
Fuse Box Location

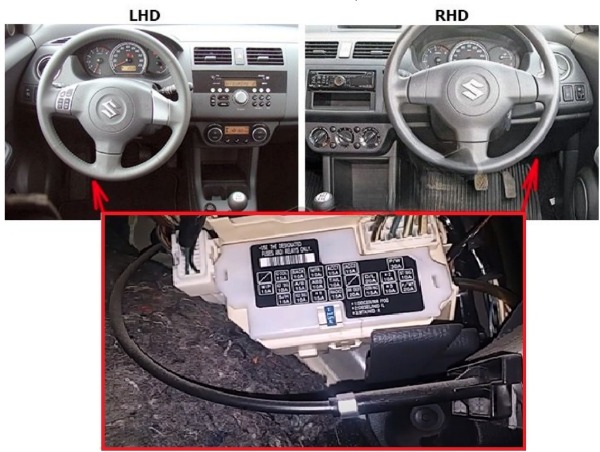

The fuse box is located under the instrument panel (on the driver’s side).

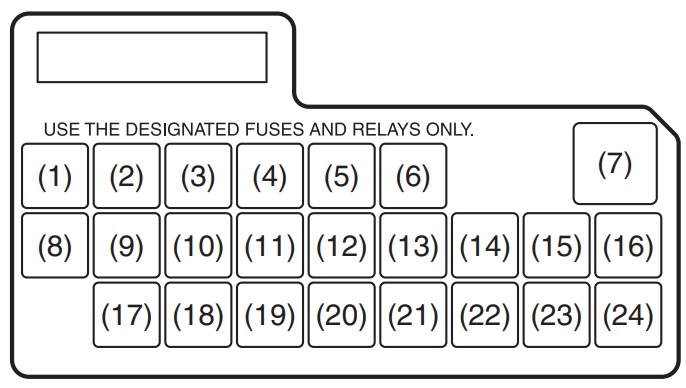

Fuse Box Diagram
| № | Amp | Function/component |
|---|---|---|
| 1 | – | Not used |
| 2 | 15 | Ignition coil |
| 3 | 10 | Back-up light |
| 4 | 10 | Meter |
| 5 | 15 | Cigar |
| 6 | 15 | Accessory |
| 7 | 30 | Power window |
| 8 | 15 | Wiper / Washer |
| 9 | 10 | Power steering / IG1 Signal |
| 10 | 15 | Air bag |
| 11 | 10 | Anti-lock brake system |
| 12 | 10 | Tail light |
| 13 | – | Not used |
| 14 | 20 | Door lock |
| 15 | 10 | Immobilizer (Diesel Engine) |
| 16 | 10 | Starting motor |
| 17 | – | Not used |
| 18 | 10 | Heater / IG2 Signal |
| 19 | 15 | RR fog lamp |
| 20 | 15 | Radio / Dome |
| 21 | 20 | Rear defogger |
| 22 | 15 | Horn / Hazard |
| 23 | – | Not used |
| 24 | – | Not used |
Engine Compartment Fuse Box
Suzuki Swift (2004 to 2010)

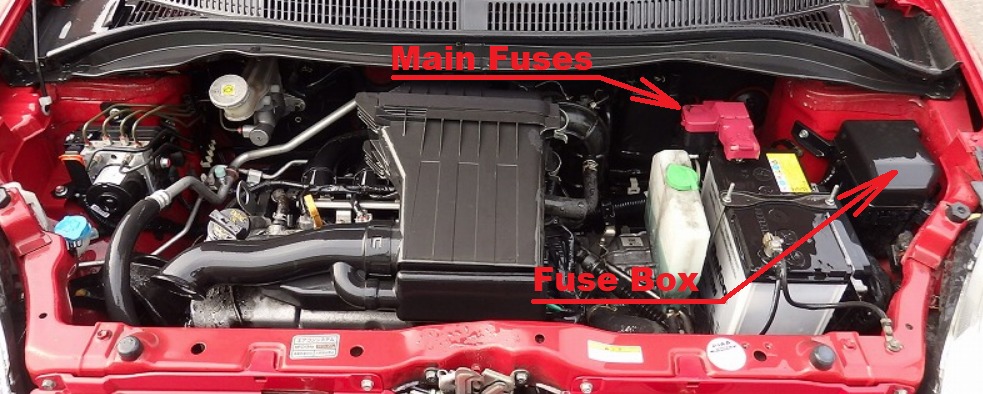

Fuse Box Location

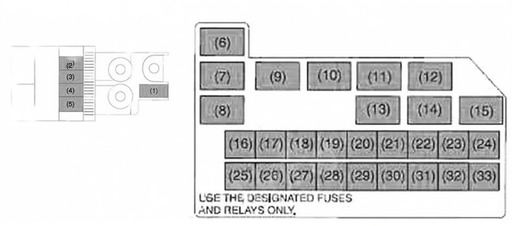

Fuse box diagram (Gasoline)
| № | Amp | Function/component |
|---|---|---|
| 1 | 80 | All electric load |
| 2 | 50 | Power window, Ignition, Wiper, Starter |
| 3 | 50 | Tail light, Rear defogger, Door lock, Hazard/Horn, Dome |
| 4 | 80 | Heater, Air compressor, Power steering |
| 5 | 80 | Radiator fan, Front fog light, Head light |
| 16 | 30 | Heater |
| 17 | 15 | FI |
| 18 | 10 | Air compressor |
| 19 | – | Not used |
| 20 | 15 | Brake light switch |
| 21 | 30 | ABS control module |
| 22 | 30 | Starting motor |
| 23 | – | Not used |
| 24 | 50 | Power steering control module |
| 25 | 30 | Ignition switch |
| 26 | 30 | Radiator fan |
| 27 | – | Not used |
| 28 | 30 | ABS control module |
| 29 | – | Not used |
| 30 | – | Not used |
| 31 | 15 | Front fog light |
| 32 | 15 | Headlight (Left) |
| 33 | 15 | Headlight (Right) |
| Relays | ||
| 6 | Radiator fan relay #1 | |
| 7 | Radiator fan relay #2 | |
| 8 | Radiator fan relay #3 | |
| 9 | Starting motor relay | |
| 10 | Main relay | |
| 11 | Not used | |
| 12 | Front fog light relay | |
| 13 | Fuel pump relay | |
| 14 | Air compressor relay | |
| 15 | Not used |

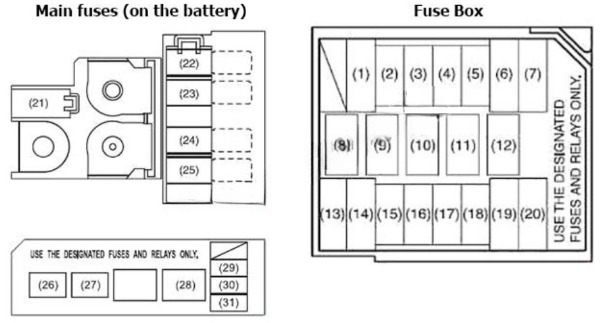

Fuse box diagram (Diesel)
| № | Amp | Function/component |
|---|---|---|
| 1 | 30 | Starting motor |
| 2 | 10 | Air compressor |
| 3 | 15 | Fuel pump |
| 4 | 30 | FI |
| 5 | 30 | Heater |
| 6 | 30 | Radiator fan |
| 7 | 50 | Power steering control module |
| 13 | 30 | ABS control module |
| 14 | 30 | ABS control module |
| 15 | 15 | Brake light switch |
| 16 | 15 | Headlight (Right) |
| 17 | 15 | Headlight (Left) |
| 18 | 15 | Front fog light |
| 19 | 30 | Ignition switch |
| 20 | 50 | Power window, Ignition, Wiper, Starter |
| 21 | 100 | Main |
| 22 | 100 | EPS, A/C, Fuel pump, IG1 |
| 23 | 100 | Lamps, ABS, ACC, IG2 |
| 24 | 50 | Junction box |
| 25 | 80 | Glow controller |
| 29 | 20 | F.l. |
| 30 | 20 | ECU (if equipped) |
| 31 | 10 | ECU, EGR |
| Relays | ||
| 8 | Radiator fan relay #1 | |
| 9 | Radiator fan relay #2 | |
| 10 | Radiator fan relay #3 | |
| 11 | Air compressor relay | |
| 12 | Starting motor relay | |
| 26 | Fog Lamp relay | |
| 27 | Fuel pump relay | |
| 28 | F.l. main relay |
